DTC Always ON Malfunction In Brake ECU

CIRCUIT DESCRIPTION

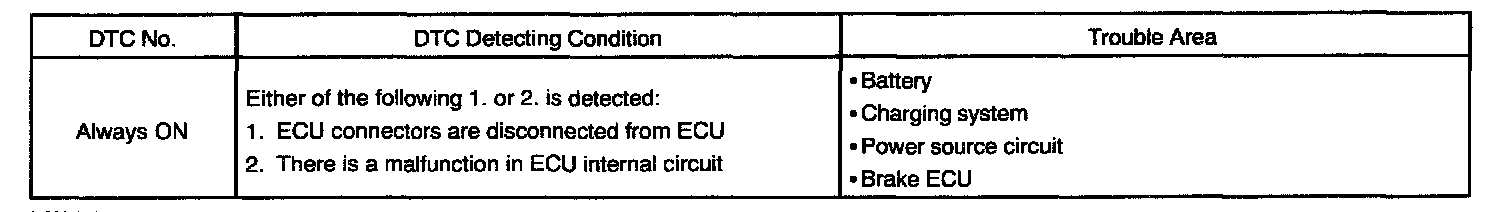

DTC Detecting Condition:






HINT: There is a case that TOYOTA hand-held tester cannot be used when ECU is abnormal.

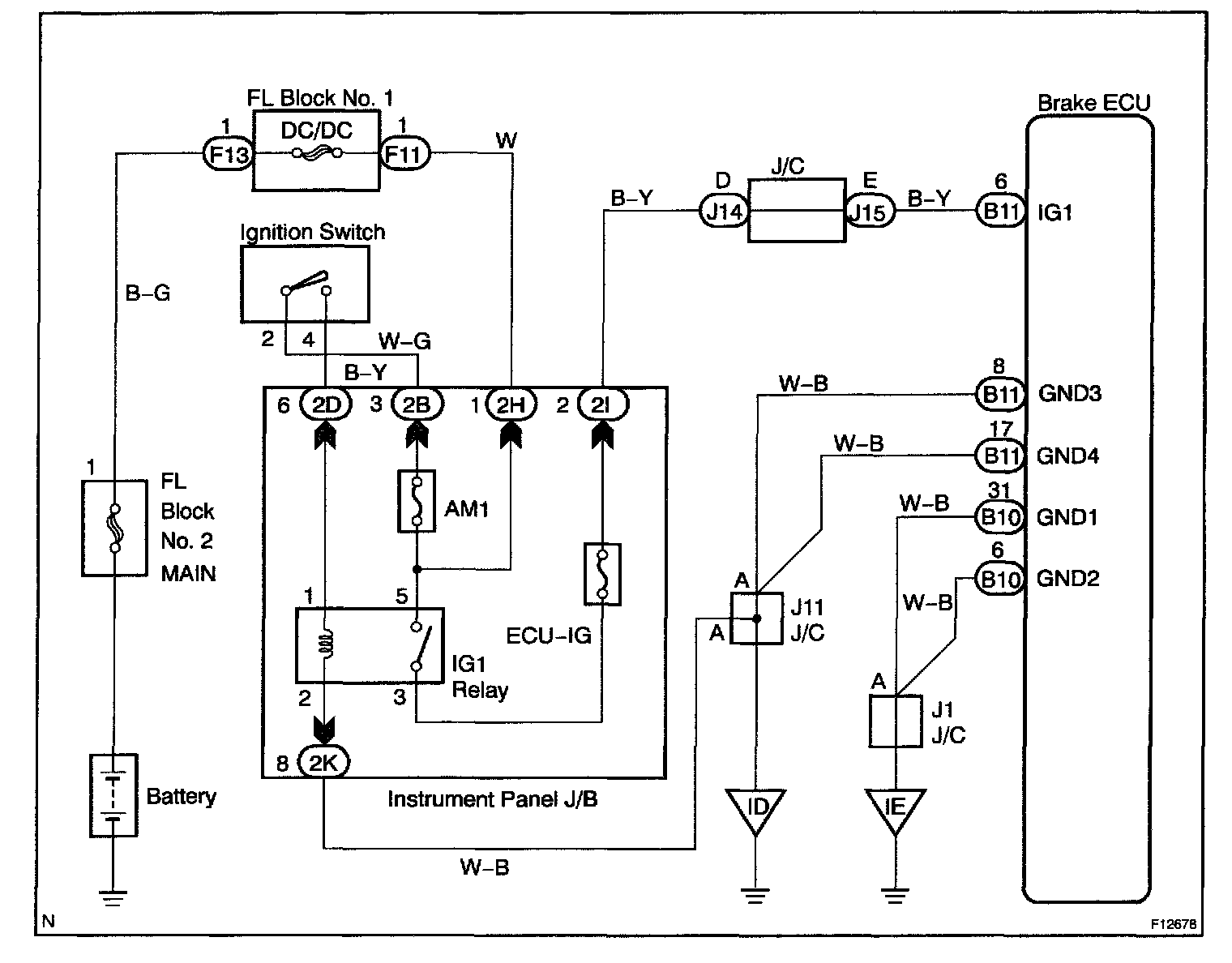

Wiring Diagram:

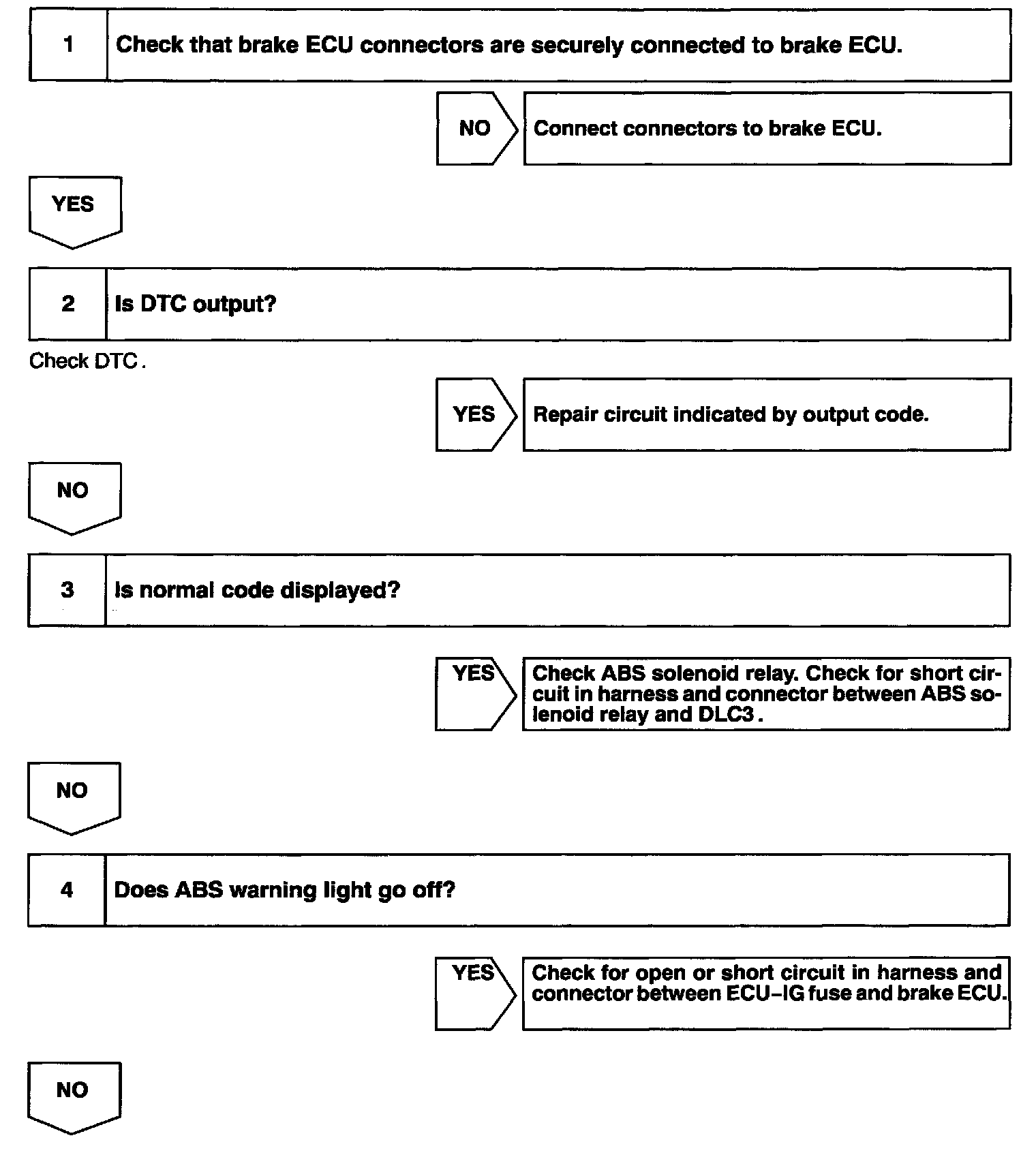

Step 1 - 4:

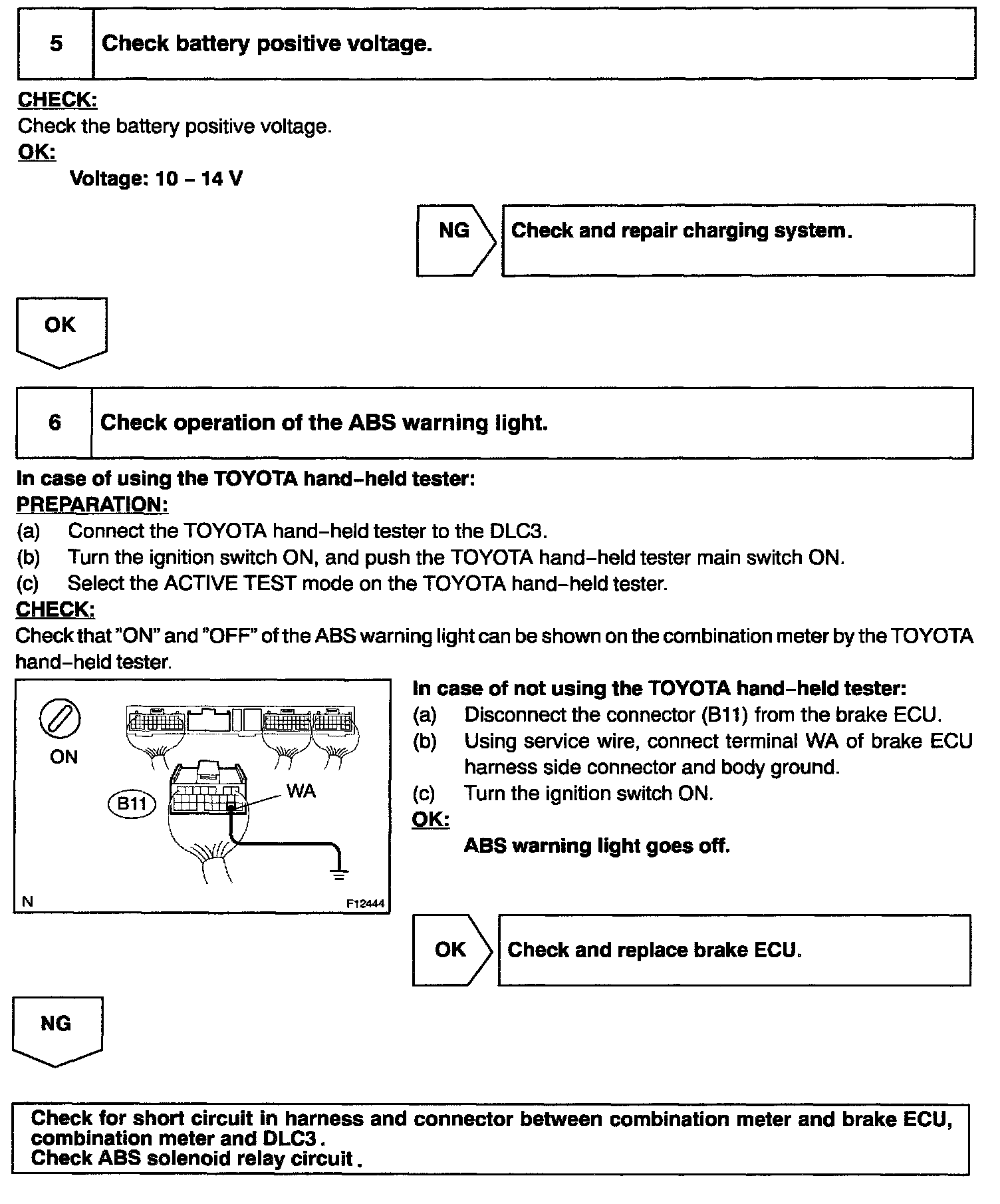

Step 5 - 6:




INSPECTION PROCEDURE
