Front Seat

DISASSEMBLY

CAUTION:
- When storing the seatback frame with the side airbag assembly, do not face down the airbag deployment side.
- Never disassemble the side airbag assembly.

1. REMOVE HEADREST
2. REMOVE RECLINING RELEASE HANDLE




3. REMOVE SEAT CUSHION SHIELD

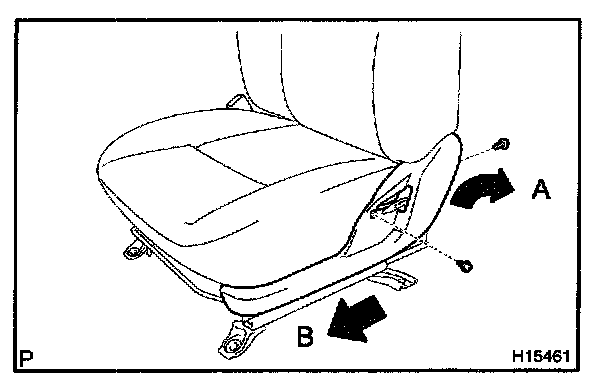

Remove the 2 screws and seat cushion shield as shown in the illustration.

HINT: Remove the seat cushion shield in order A, B as shown in the illustration.

4. REMOVE FRONT SEAT INNER BELT
Remove the bolt and front seat inner belt.

5. REMOVE SEAT CUSHION INNER SHIELD
Remove the 2 screws and seat cushion inner shield.




6. w/o Side airbag:
REMOVE SEATBACK ASSEMBLY

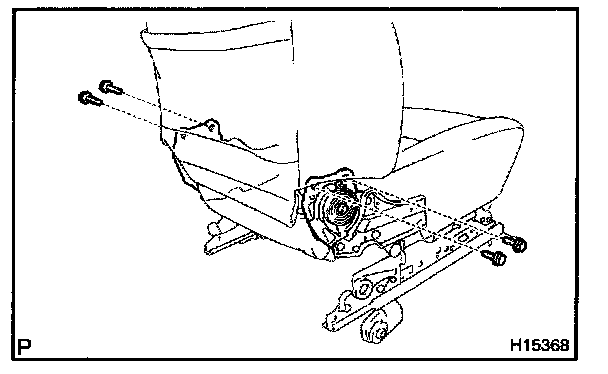

Remove the 4 bolts and seatback assembly.

7. w/ Side airbag:
REMOVE SEATBACK ASSEMBLY

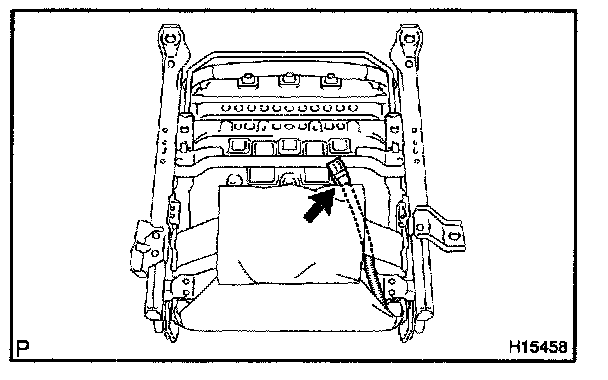

a. Remove the clamp from wire harness of side airbag installed under the seat, then pull out the wire harness.
b. Remove the side airbag connector from the under the seat.
c. Remove the 4 bolts and seatback assembly.

8. w/o Side airbag:
REMOVE SEATBACK COVER




a. Remove the hog rings.
b. Remove the headrest supports.
c. Remove the seatback cover with pad from the seatback frame.
d. Remove the seatback cover from the seatback pad.

9. w/ Side air-bag:
REMOVE SEATBACK COVER




a. Remove the hog rings.
b. Remove seatback cover hook.
c. Remove the headrest supports.
d. Remove the seat back cover with pad from the seatback frame.
e. Remove the seatback cover from the seatback pad.

10. REMOVE SEAT CUSHION COVER WITH PAD

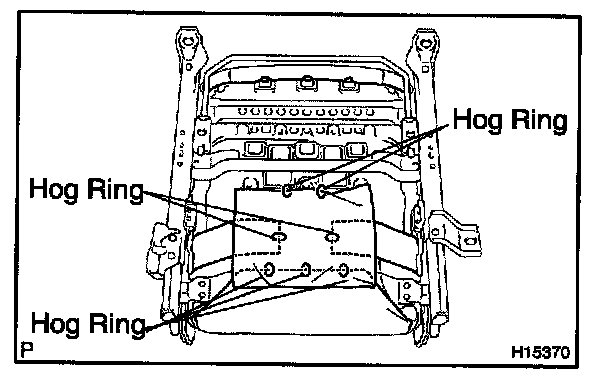

a. Remove the hog rings.
b. Disengage the seat cushion cover hooks and remove the seat cushion cover with pad from the seat cushion frame.

11. REMOVE SEAT CUSHION COVER
a. Remove the hog rings.
b. Remove the seat cushion cover from the seat cushion pad.




12. REMOVE RECLINING ADJUSTER INSIDE COVERS
Remove the 2 screws and 2 reclining adjuster inside covers.

13. REMOVE SEAT TRACK HANDLE

REASSEMBLY

NOTE: If the seatback frame with the side airbag assembly has been dropped, or there are cracks, dents or other defects in the case or connector of the side airbag assembly, replace the seatback frame with a new one.




1. INSTALL SET TRACK HANDLE
2. INSTALL RECLINING ADJUSTER INSIDE COVERS
Install the 2 screws and 2 reclining adjuster inside covers.

3. INSTALL SEAT CUSHION COVER
Install the seat cushion cover with new hog rings to seat cushion pad.

HINT: When installing hog rings, take care to prevent wrinkles as little as possible.

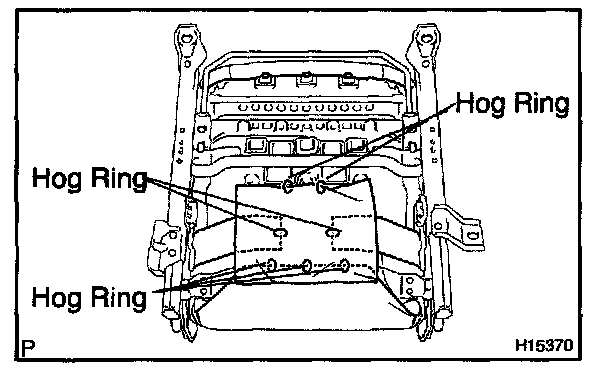

4. INSTALL SEAT CUSHION COVER WITH PAD
Install the seat cushion cover with pad to the seat cushion frame with new hog rings.

HINT: When installing hog rings, take care to prevent wrinkles as little as possible.

5. w/o Side airbag:
INSTALL SEATBACK COVER

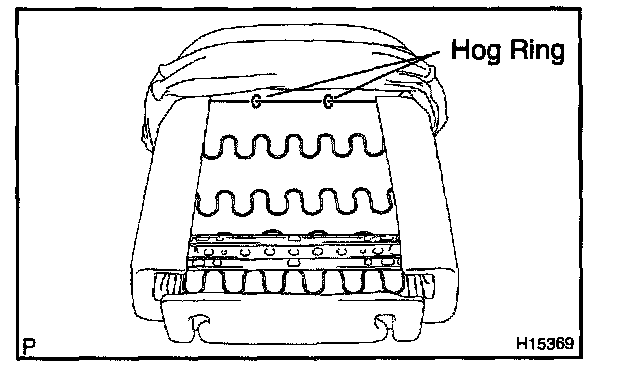

a. Install the seatback cover with new hog rings to the seat-back pad.
b. Install the seatback cover with pad to the seatback frame with new hog ring.
c. Install the headrest supports.

6. w/ Side airbag:
INSTALL SEATBACK COVER




a. Install the seatback cover with new hog rings to the seat-back pad.
b. Install the seatback cover with pad to the seatback frame with new hog rings.

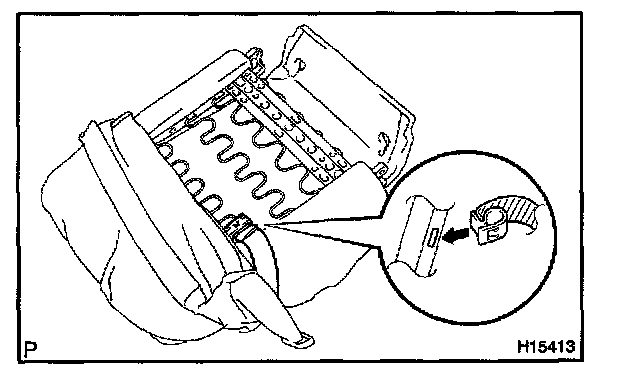

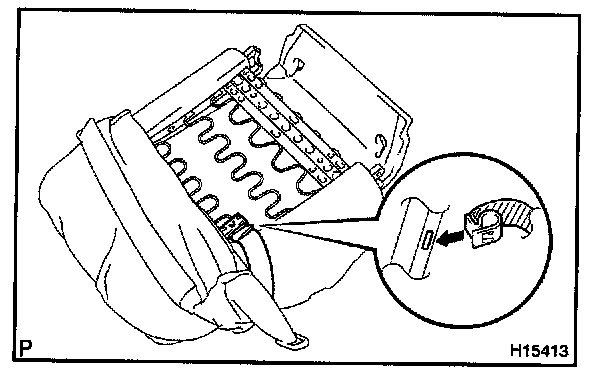

c. Install the seatback cover hook.

CAUTION: Take care to hung the hook securely. Otherwise the seat cover slides, it might cause incorrect deploying.

d. Install the headrest supports.




7. w/o Side airbag:

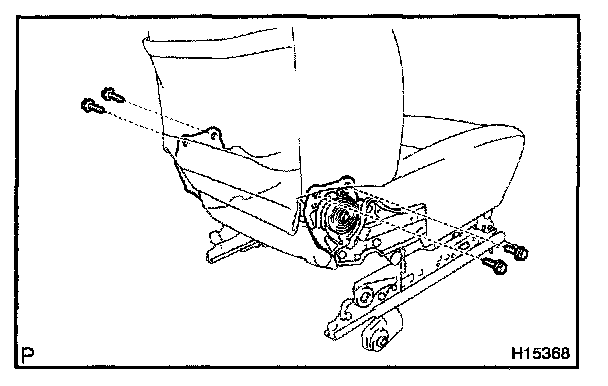

INSTALL SEATBACK ASSEMBLY
Install seatback assembly with 4 bolts.

Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)




8. w/ Side airbag:
INSTALL SEATBACK ASSEMBLY

a. Install the 4 bolts and seatback assembly.

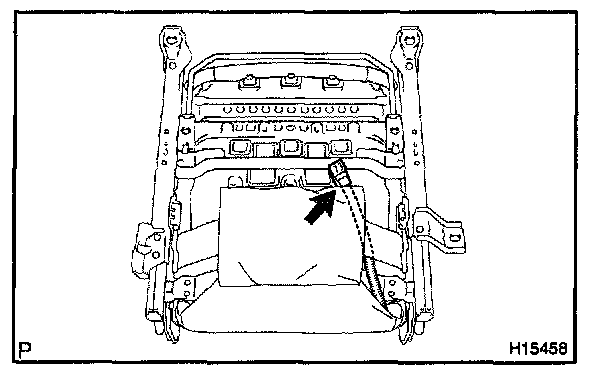

b. Install the side airbag connector from the under the seat.
c. Install the clamp from wire harness of side airbag removed under the seat.

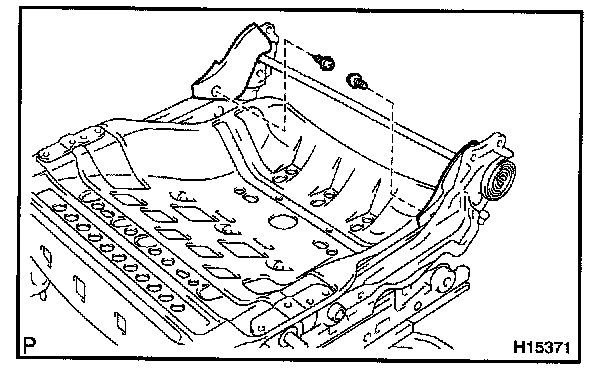

9. INSTALL SEAT CUSHION INNER SHIELD
10. INSTALL FRONT SEAT INNER BELT
Install the front seat inner belt with the bolt.

Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)

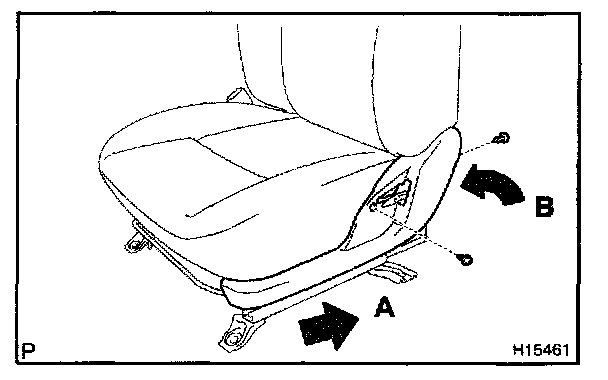

11. INSTALL SEAT CUSHION SHIELD Install the 2 screws and seat cushion shield as shown in the illustration.

HINT: Install the seat cushion shield in order A, B as shown in the illustration.

12. INSTALL RECLINING RELEASE HANDLE
13. INSTALL HEADREST
