Horn Circuit

CIRCUIT DESCRIPTION
The horn is connected to the body ECU and activated by the body ECU.

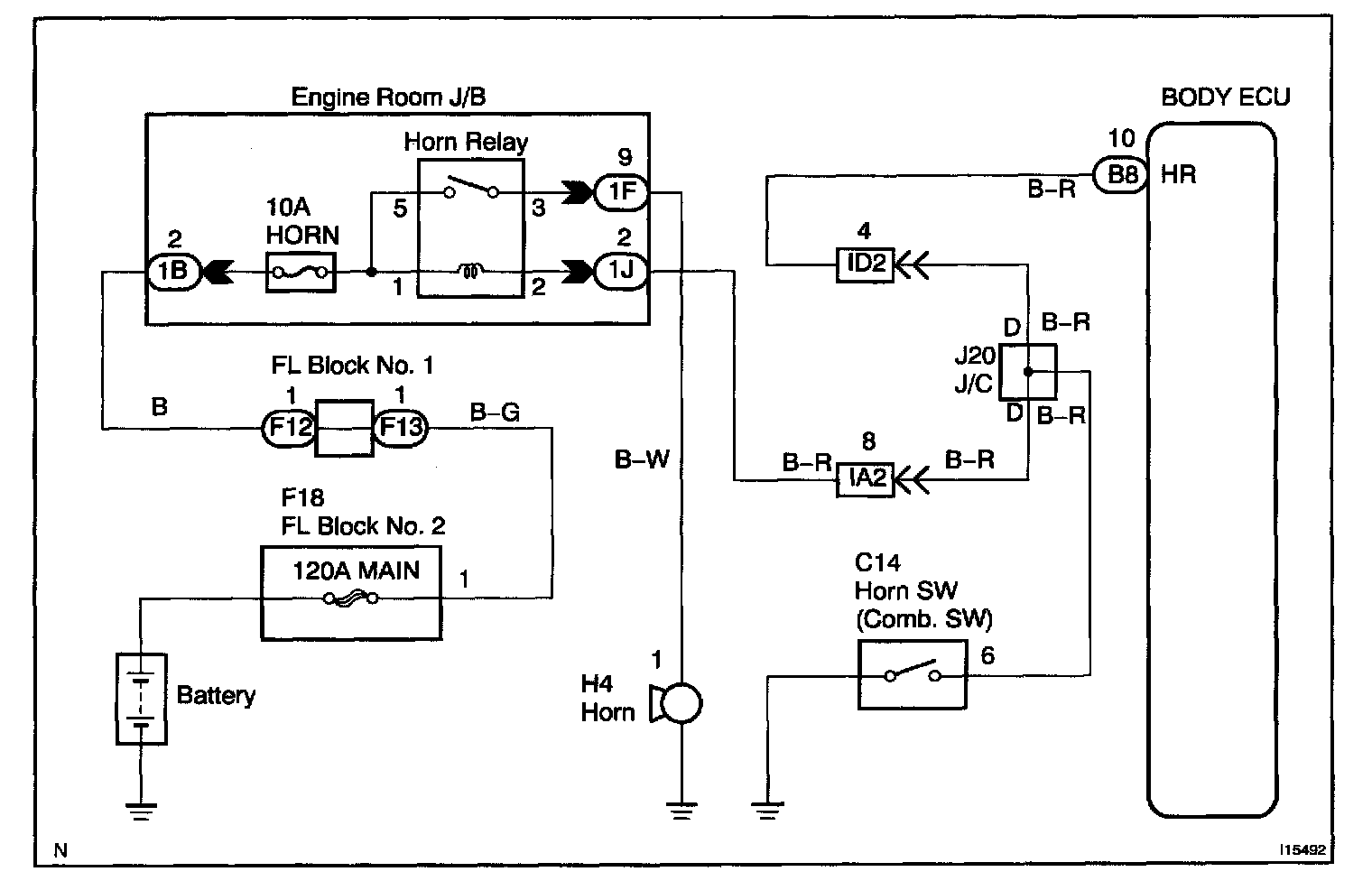

Wiring Diagram:

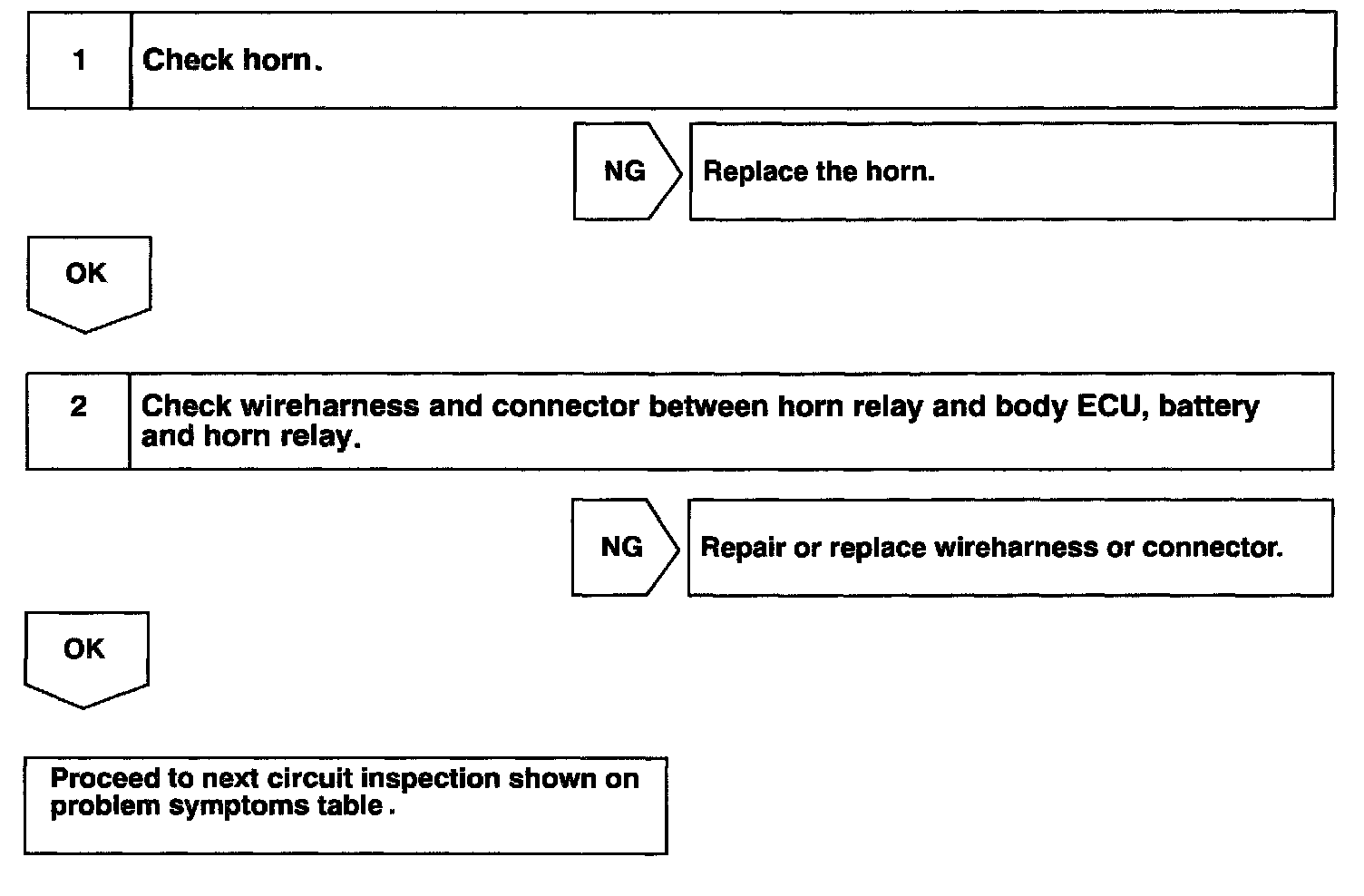

Step 1 - 2:




INSPECTION PROCEDURE
