Hybrid Battery Control System

DTC P3115 HV Battery Current Sensor Malfunction

CIRCUIT DESCRIPTION

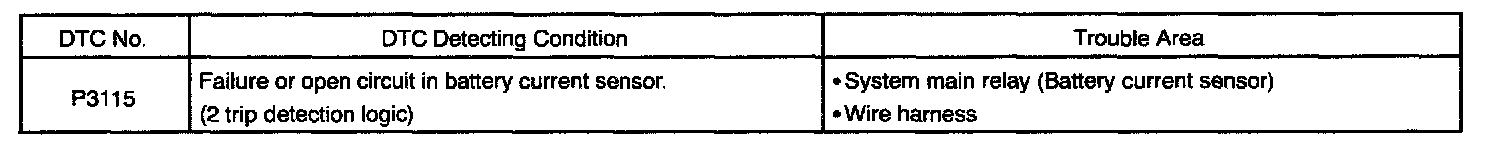

DTC Detecting Condition:

The battery ECU inputs signals from a current sensor in the system main relay and controls the output current.

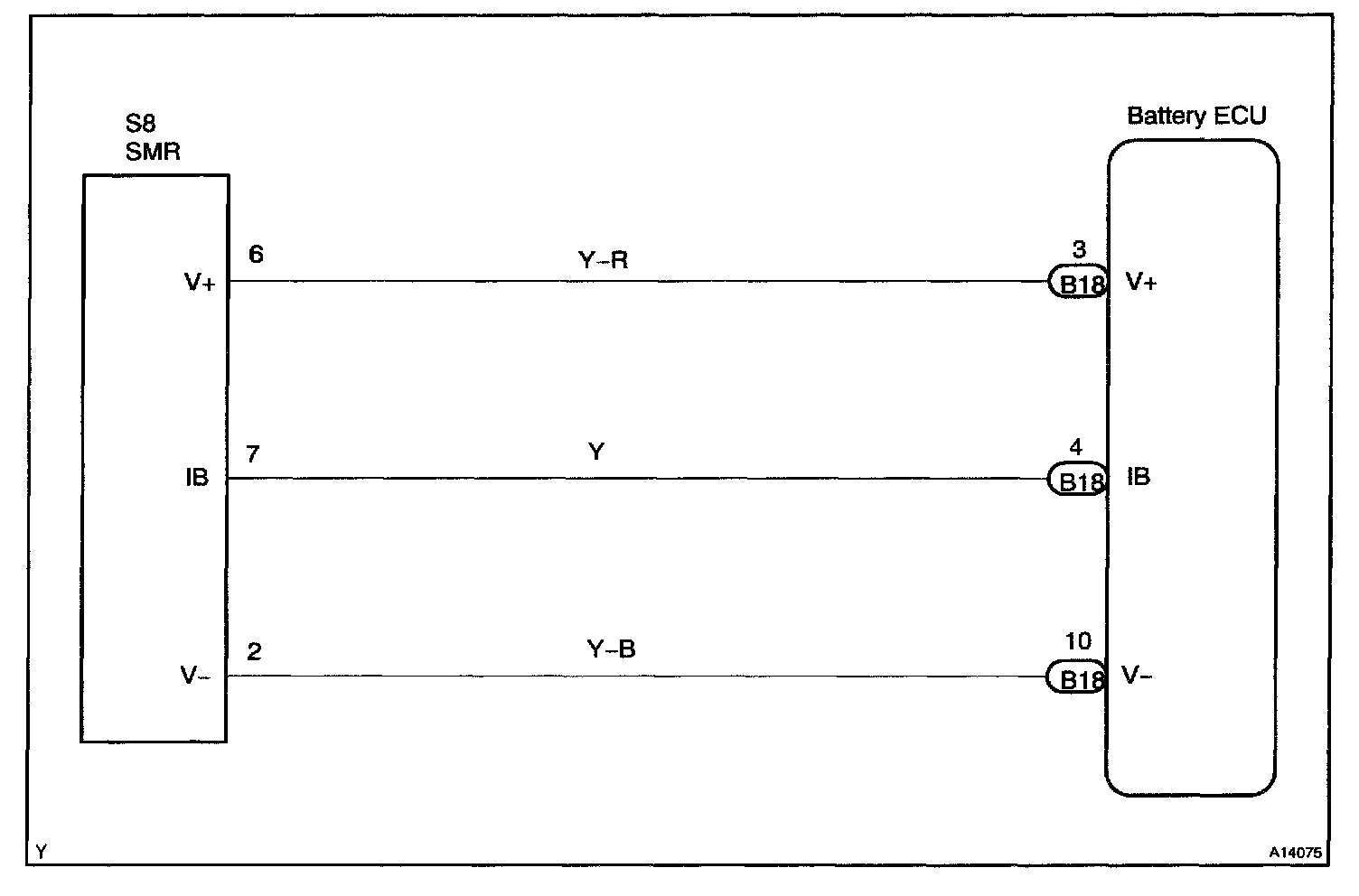

Wiring Diagram:

Step 1 - 2:

Step 3:

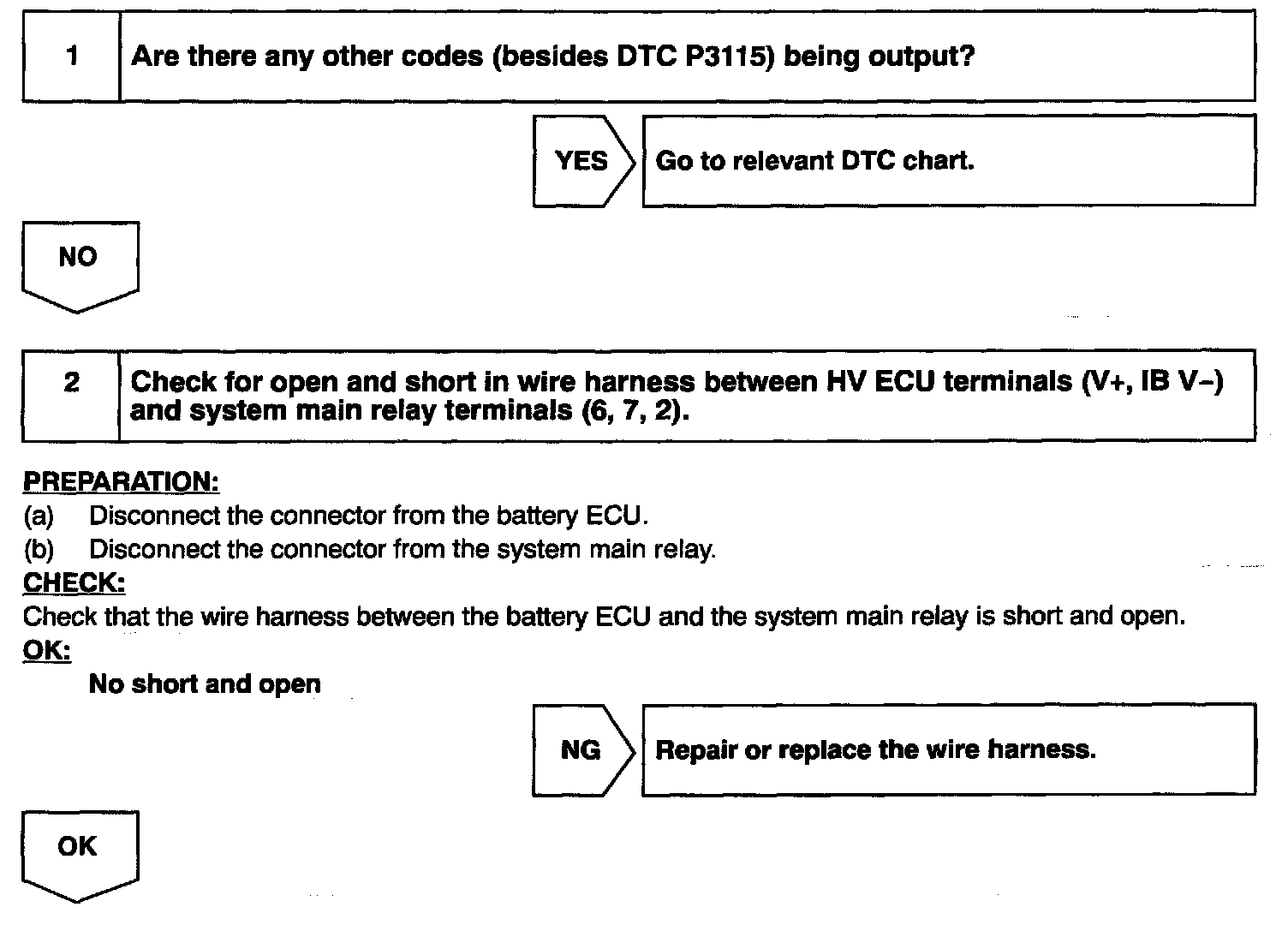

INSPECTION PROCEDURE
