Hybrid Vehicle Control System
DTC P3001 HV Battery ECU MalfunctionCIRCUIT DESCRIPTION
The HV ECU checks the battery voltage circuit for failure by comparing with the inverter voltage.

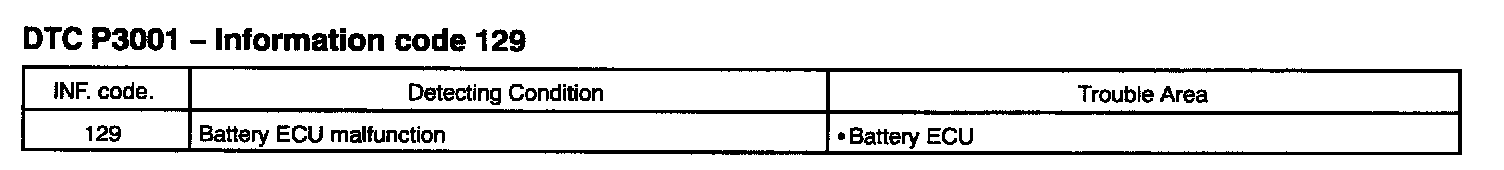

Detecting Condition:
Step 1:

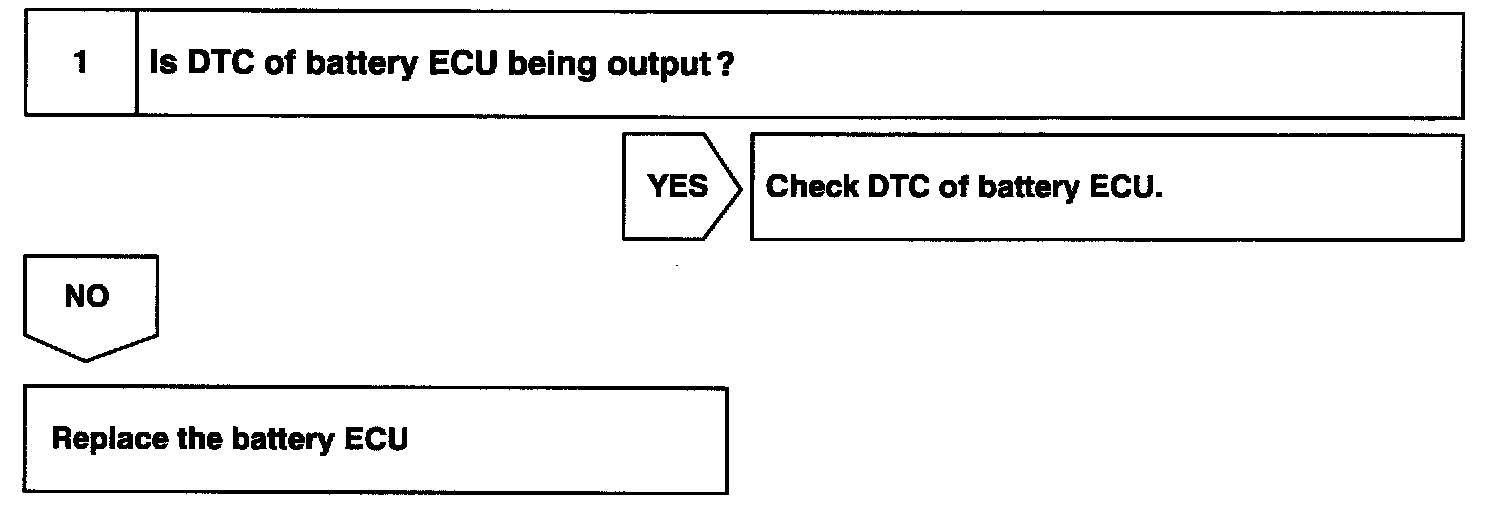

INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
The HV ECU checks the battery voltage circuit for failure by comparing with the inverter voltage.
INSPECTION PROCEDURE
