Hybrid Vehicle Control System

DTC P1600 BATT Malfunction

CIRCUIT DESCRIPTION
Since the ECU back-up power source is used for DTC and freeze frame data memory, the back-up power source (BATT) continues to be supplied to the HV ECU even though the ignition switch is turned OFF.

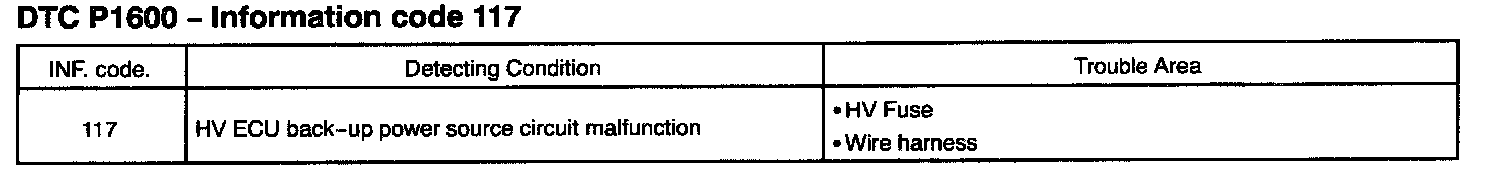

Detecting Condition:

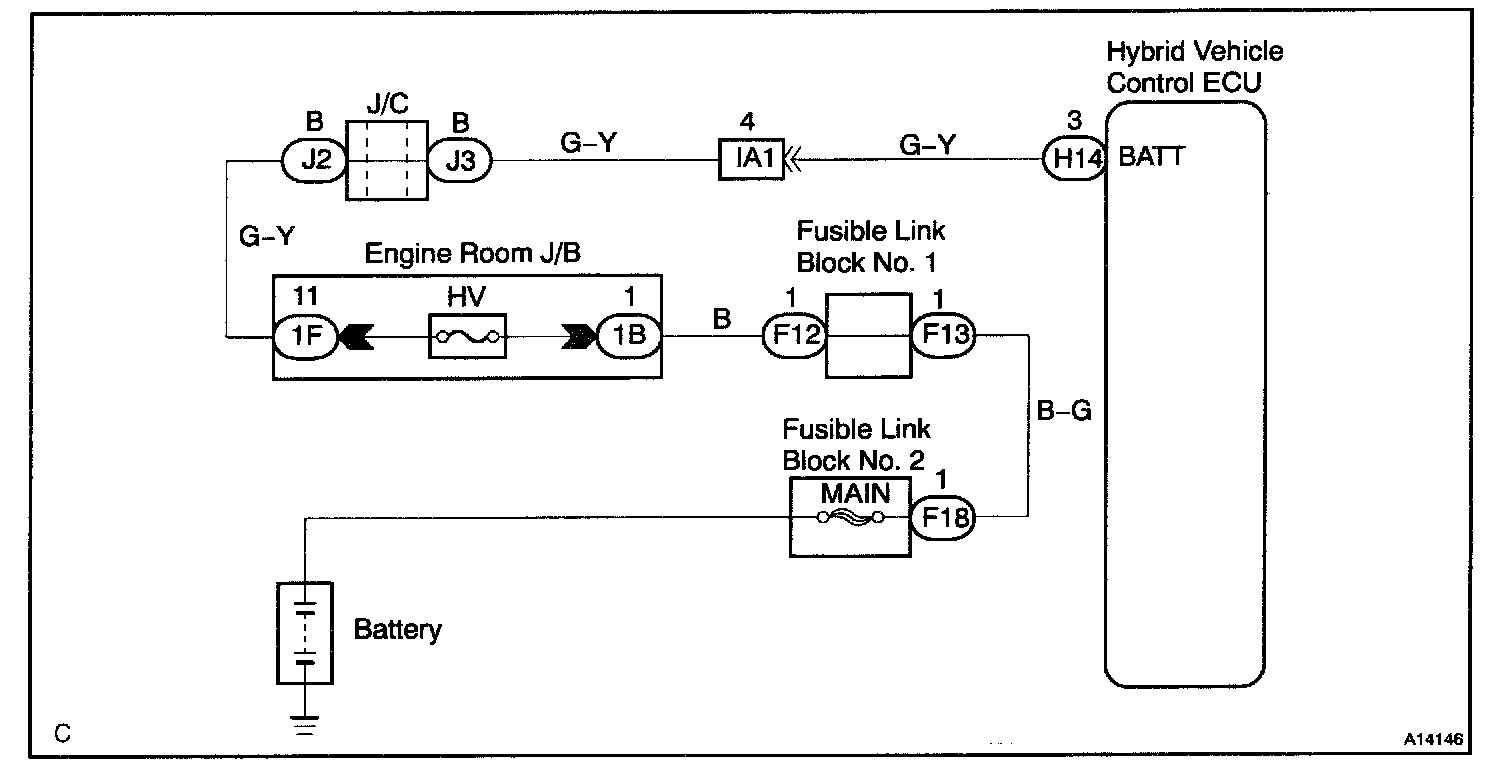

Wiring Diagram:

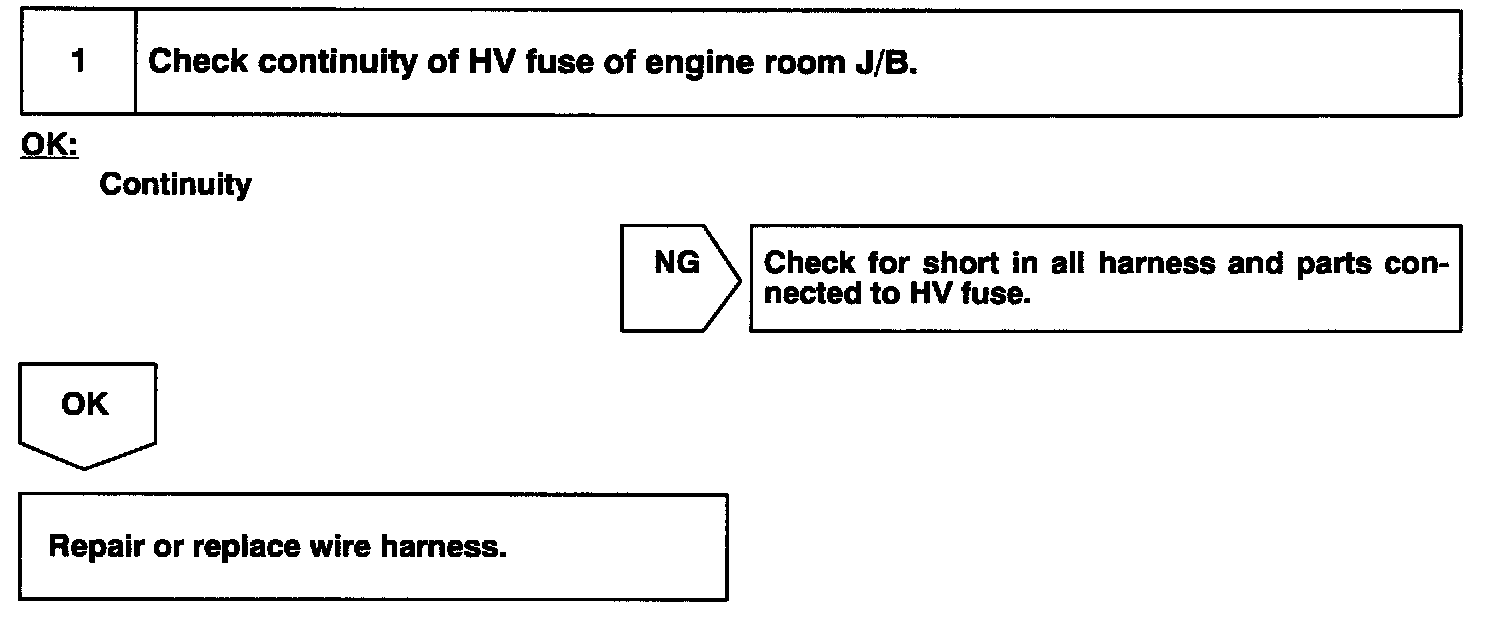

Step 1:

INSPECTION PROCEDURE
