Cruise Control System

DTC P1566 Cruise Control System Malfunction

CIRCUIT DESCRIPTION
The HV ECU and the brake ECU monitor the same STP signal. If any difference is identified between both received signals, the HV ECU outputs an error.

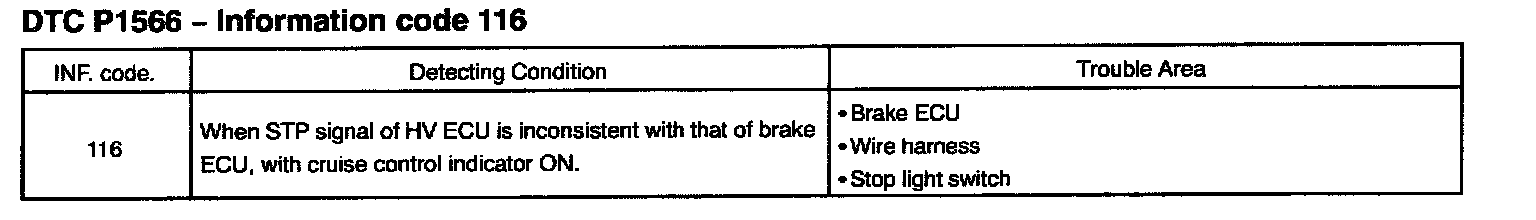

Detecting Condition:

Wiring Diagram:

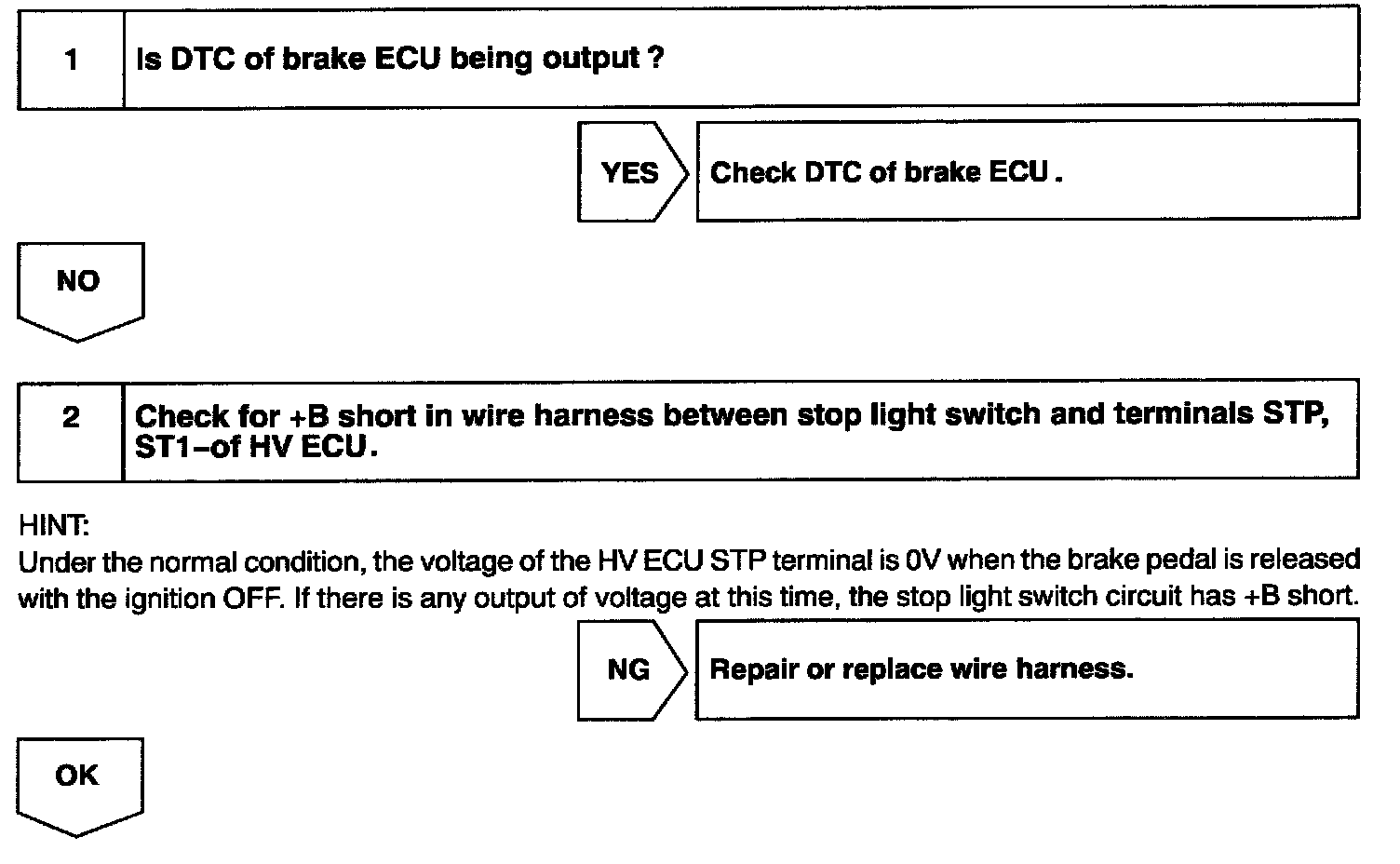

Step 1 - 2:

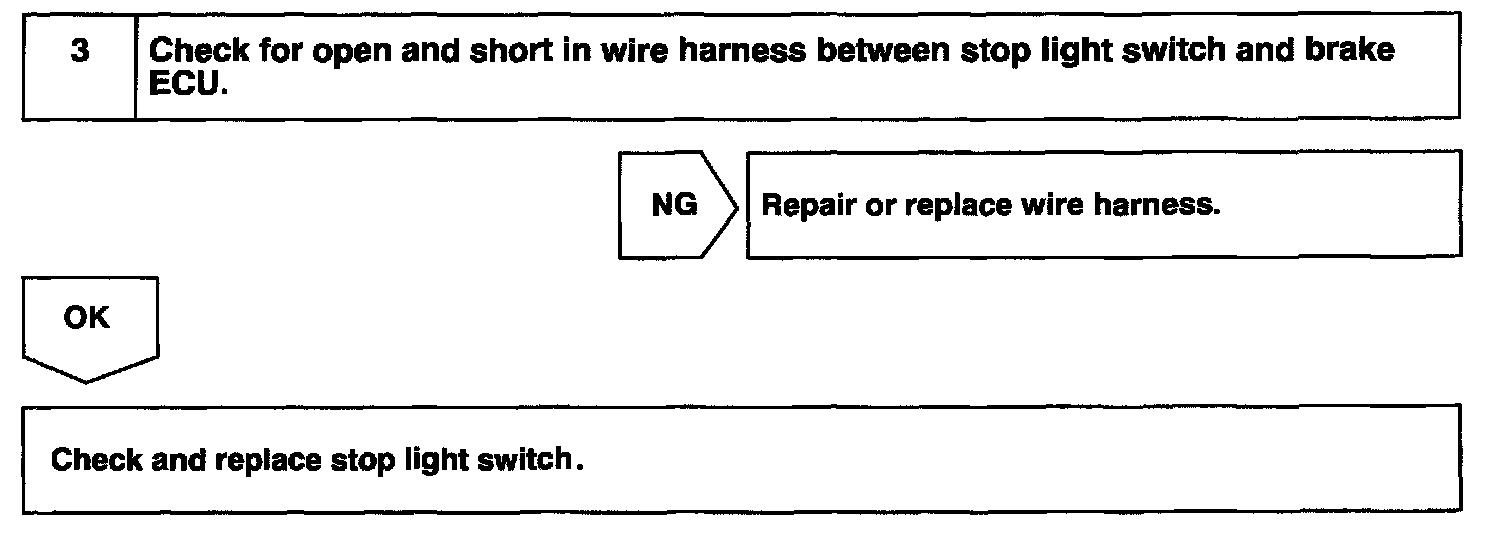

Step 3:

INSPECTION PROCEDURE
