Navigation System

DIAGNOSTIC TROUBLE CODE CHART

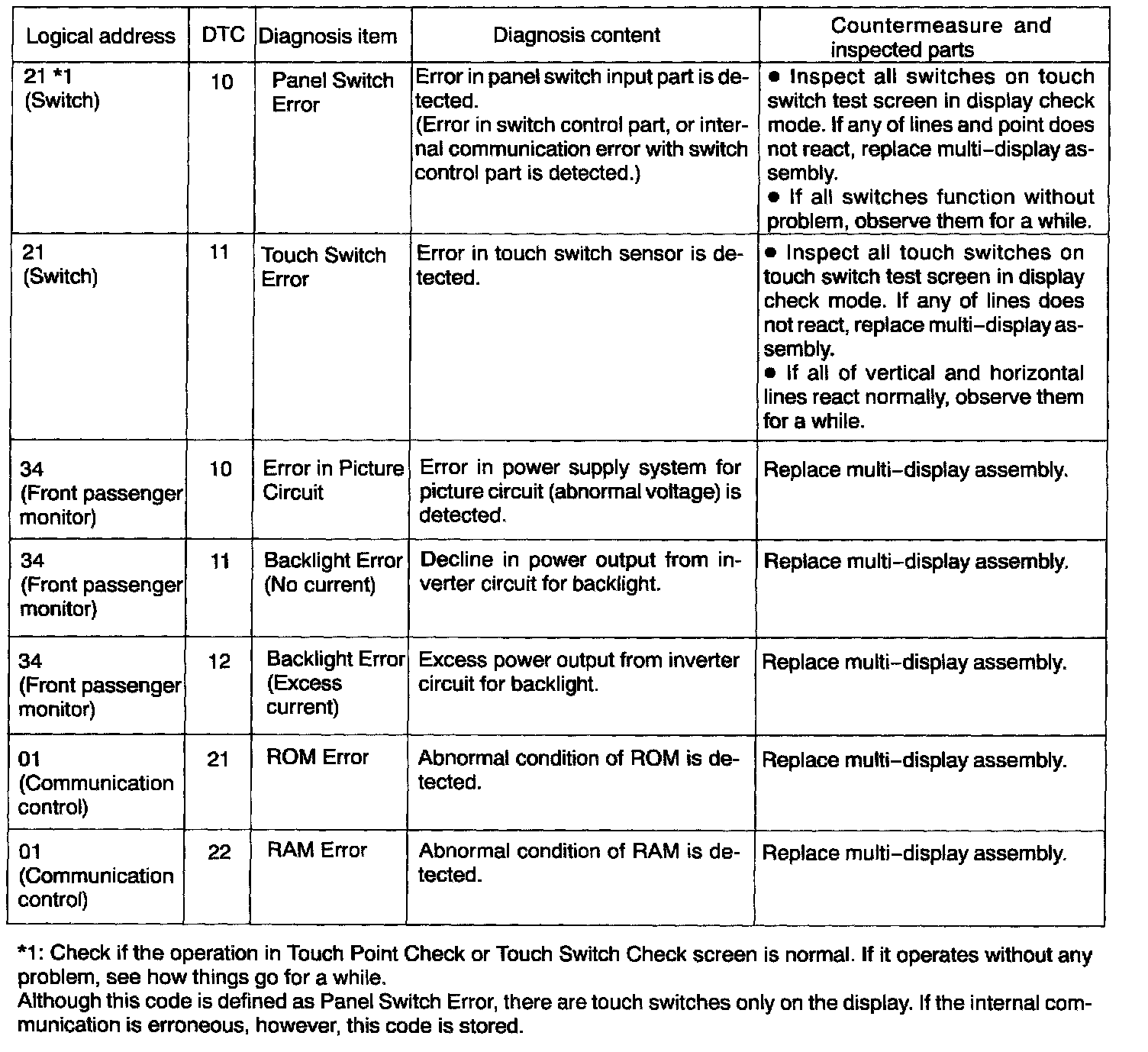

10 - 22:

D5 - D9, DA - DE, E4:

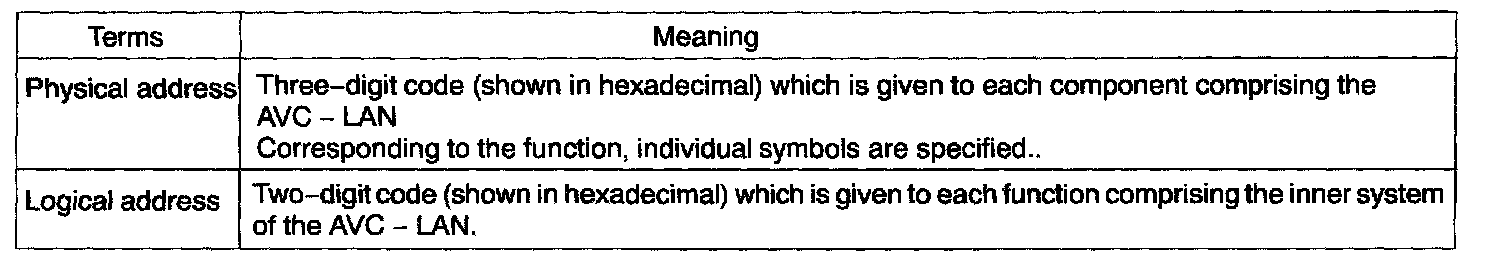

Physical address: 110 Multi display

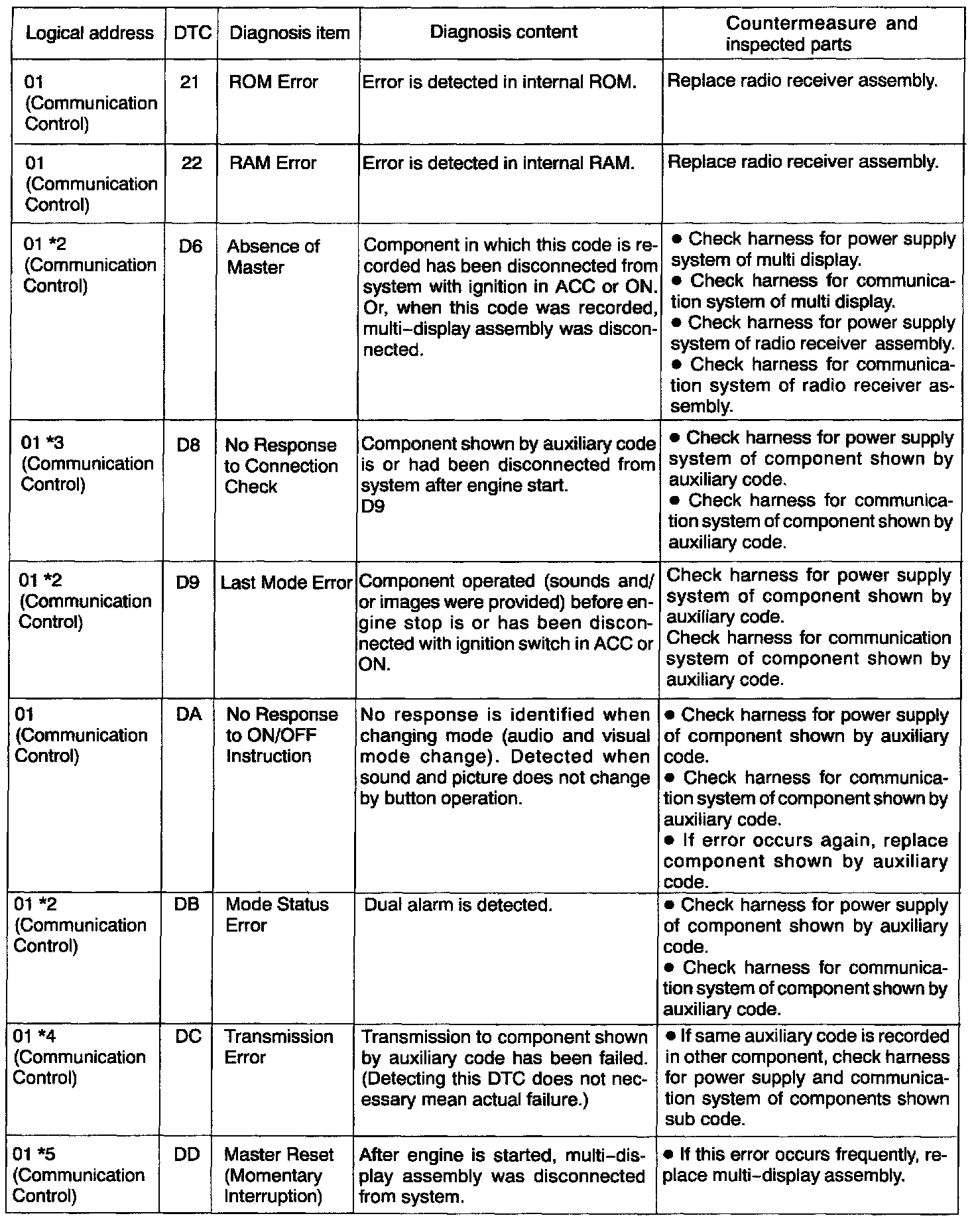

21 - 22, D6 - D9, DA - DD:

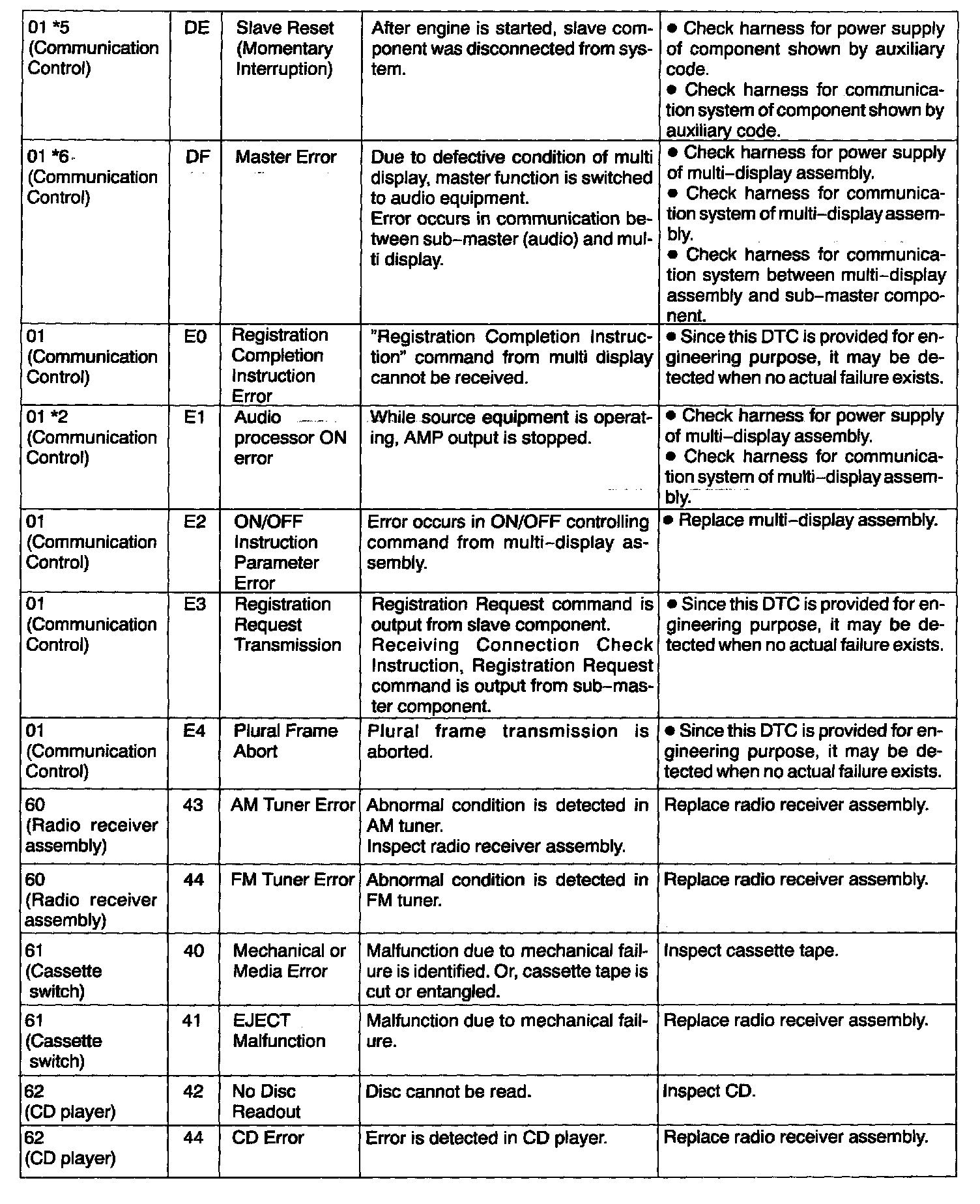

DE - DF, E0 - E4, 40 - 44:

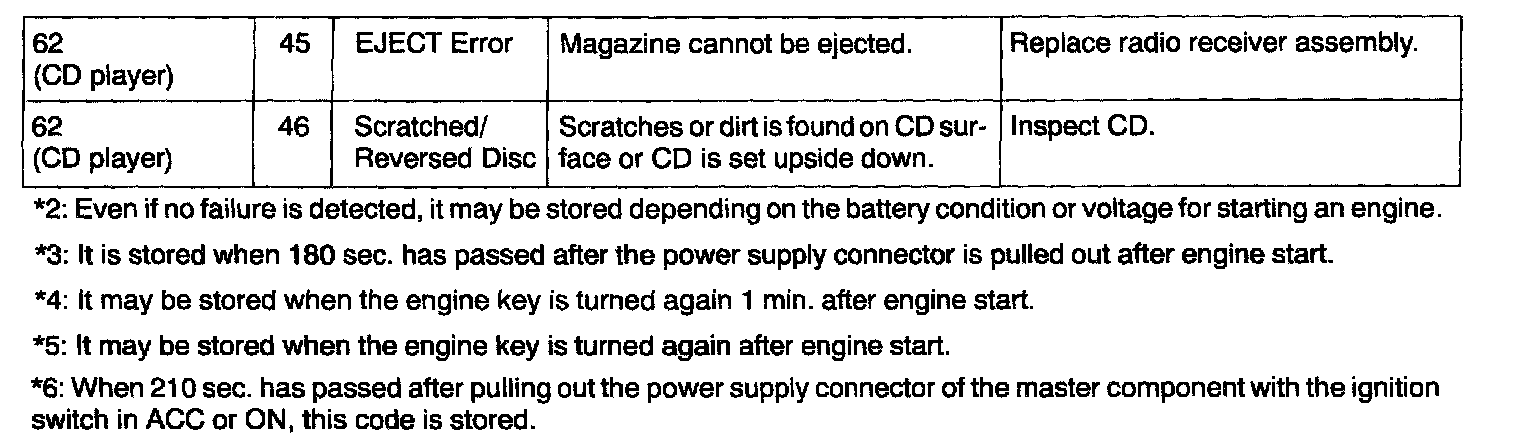

45 - 46:

Physical address: 190 Radio receiver assembly

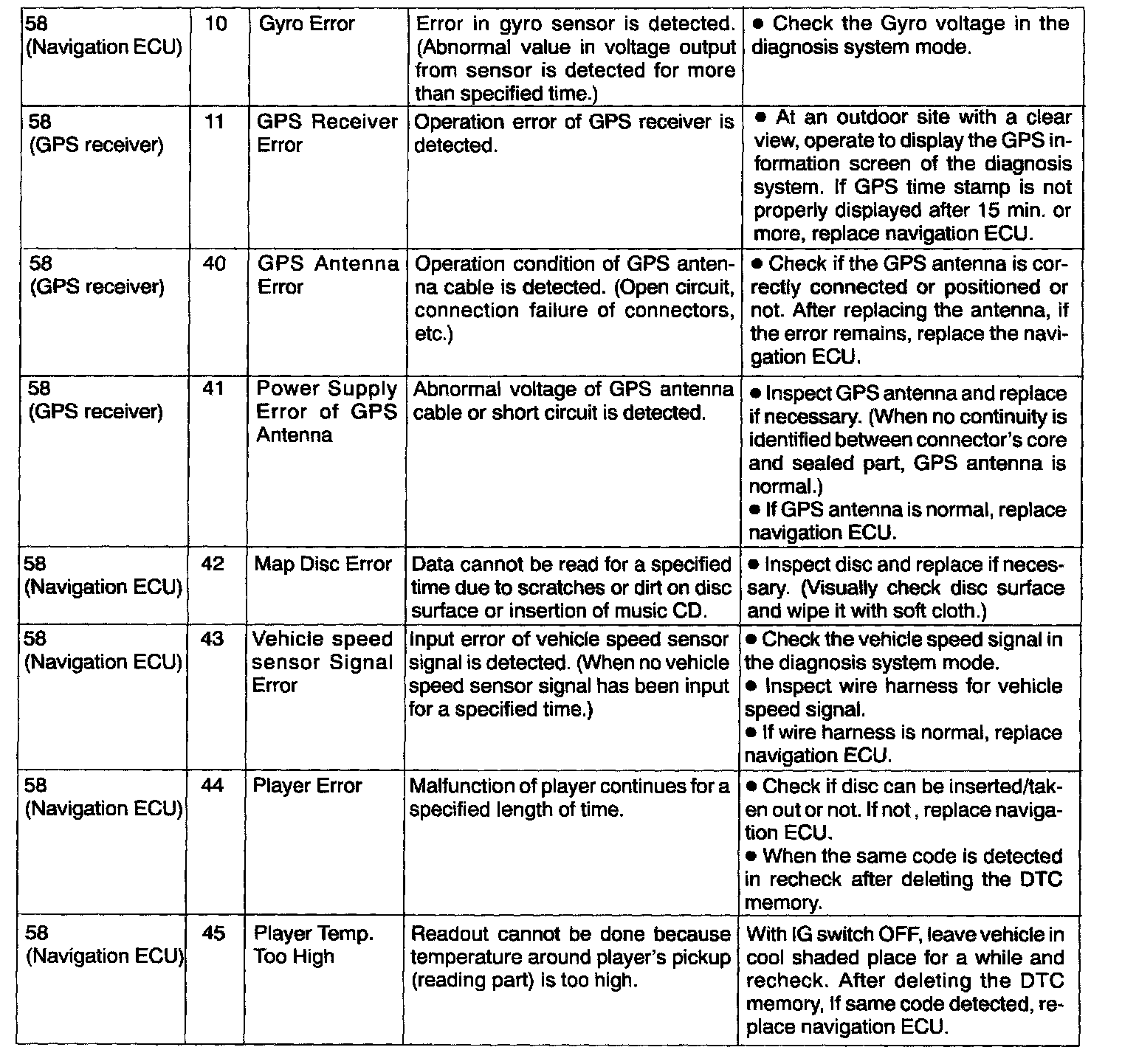

10 - 45:

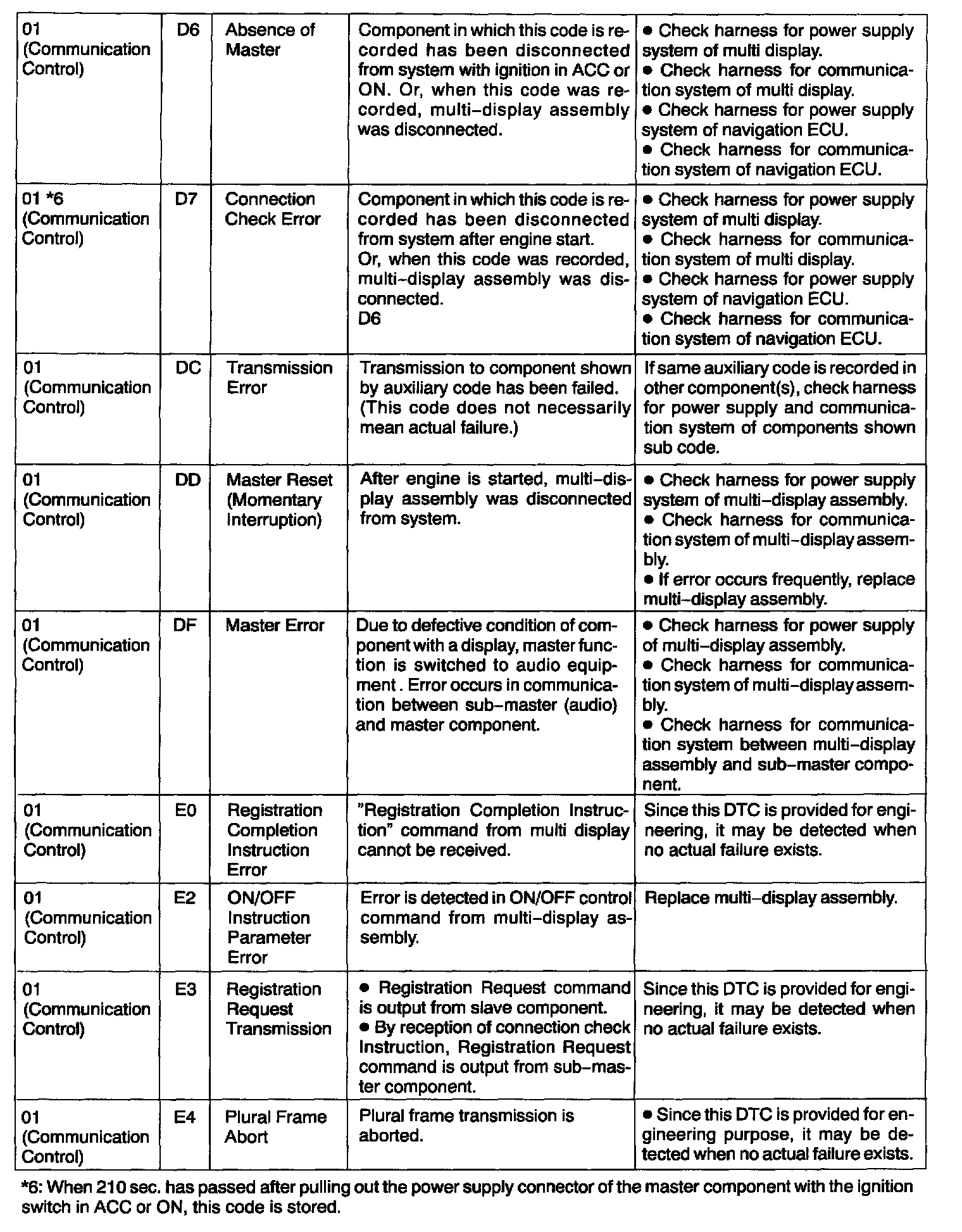

D6 - D7, DC - DF, E0 - E4:

Physical address: 178 Navigation ECU
