Multiplex Communication System

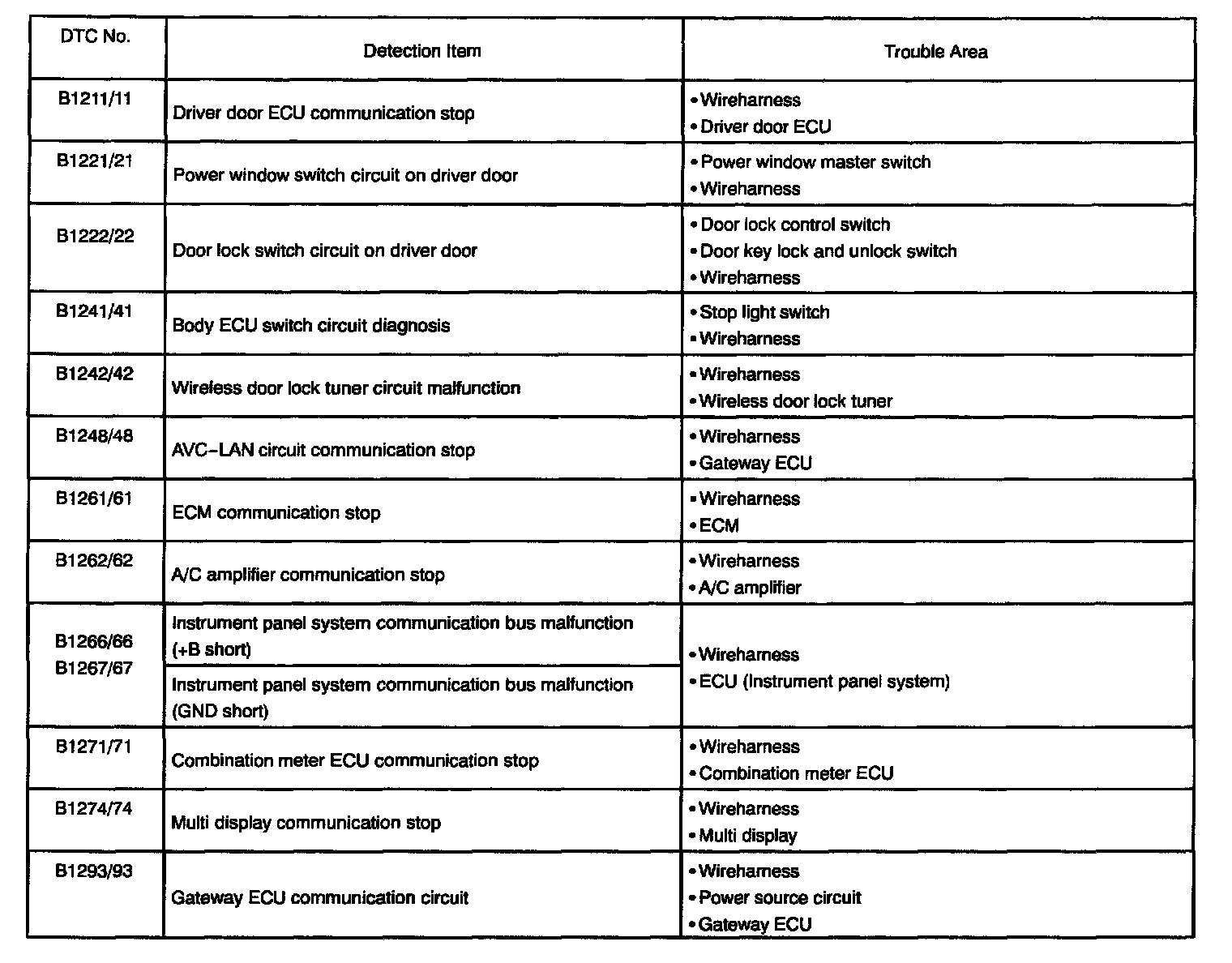

DIAGNOSTIC TROUBLE CODE CHART

B1211 - B1293:

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table. Proceed to the respective "DTC
No.".

HINT:
DTC 21, 22, and 41 don't mean switch abnormal but notify how switch works.
If DTC is not output when operating switch, it means failure of switch contact.
If DTC is output when not opening switch, it means stick of switch.
