Hybrid Vehicle Control System

DIAGNOSTIC TROUBLE CODE CHART

B2799, C2692 - C2693, P1120 - P3106:

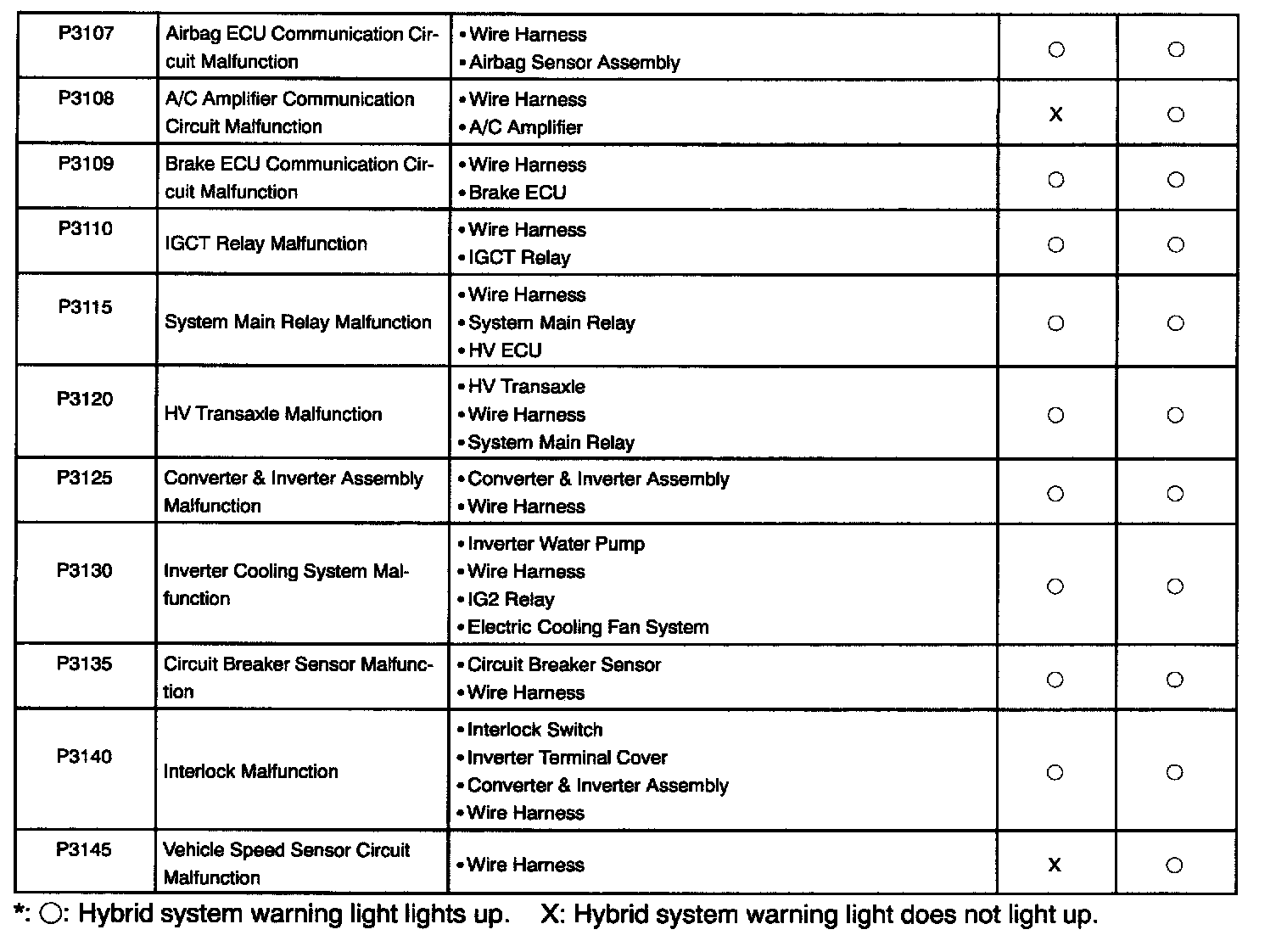

P3107 - P3145:

HINT: Parameters listed in the chart may not be exactly the same as the ones you're reading due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check in the check mode, check the circuit for that code listed in the table. For the details of each code refer to the respective "DTC No." in the DTC chart.

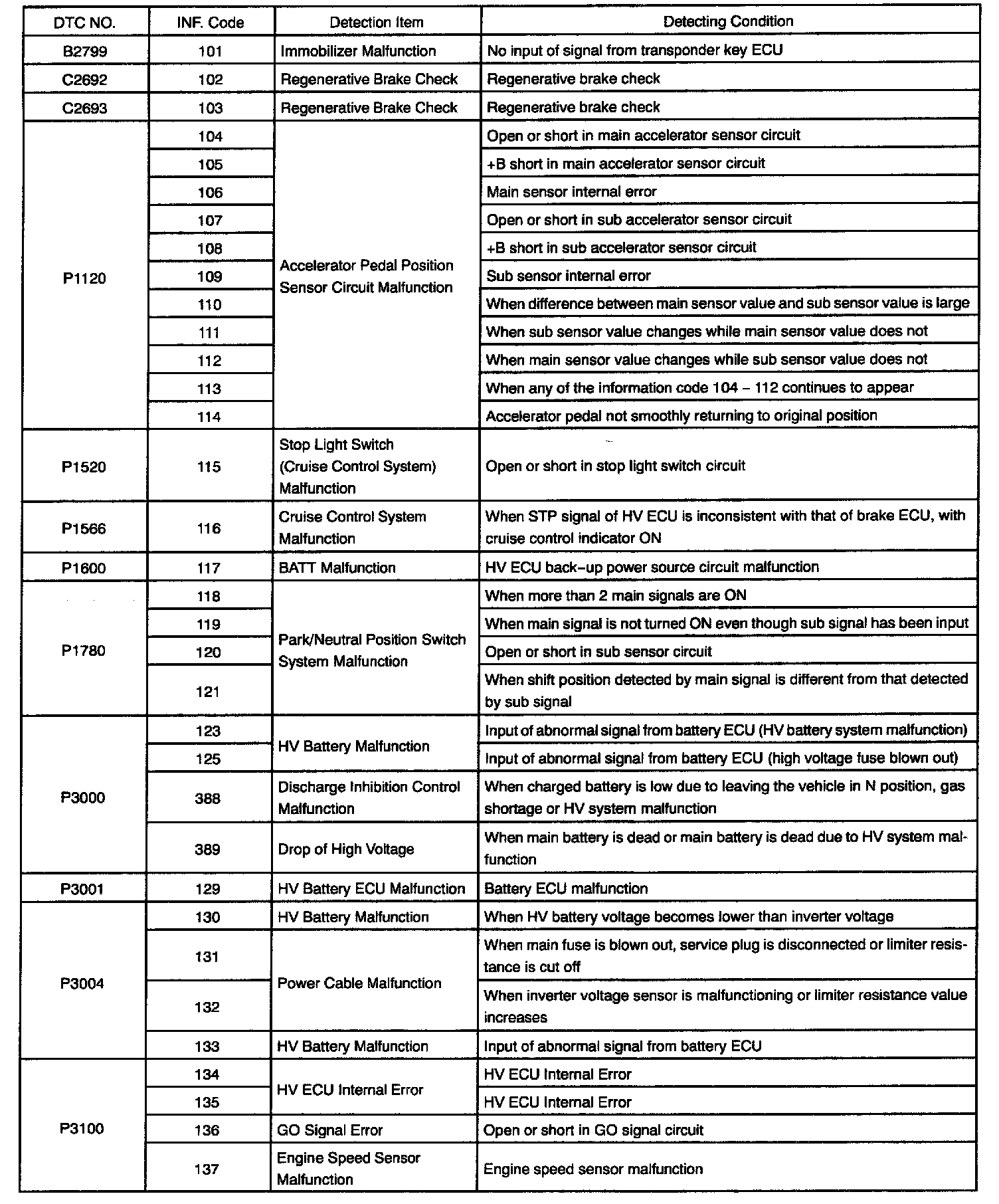

B2799, C2692 - C2693, P1120 - P3100:

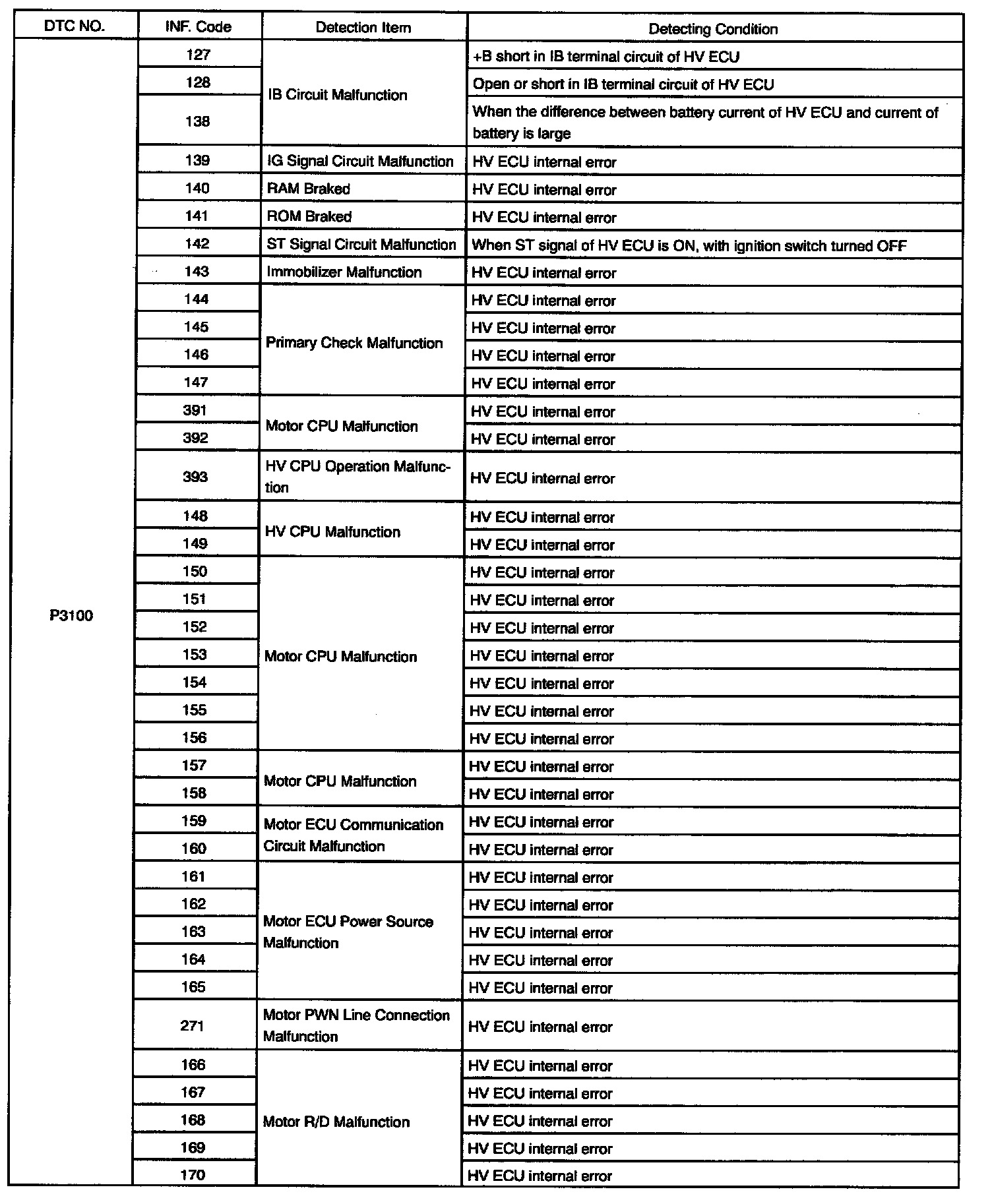

P3100:

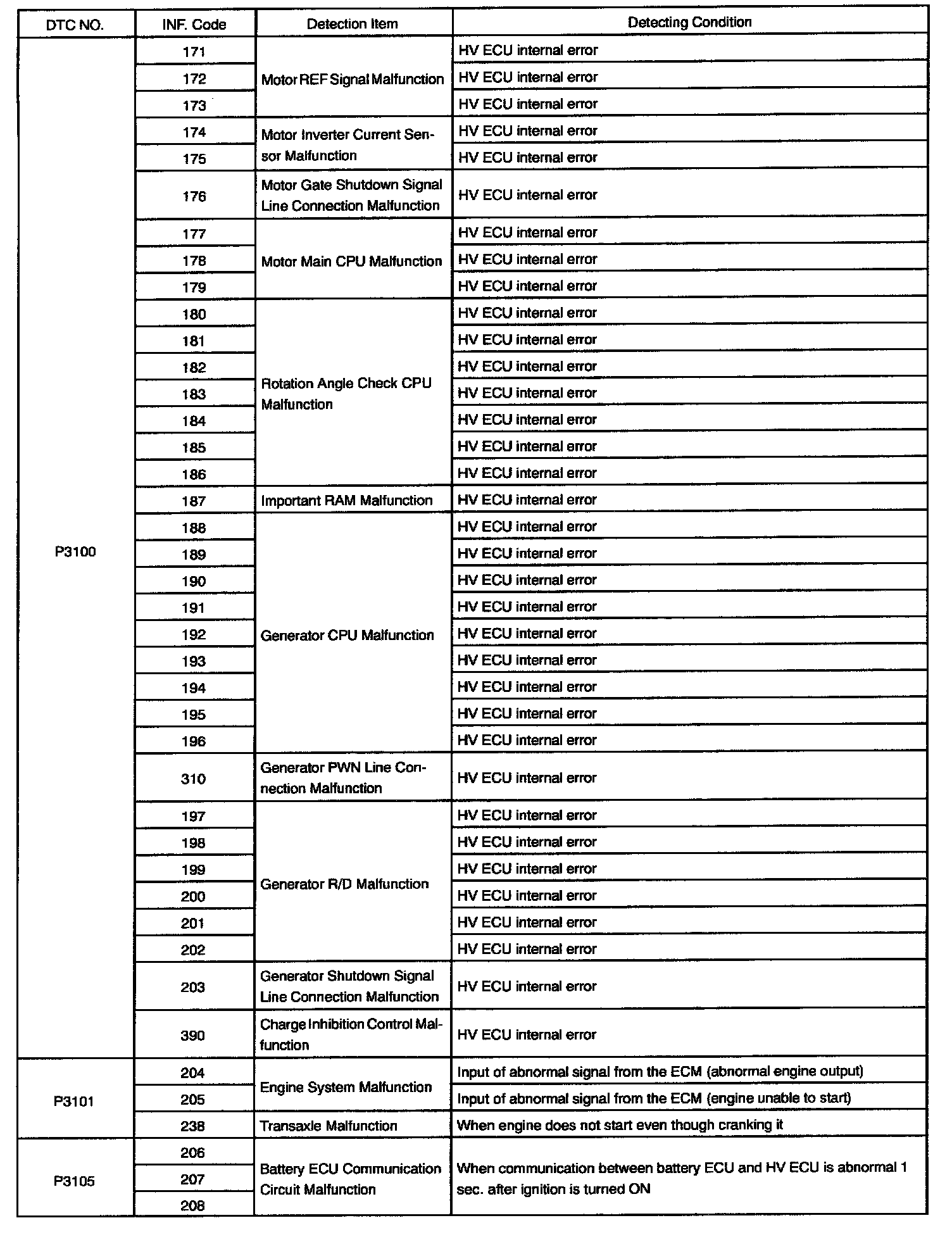

P3100 - P3105:

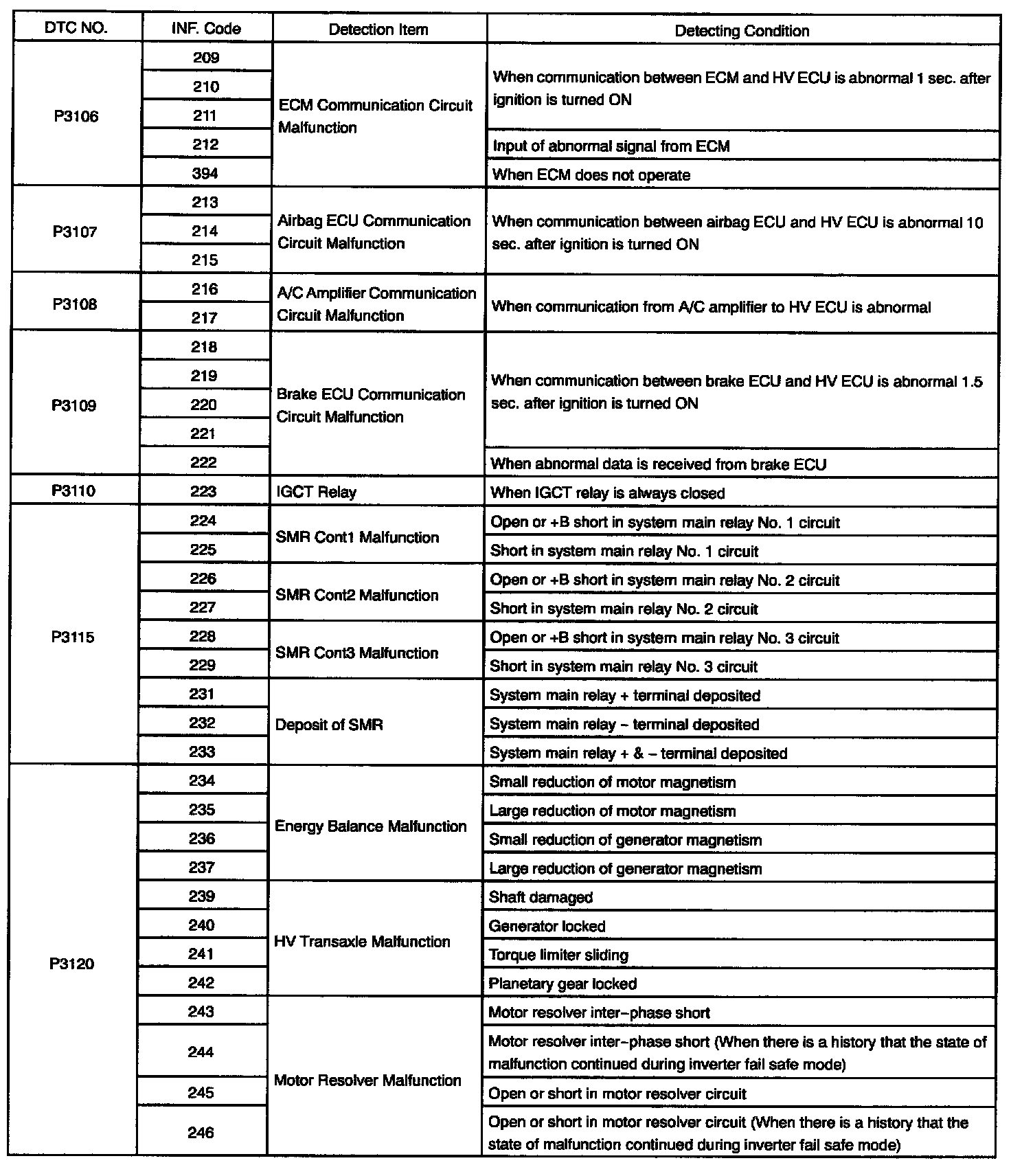

P3106 - P3120:

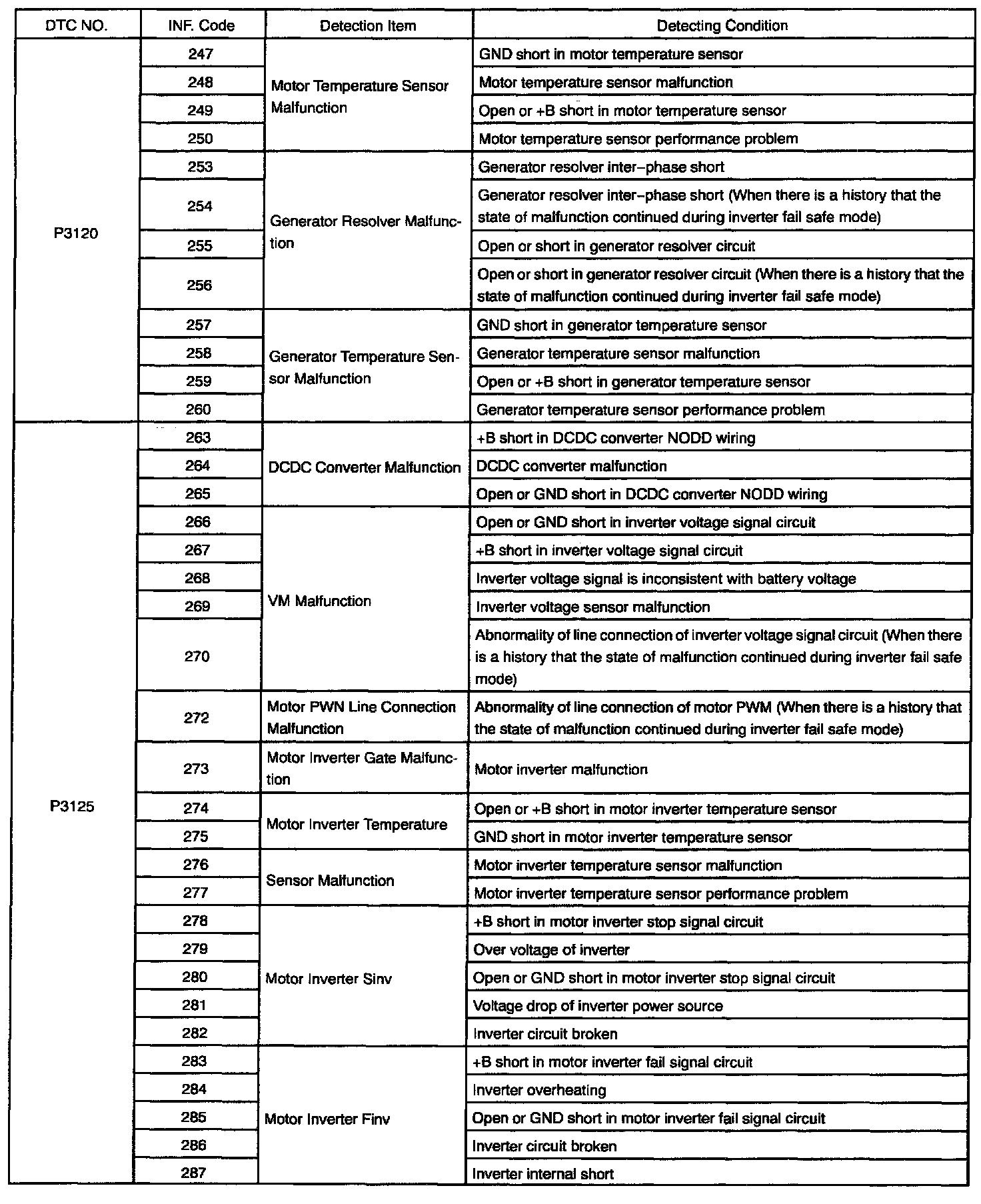

P3120 - P3125:

P3125:

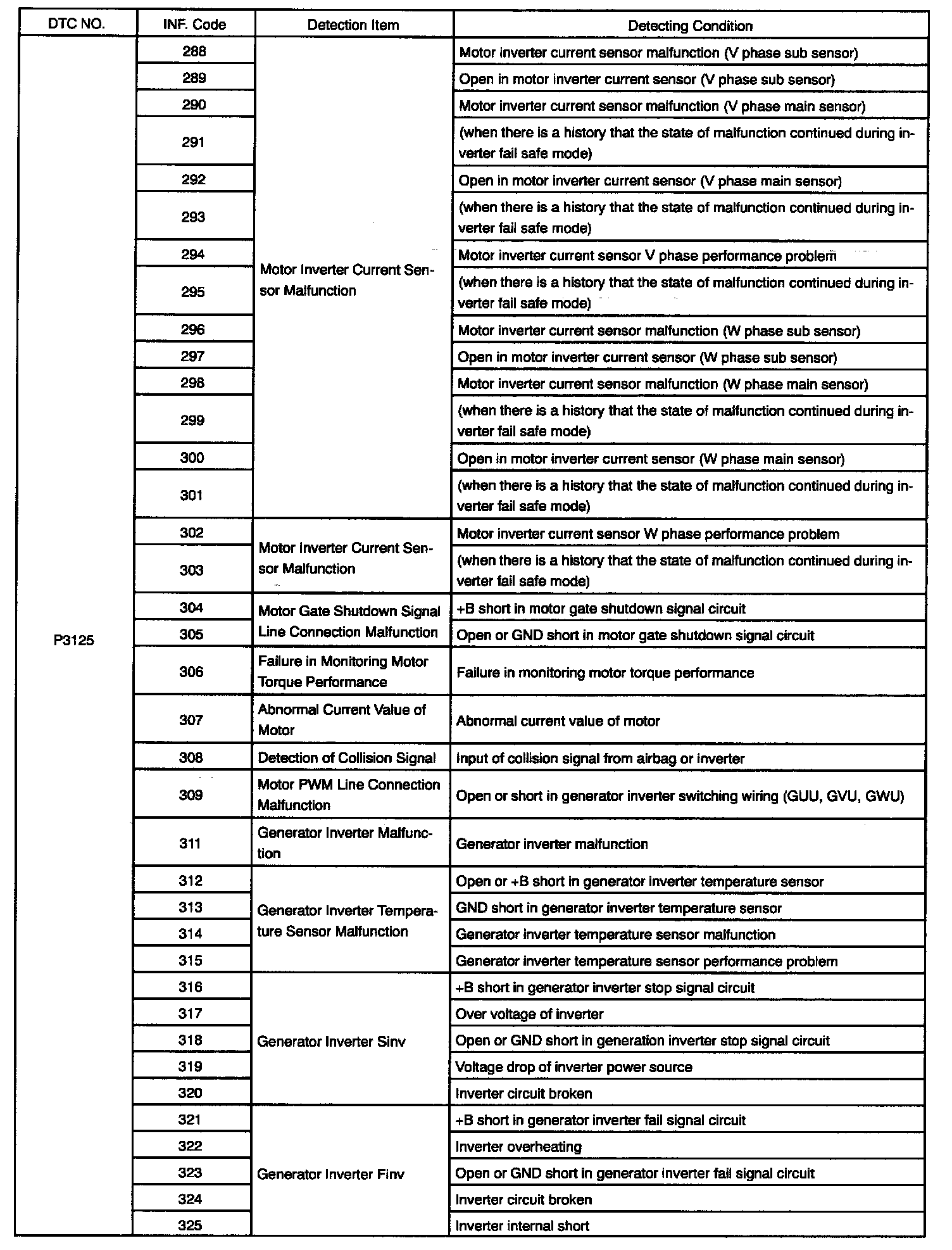

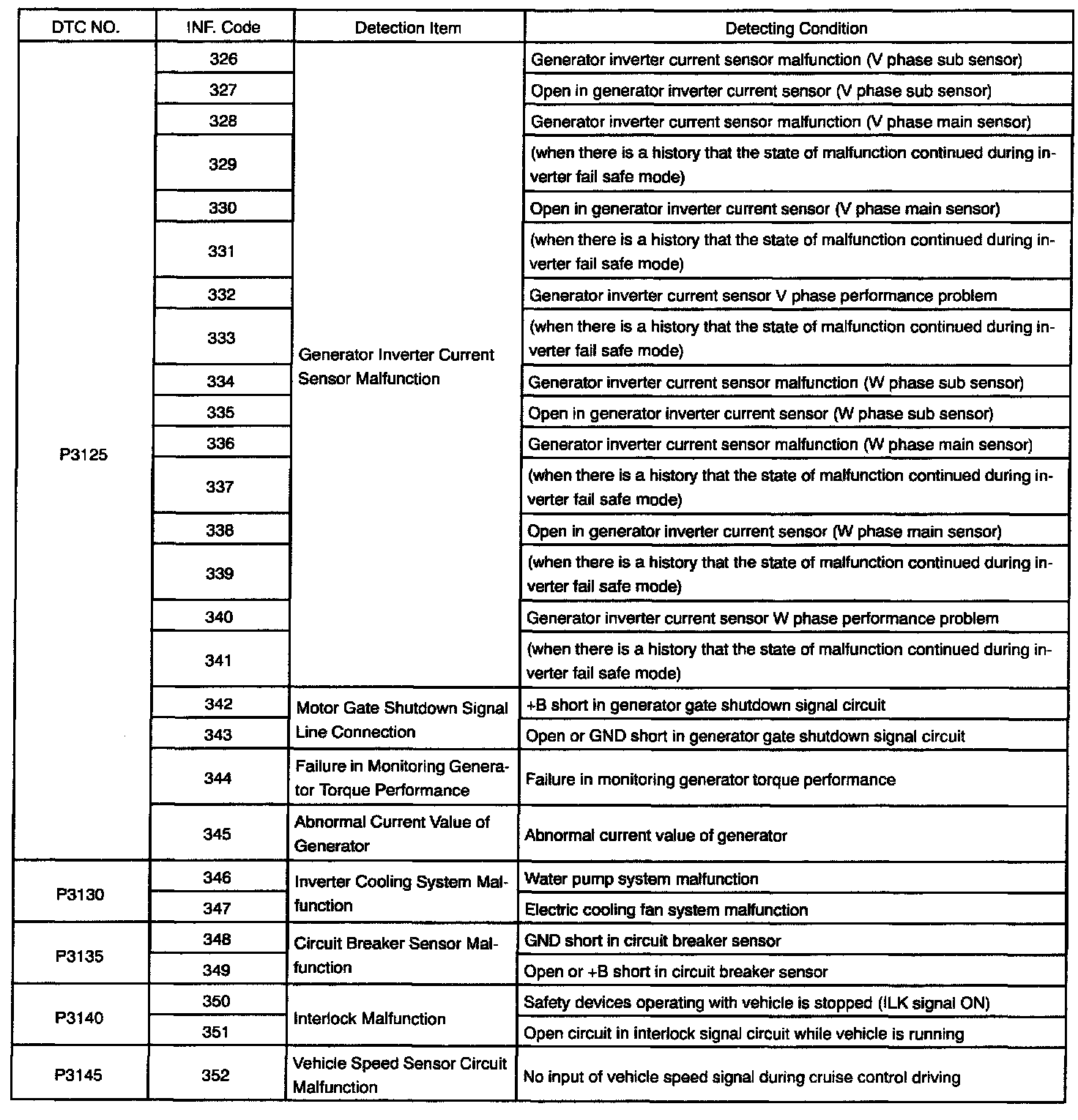

P3125 - P3145:

INFORMATION CODE (TOYOTA Hand-held tester only)
