Engine Control System - SFI System
DIAGNOSTIC TROUBLE CODE CHARTHINT:
- Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors
If a malfunction code is displayed during the DTC check in check mode, check the circuit for that code listed in the table. For details of each code, refer to the respective "DTC No." in the DTC chart.
- When the ignition switch is ON and "READY" indicator light is OFF, the bulb check of the "MIL" is performed ("MIL" is ON).
When "MIL" is ON, but the DTC of the engine is not memorized, it may be because of HV control system abnormality, so check HV control system beforehand.

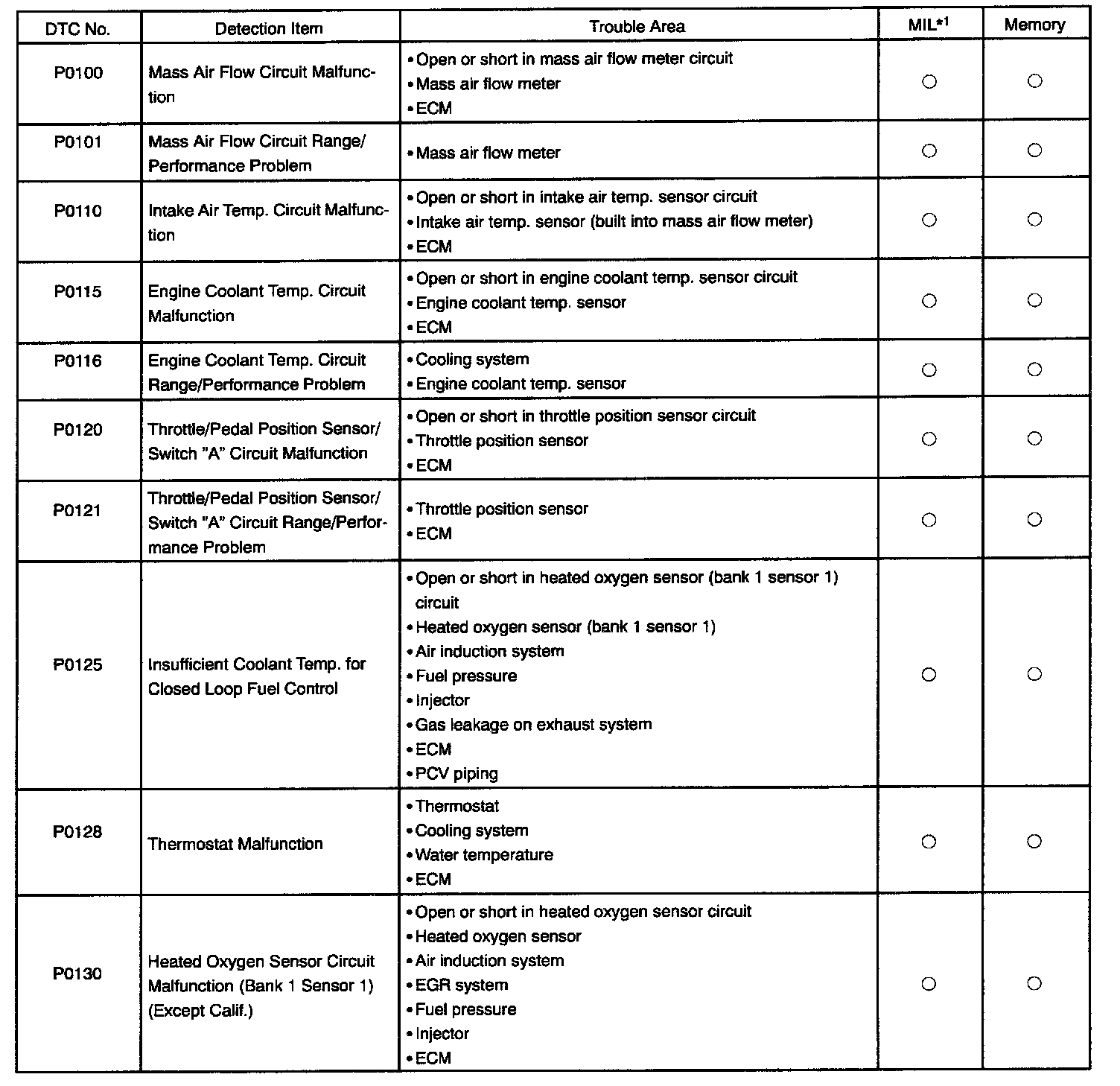

P0100 - P0130:

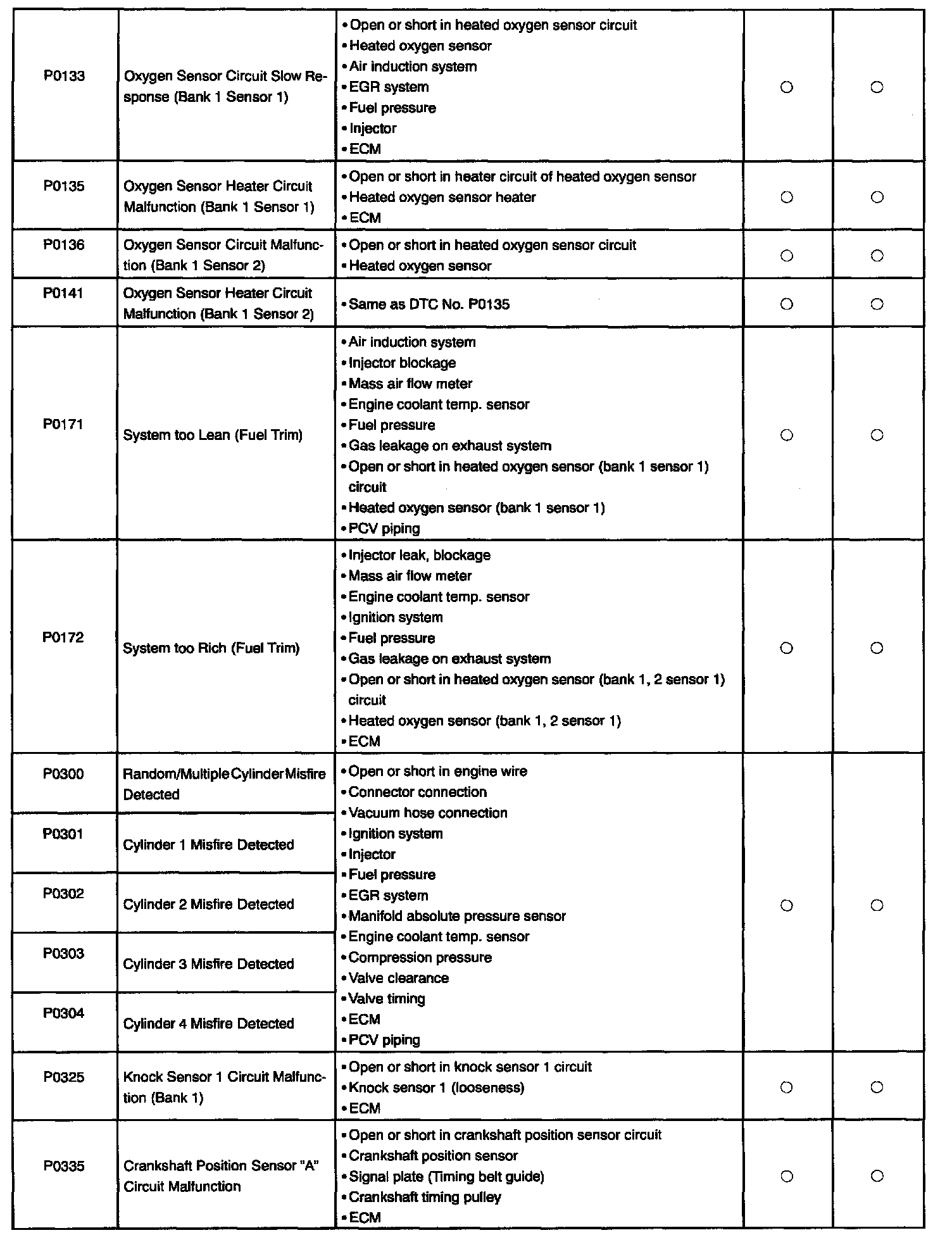

P0133 - P0335:

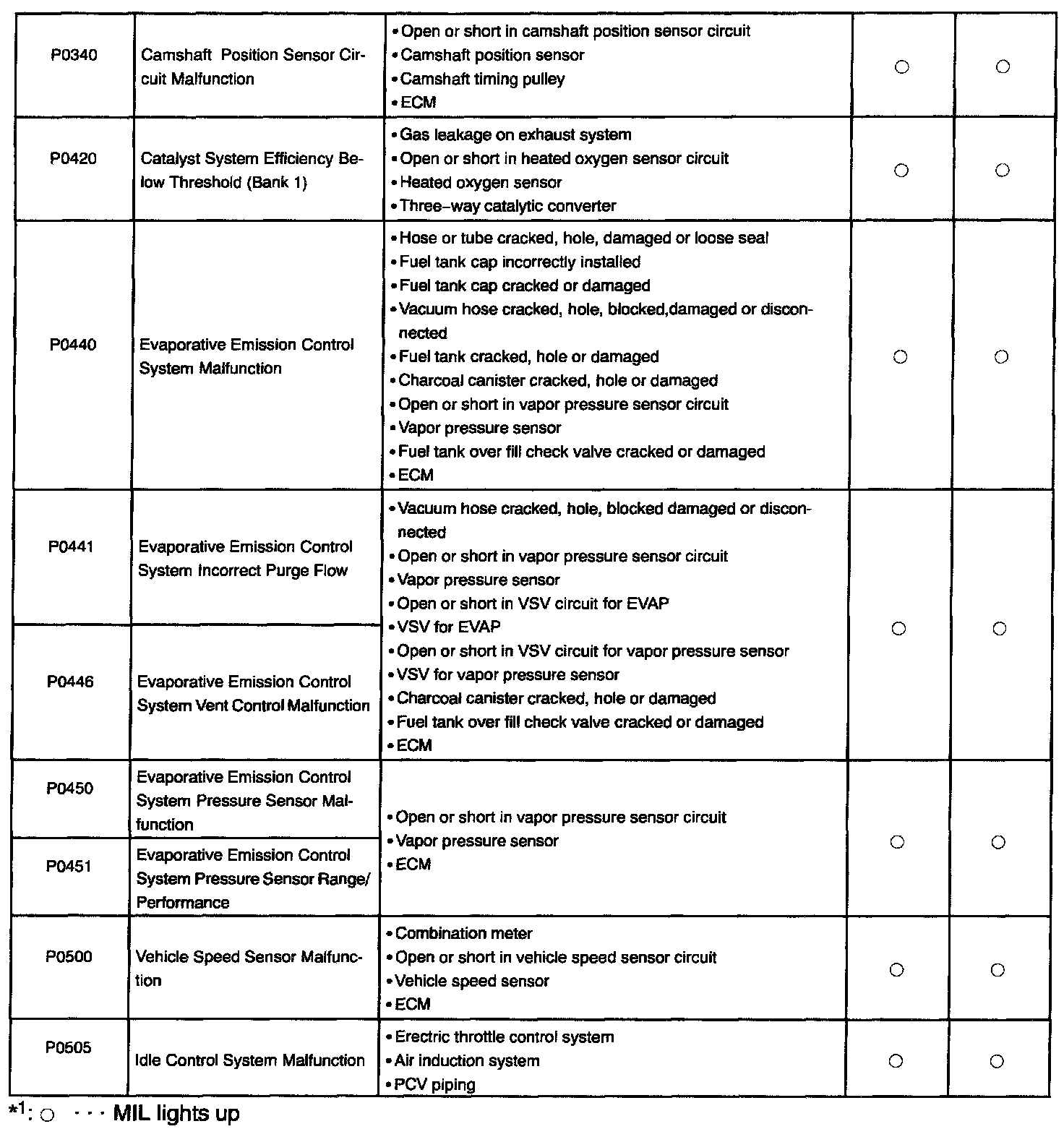

P0340 - P0505:
SAE CONTROLLED

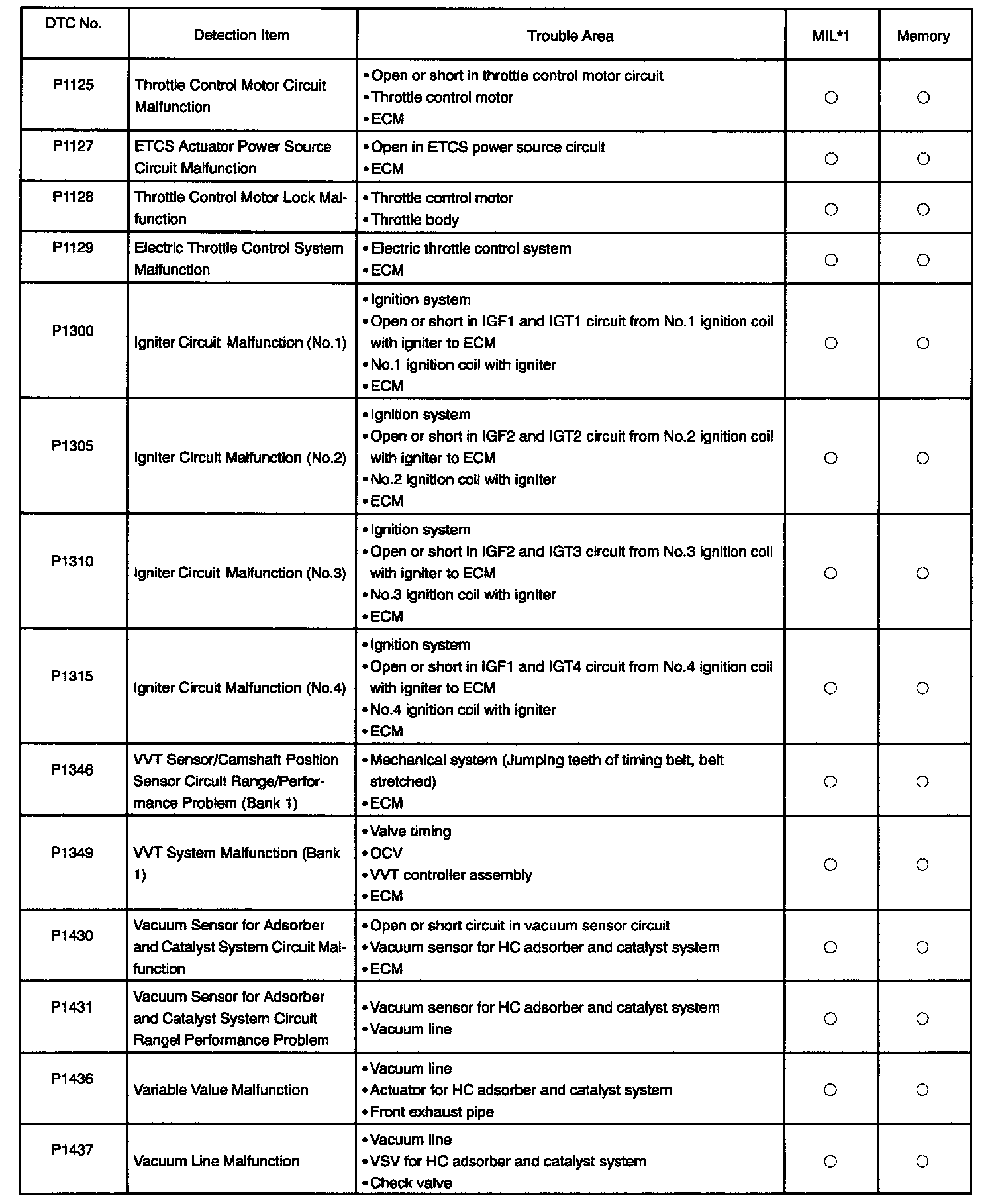

P1125 - P1437:
P1455 - P3191:
MANUFACTURER CONTROLLED
