Airbag System

DIAGNOSTIC TROUBLE CODE CHART

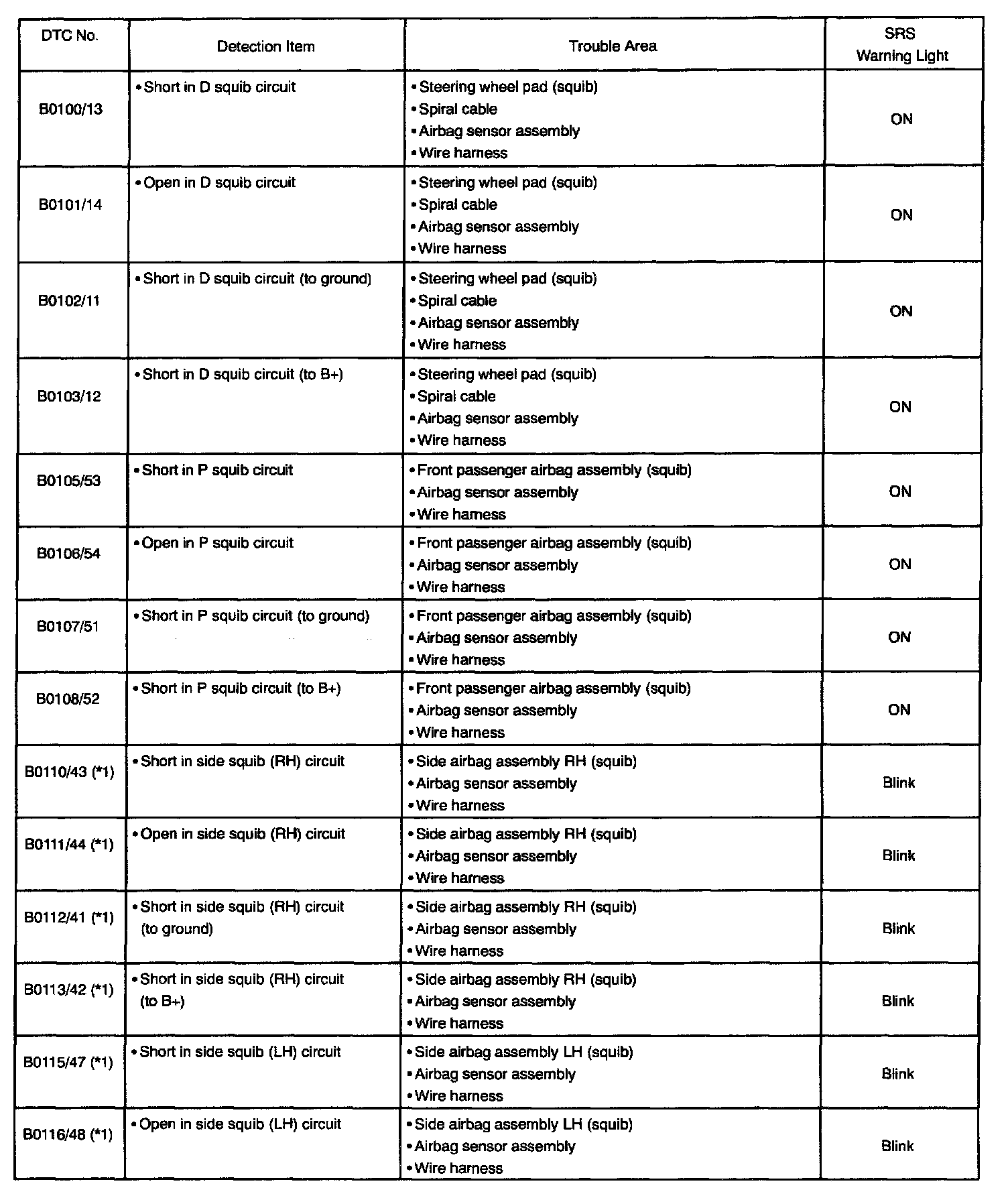

B0100 - B0116:

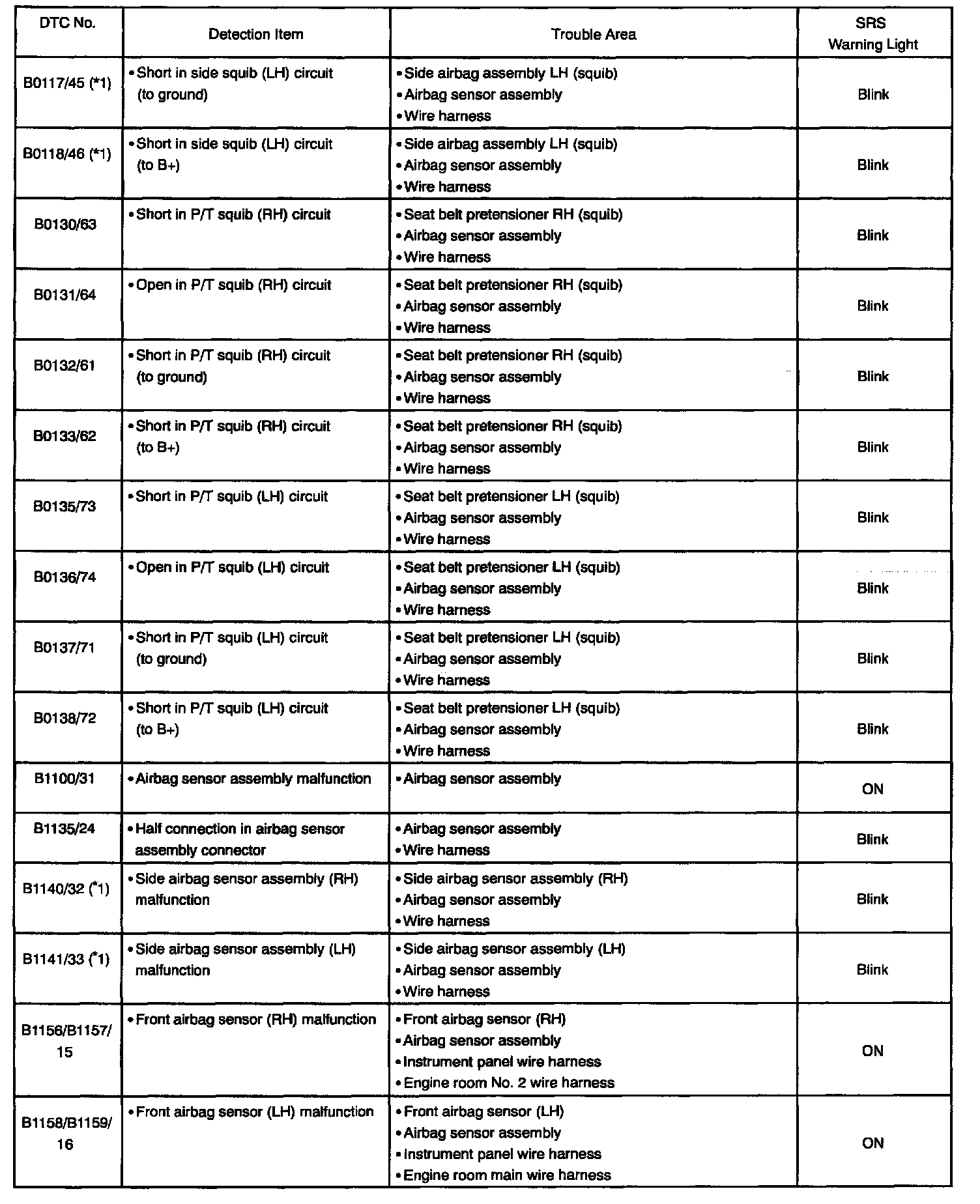

B0117 - B01159:

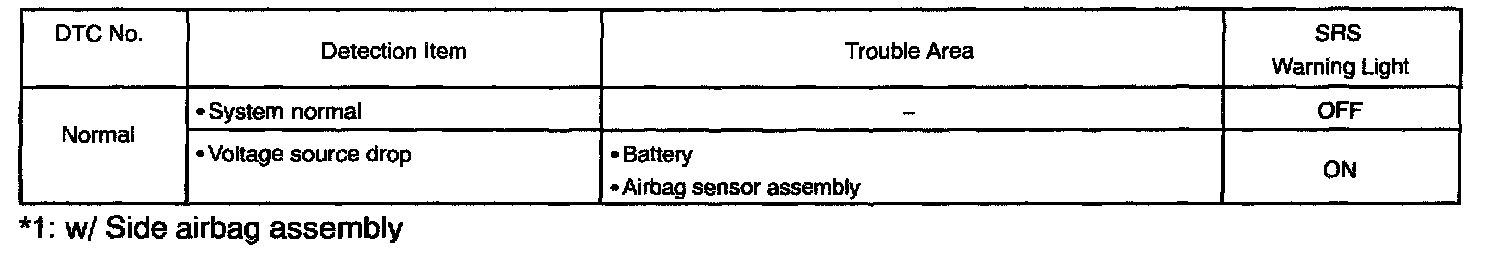

Normal:

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table.

HINT:
- When the SRS warning light remains lit up and the DTC is the normal code, this means a voltage source drops.
This malfunction is not stored in memory by the airbag sensor assembly and if the power source voltage returns to normal, the SRS warning light will automatically go out.
- When 2 or more codes are indicated, the codes will be displayed in numeral order starting from the lowest numbered code.
- If a code which is not listed on the chart is displayed, the airbag sensor assembly is faulty.
- In the case of any malfunction concerning any open circuit, ground circuit, or B+ short due to any squib, another malfunction code may be detected. In this case, correct the malfunction code may then be detected.
