ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

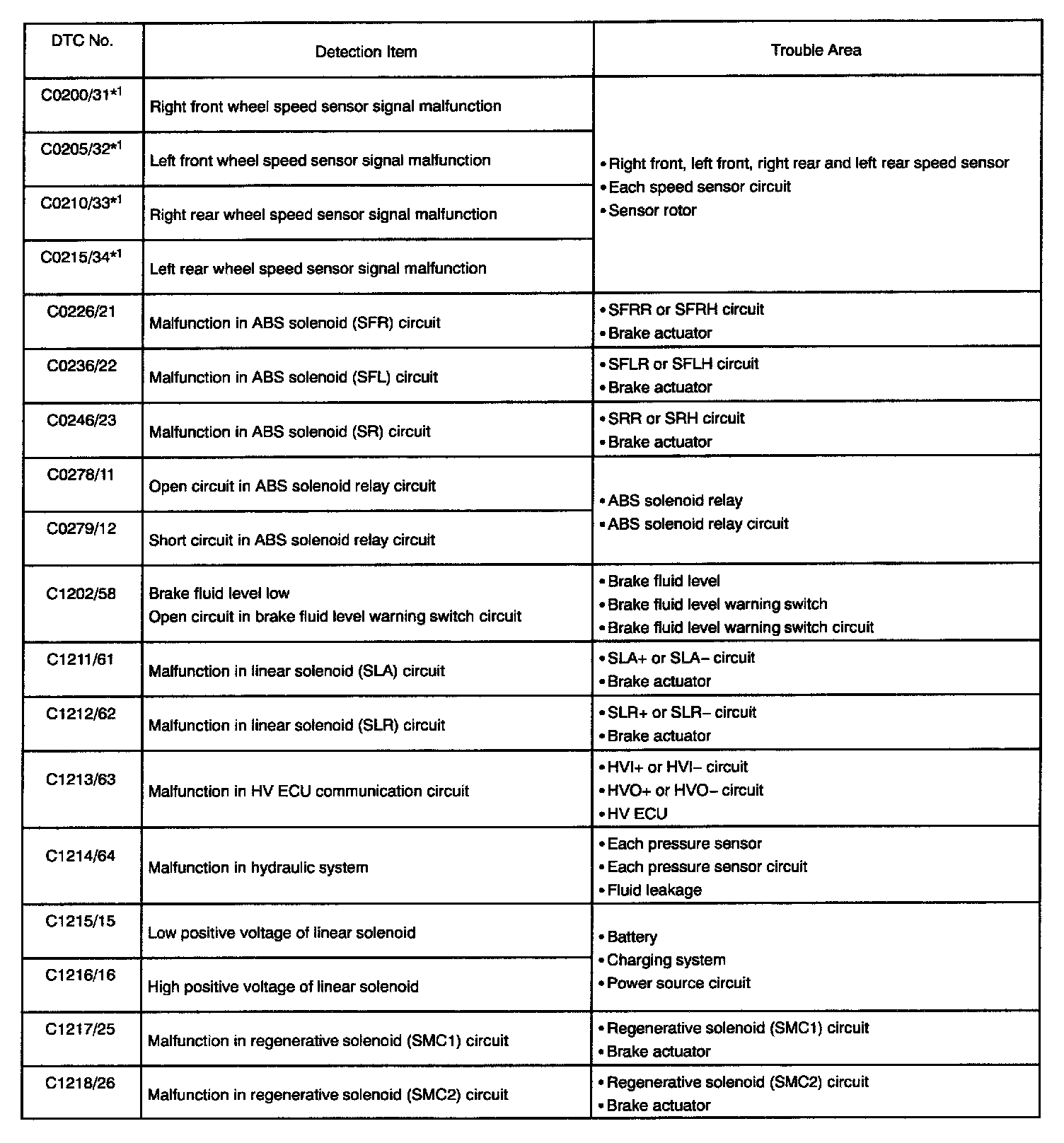

C0200 - C1218:

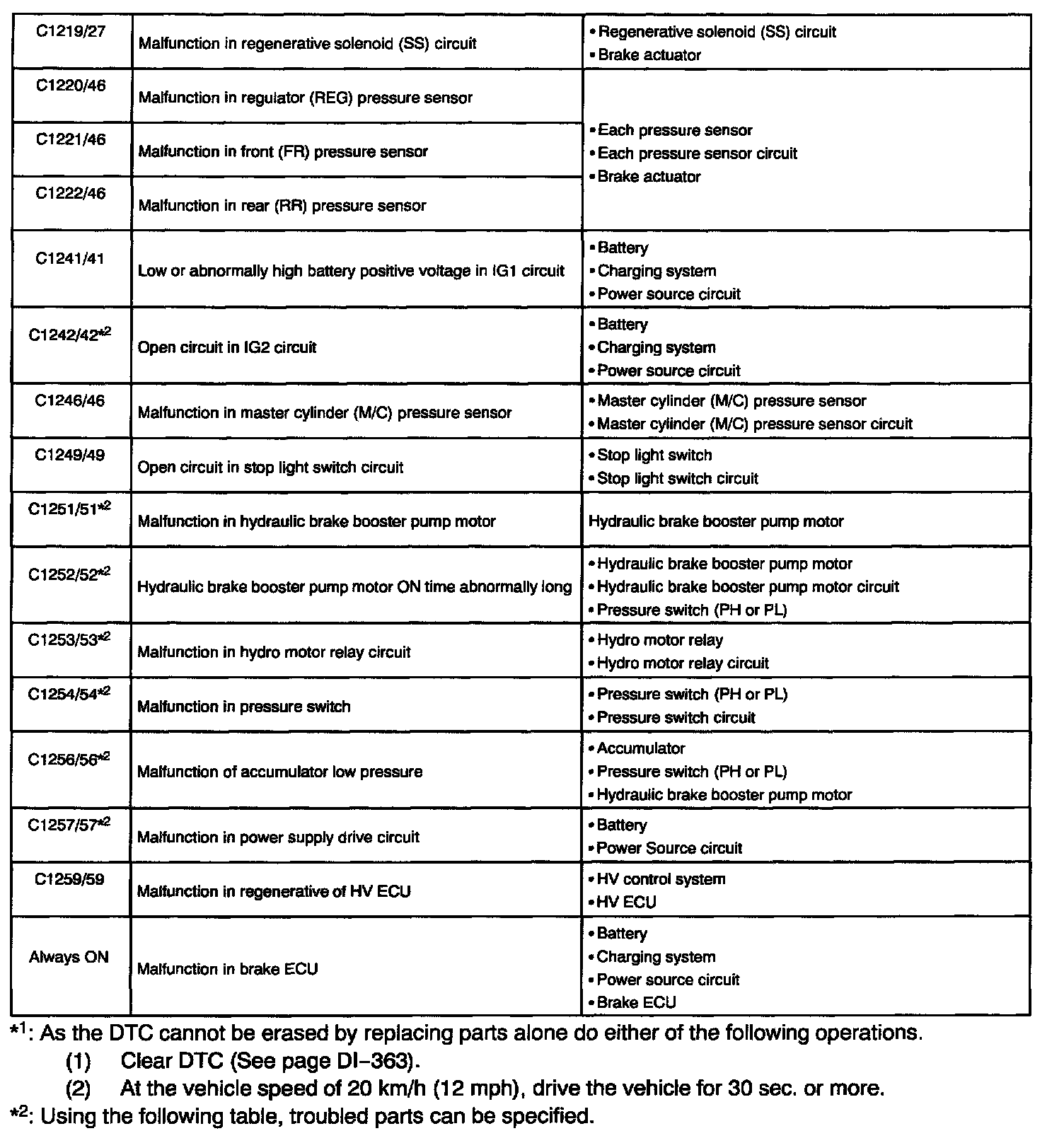

C1219 - C1259:

NOTE: When removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18040, connect the terminals Tc and CG of DLC3.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed that code. For details of each code, refer to the respective "DTC No." in the DTC chart.




Table of Trouble Part and DTC

C1271 - C1284:

DTC of sensor check function
