Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2003
>>
Matrix XR 2WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Unit Overhaul
>>
Manual Transaxle
Manual Transaxle

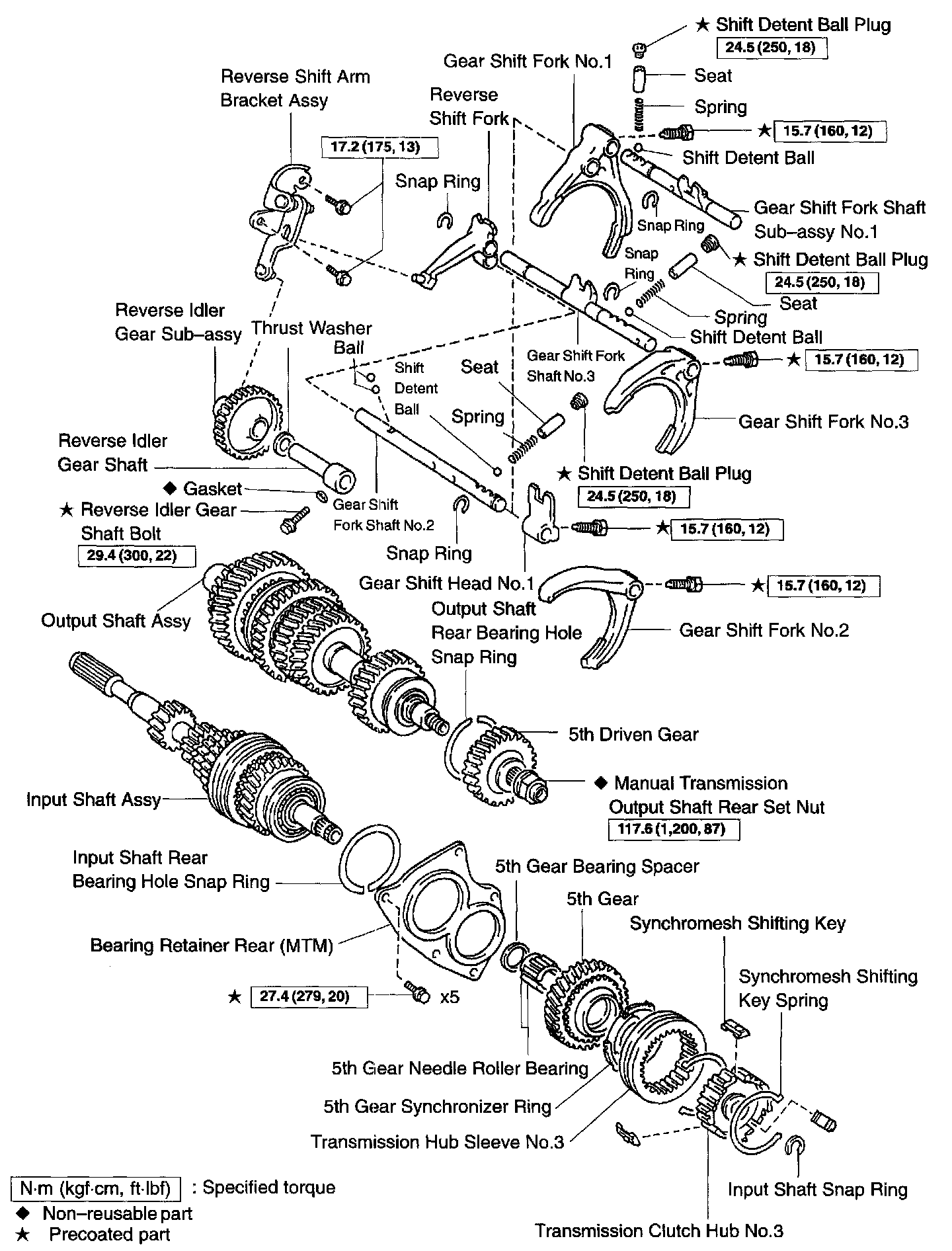

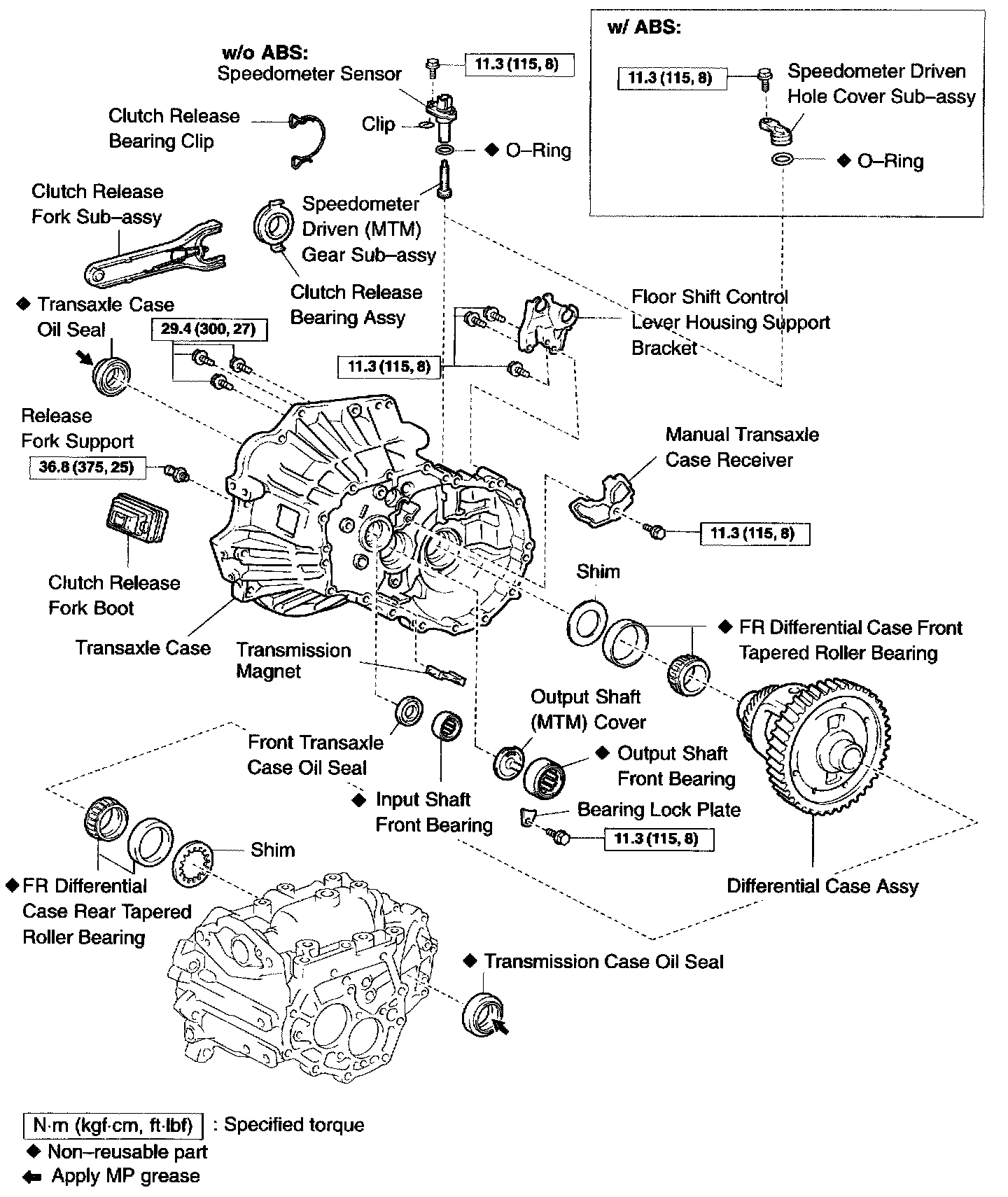

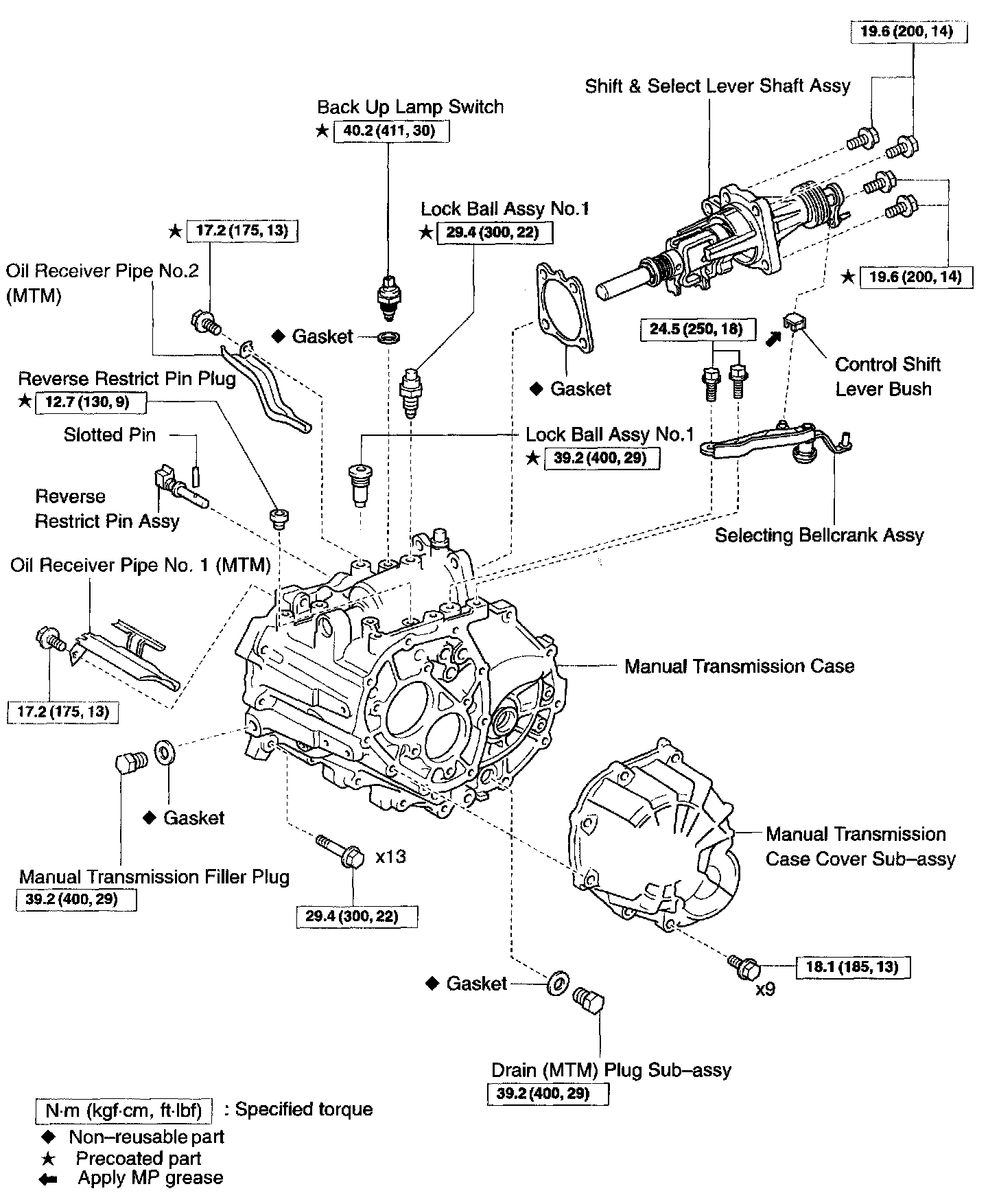

MANUAL TRANSAXLE ASSY OVERHAUL W/ RELATED COMPONENTS
