Door Courtesy Switch Circuit

CIRCUIT DESCRIPTION

The door courtesy switch turns ON when the door is opened and OFF when the door is closed.

Wiring Diagram:

Step 1 - 2:

Step 2 (continued) - 3:

Step 3 (continued):

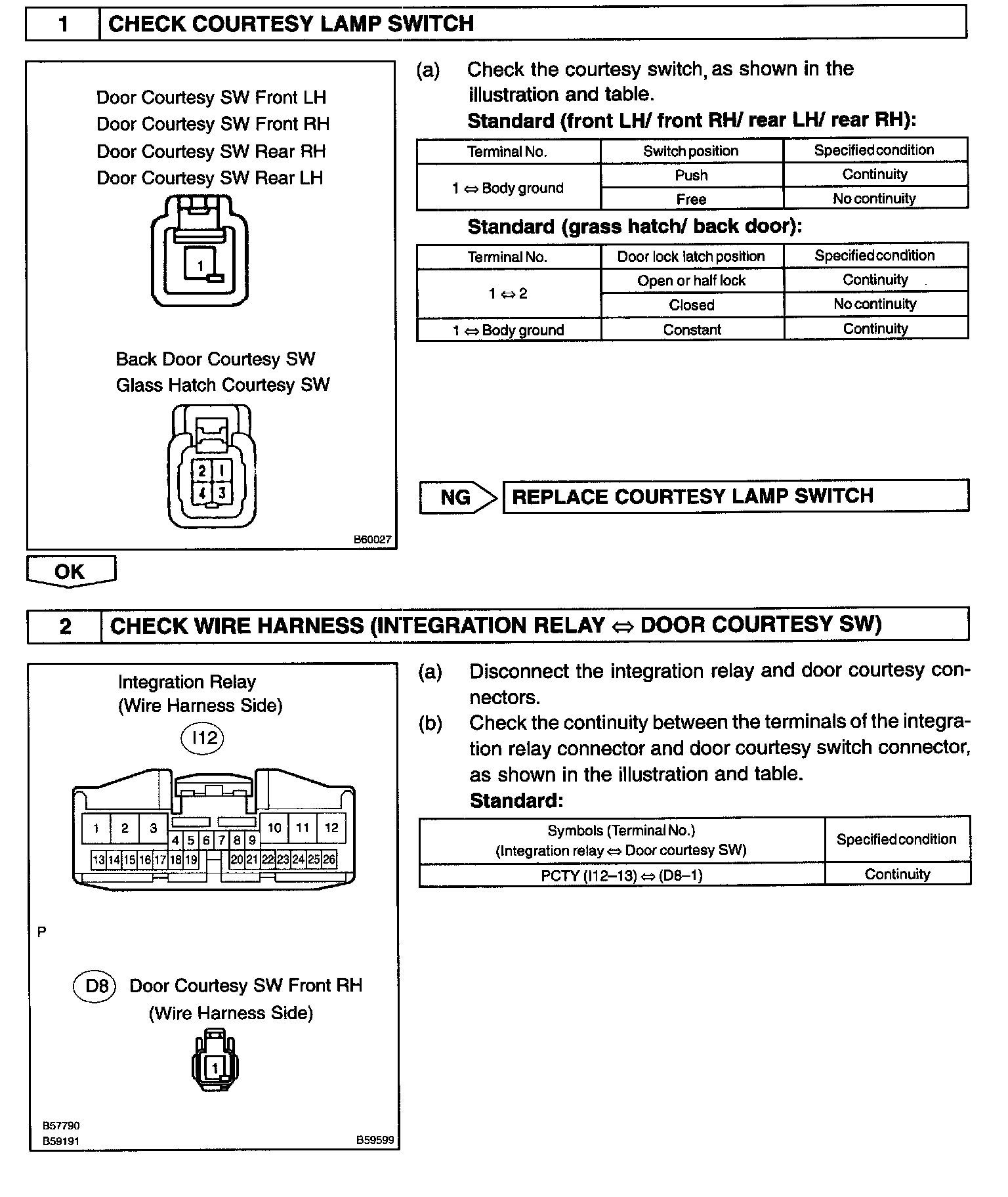

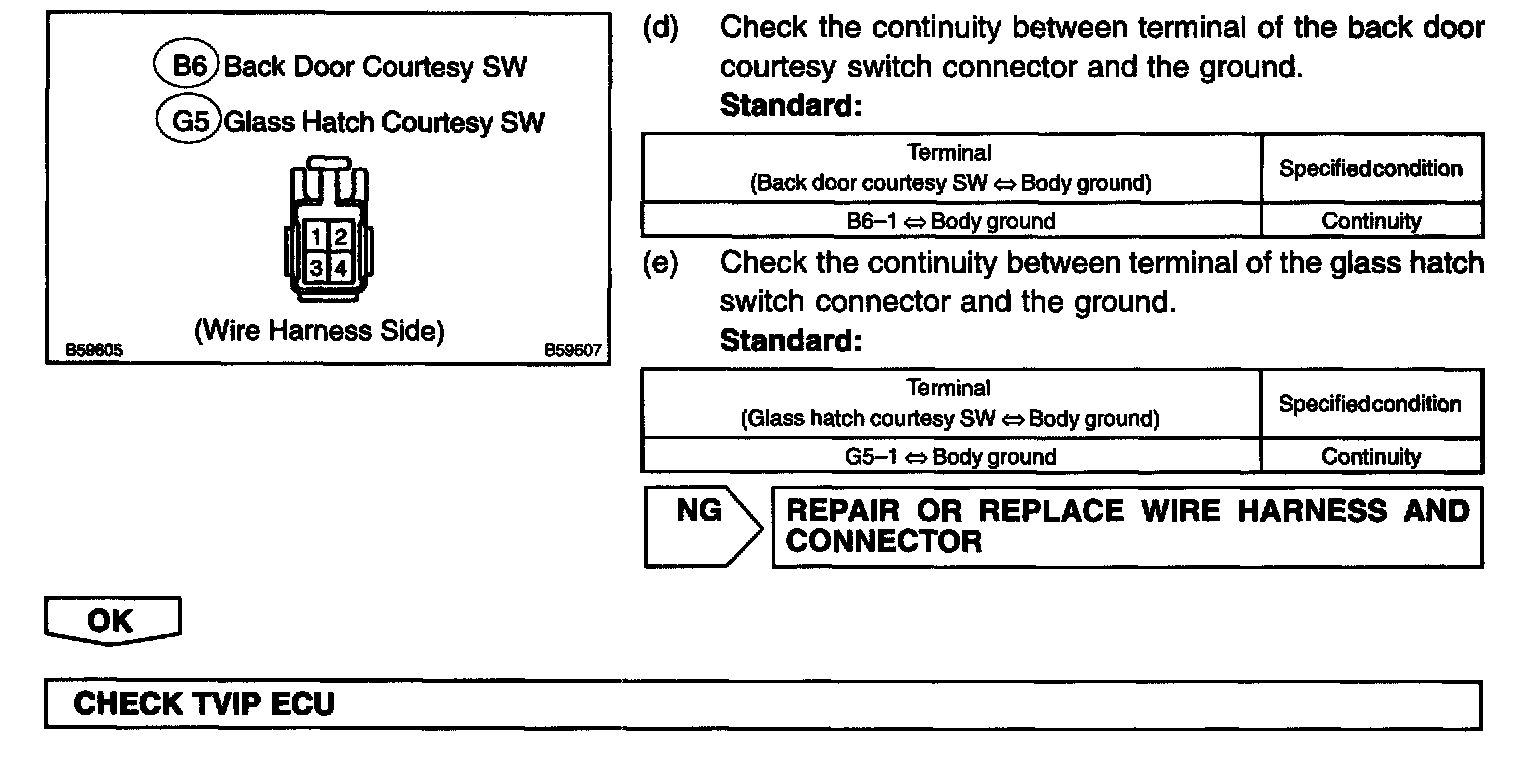

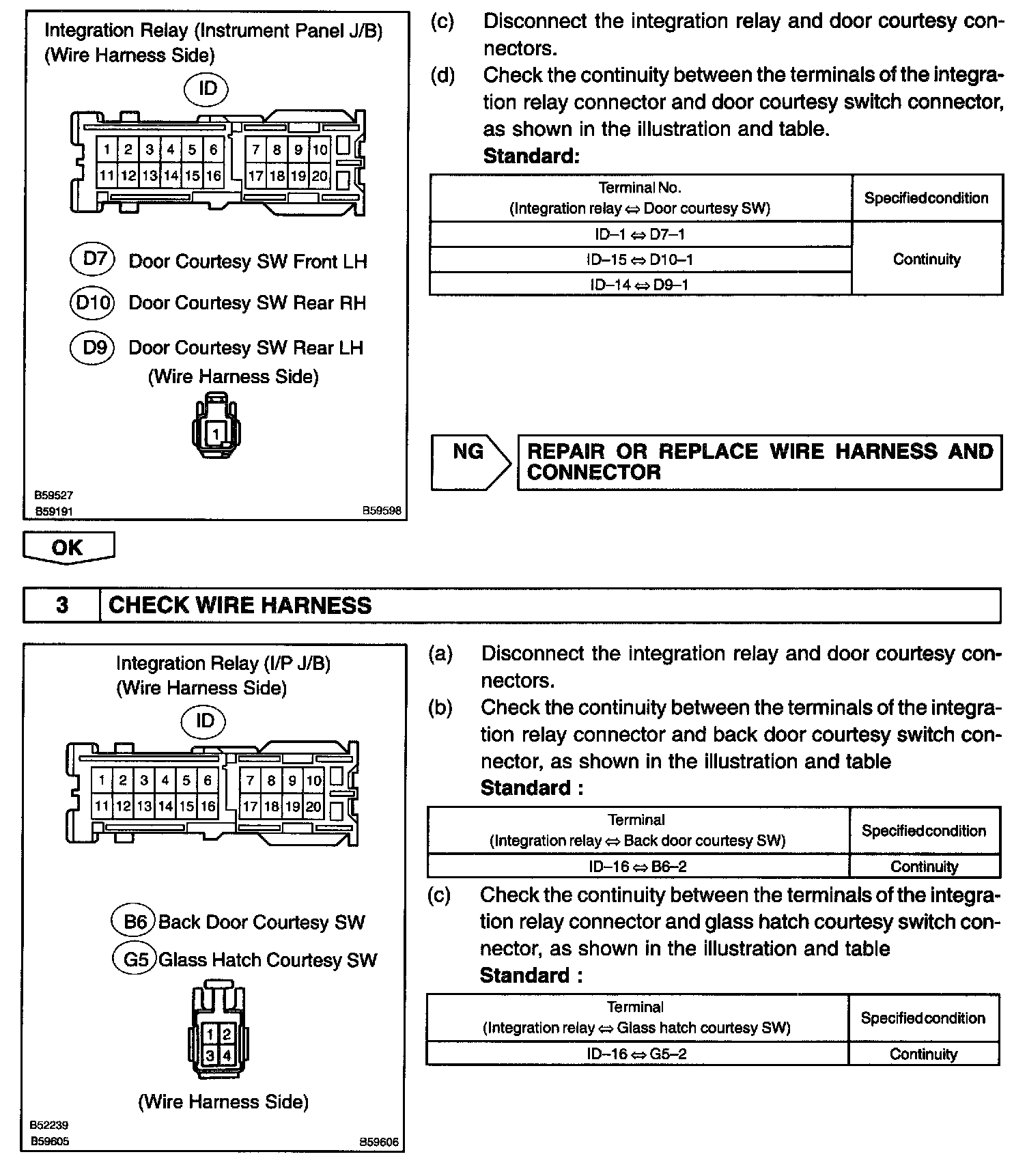

INSPECTION PROCEDURE
