PROBLEM SYMPTOMS TABLE

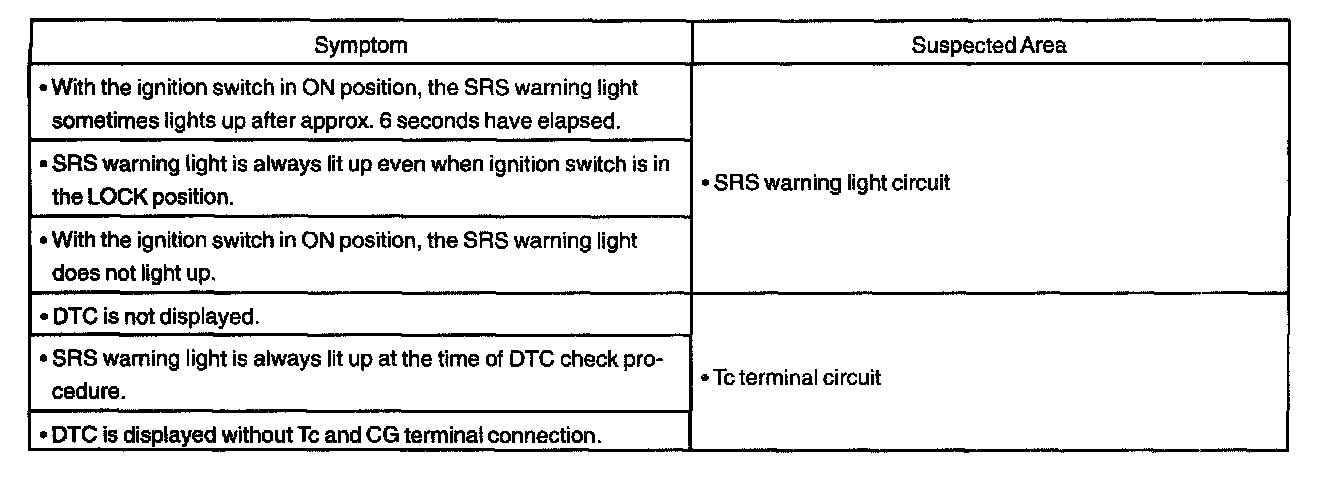

Problem Symptom Table:
Proceed with troubleshooting of each circuit in the table.
