FAIL SAFE OPERATION

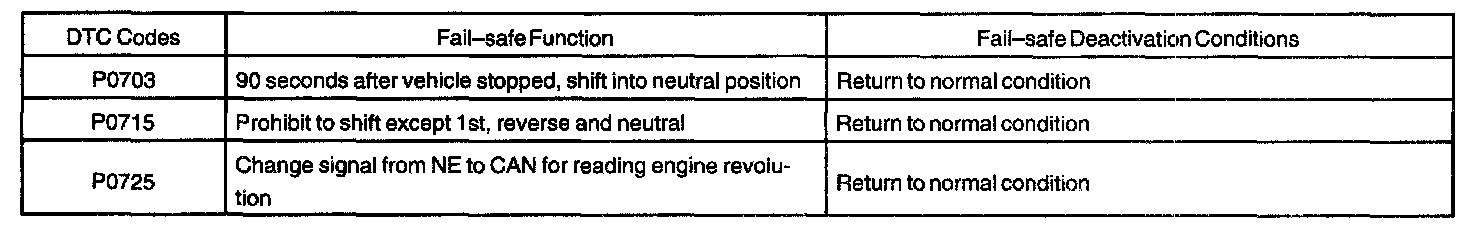

P0703 - P0725:

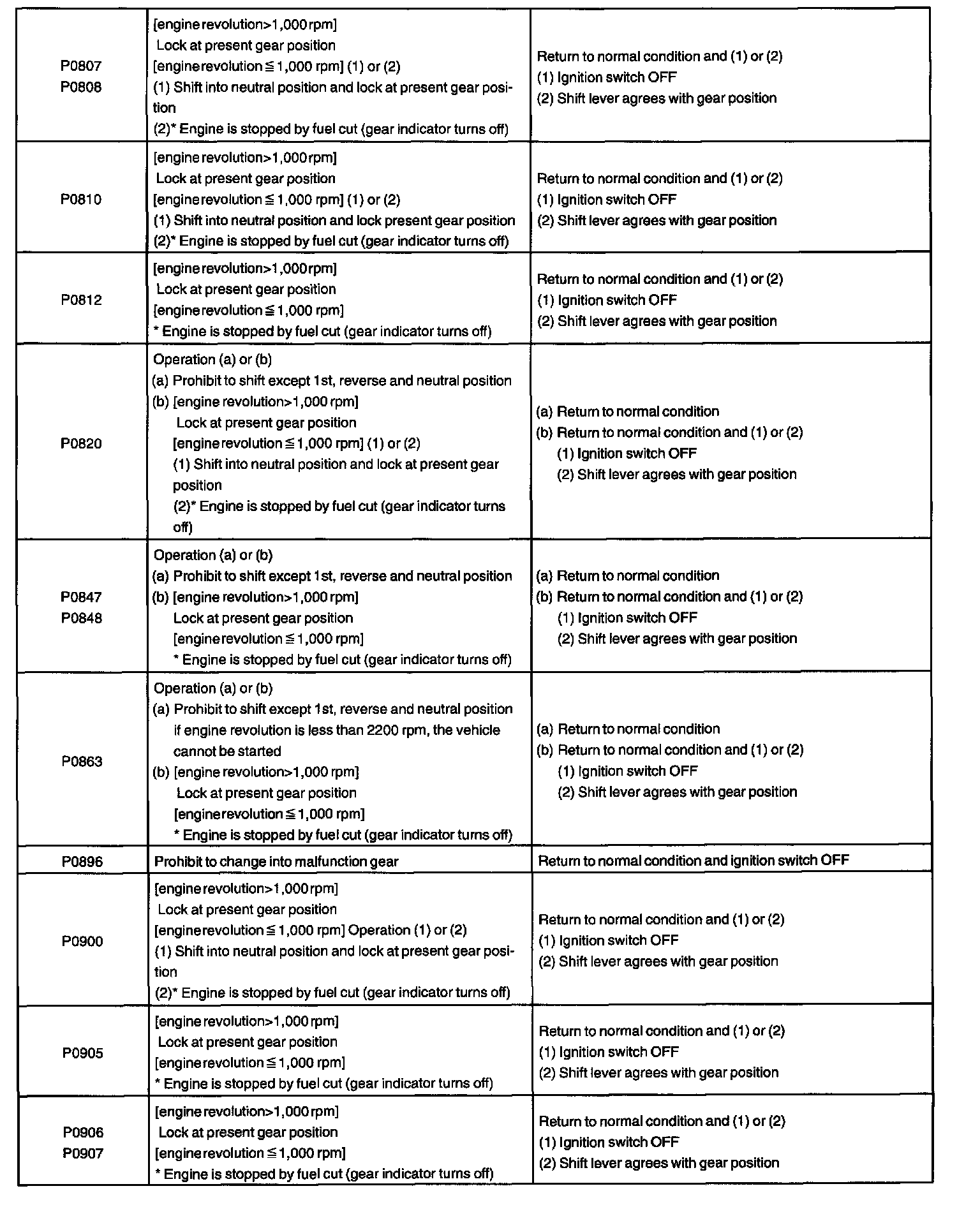

P0807 - P0907:

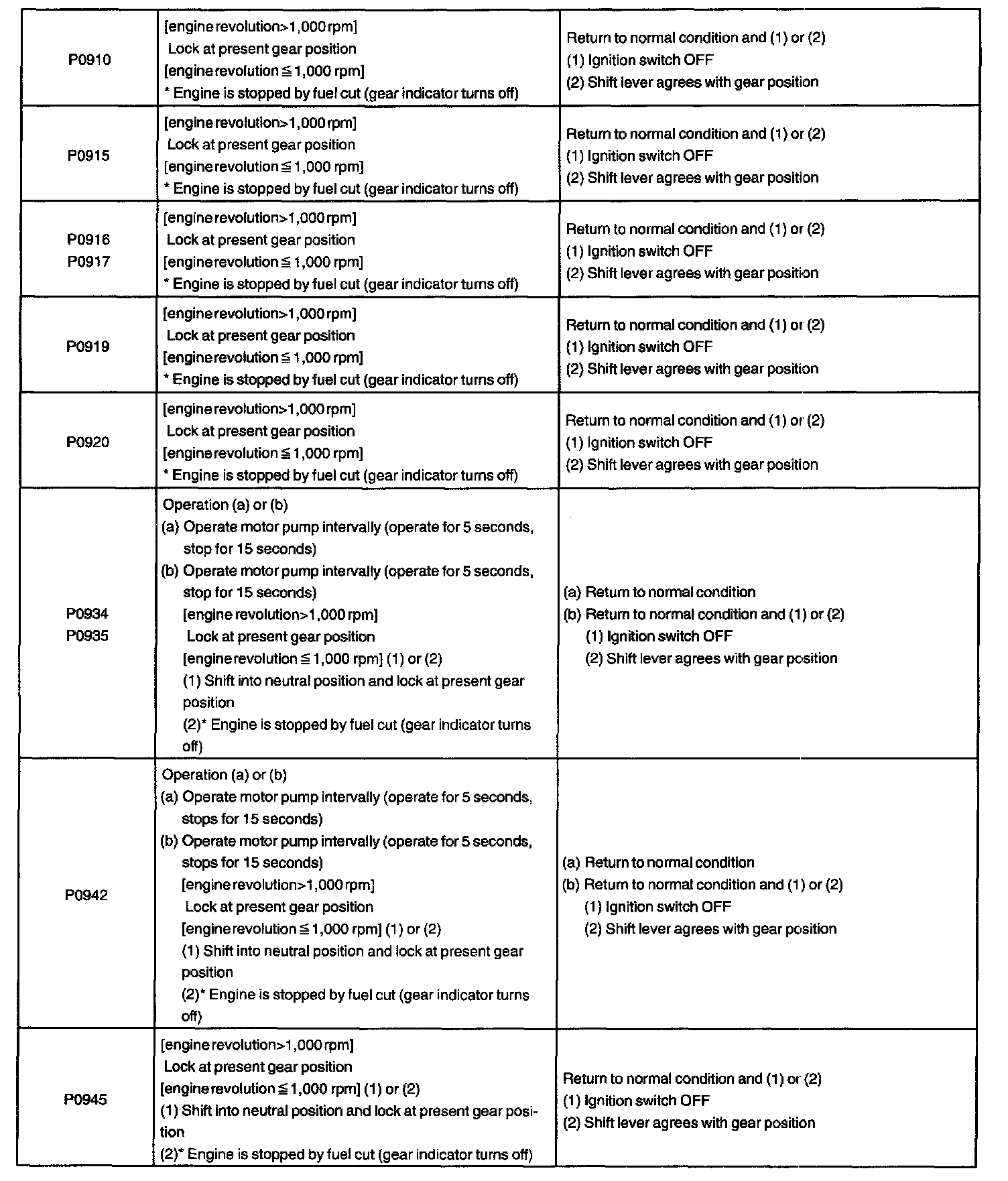

P0910 - P0945:

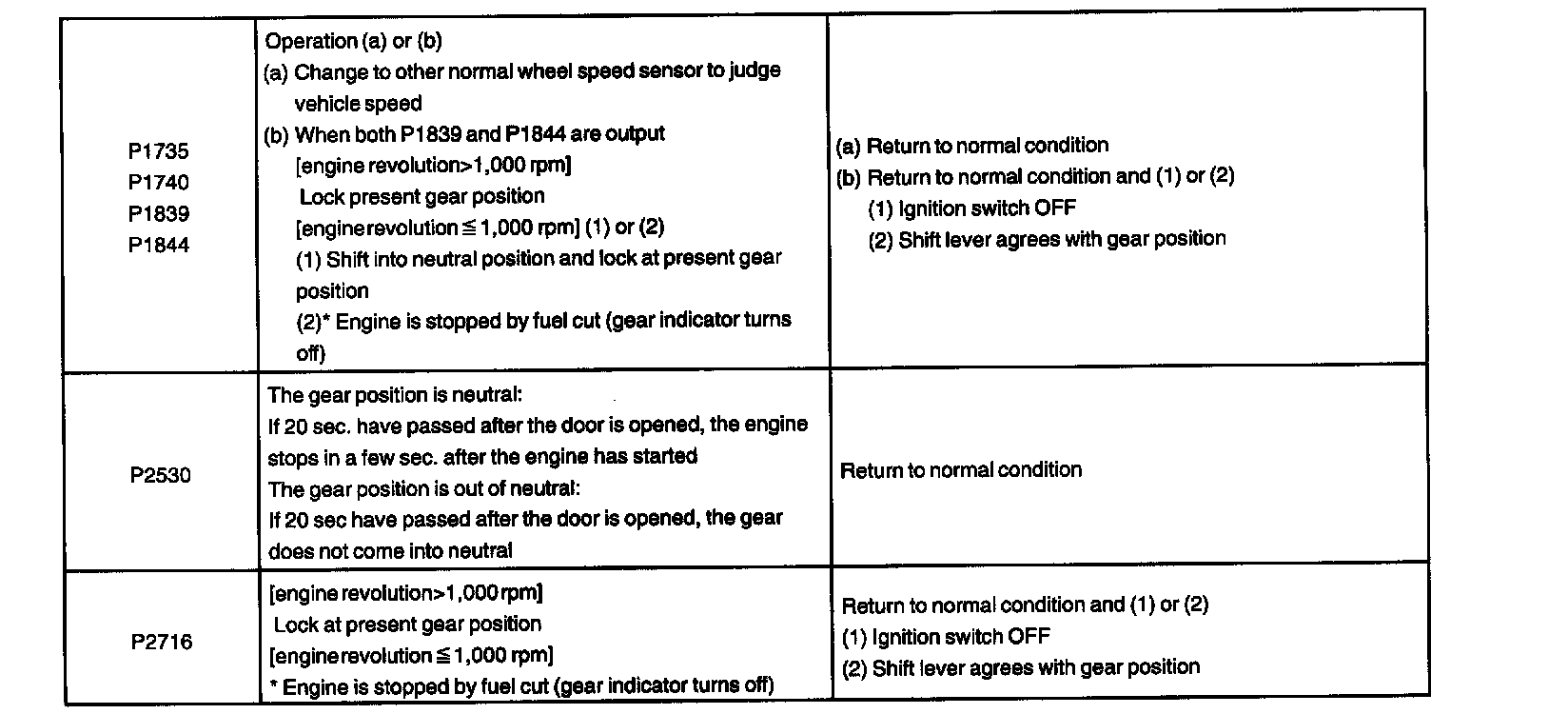

P1735 - P2716:
NOTE:
*: When operation, "engine is stopped by fuel cut", is performed by the fail-safe function, the ECM detects P1646 and U0001 simultaneously.
