Fuel Pump Relay: Testing and Inspection

INSPECTION

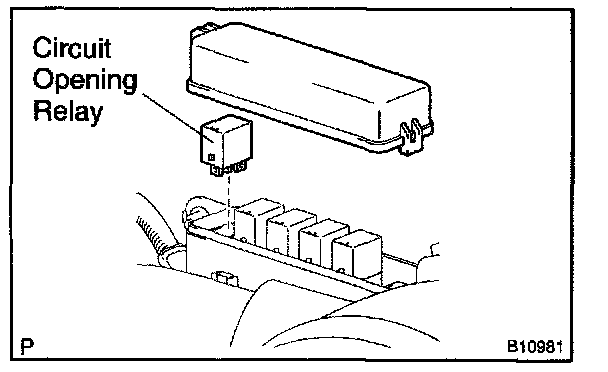

1. REMOVE CIRCUIT OPENING RELAY (Marking; C/OPN)




2. INSPECT CIRCUIT OPENING RELAY

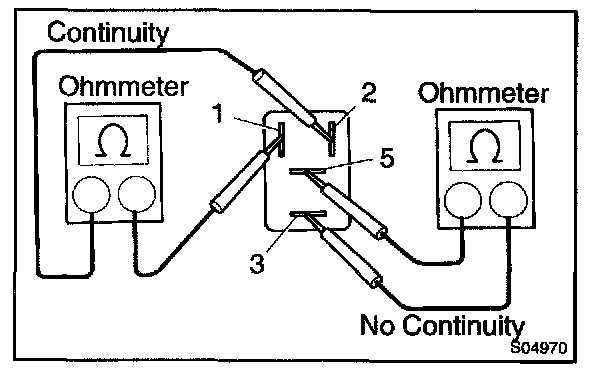

a. Inspect the relay continuity.
1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.

If there is no continuity, replace the relay.

2. Check that there is no continuity between terminals 3 and 5.

If there is continuity, replace the relay.

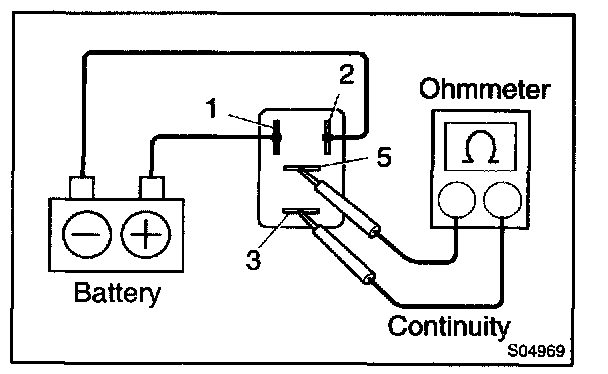

b. Inspect the relay operation.
1. Apply battery positive voltage to terminals 1 and 2.
2. Using an ohmmeter, check that there is continuity between terminals 3 and 5.

If there is no continuity, replace the relay.

3. REINSTALL CIRCUIT OPENING RELAY
