Fuel Supply Line: Service and Repair

FUEL SYSTEM

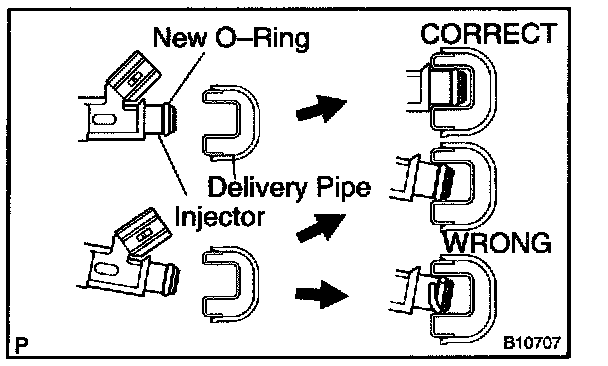

a. Observe these precautions when removing and installing the injector.
1. Never reuse the O-ring.
2. When placing a new O-ring on the injector, take care not to damage it in any ways.
3. Coat a new O-ring with spindle oil or gasoline before installing but never use engine, gear or brake oil.

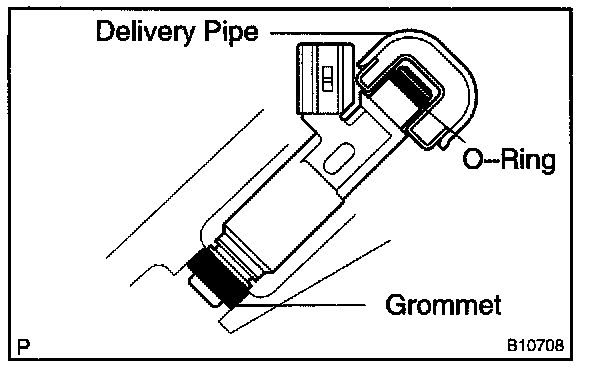

b. Install the injector to the delivery pipe and cylinder head, as shown in the illustration.
