MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
Connector Views

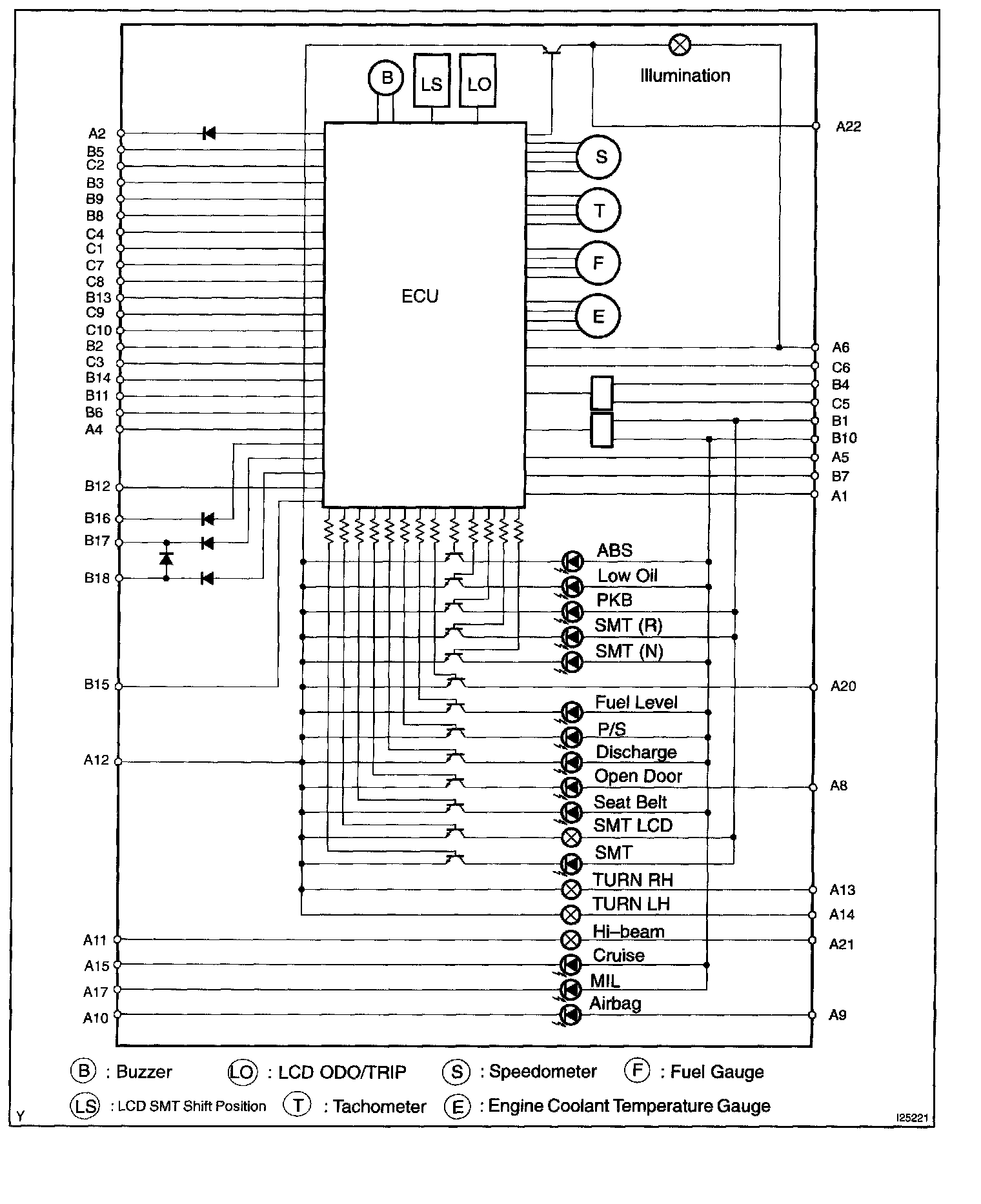

Combination Meter Part 1:

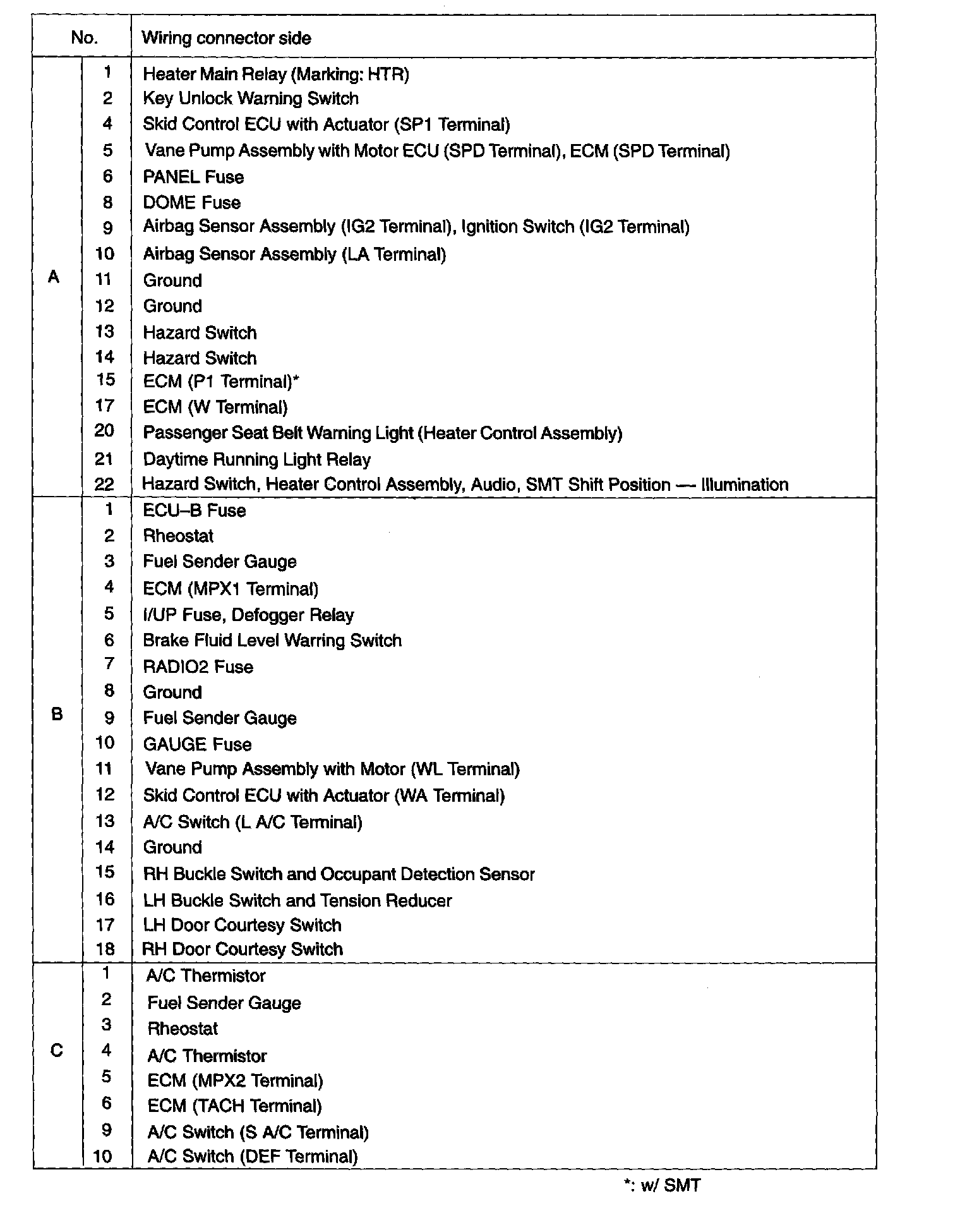

Combination Meter Part 2:

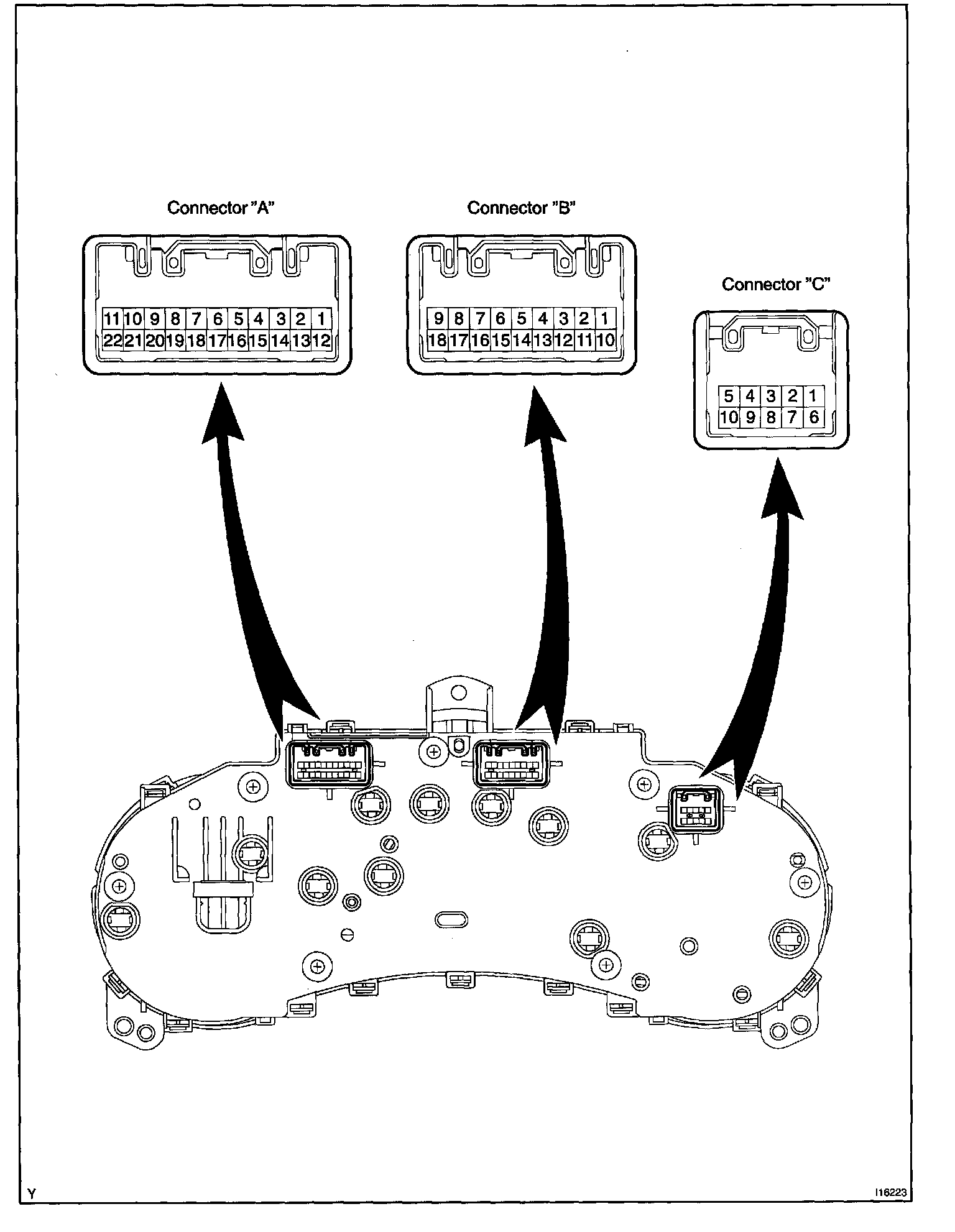

Combination Meter Part 3:
