Toyota
>>
2003
>>
MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>

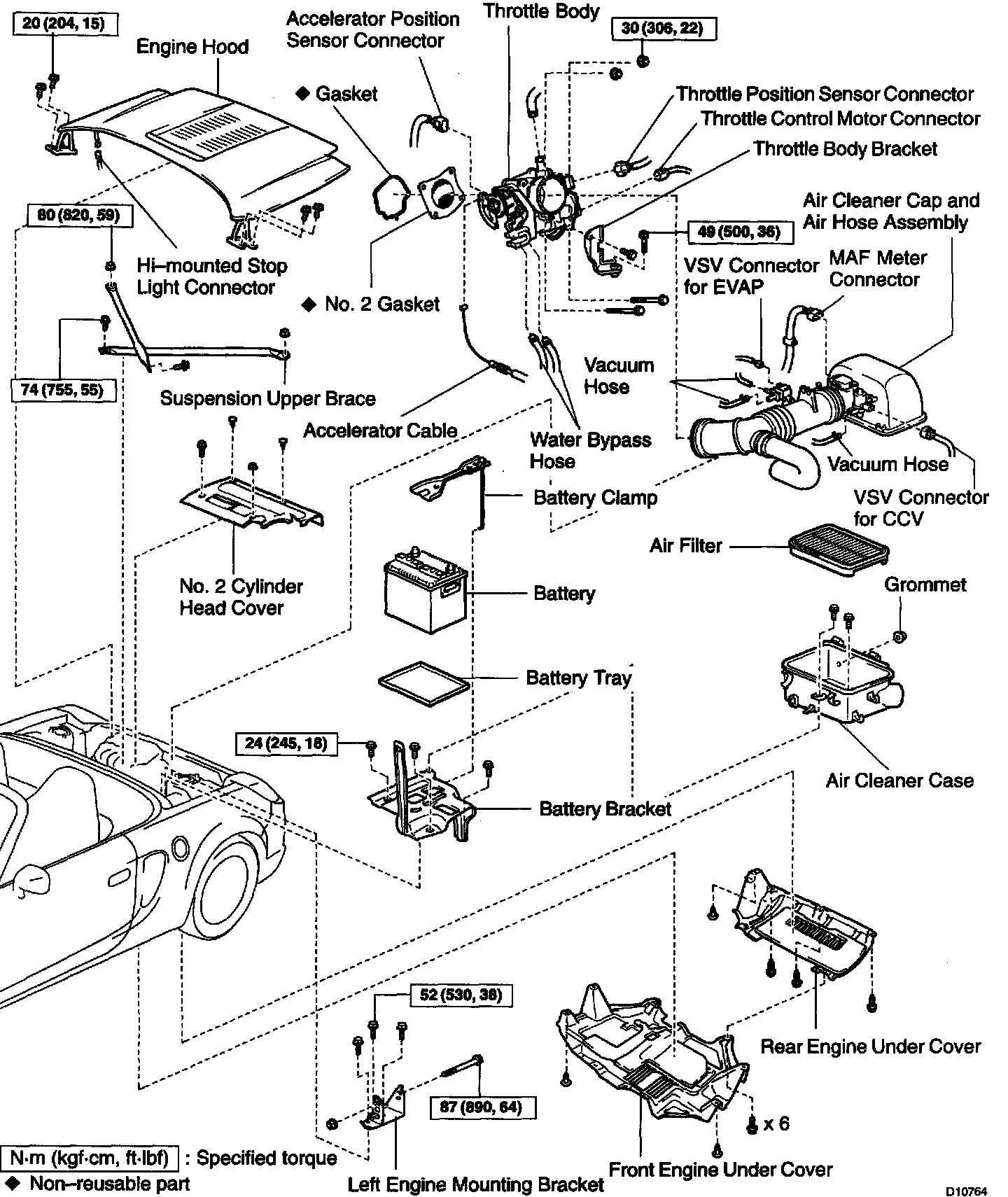

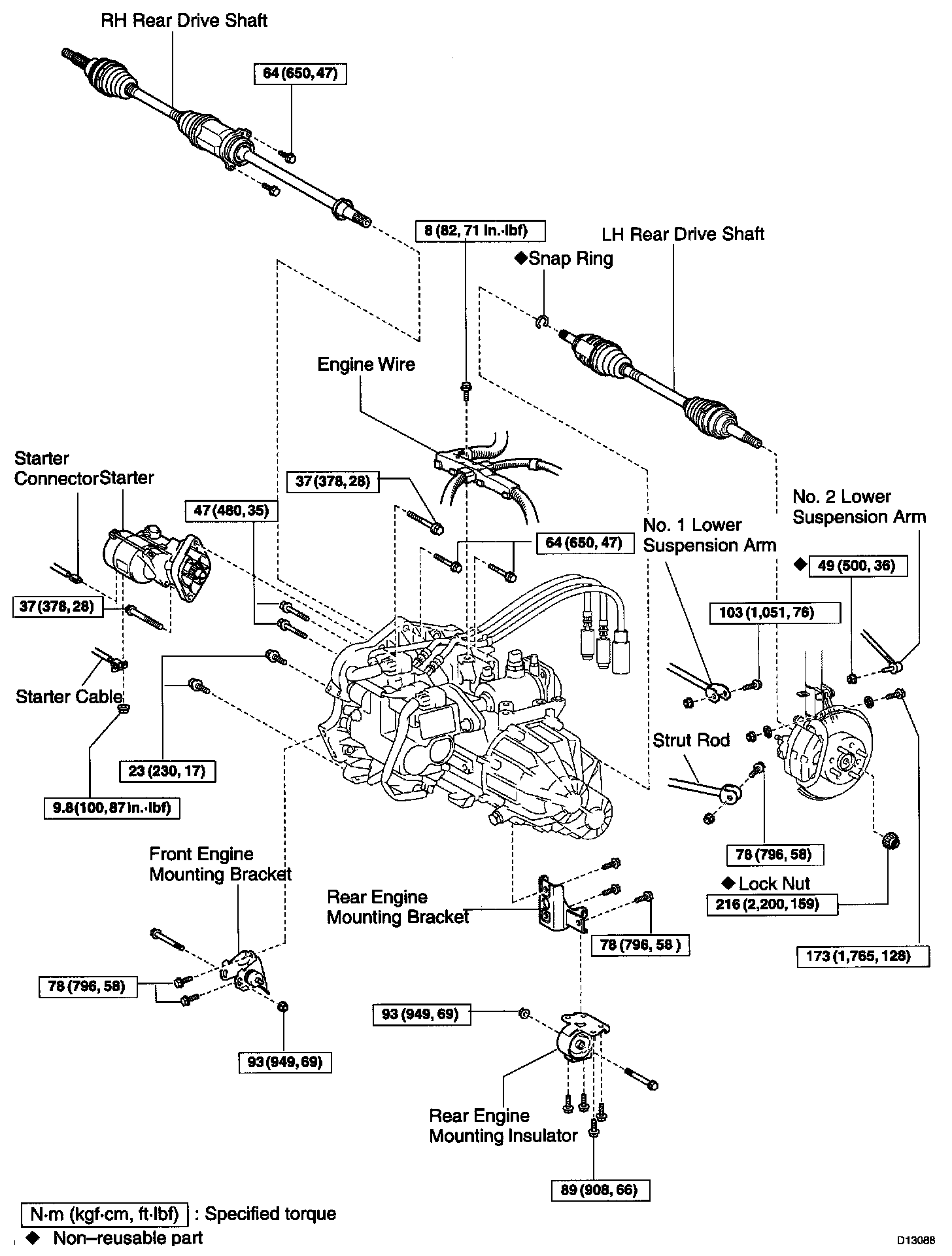

Exploded Views
>>
Automatically Shifted Manual Transmission/Transaxle
>>

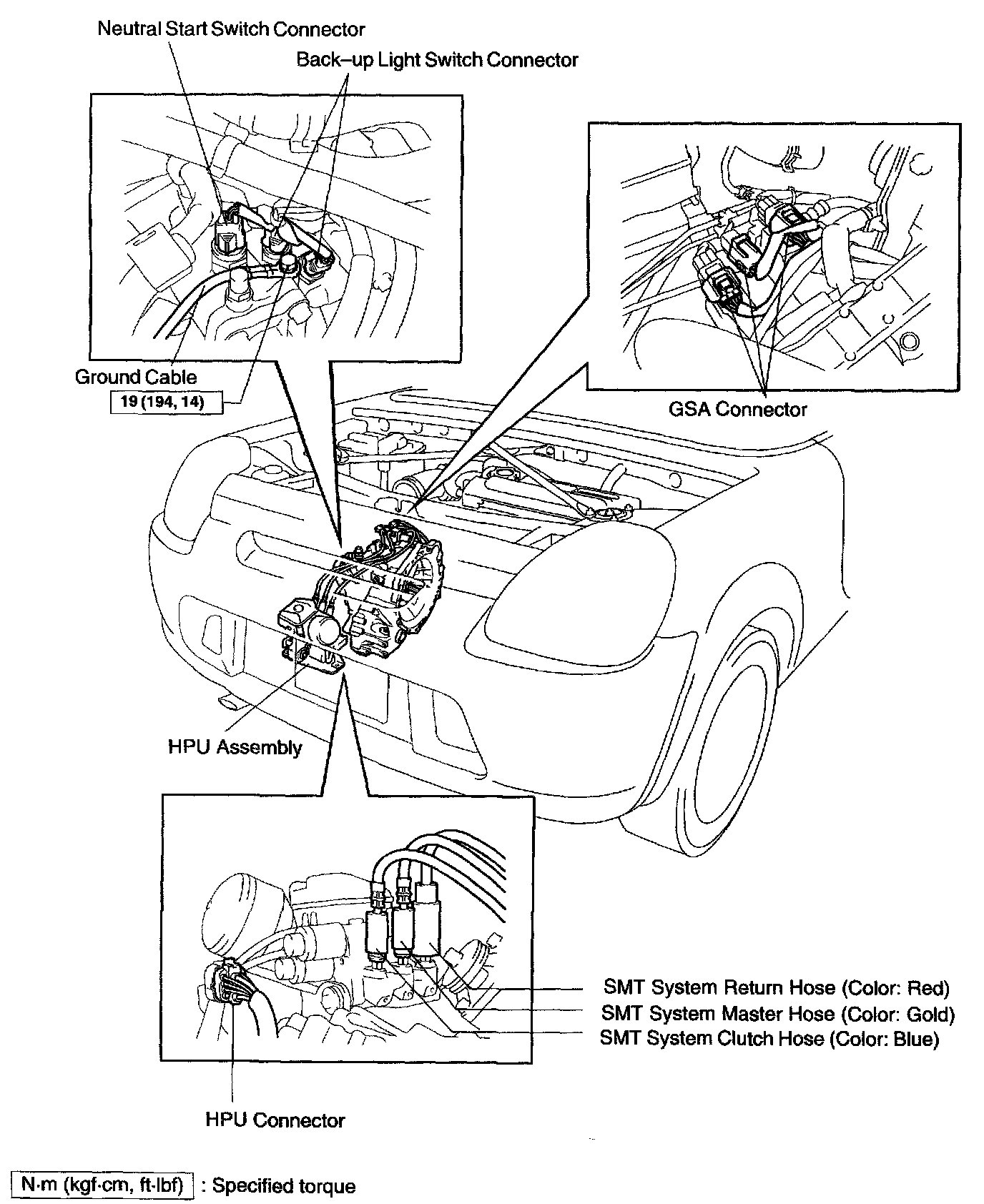

System Diagram
>>

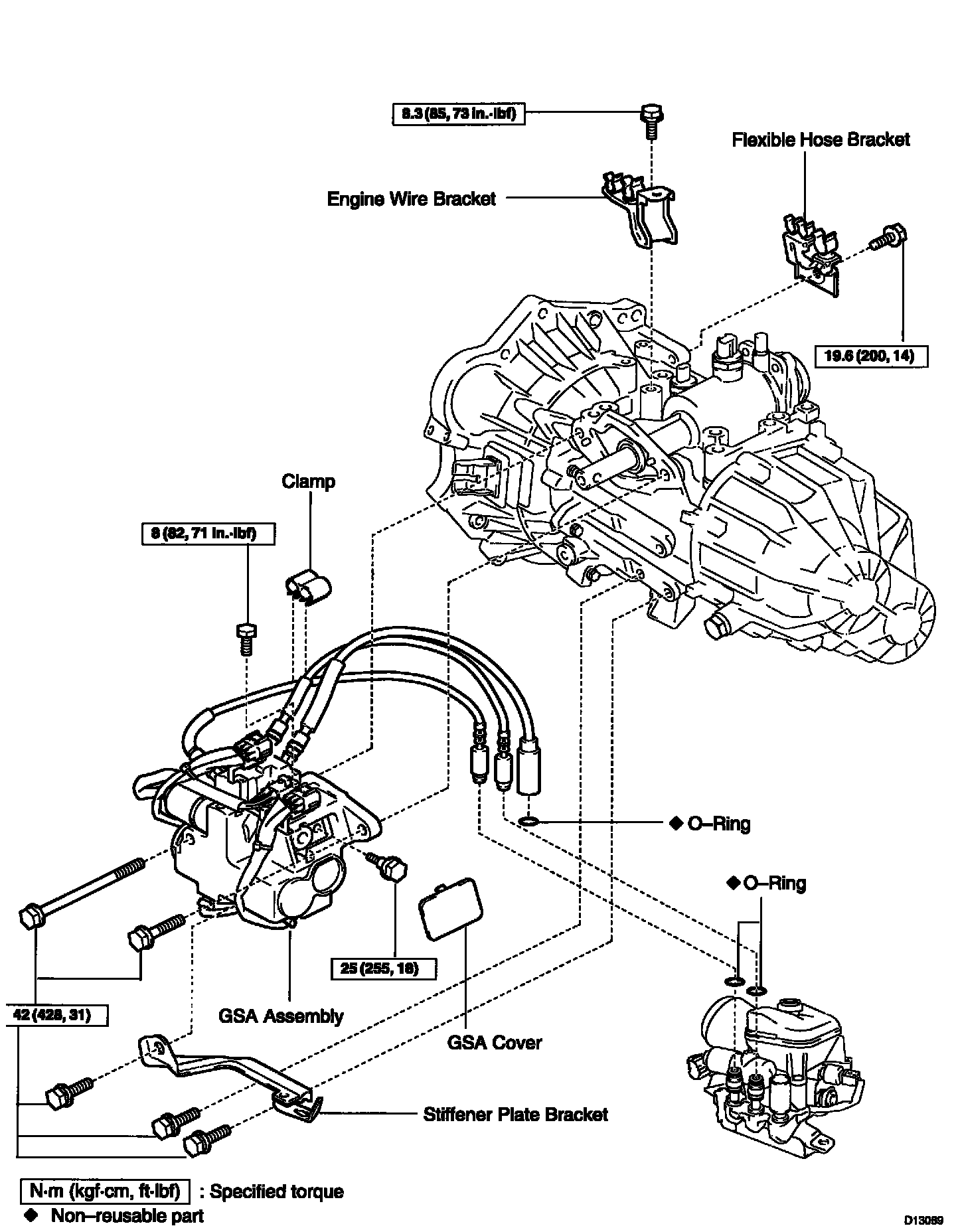

Sequential Manual Transmission Unit
Sequential Manual Transmission Unit
SEQUENTIAL MANUAL TRANSMISSION UNIT
