Diagnostic Procedures
CIRCUIT DESCRIPTIONWhen the cruise control main switch is turned ON, CRUISE MAIN indicator light lights up.

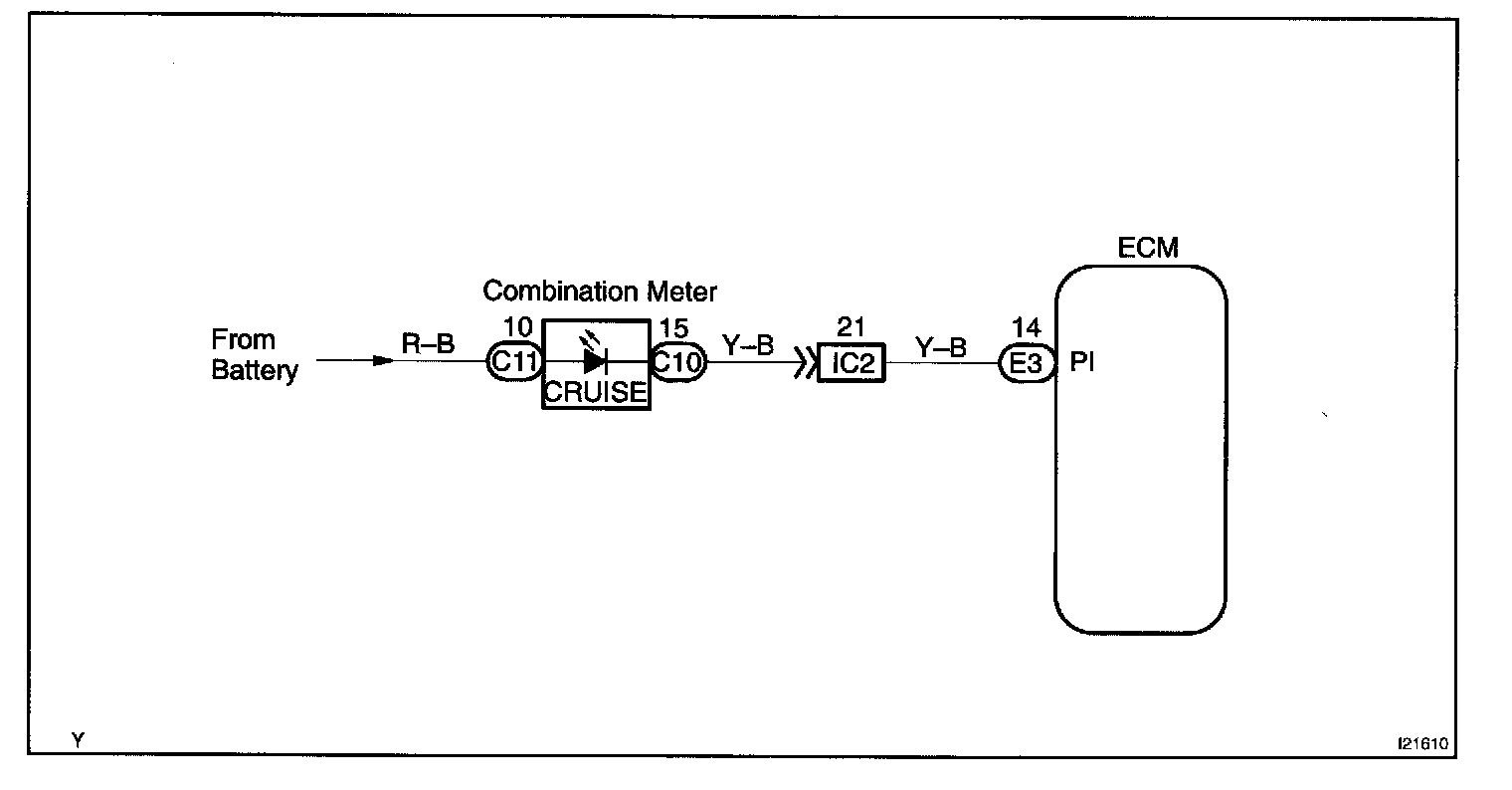

Wiring Diagram:

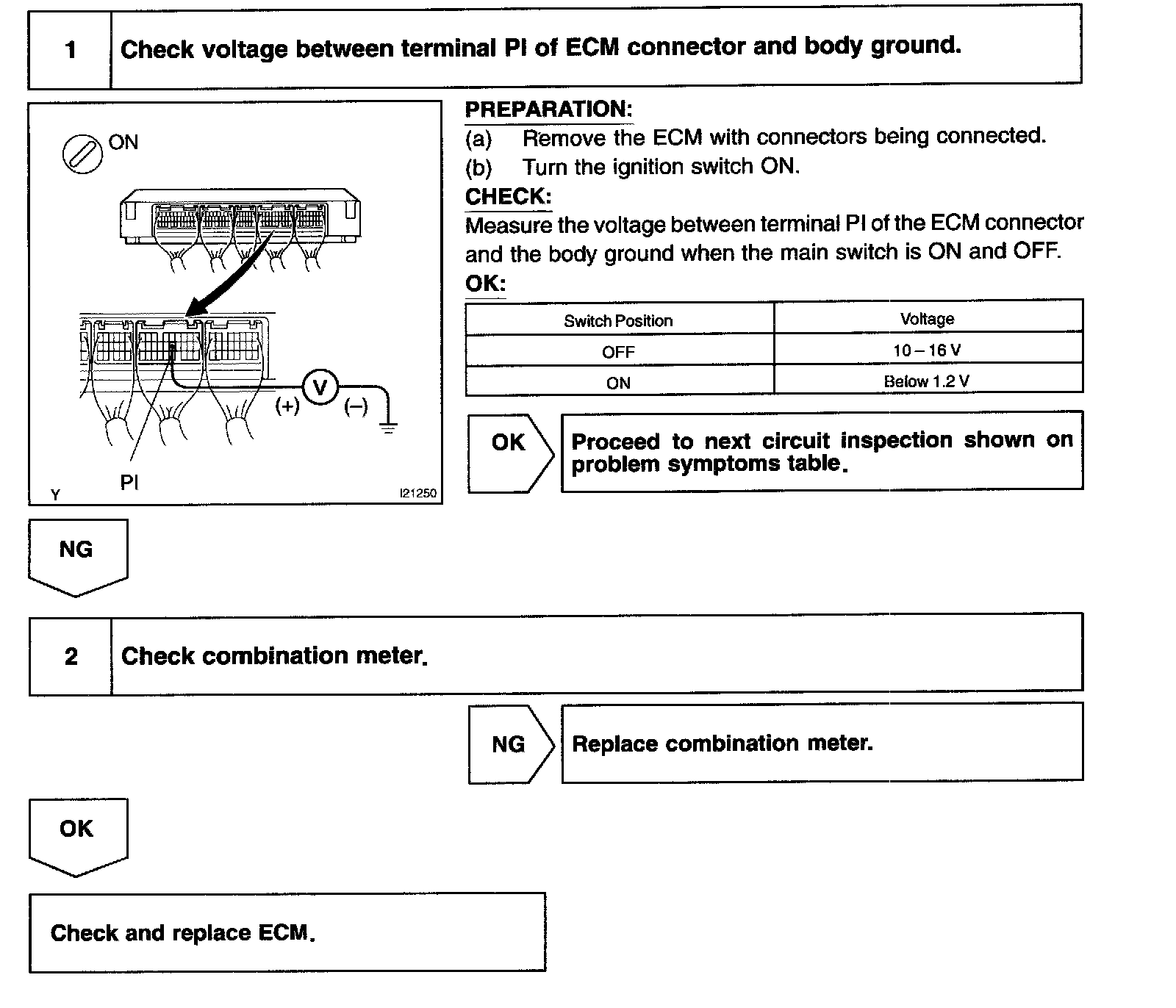

Step 1 - 2:
INSPECTION PROCEDURE
When the cruise control main switch is turned ON, CRUISE MAIN indicator light lights up.
INSPECTION PROCEDURE
