Ts Terminal Circuit
Ts Terminal CircuitCIRCUIT DESCRIPTION
Connecting between terminals Ts and CG of the DLC3 causes the Skid Control ECU to output the DTC by flashing the ABS warning light.

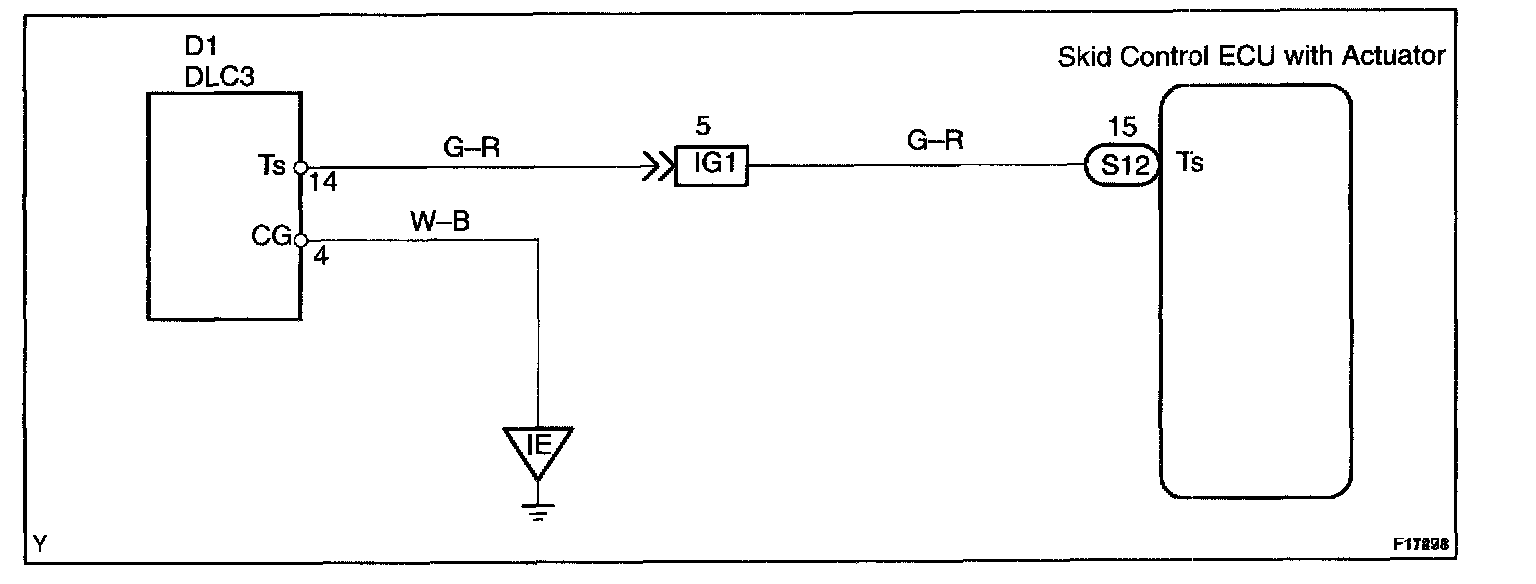

Wiring Diagram:

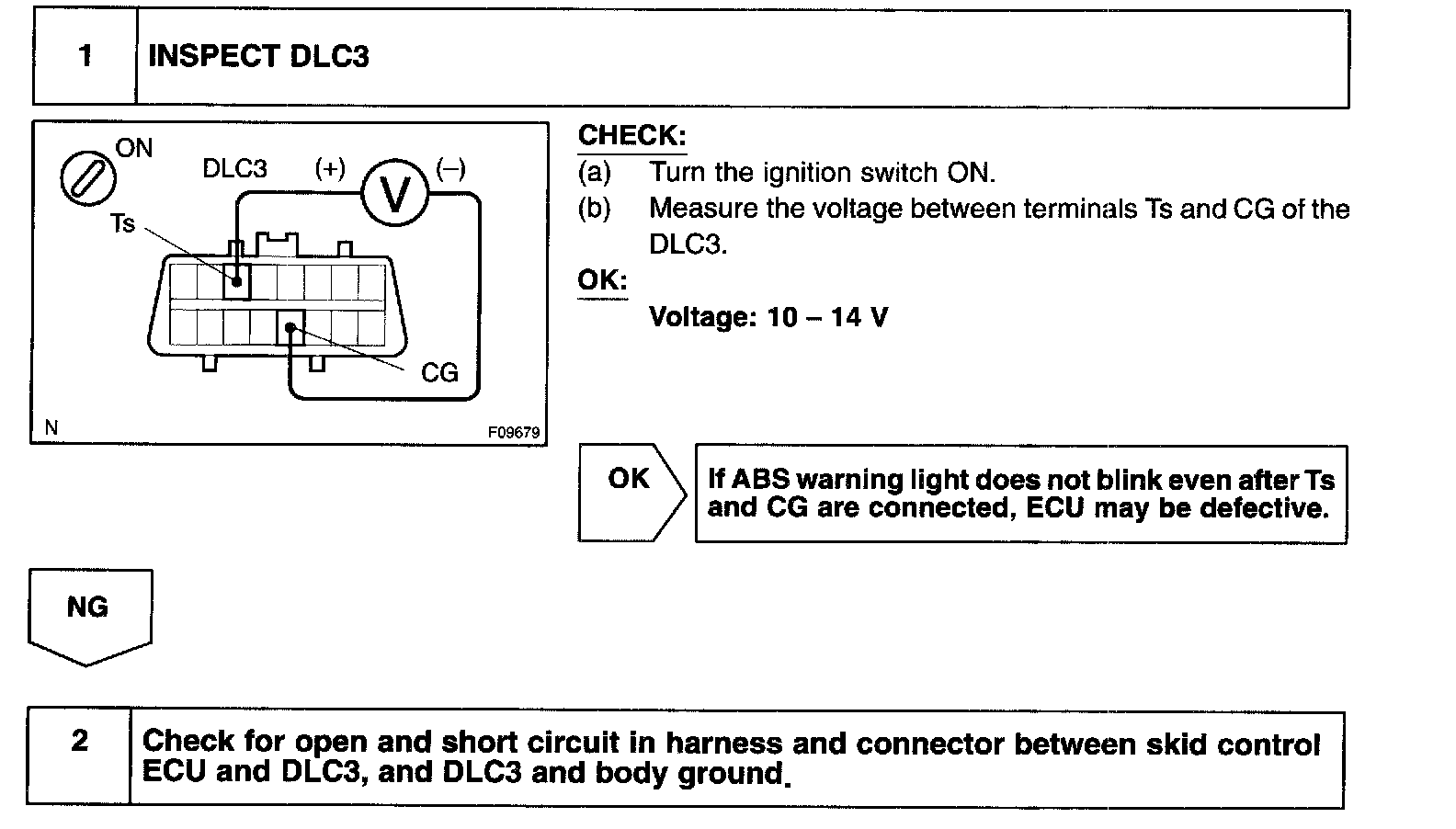

Step 1 - 2:

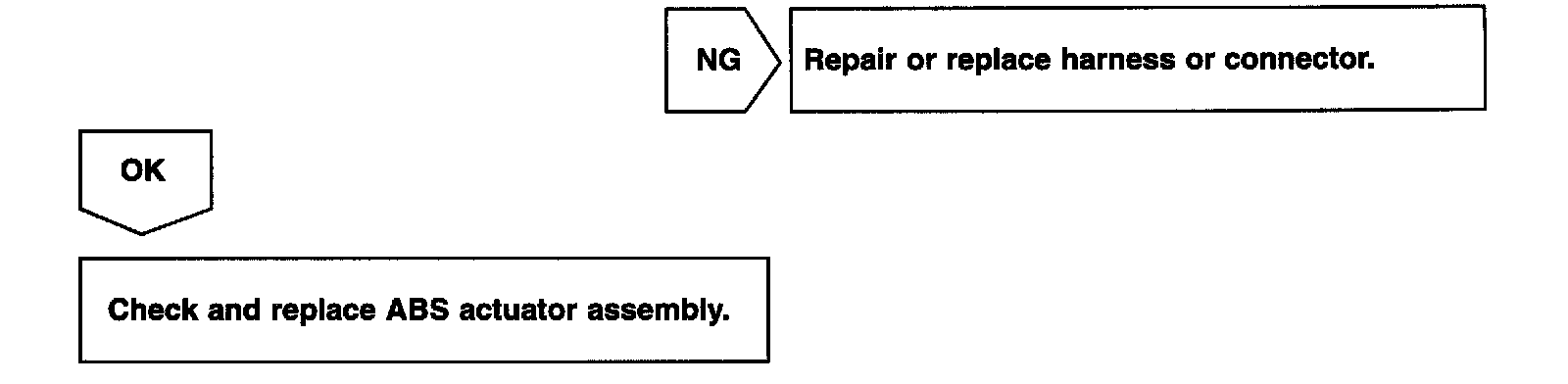

Step 2 (Continued):
INSPECTION PROCEDURE
