Tc Terminal Circuit
Tc Terminal CircuitCIRCUIT DESCRIPTION
Connecting between terminals Tc and CG of the DLC3 causes the skid control ECU to output the DTC by flashing the ABS warning light.

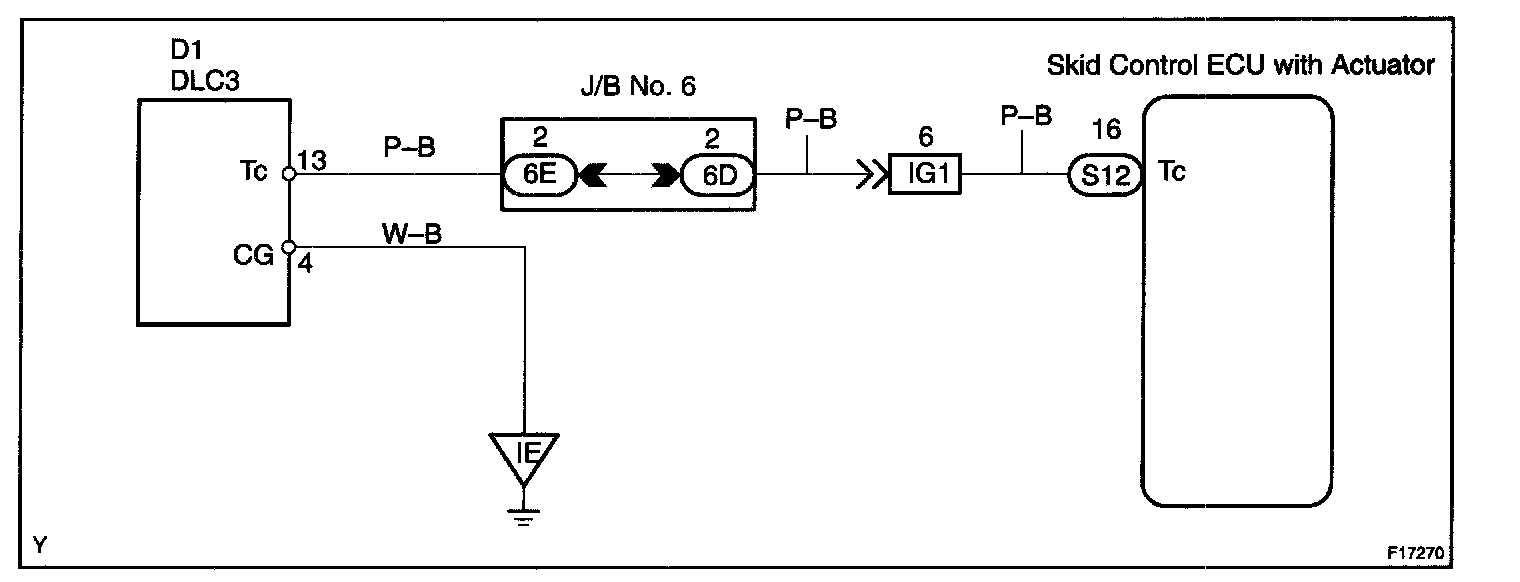

Wiring Diagram:

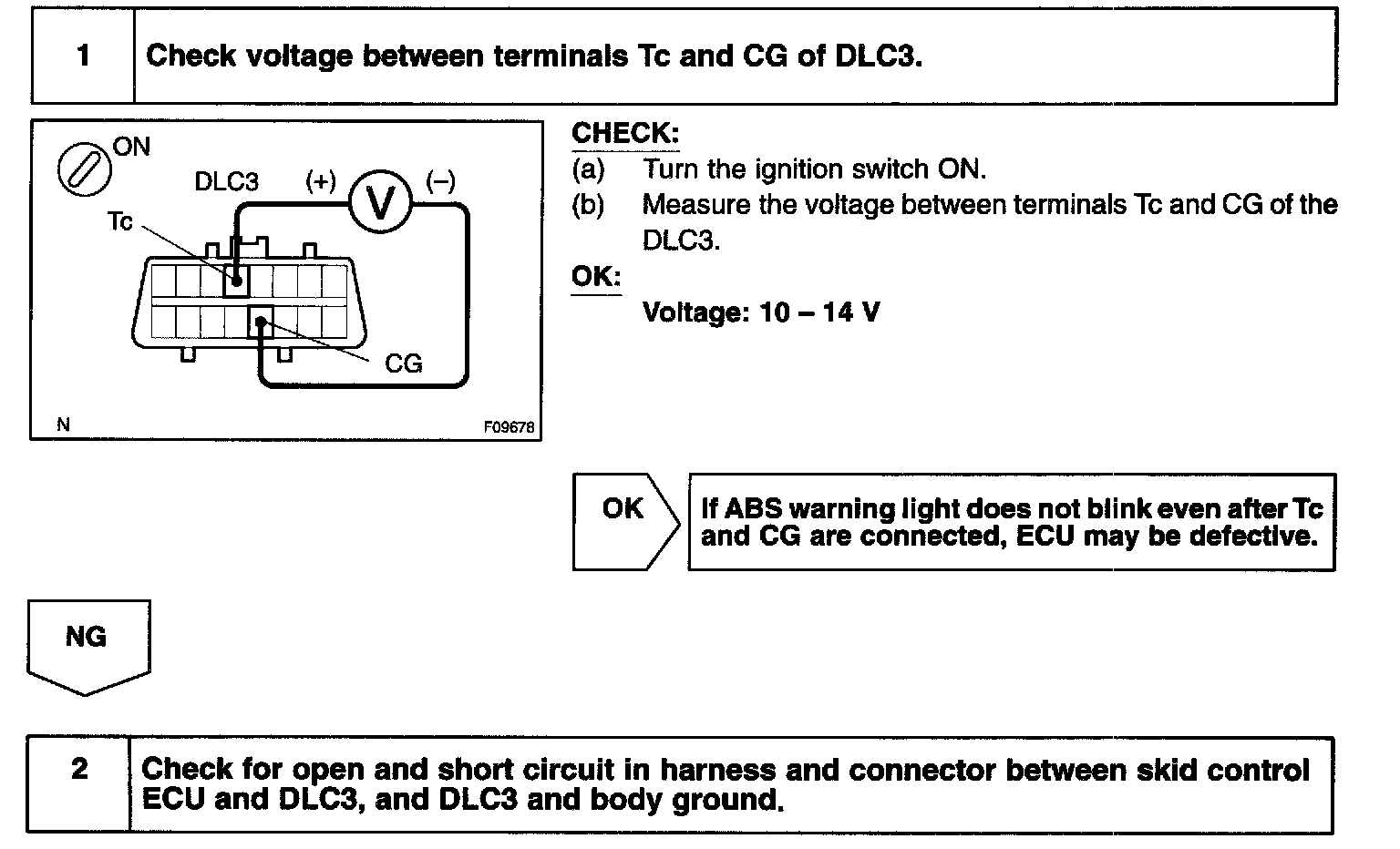

Step 1 - 2:

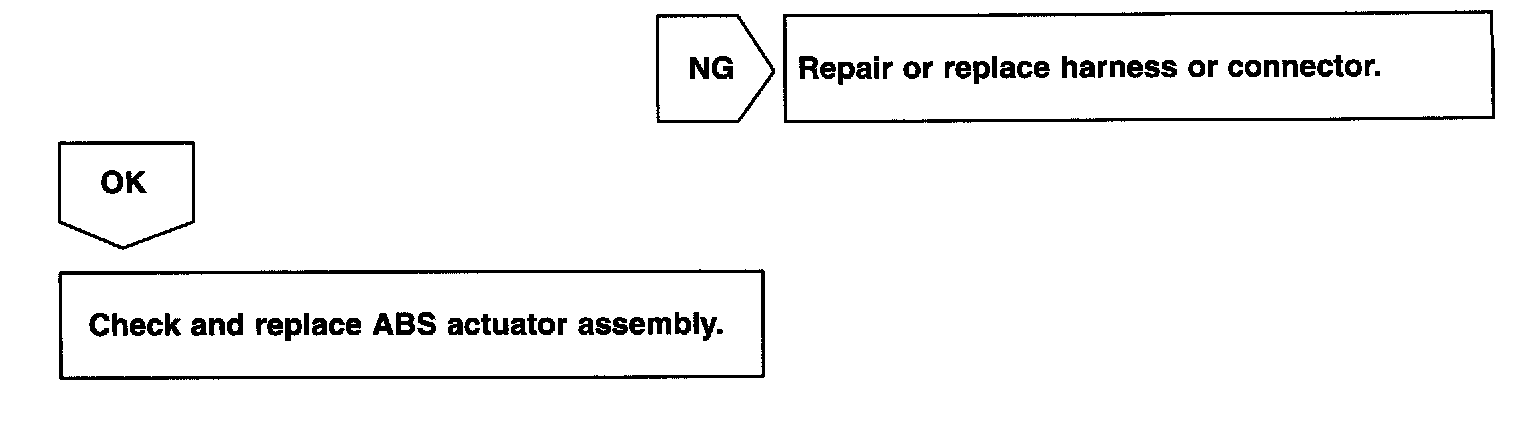

Step 2 (Continued):
INSPECTION PROCEDURE
