DTC P2120 Throttle/Pedal Position Sensor/Switch "D" Circuit

*: Only for sequential manual transmission vehicle.

CIRCUIT DESCRIPTION

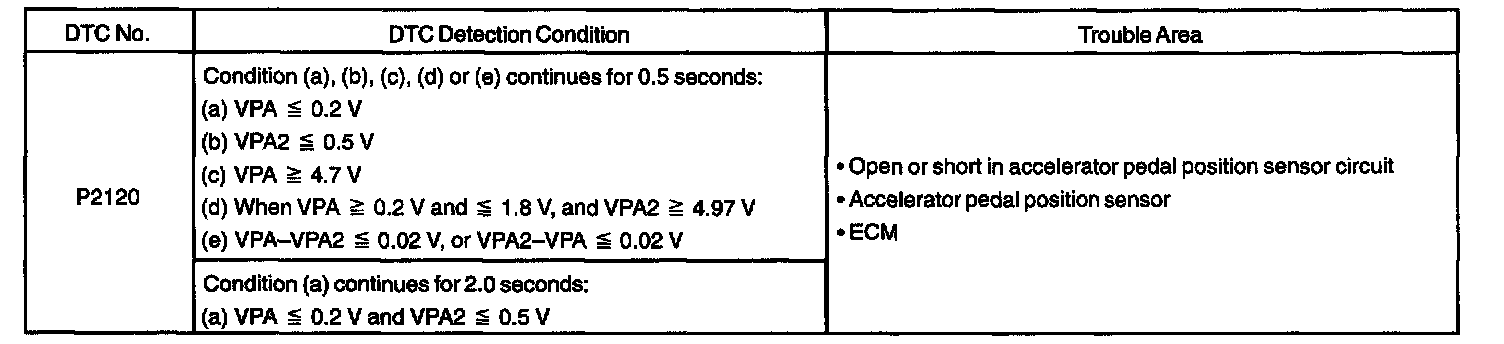

DTC Detection Condition:

The accelerator pedal position sensor is mounted on the throttle body and it has the 2 sensors to detects the accelerator position and a malfunction of the accelerator position sensor.

The accelerator pedal position sensor, connected with the accelerator pedal by the accelerator wire and the voltage applied to the terminals VPA and VPA2 of the ECM changes between 0 V and 5 V in proportion to the opening angle of the accelerator pedal.

The ECM judges the current opening angle of the accelerator pedal from these signals input from terminals VPA and VPA2 and, the ECM controls the throttle motor based on these signals.

If this DTC is stored, the ECM shuts down the power for the throttle motor and the magnetic clutch, and the throttle valve is fully closed by the return spring.

However, the opening angle of the throttle valve can be controlled by the accelerator pedal through the throttle cable.






HINT: After confirming DTC P1120, use the OBD II scan tool or the TOYOTA hand-held tester to confirm the throttle valve opening percentage.

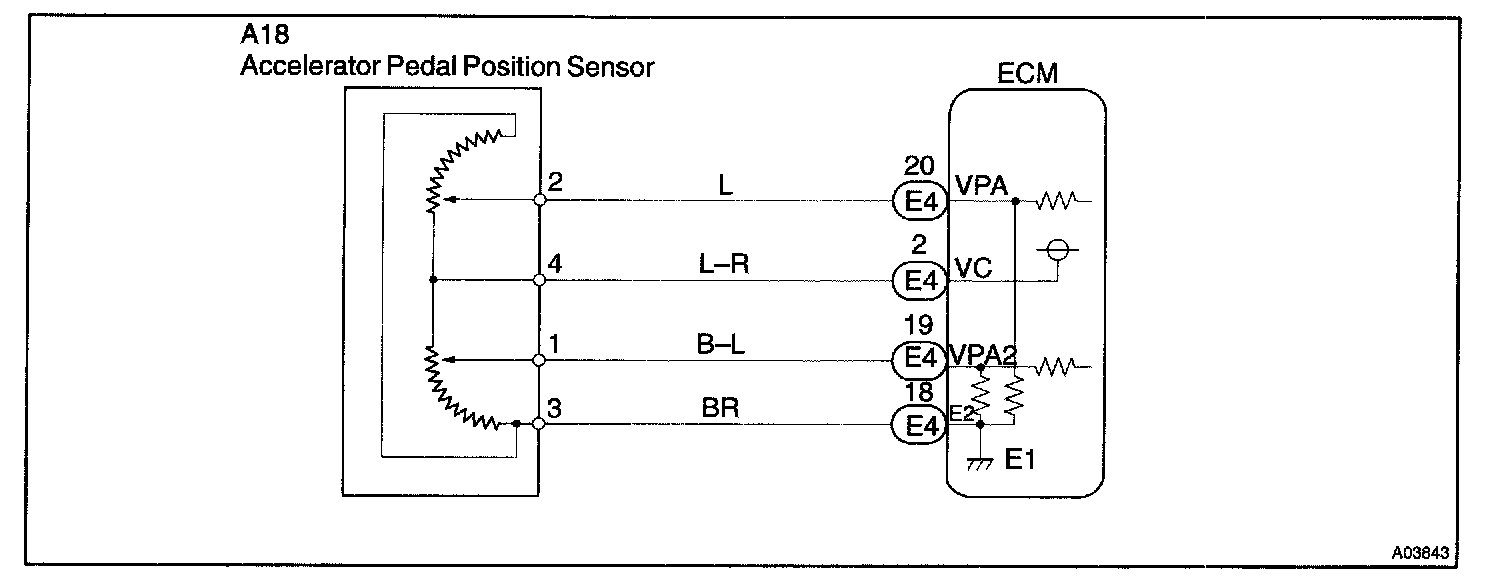

Wiring Diagram:

INSPECTION PROCEDURE

HINT:
- If different DTCs that are related to different systems are output simultaneously while terminal E2 is used as a ground terminal, terminal E2 may be open.

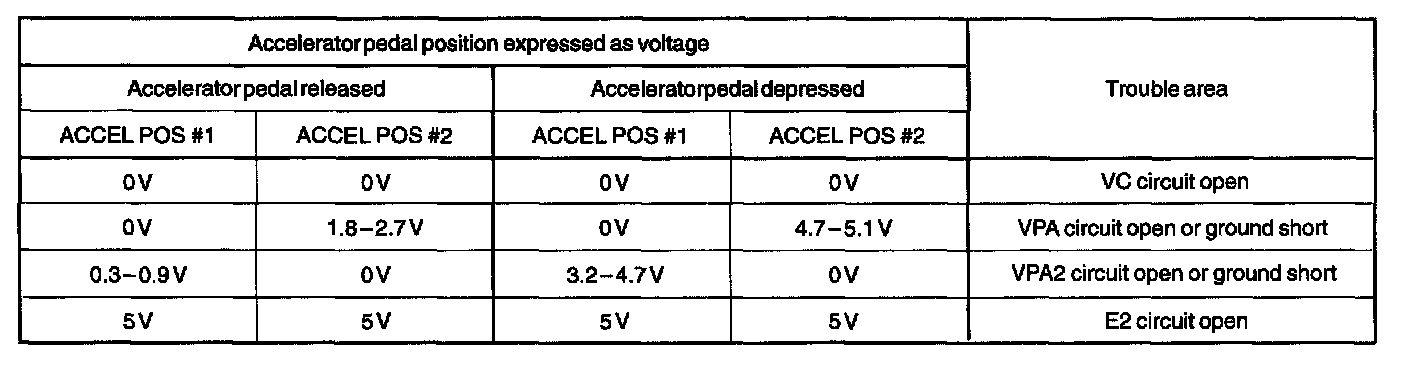

- Read freeze frame data using the hand-held tester or the OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, this is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.

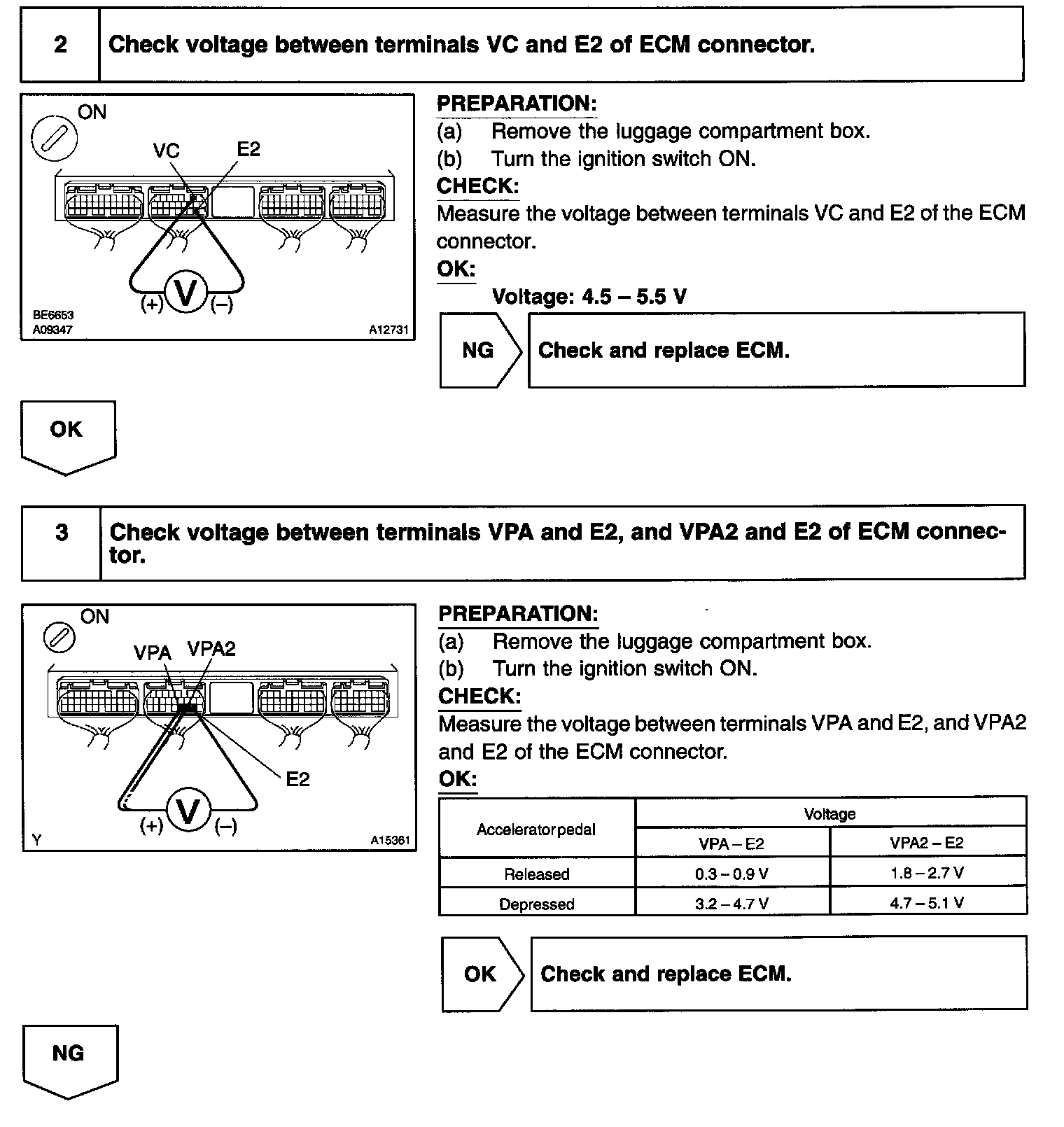

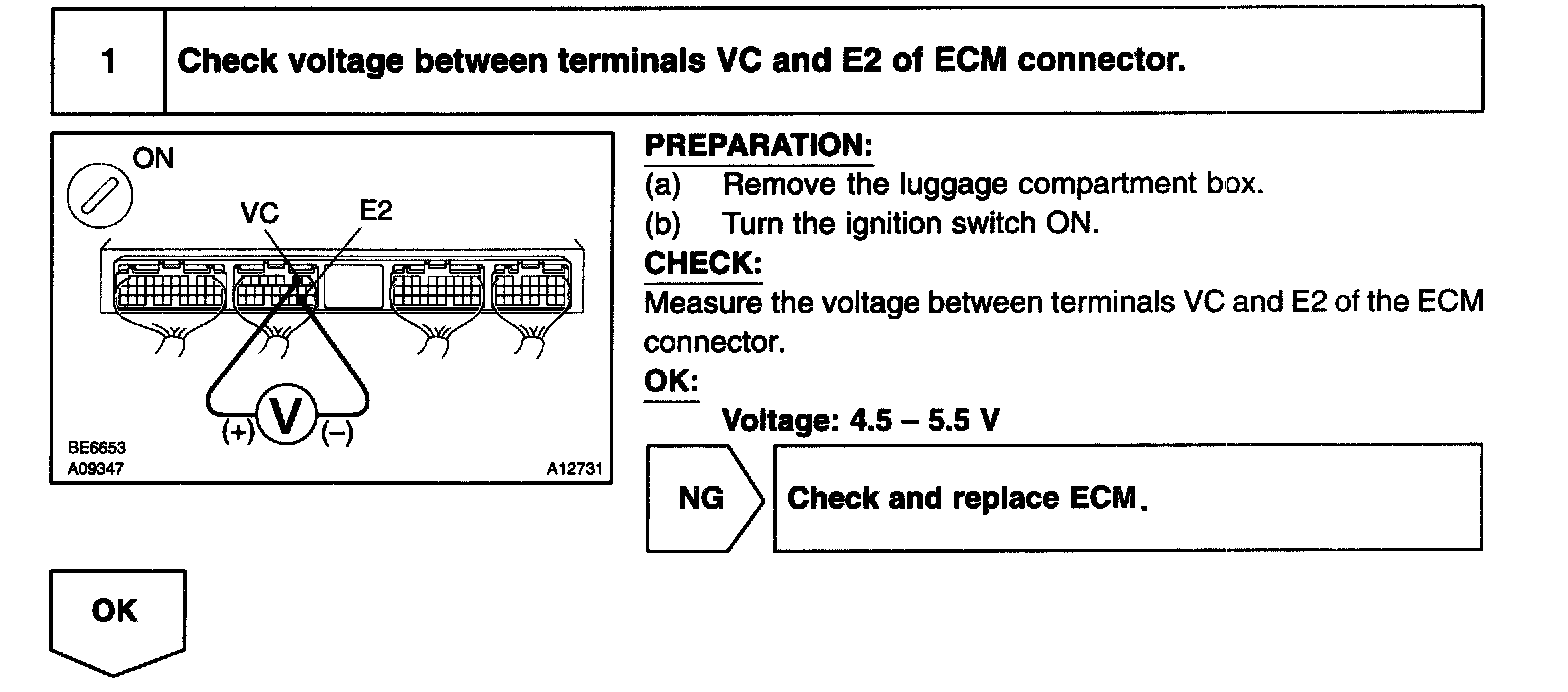

Step 1:

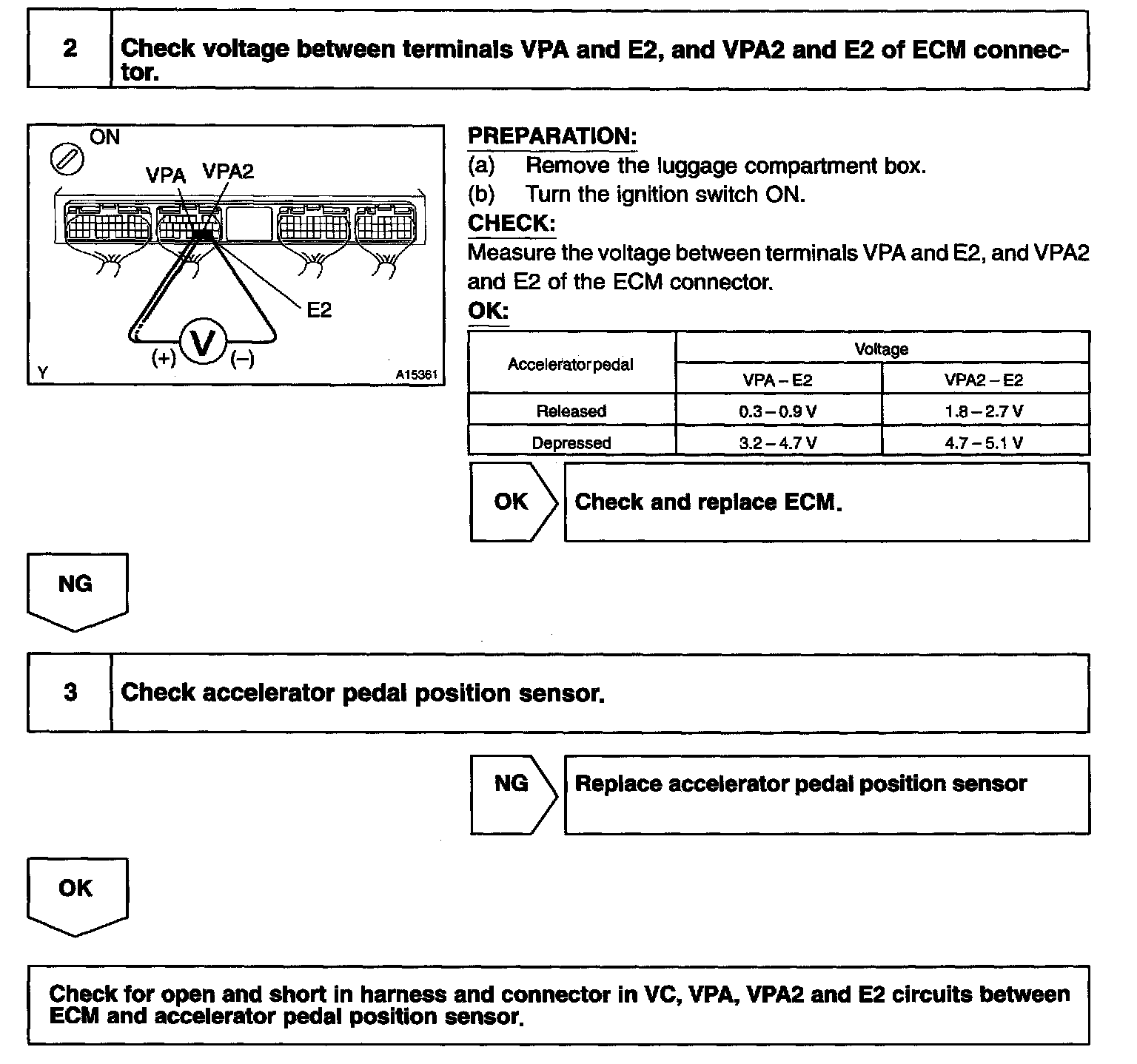

Step 2 - 3:

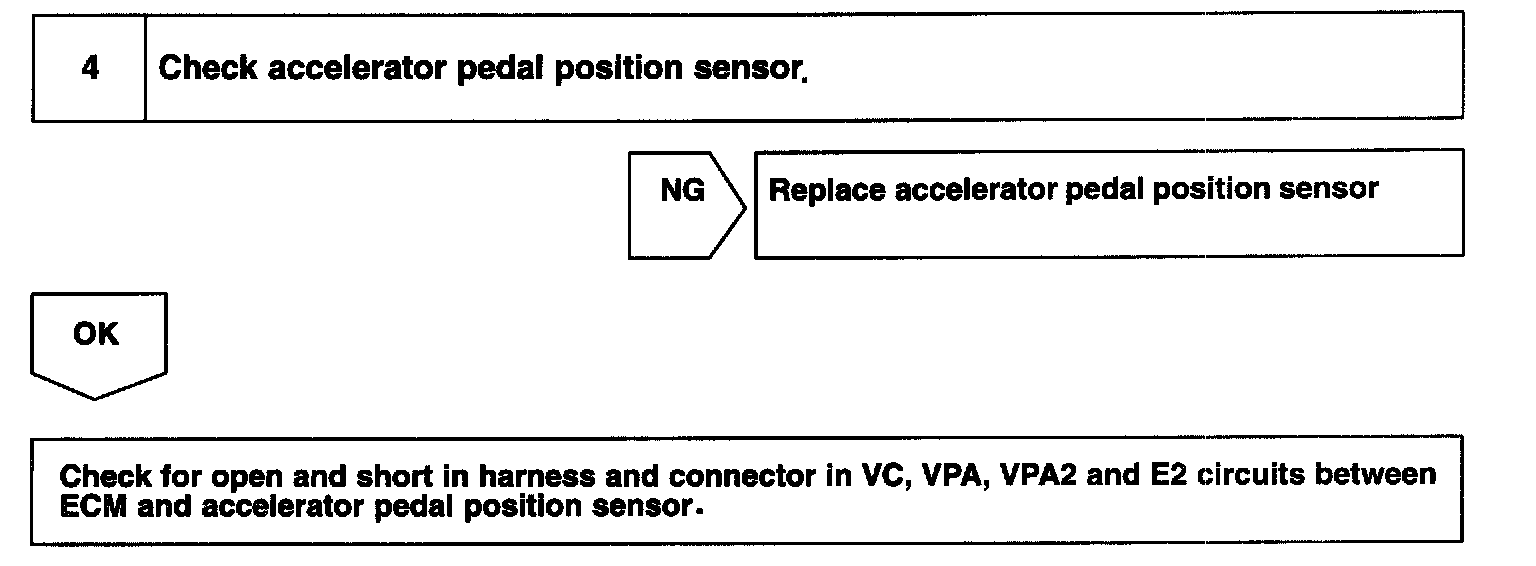

Step 4:

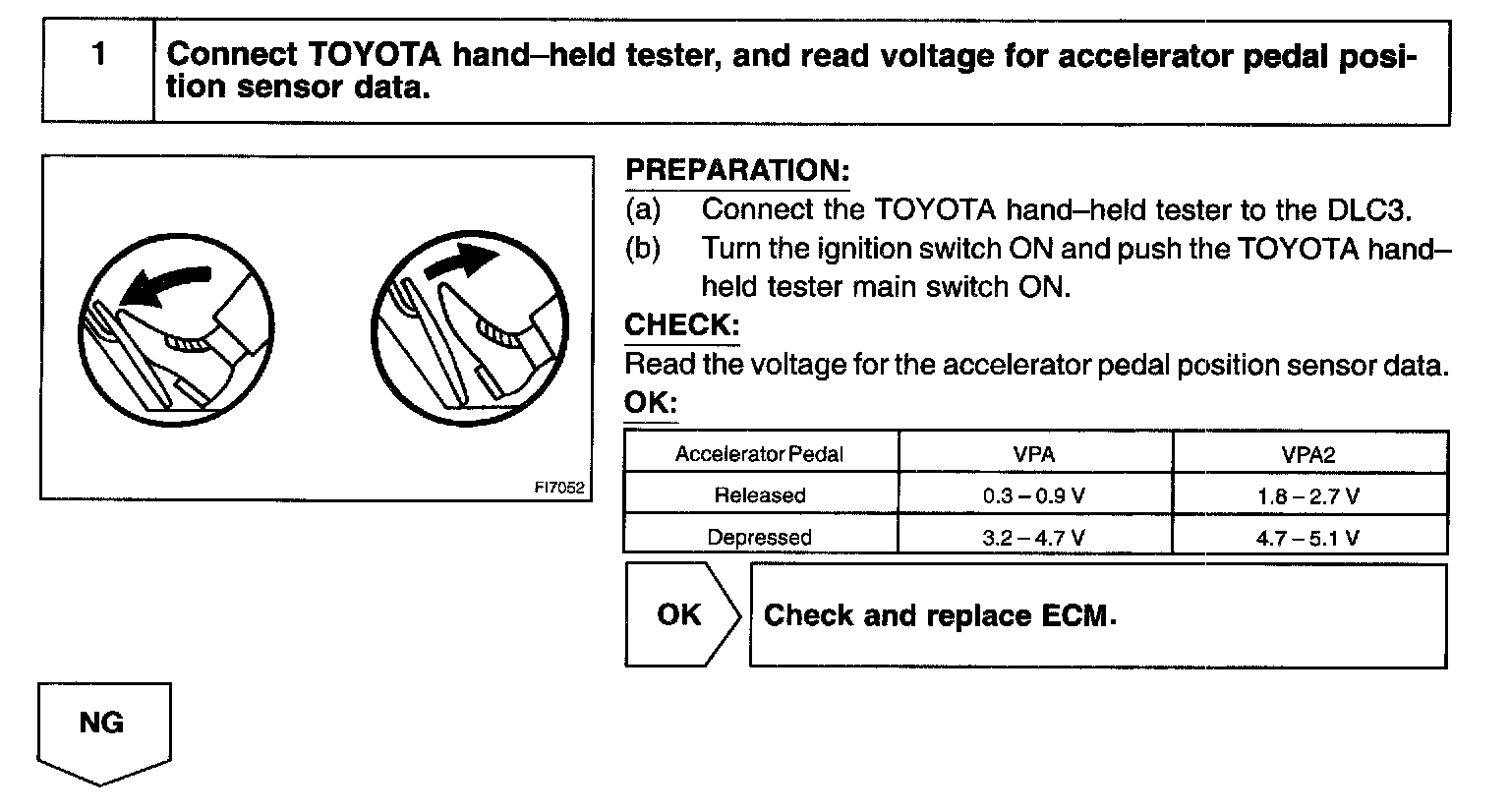

TOYOTA hand-held tester:

Step 1:

Step 2 - 3:

OBD II scan tool (excluding TOYOTA hand-held tester):
