Troubleshooting

DTC P0848 Transmission Fluid Pressure Sensor/Switch "B"Circuit HIGH

CIRCUIT DESCRIPTION

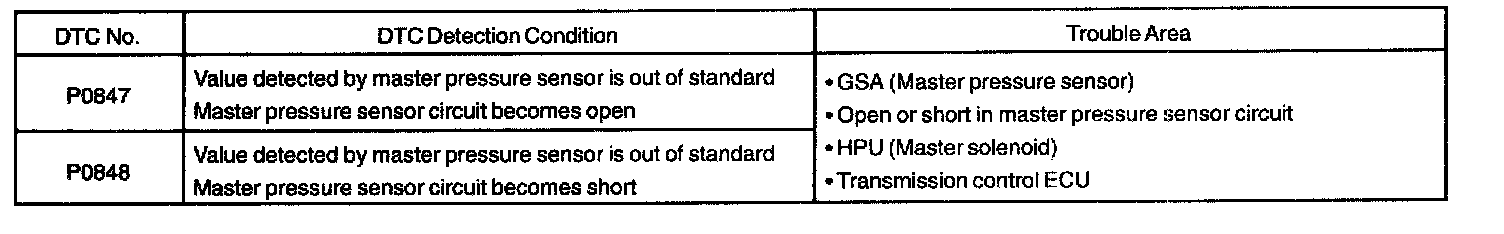

DTC Detection Condition:

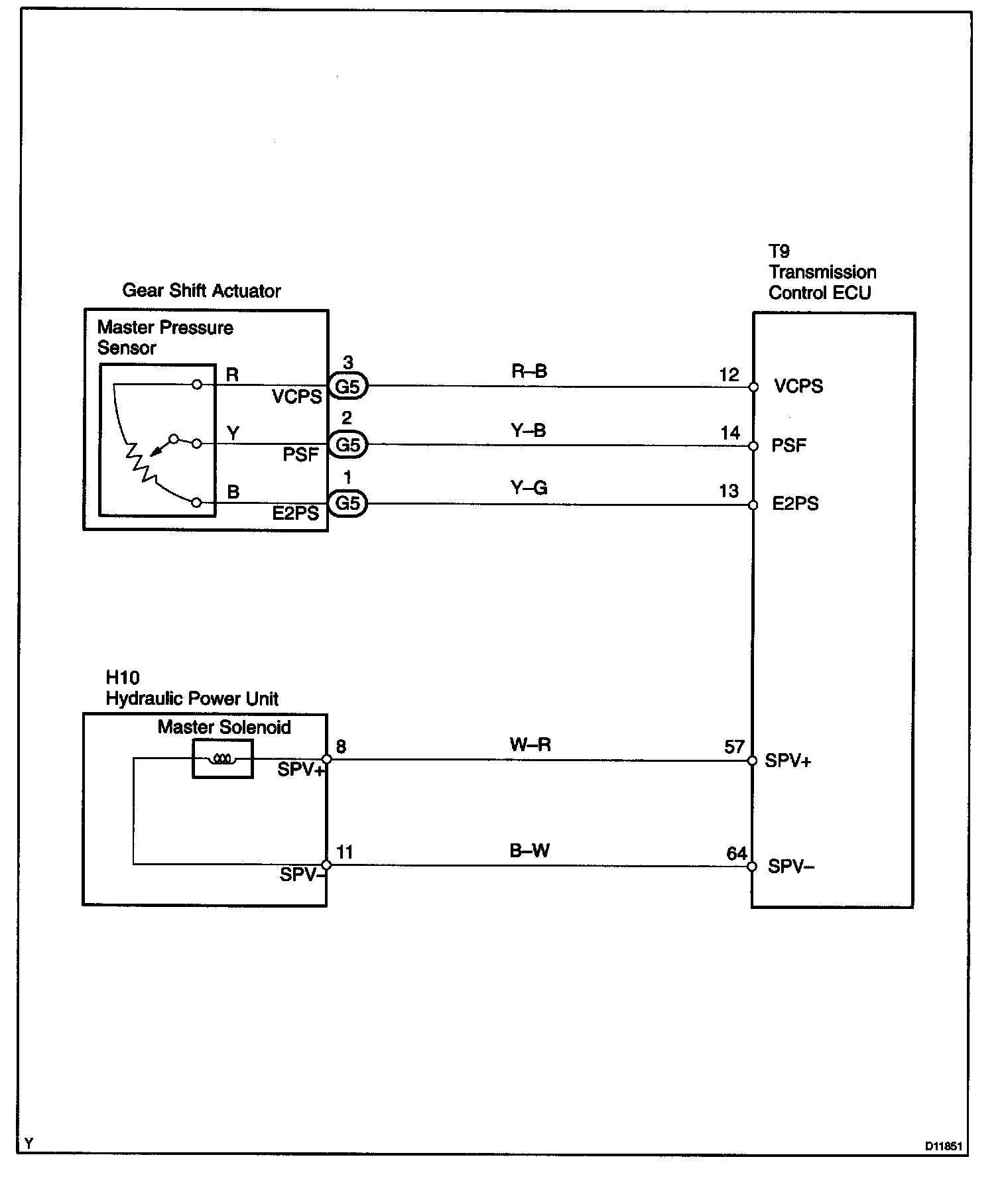

Wiring Diagram:

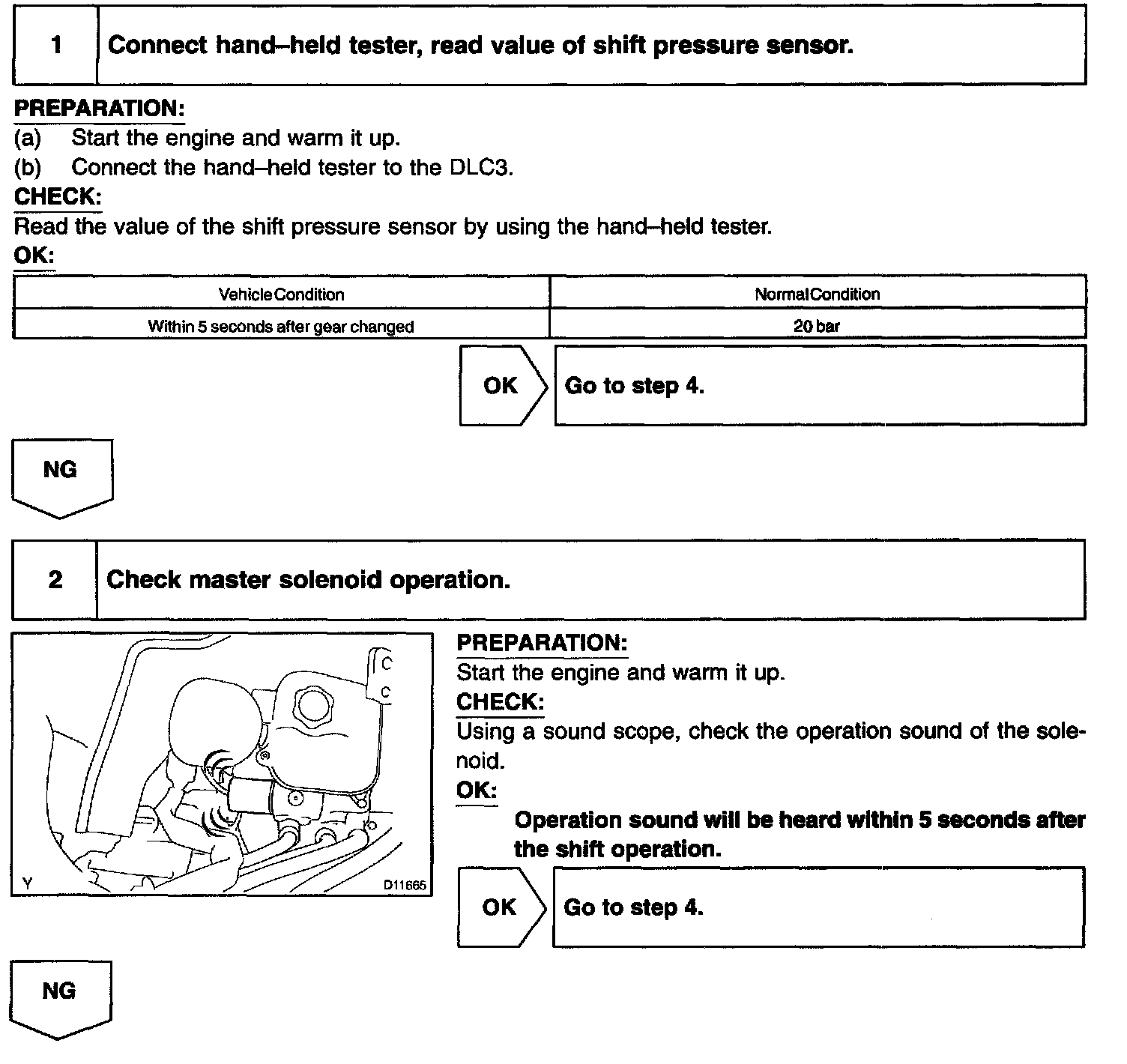

Step 1- 2:

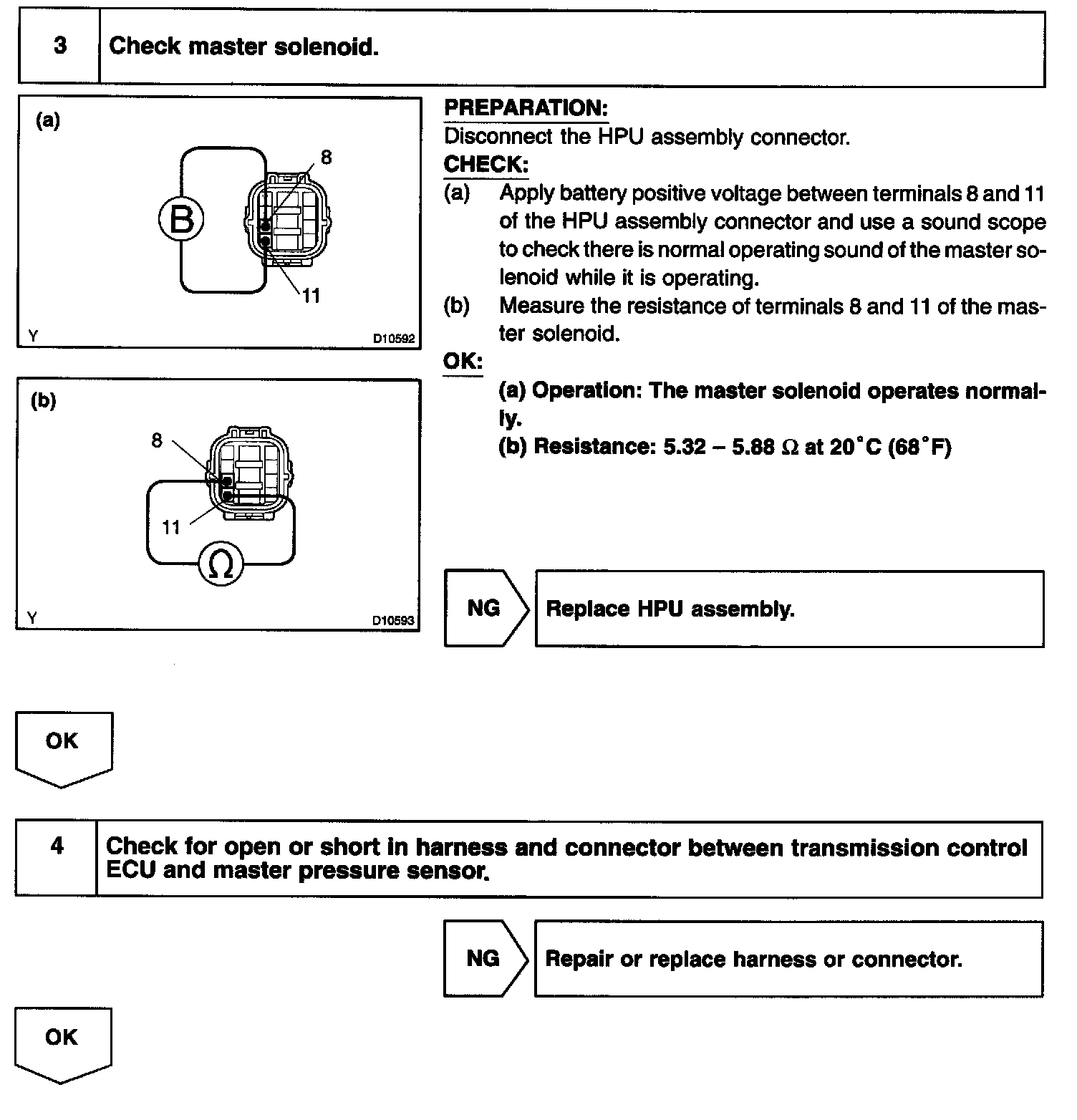

Step 3 - 4:

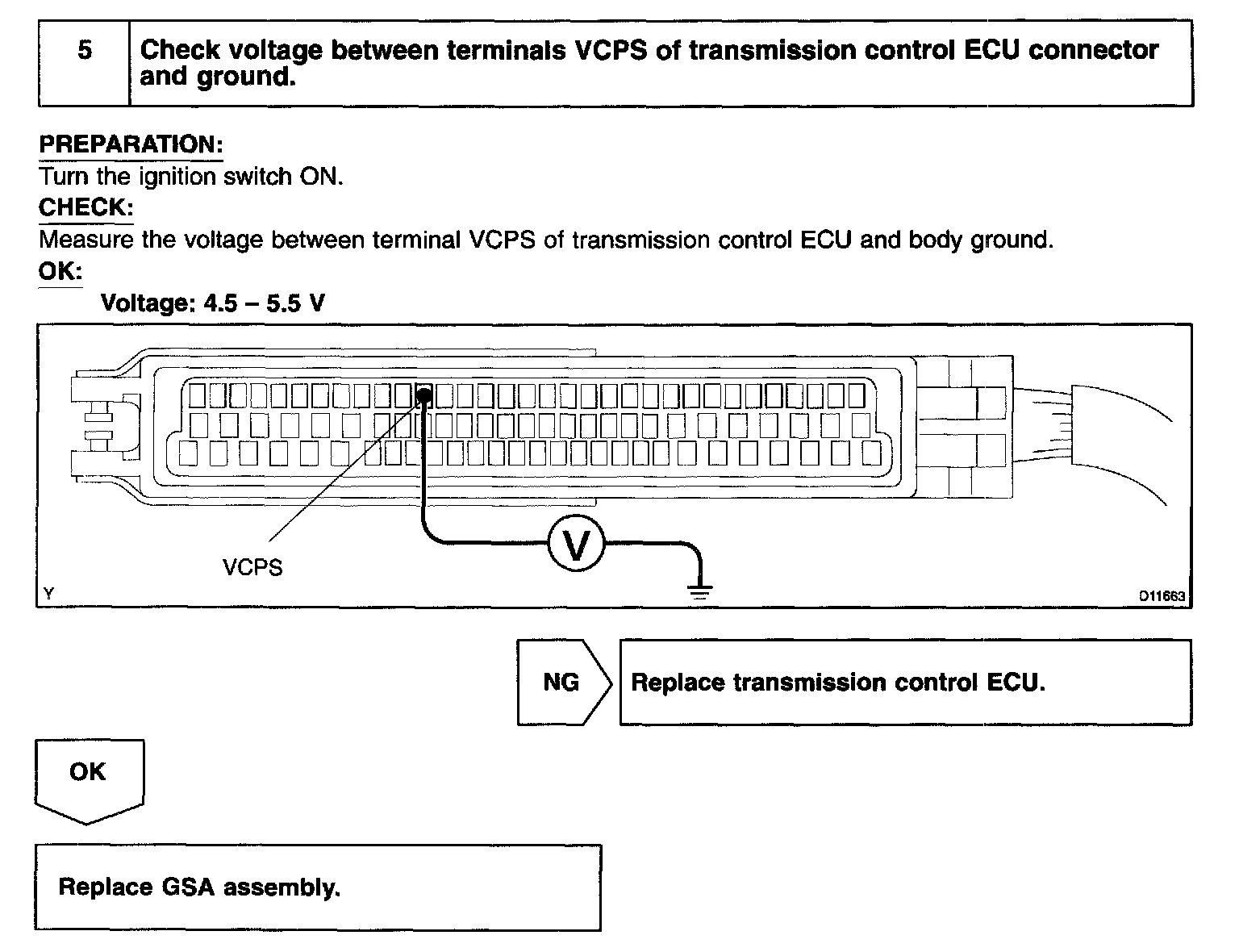

Step 5:

INSPECTION PROCEDURE

HINT: Read freeze frame data using hand-held tester or OBD II scan tool, as freeze frame records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, etc. at the time of the malfunction.
