Troubleshooting

DTC P0820 Gear Lever X-Y Position Sensor Circuit

CIRCUIT DESCRIPTION

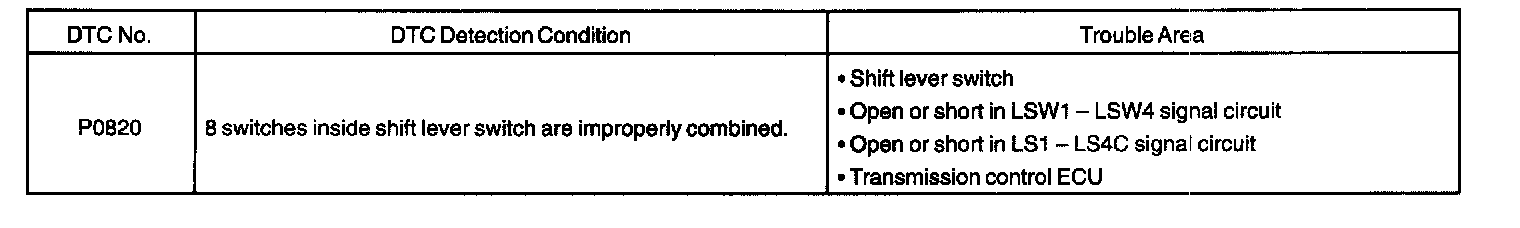

DTC Detection Condition:

Wiring Diagram:

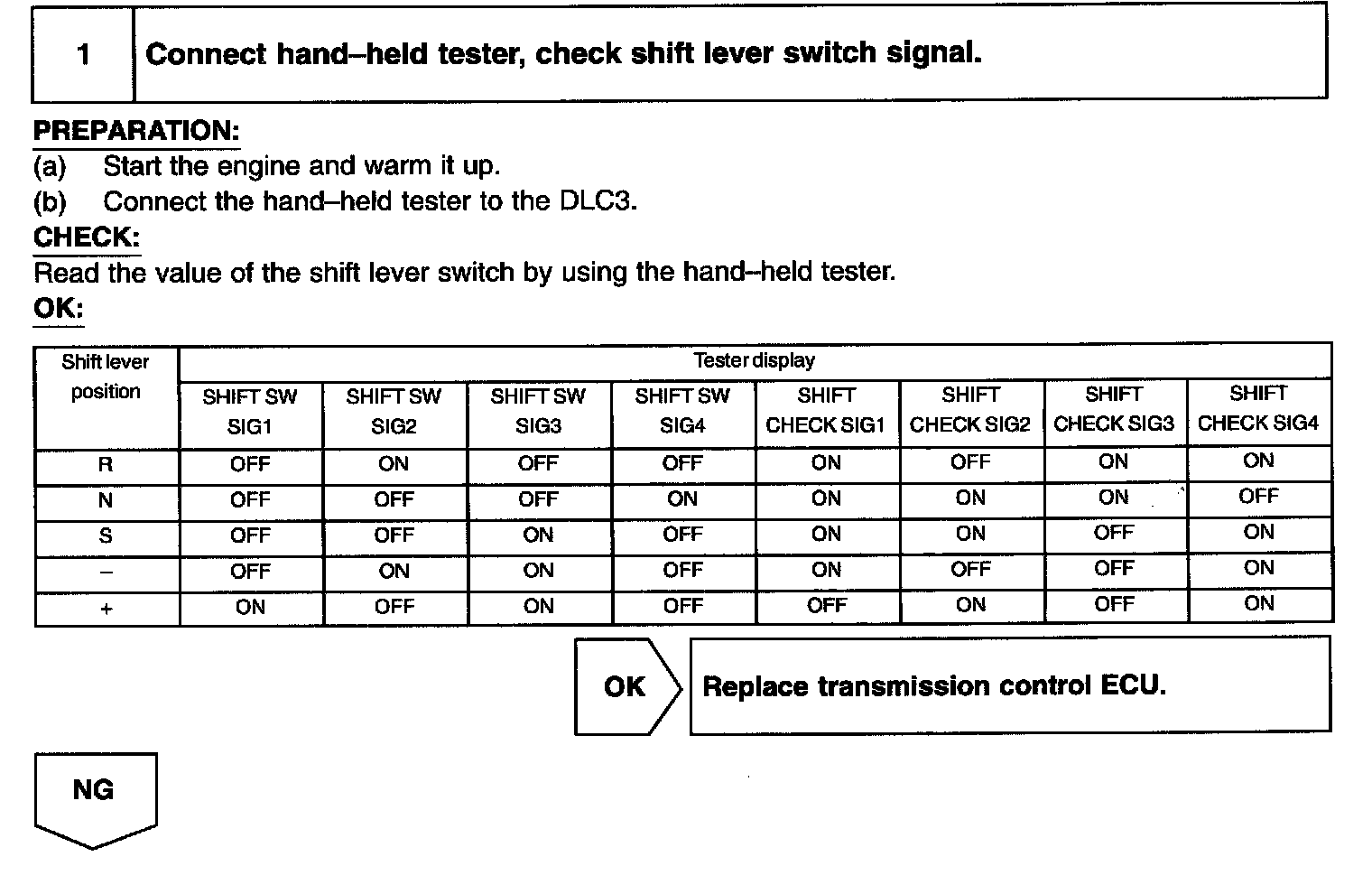

Step 1:

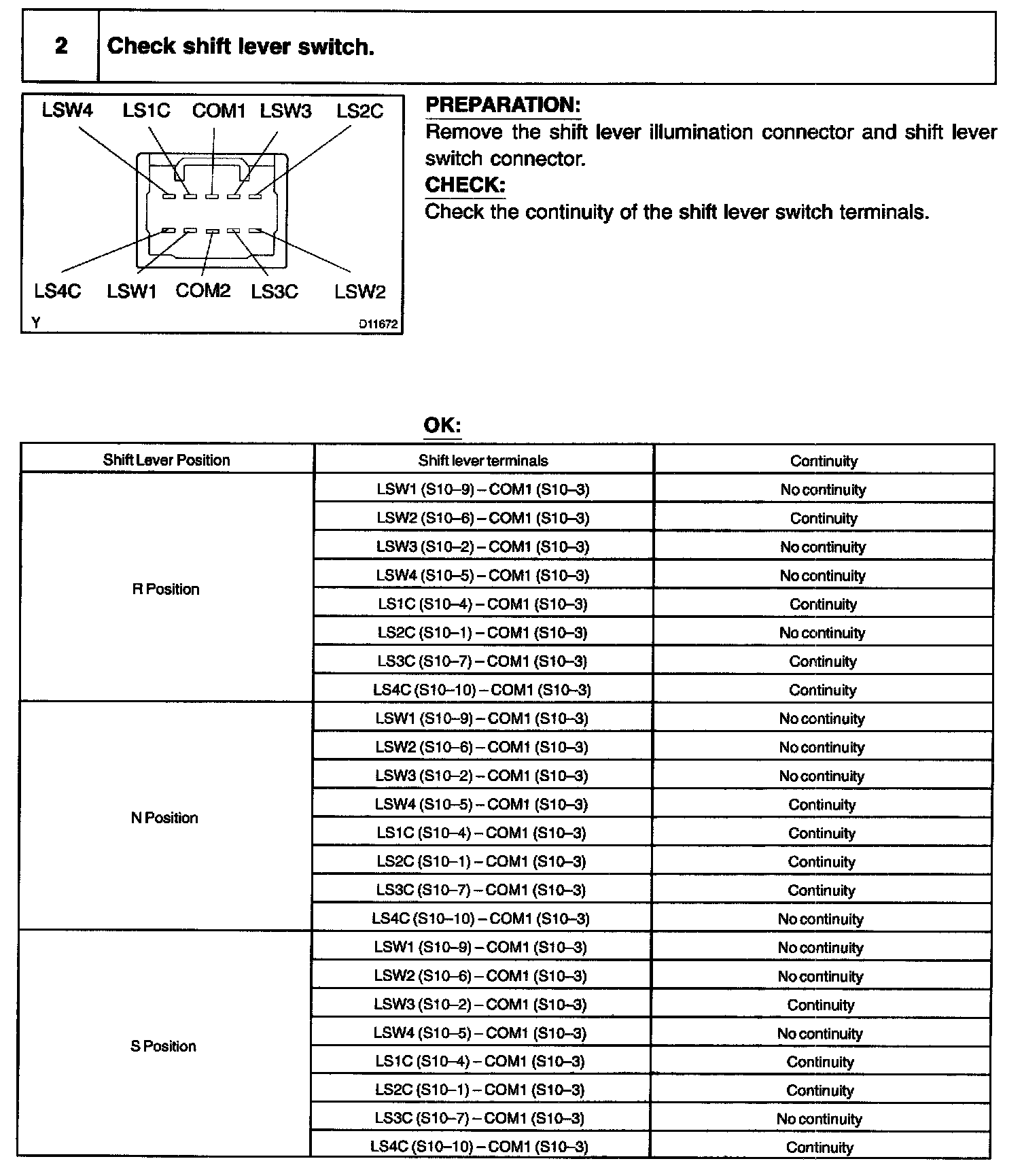

Step 2:

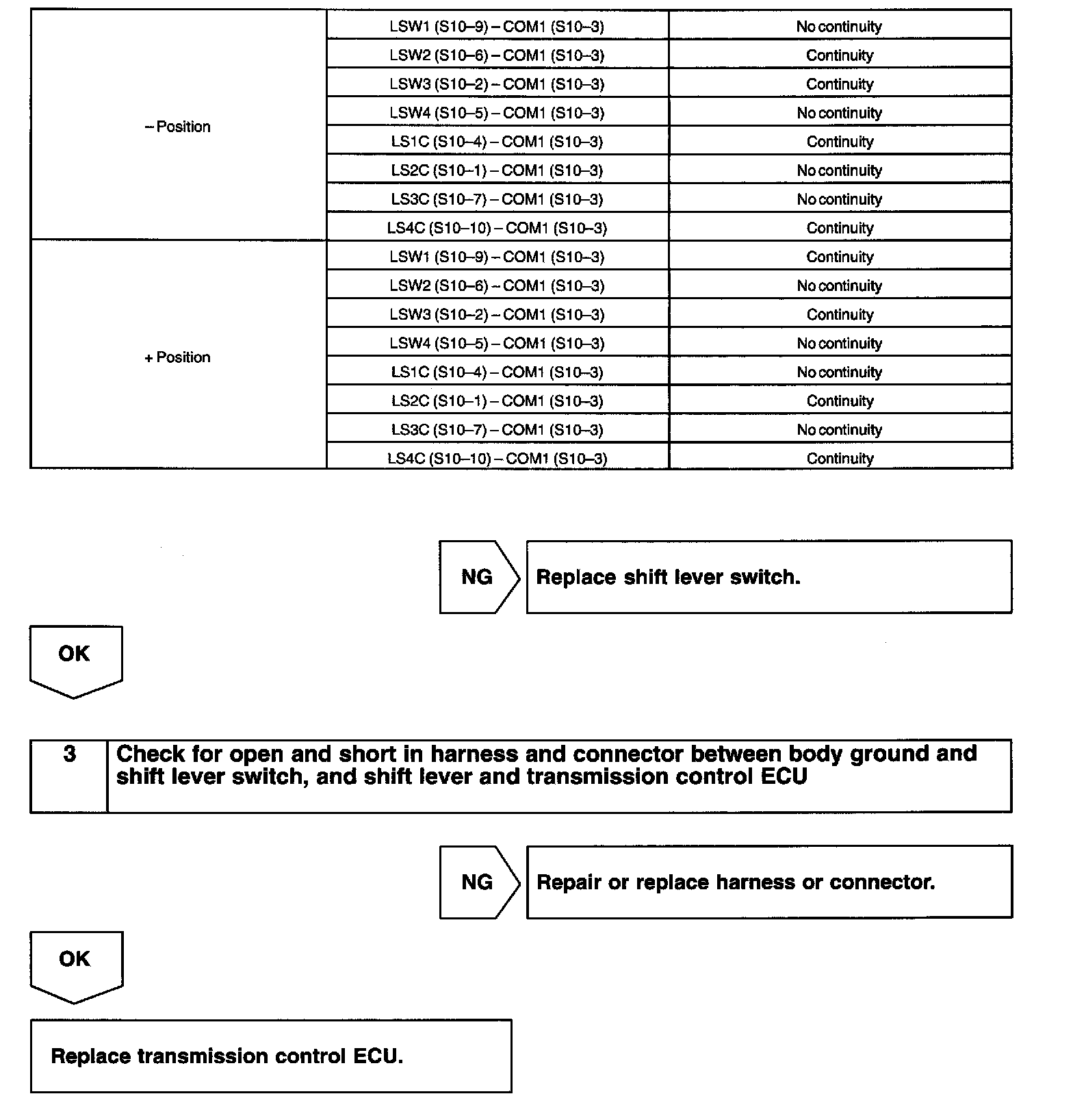

Step 2 (Continued) - 3:

INSPECTION PROCEDURE

HINT: Read freeze frame data using hand-held tester or OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, etc. at the time of the malfunction.
