DTC P0325 Knock Sensor 1 Circuit (Bank 1 or Single Sensor)

CIRCUIT DESCRIPTION

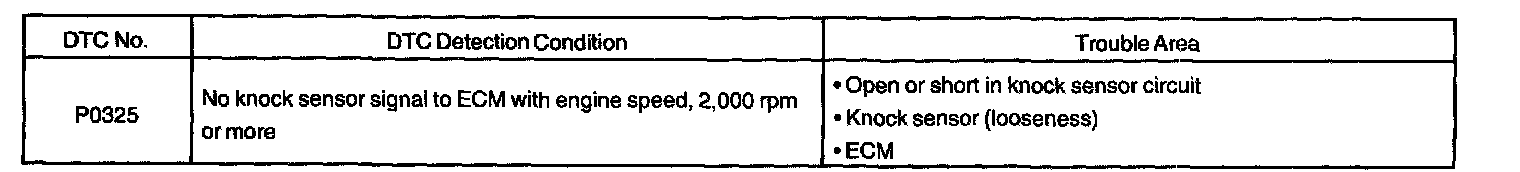

DTC Detection Condition:

The knock sensor is fitted on the cylinder block to detect engine knocking. This sensor contains a piezoelectric element which generates a voltage when it becomes deformed, which occurs when the cylinder block vibrates due to the knocking. If engine knocking occurs, ignition timing is retarded to suppress it.

HINT: If the ECM detects diagnosis conditions, it operates the fail safe function in which the corrective retard angle value is set to the maximum value.

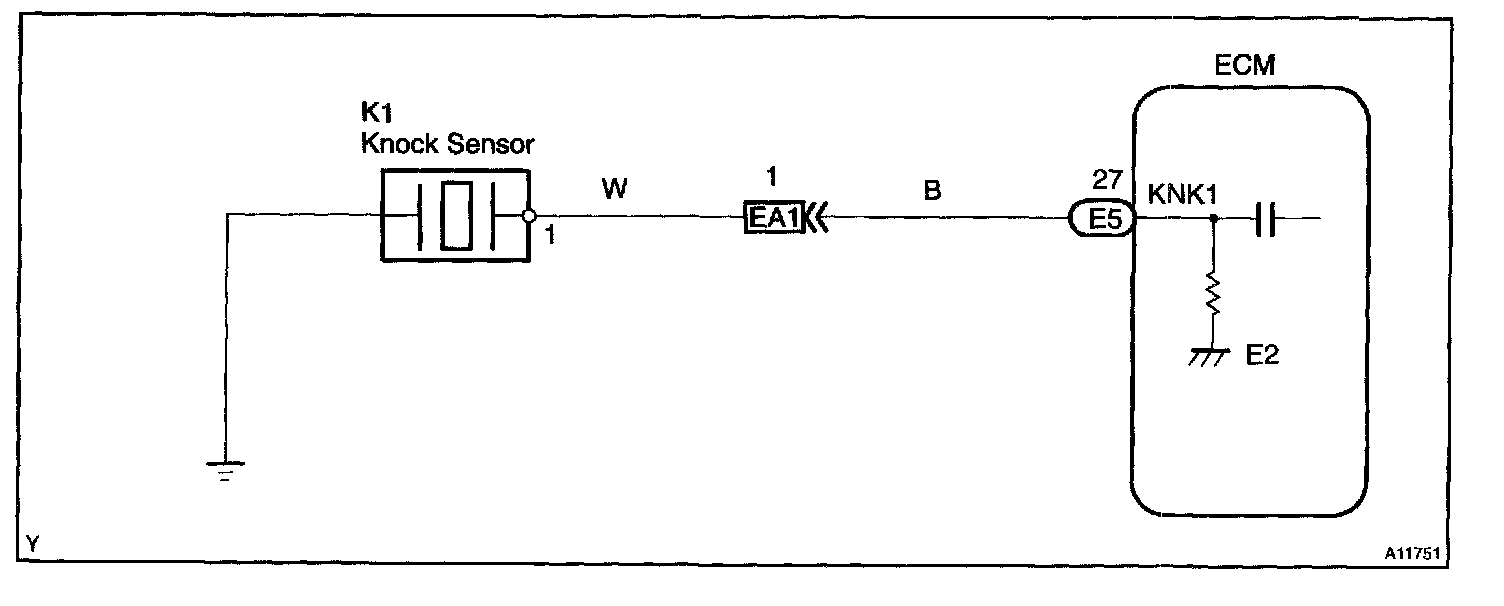

Wiring Diagram:

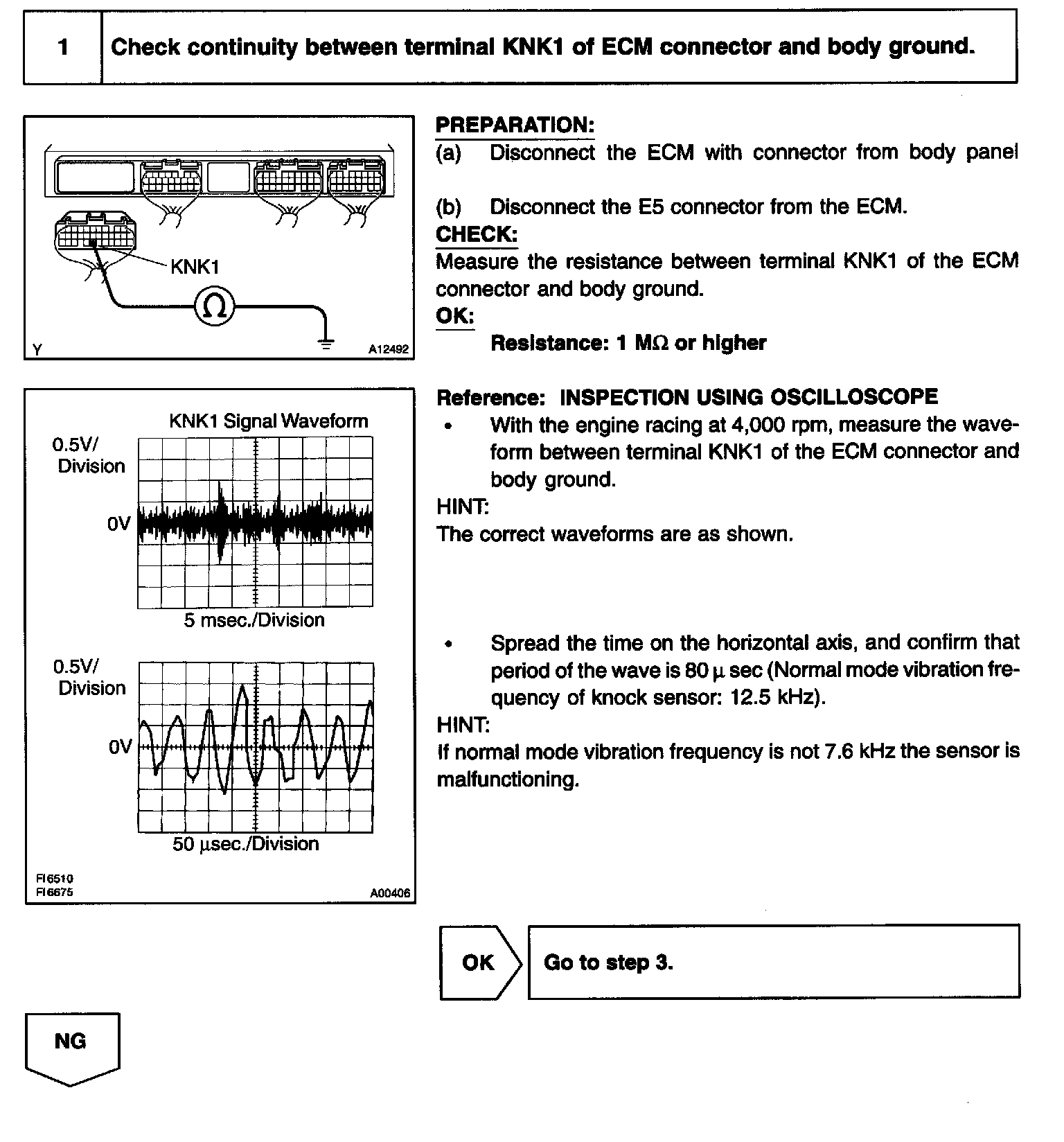

Step 1:

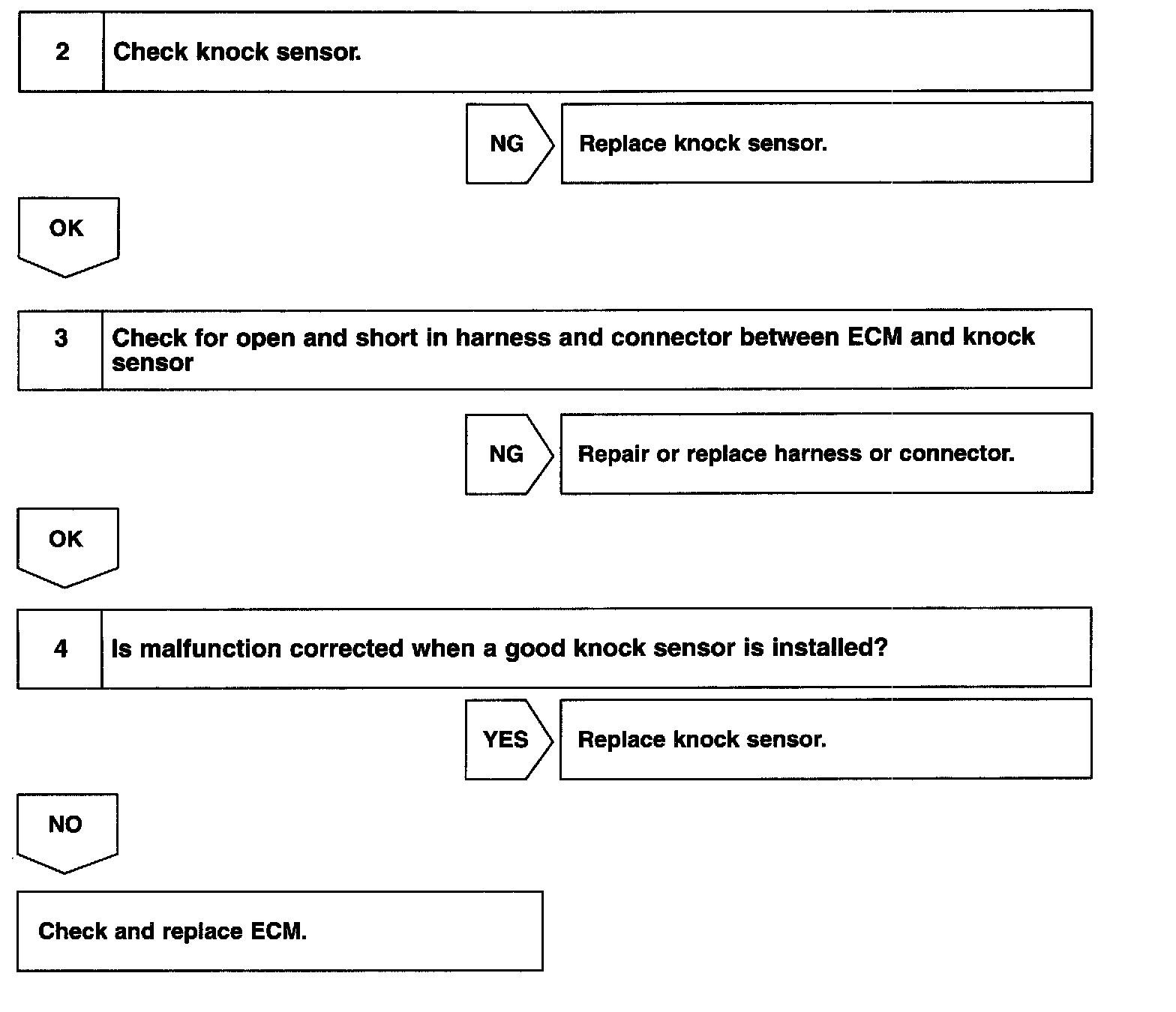

Step 2 - 4:

INSPECTION PROCEDURE

HINT:
- If different DTCs that are related to different Systems are output simultaneously while terminal E2 is used as a ground terminal, terminal E2 may be open.
- Read freeze frame data using the hand-held tester or the OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, this is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
