DTC P0011 Camshaft Position "A" Timing Over-Advanced or System Performance (Bank 1)

CIRCUIT DESCRIPTION

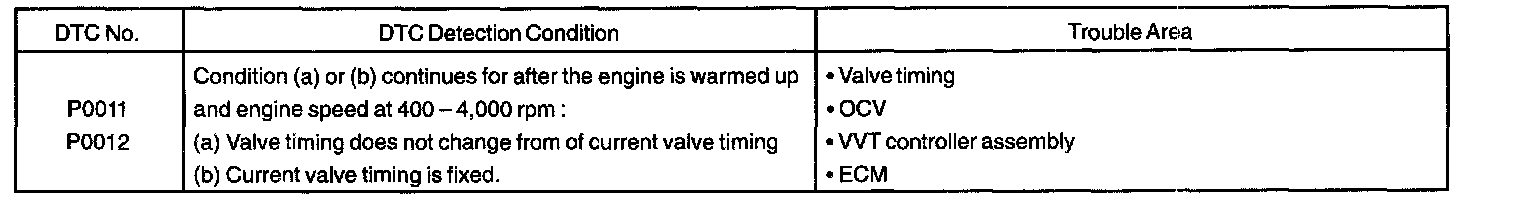

DTC Detection Condition:

VVT system controls the intake valve timing properly in response to driving condition.

ECM controls OCV (Oil Control Valve) to make the intake valve timing properly, and, oil pressure controlled with OCV is supplied to the VVT controller, and then, VVT controller changes relative position between the camshaft and the crankshaft

Wiring Diagram:

INSPECTION PROCEDURE

HINT:
- If DTC P0011 and P0012 is displayed, check VVT system circuit.
- Read freeze frame data using the hand-held tester or the OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, this is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.

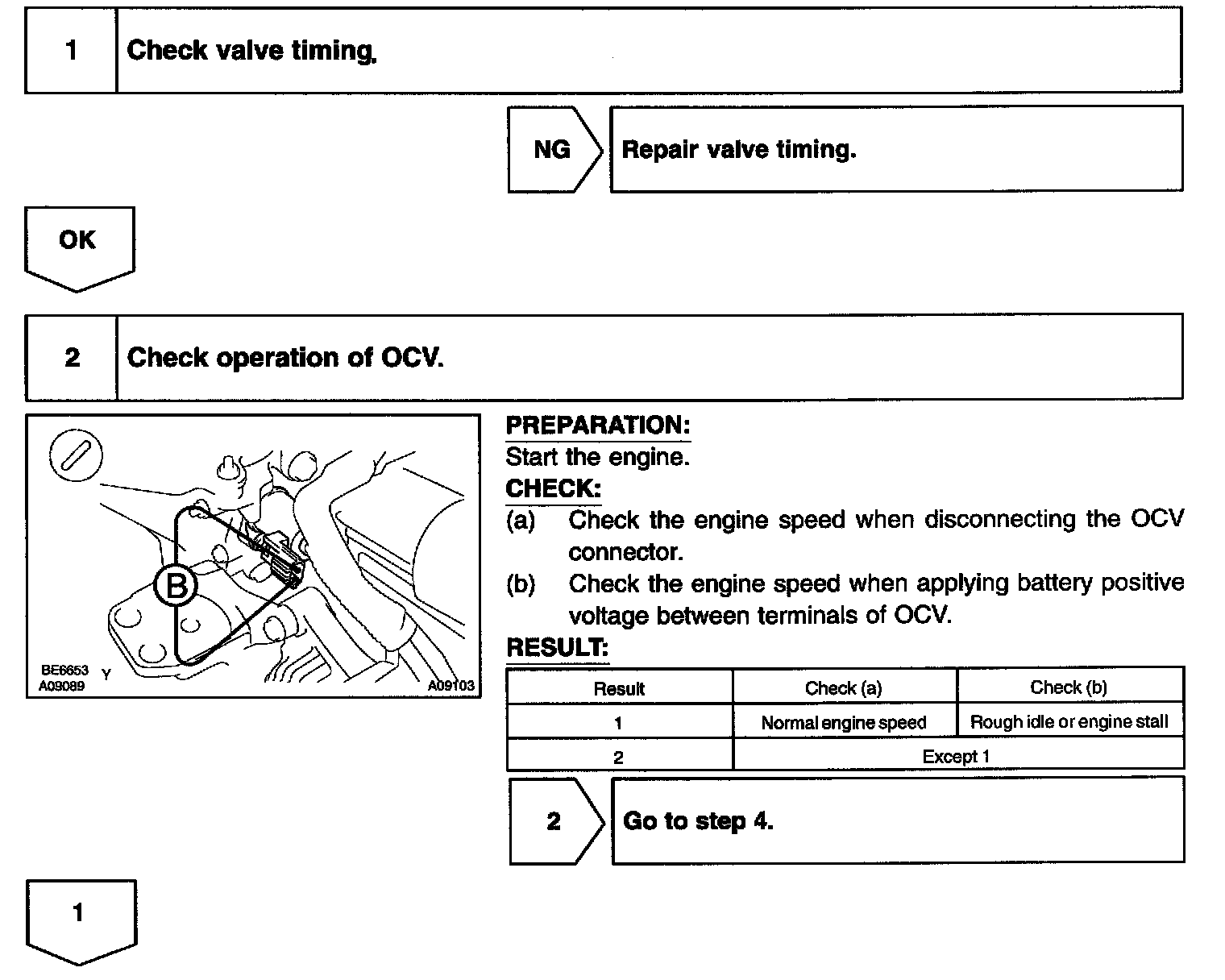

Step 1 - 4:

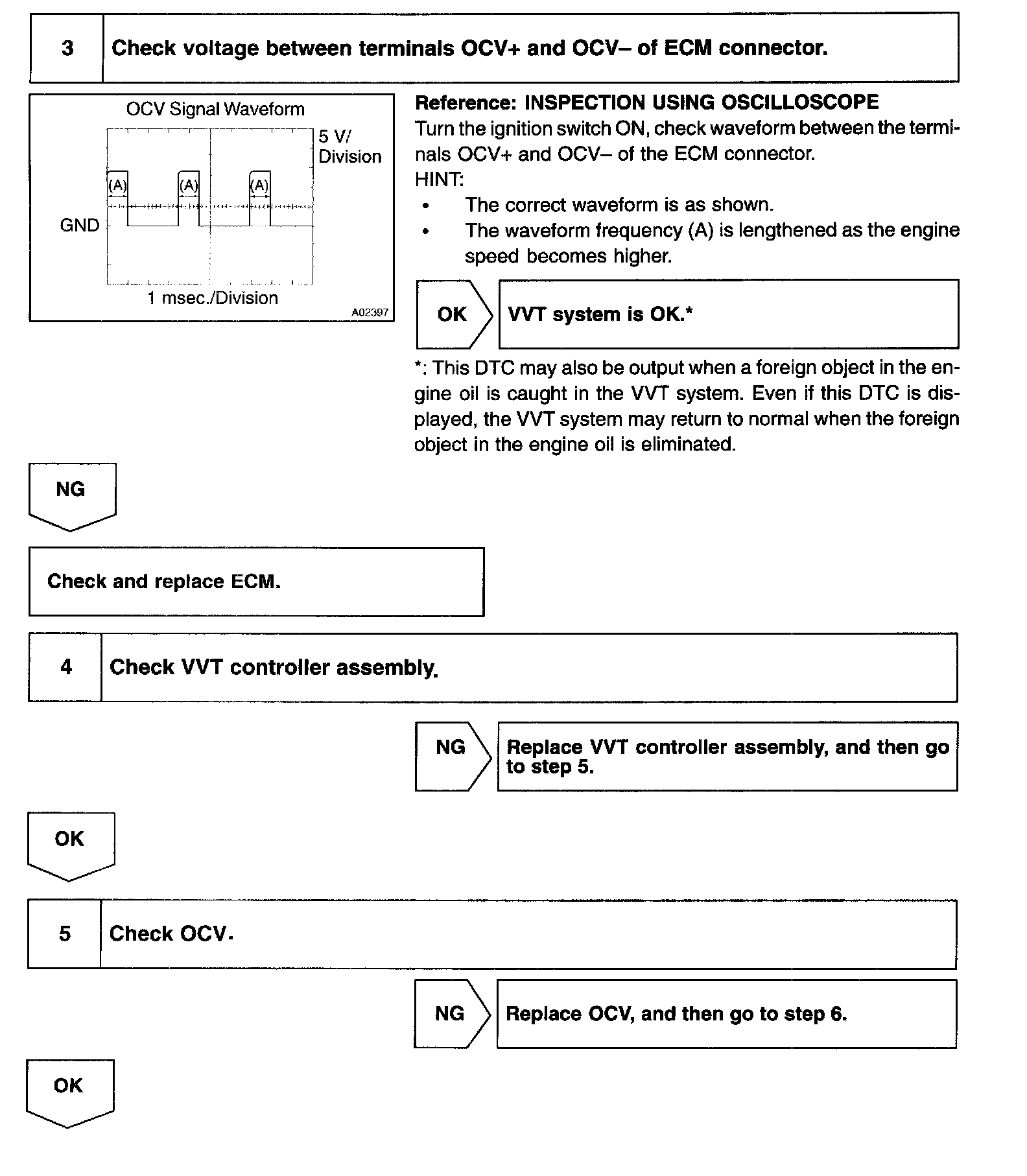

Step 4 (Continued) - 7:

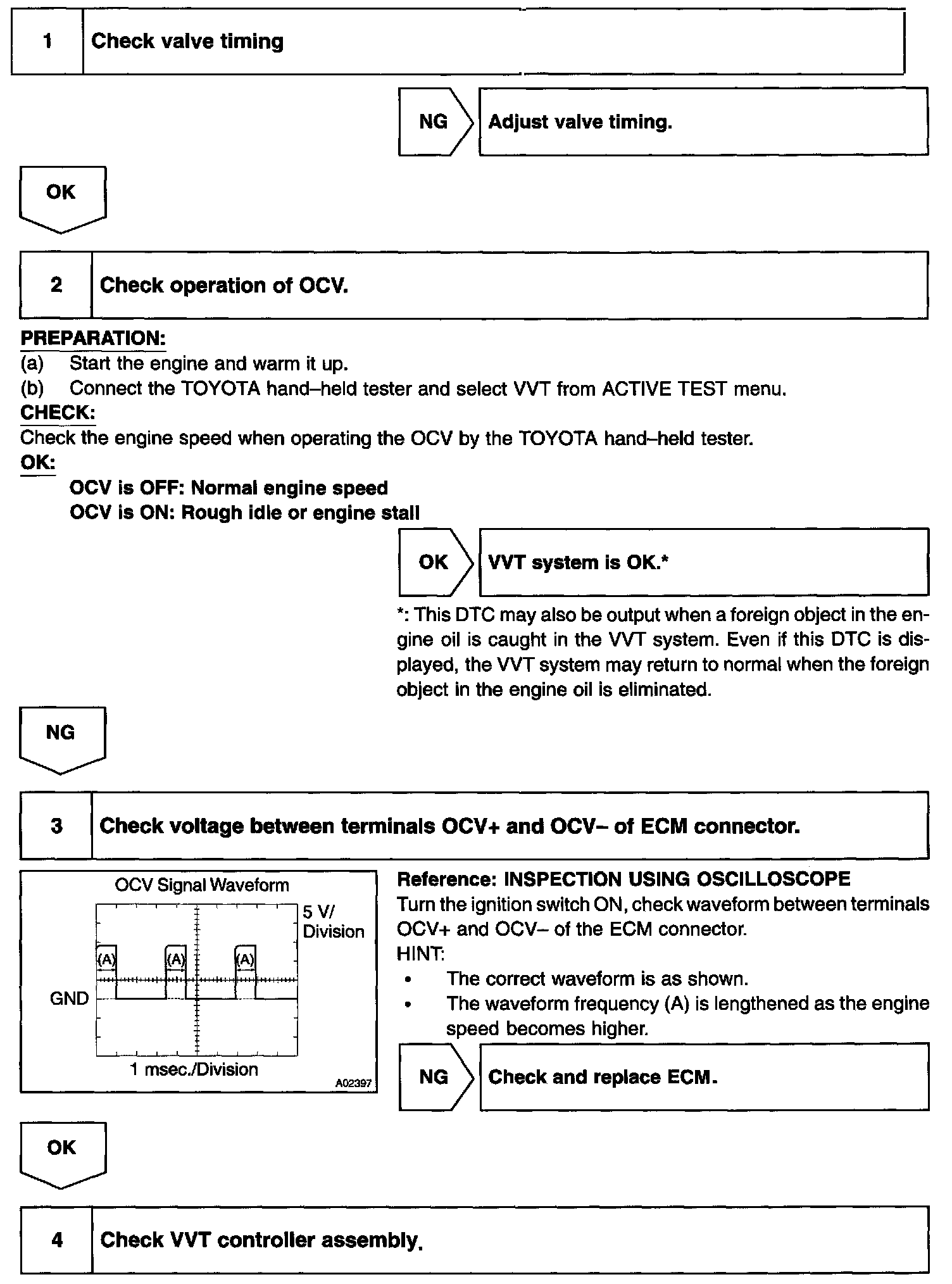

TOYOTA hand-held tester

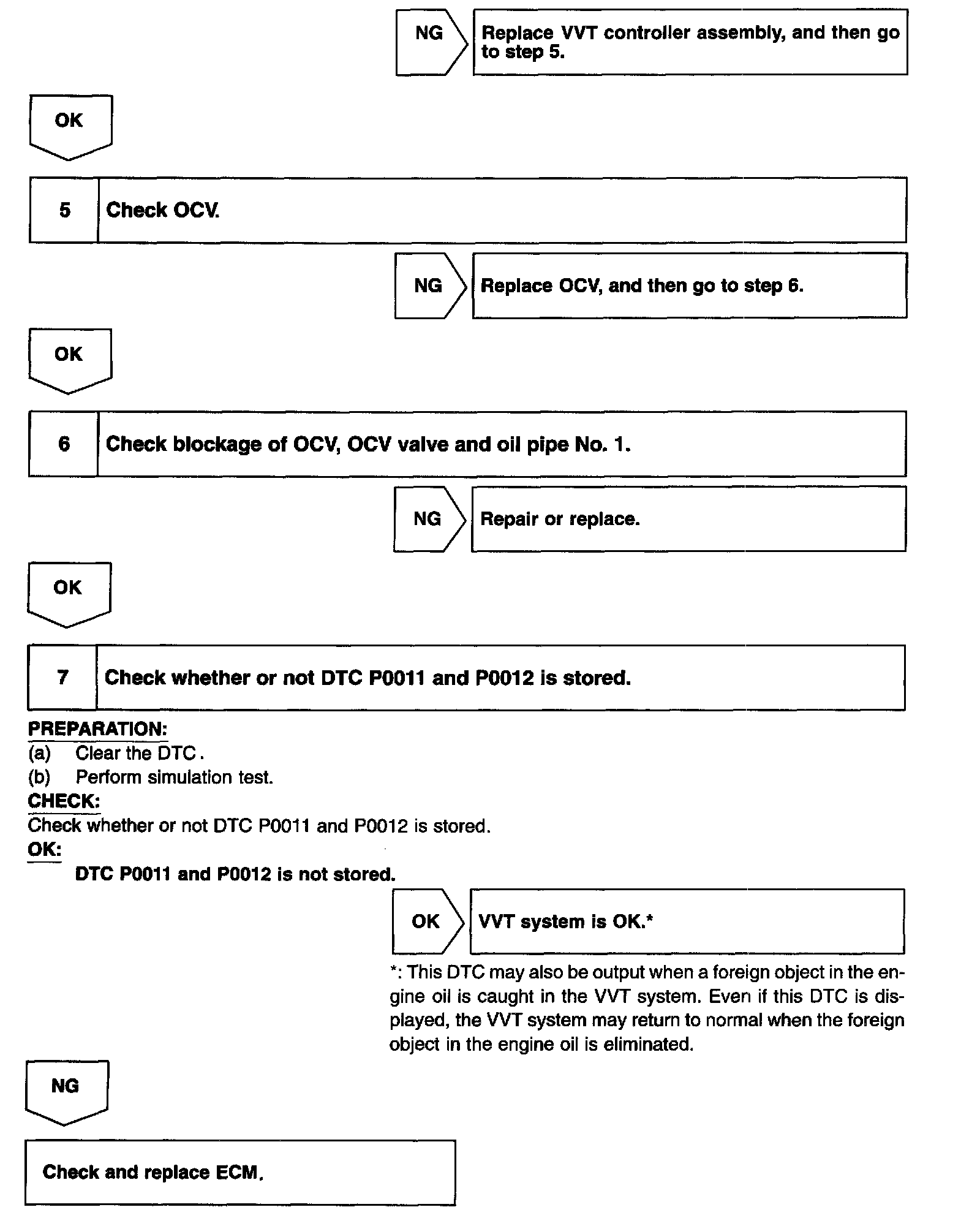

Step 1 - 2:

Step 3 - 5:

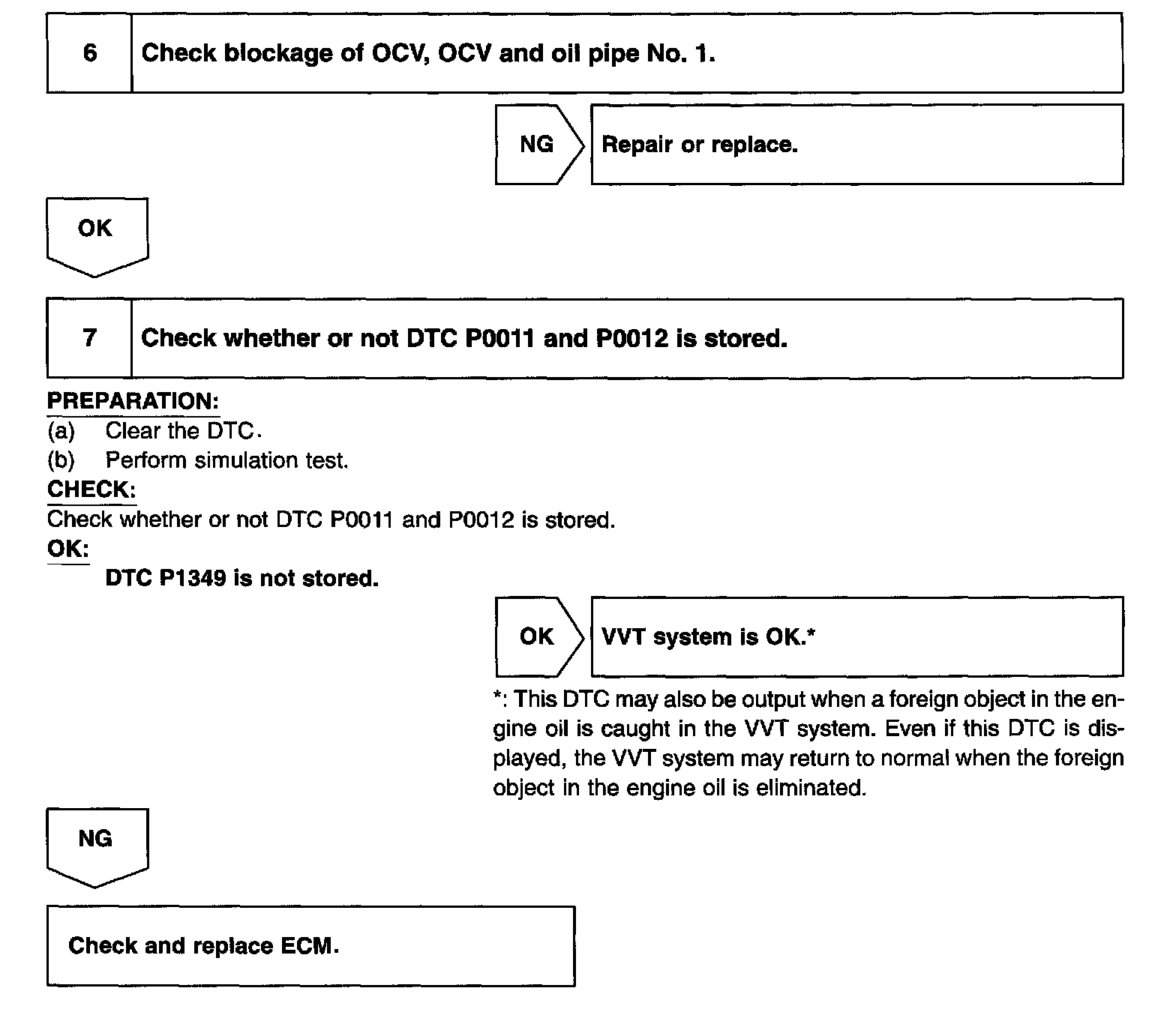

Step 6 - 7:

OBD II scan tool (excluding TOYOTA hand-held tester)
