Radio, Stereo, and Compact Disc

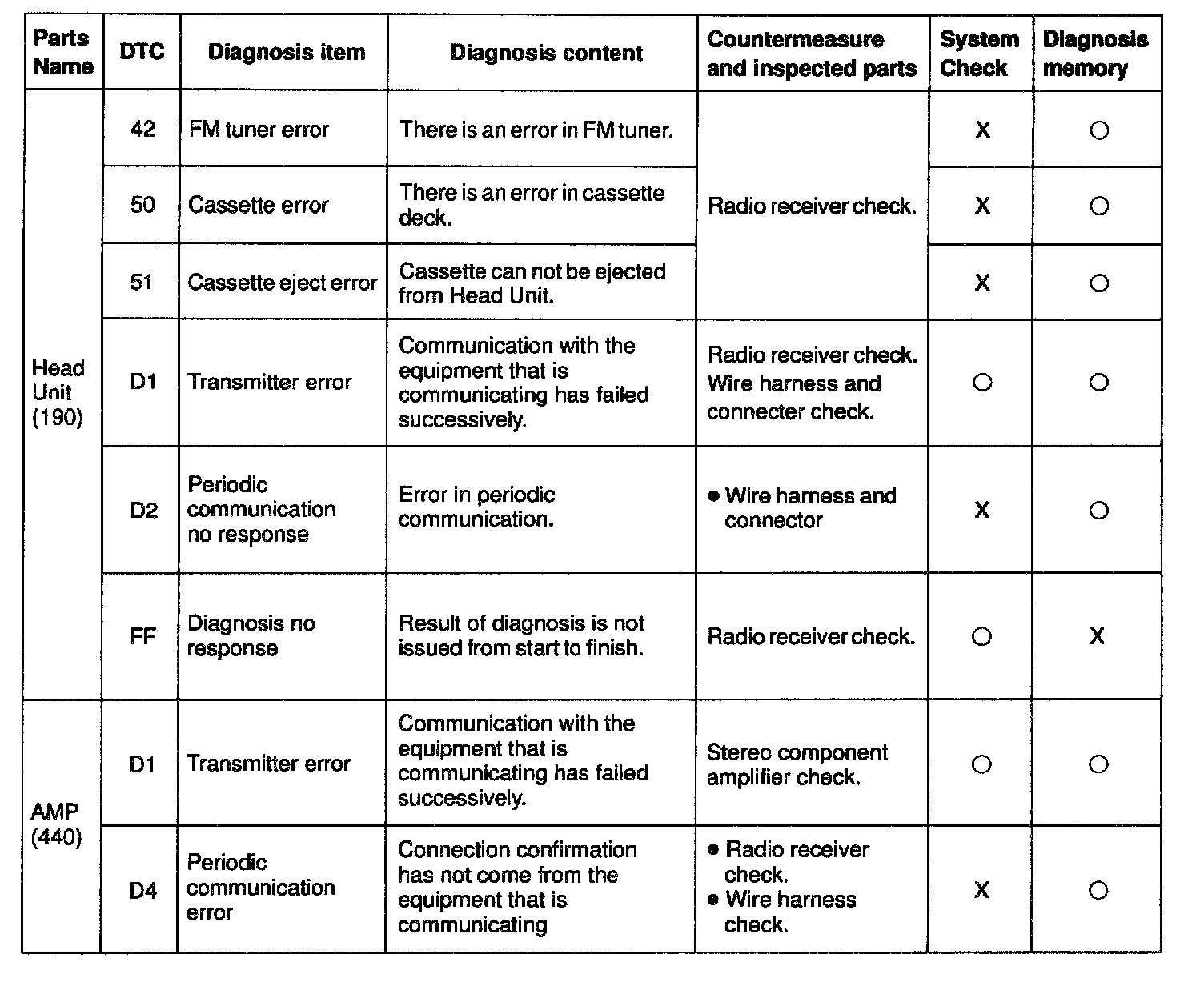

DIAGNOSIS CODE LIST

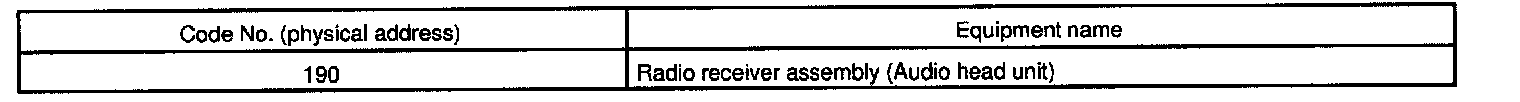

Code No.(Physical Address) List:

Code No. (physical address) List

- If there is "0" in the column of system check, an error can be detected when the mode is switched to the system check mode.
- If there is "0" in the column of diagnosis mode, each unit is monitoring whether or not it has failure.
In case of detecting failure, it memorizes DTC.








2. DIAGNOSIS CODE LIST
- If there is "0" in the column of system check, an error can be detected when the mode is switched to the system check mode.
- If there is "0" in the column of diagnosis mode, each unit is monitoring whether or not it has failure.
In case of detecting failure, it memorizes DTC.
