Suspension - Stabilizer Bar Bracket Bolt Installation
SUSPENSIONSU004-03
April 7, 2003
Title:
STABILIZER BAR BRACKET BOLT
Models:
'02 - '03 ECHO
Introduction

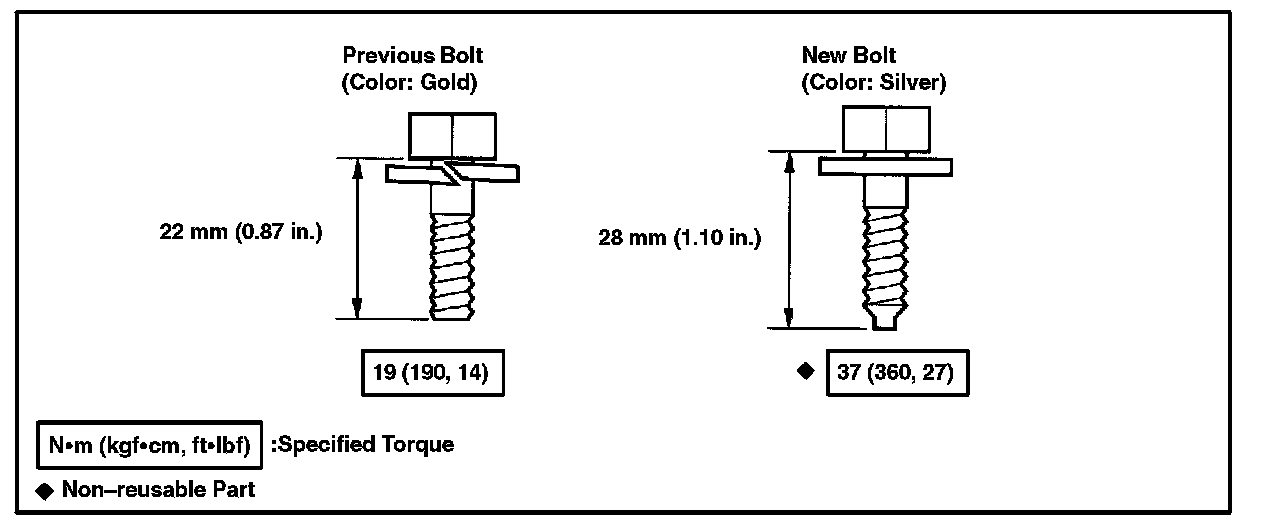

A new stabilizer bar bracket bolt is now being used in production. This bolt is non-reusable and must be replaced when removed.
Applicable Vehicles
^ 2002 - 2003 model year ECHO vehicles produced AFTER the Production Change Effective VINs listed below.

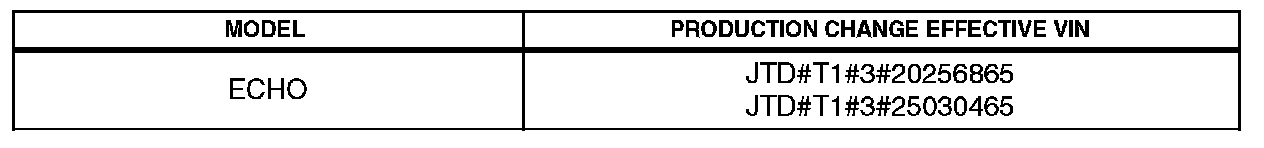

Production Change Information

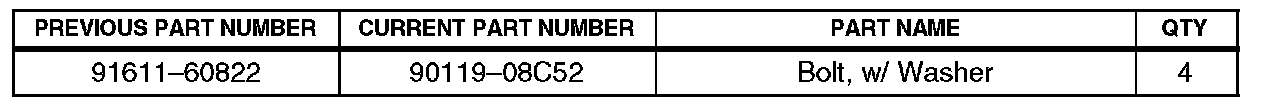

Parts Information
NOTE:
This part is not interchangeable with the old part. Please refer to the Production Change Information table.

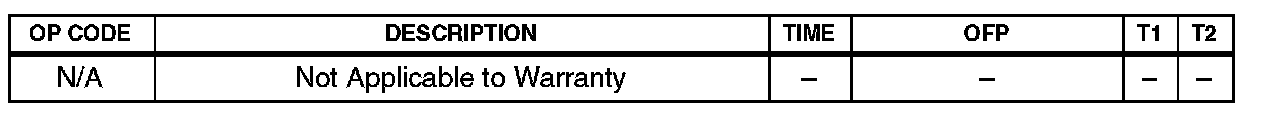

Warranty Information

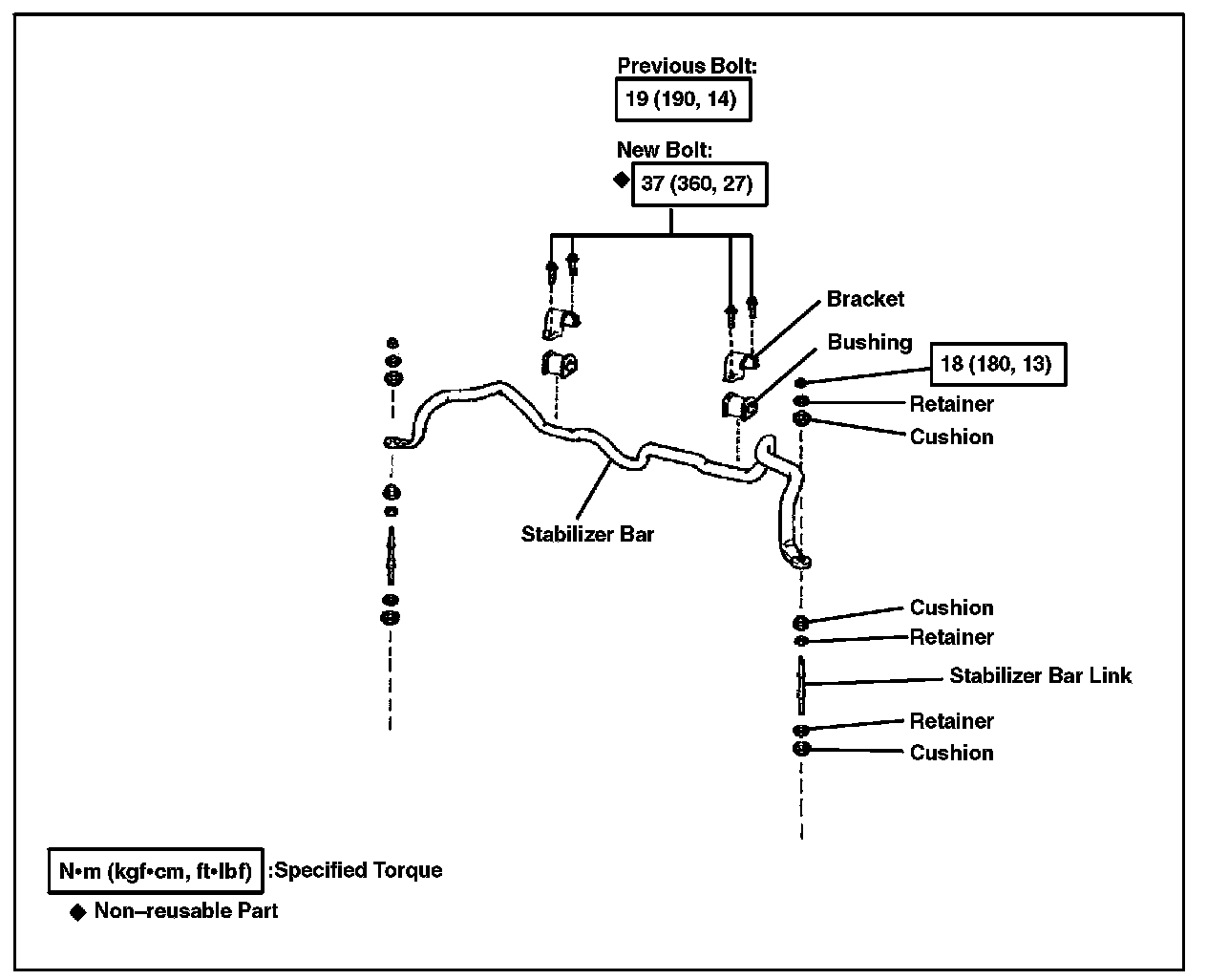

Installation Procedure

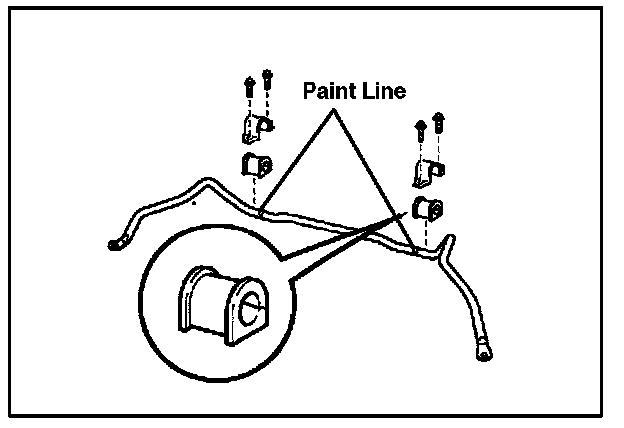

INSTALL BUSHINGS AND BRACKETS
Install the 2 bushings and brackets with the 4 bolts.
HINT:
Install the bushings to the outside of each paint line.
