Heater Sub Relay
HEATER SUB RELAYINSPECTION

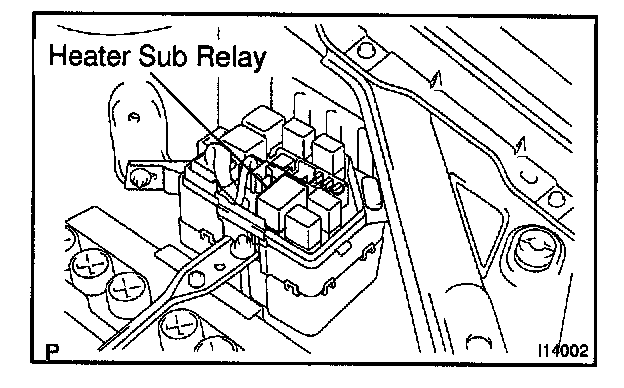

1. REMOVE HEATER SUB RELAY FROM ENGINE ROOM RELAY BLOCK NO.1

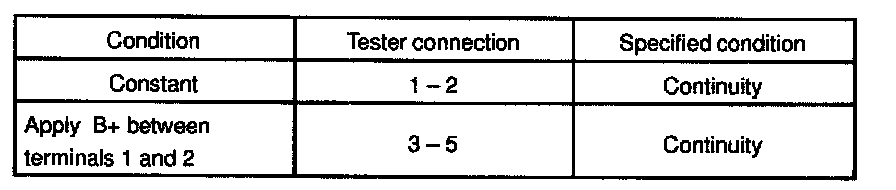

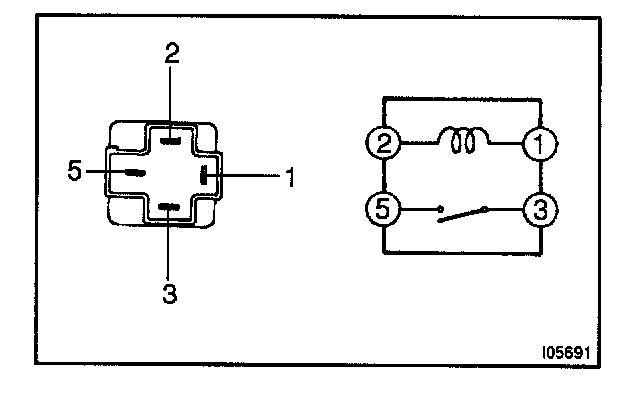

2. INSPECT HEATER SUB RELAY CONTINUITY
If continuity is not as specified, replace the relay.
INSPECTION
1. REMOVE HEATER SUB RELAY FROM ENGINE ROOM RELAY BLOCK NO.1
2. INSPECT HEATER SUB RELAY CONTINUITY
If continuity is not as specified, replace the relay.
