Toyota
>>
2003
>>
Echo L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Transaxle
Transaxle

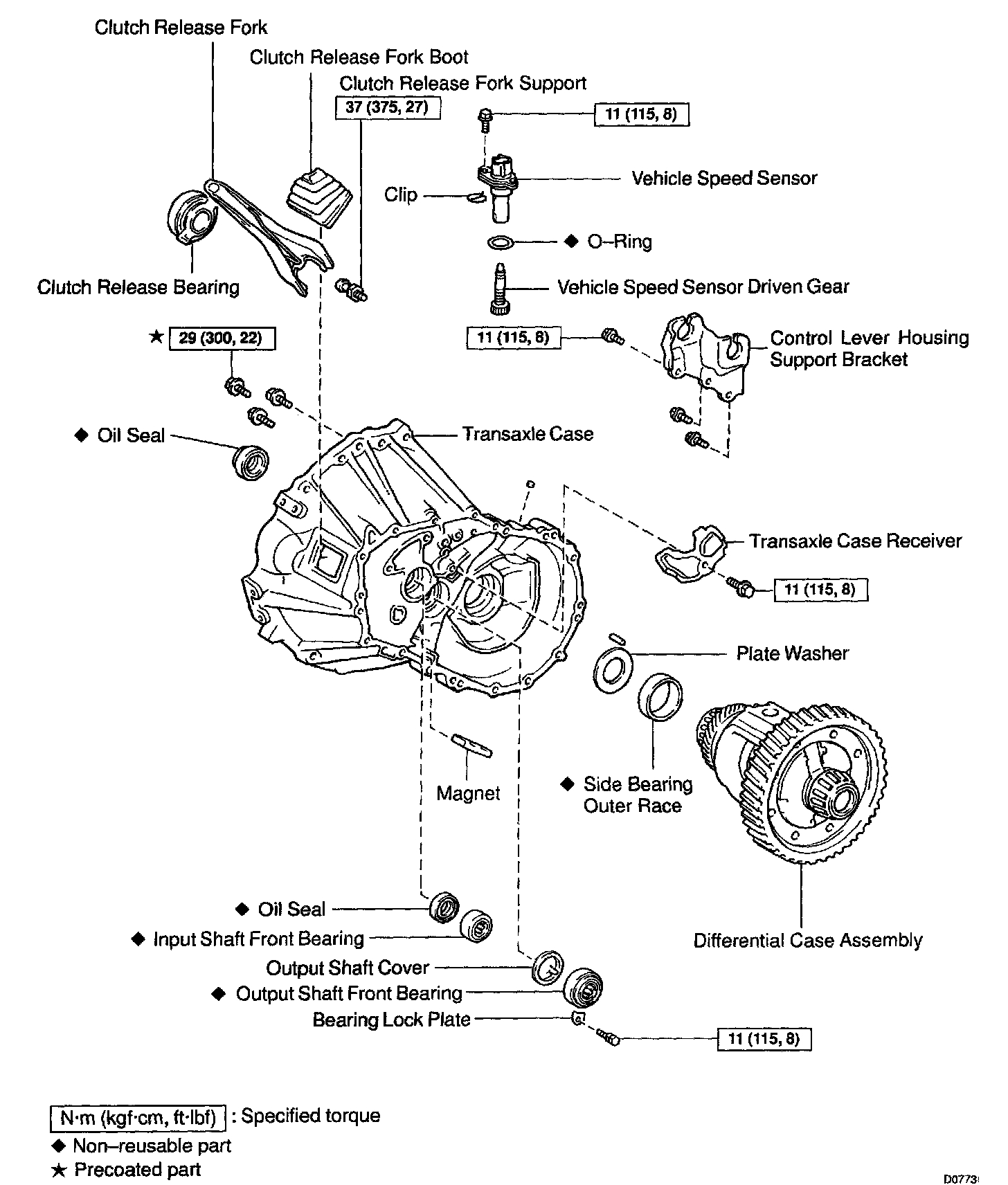

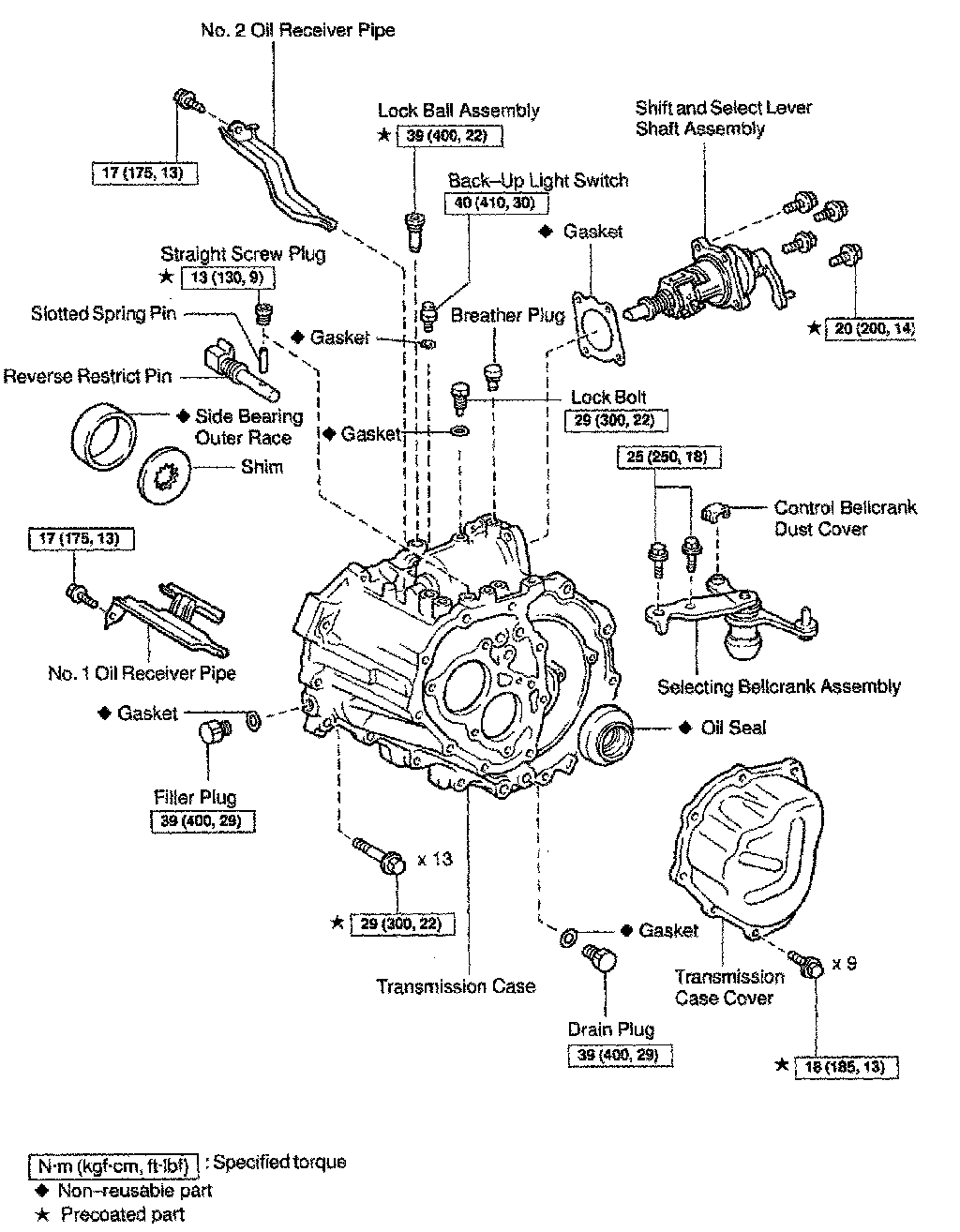

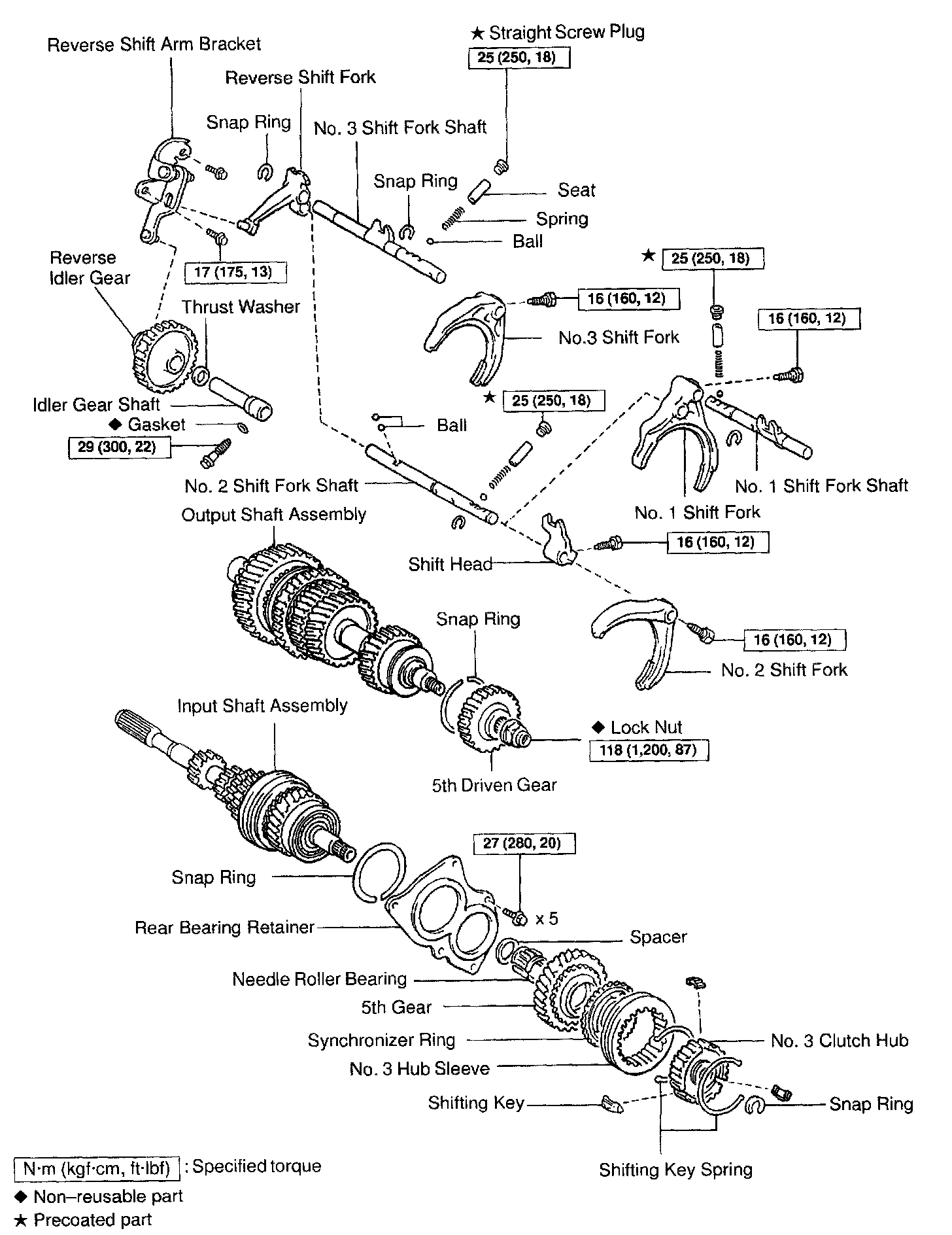

MANUAL TRANSAXLE ASSEMBLY
