Instrument Panel, Gauges and Warning Indicators
>>

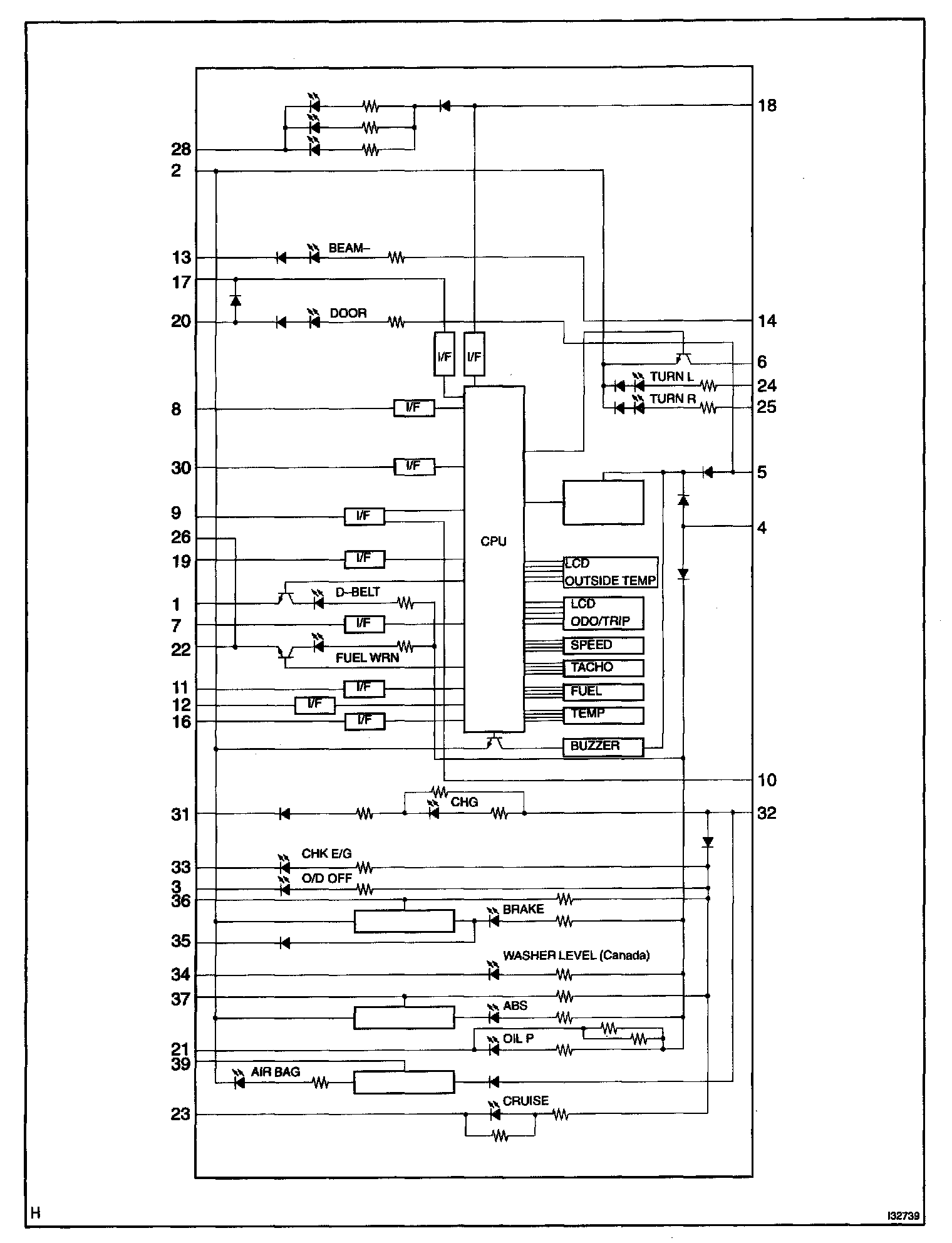

Diagrams
>>

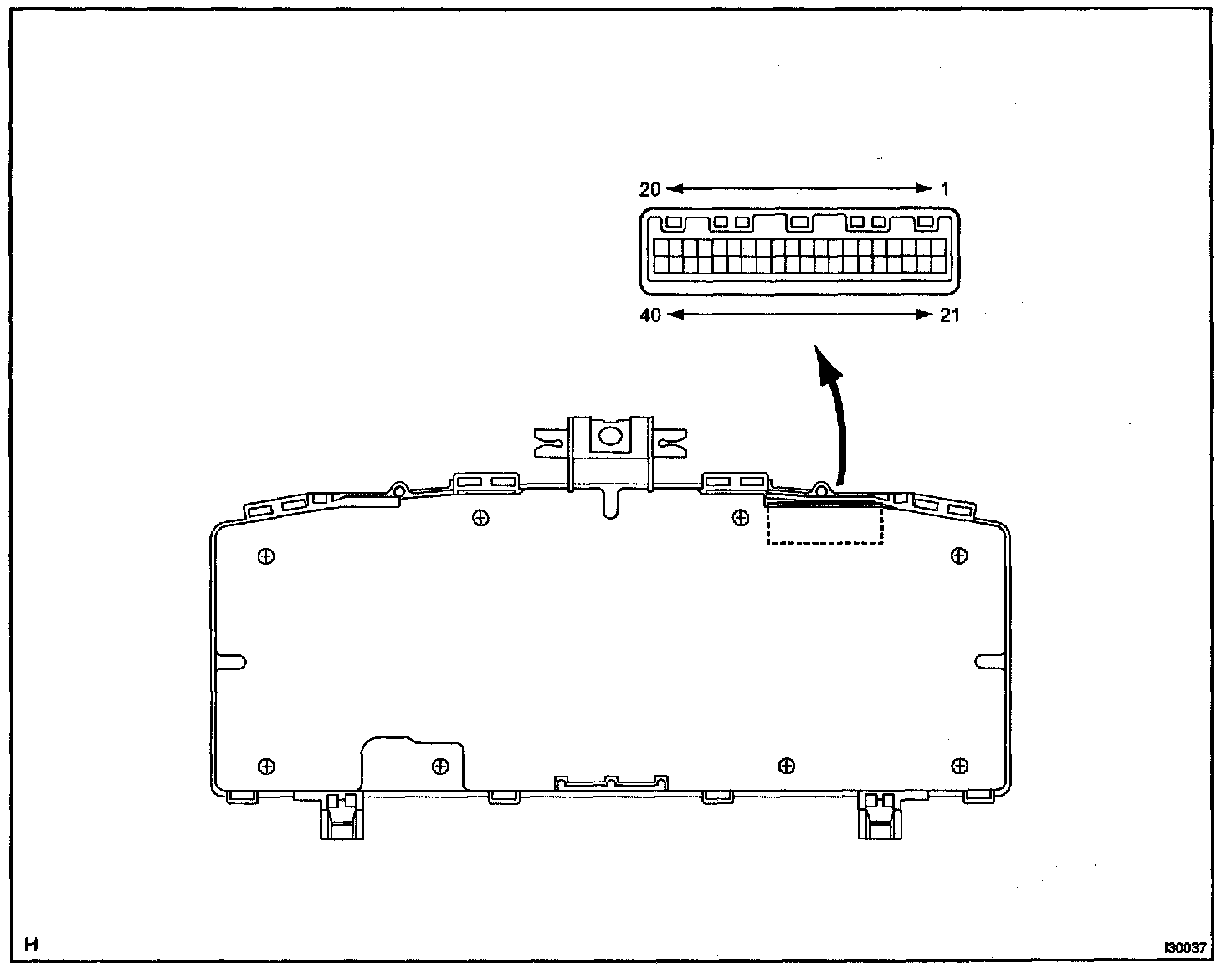

Connector Views
Connector Views

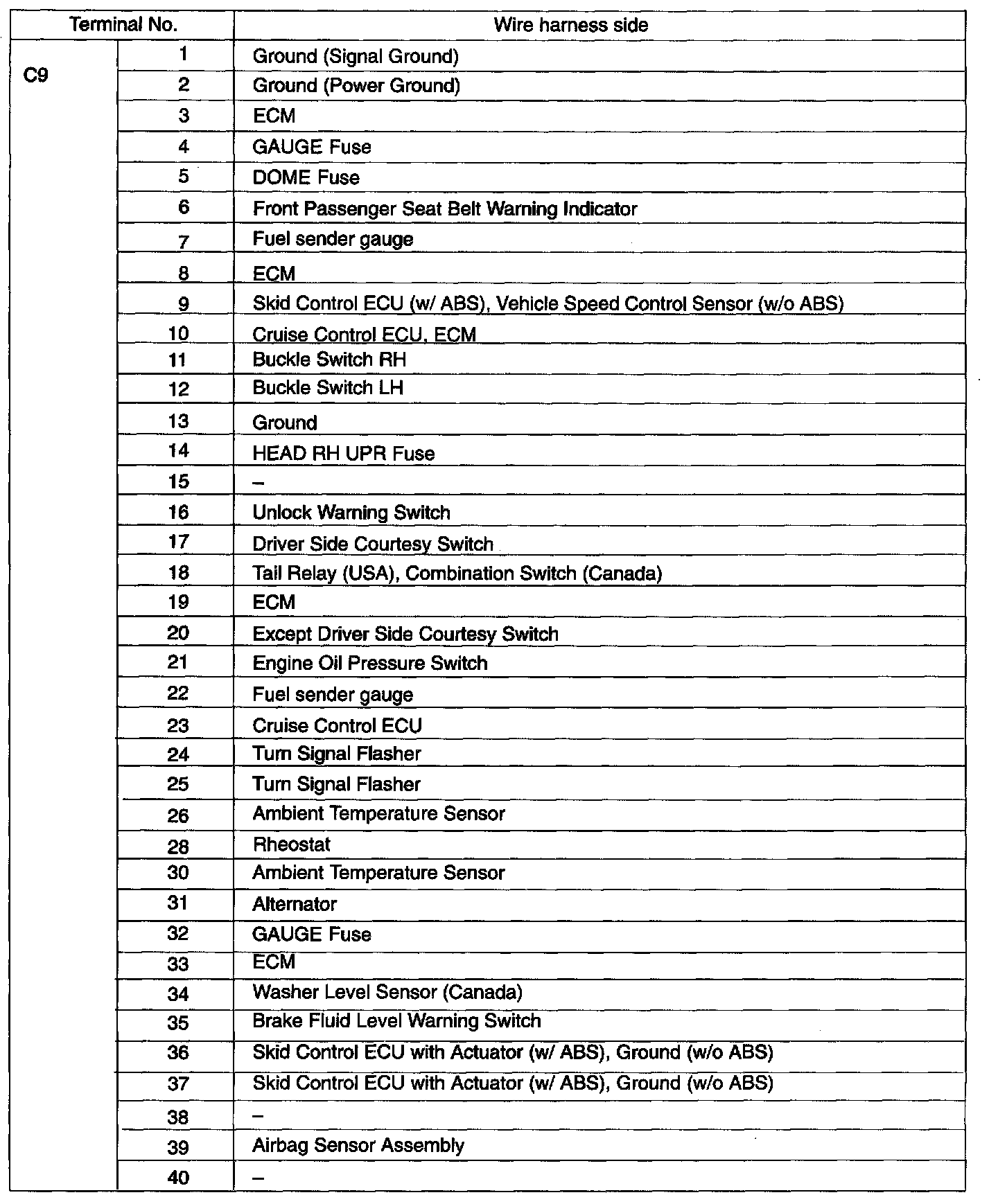

Terminal No. 1 - 40:
