Home
>>
Toyota
>>
2003
>>
Corolla LE Sedan L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Fuel Pump
Fuel Pump

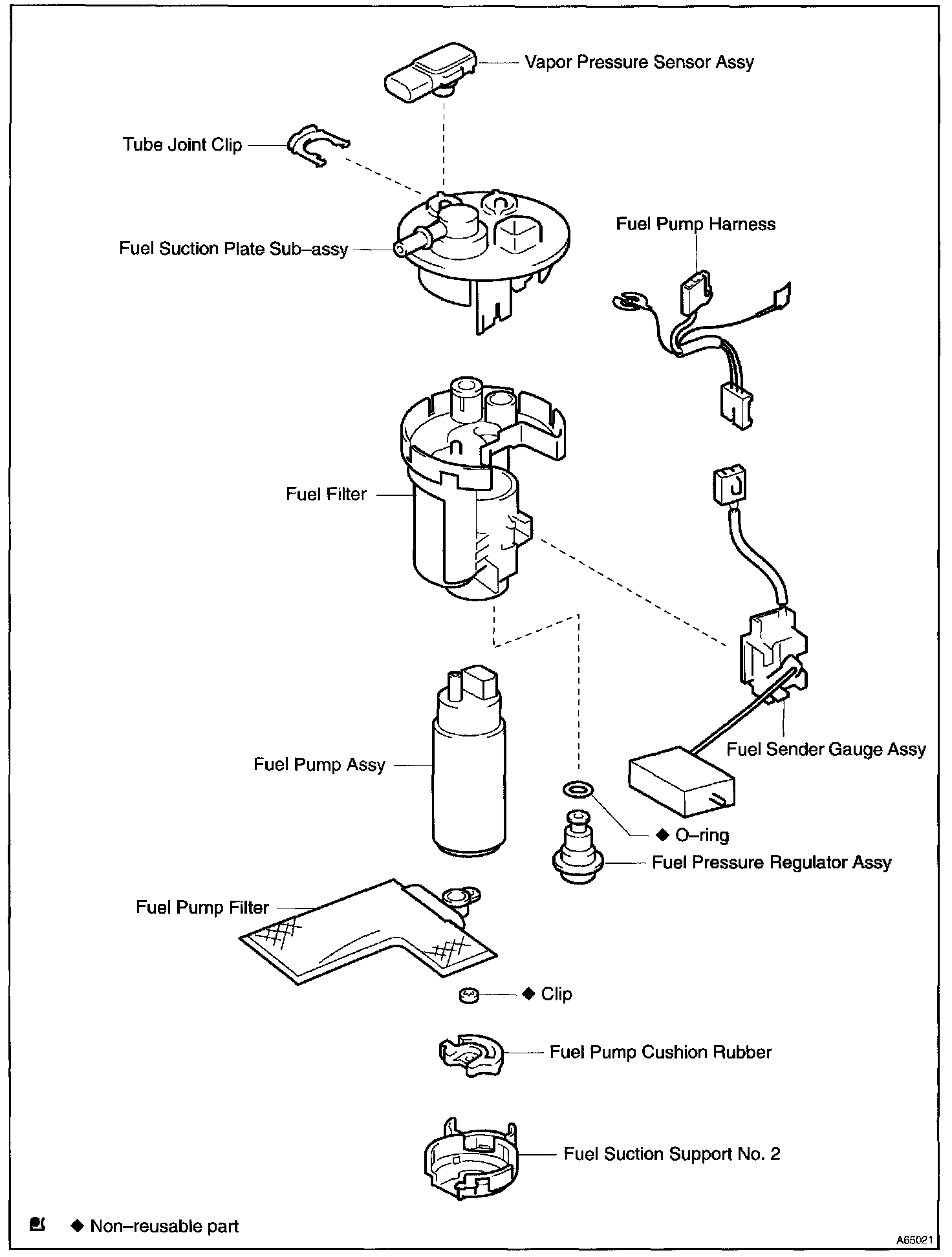

Fuel Pump Assy Part 1:
Fuel Pump Assy Part 2:
