Without Scan Tool

DTC CLEARANCE (ERASE MODE)

HINT: During in the erase mode, diagnostic detection does not work.




a. Drive at about 15 km/h or below.

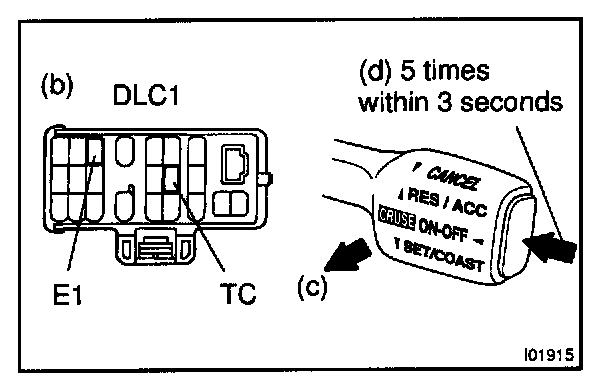

b. Using SST, connect terminals Tc and E1 of DLC1.
SST O9843-18020

c. Pull the cruise control switch to CANCEL.

d. On the above mentioned condition, turn on the cruise control main switch 5 times within 3 seconds.
