Power Seat Switch: Testing and Inspection

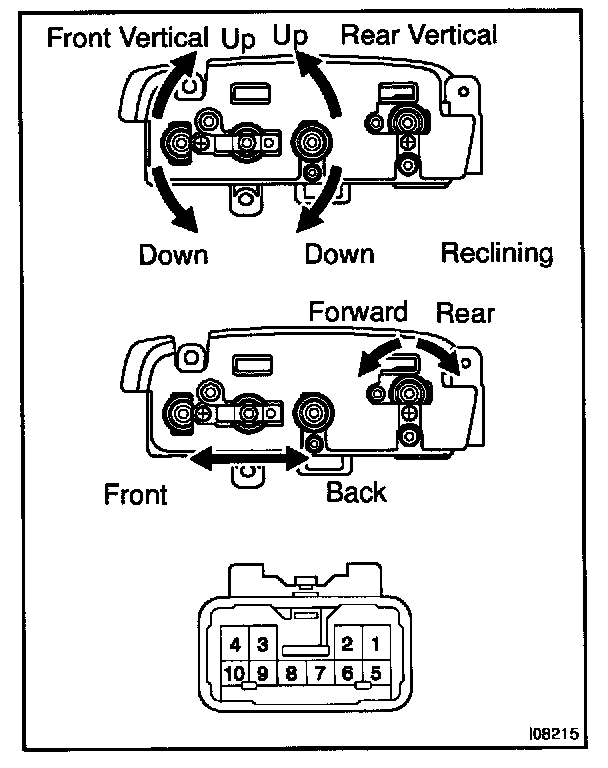

INSPECT DRIVER'S POWER SEAT SWITCH CONTINUITY

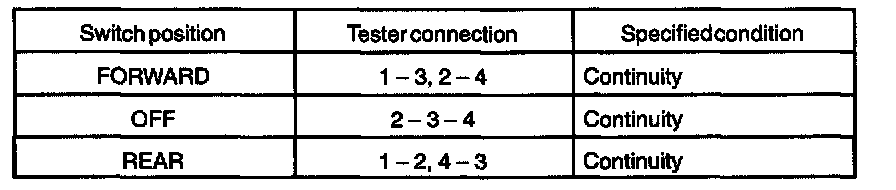

Slide switch

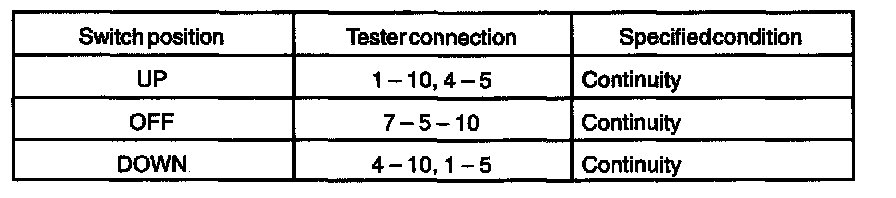

Front vertical switch




Rear vertical switch




Reclining switch

If continuity is not as specified, replace the switch.
