Seals and Gaskets: Service and Repair

Differential Oil Seal


ON-VEHICLE REPAIR
1. DRAIN ATF FROM DIFFERENTIAL CASE
Using a 10 mm hexagon wrench, remove the drain plug and gasket, and drain ATF.
2. REMOVE LH AND RH DRIVE SHAFTS

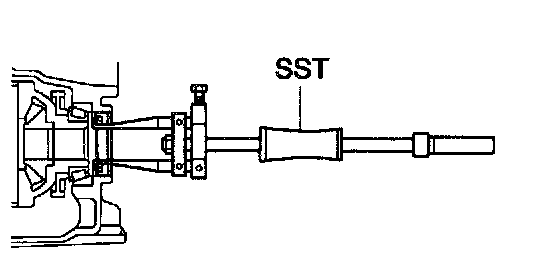

3. REMOVE LH AND RH SIDE OIL SEAL
Using SST, drive out both the side oil seals.
SST 09308-00010

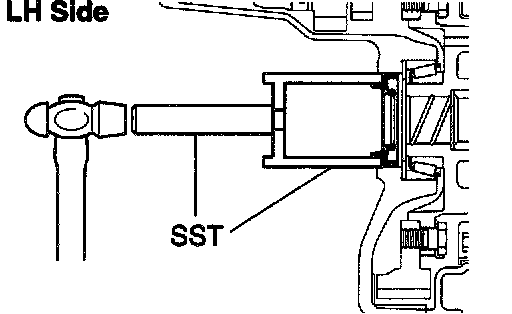

4. INSTALL LH SIDE OIL SEAL
a. Using SST and a hammer, drive in a new oil seal.
SST 09649-17010, 09950-70010 (09951-07150)
Oil seal drive in depth: 0 ± 0.5 mm (0 ± 0.020 inch)
b. Coat the oil seal lip with MP grease.

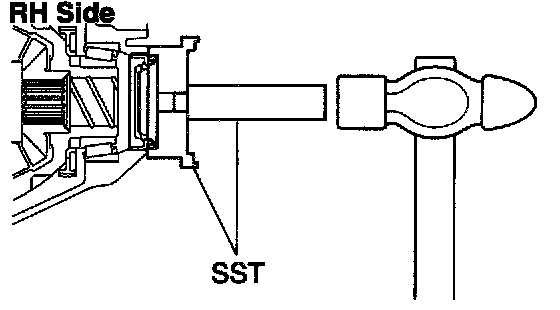

5. INSTALL RH SIDE OIL SEAL
a. Using SST and a hammer, drive in a new oil seal.
SST 09608-10010, 09950-70010 (09951-07150)
Oil seal drive in depth: 0 ± 0.5 mm (0 ± 0.020 inch)
b. Coat the oil seal lip with MP grease.
6. INSTALL LH AND RH DRIVE SHAFTS
7. FILL ATF AND CHECK ATF LEVEL
