Pressure Plate

- Align the matchmarks on the clutch cover and flywheel.

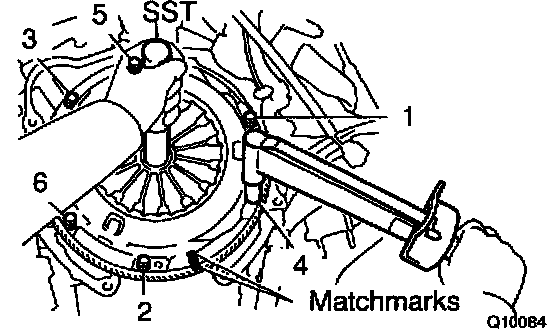

- Following the procedures shown in the illustration, tighten the 6 bolts in the order starting the bolt locating near the knock pin on the top.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)

HINT:
^ Following the order in the illustration, tighten one bolt at a time evenly.
^ Move SST up and down, right and left lightly, after checking that the disc is in the center, and tighten the bolts.
