Fuel Delivery and Air Induction: Testing and Inspection
INSPECTION1. WARM UP ENGINE
Allow the engine to warm up to normal operating temperature.
2. CONNECT HAND-HELD TESTER OR OBD II SCAN TOOL

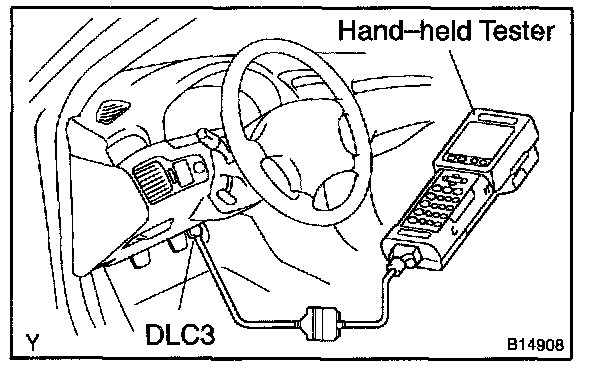

a. Connect a hand-held tester or OBD II scan tool to the DLC3.
b. Please refer to the hand-held tester or OBD II scan tool operator's manual for further details.
3. INSPECT FUEL CUT RPM OPERATION
a. Increase the engine speed to at least 3,500 rpm.

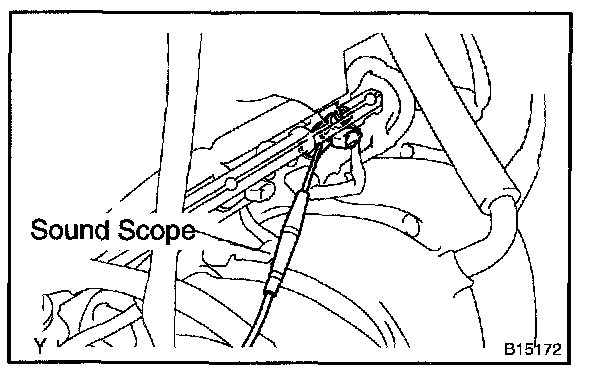

b. Use a sound scope to check for injector operating noise.
c. Check that when the throttle lever is released, injector operation noise stops momentarily and then resumes.
HINT: Measure with the A/C OFF.
Fuel cut return rpm:
M/T 1,200 rpm
A/T 1,500 rpm
4. DISCONNECT HAND-HELD TESTER OR OBD II SCAN TOOL
