Blower Motor Circuit
CIRCUIT DESCRIPTION
This is the power source for the
blower motor
.

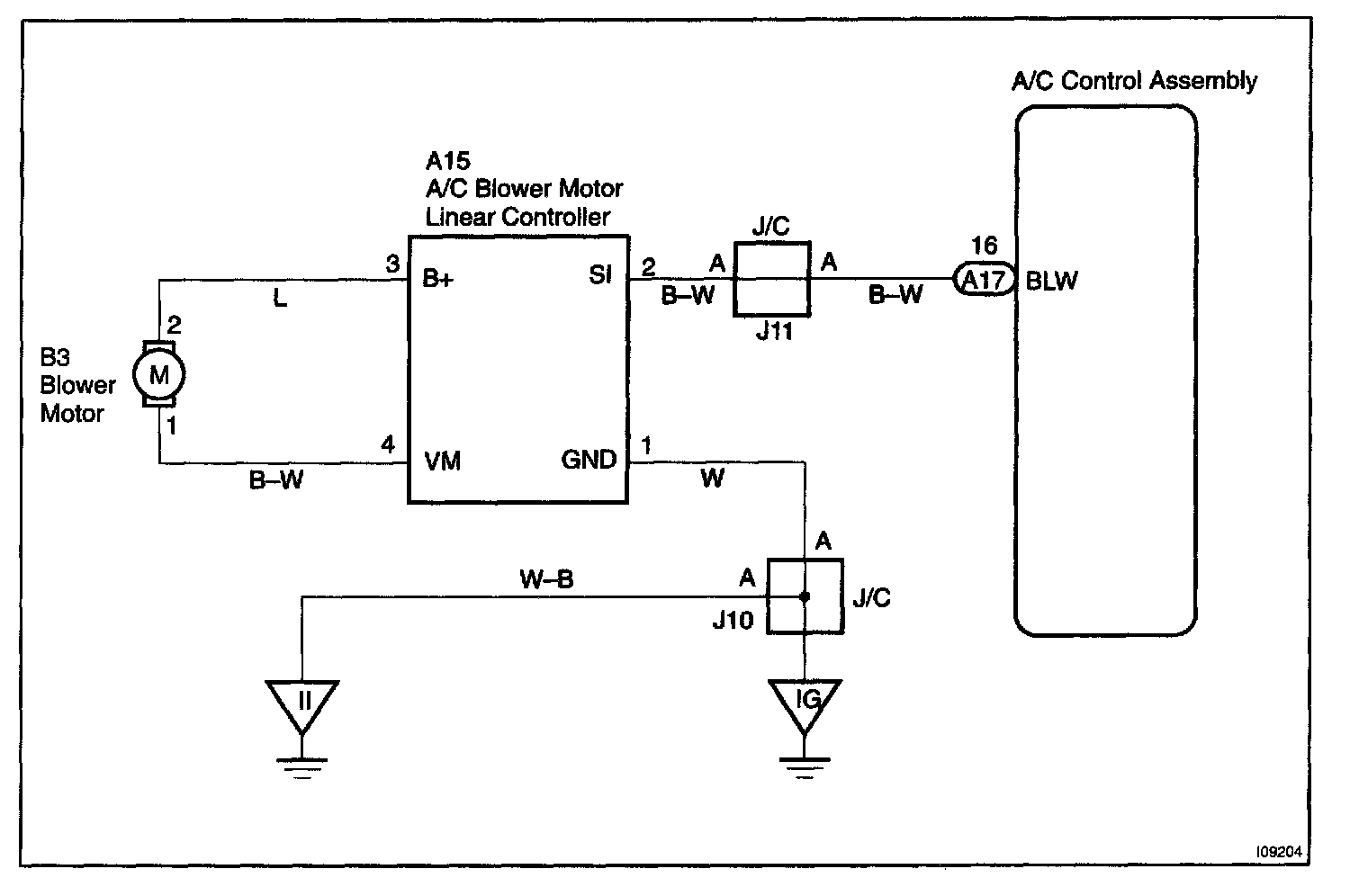

Wiring Diagram:

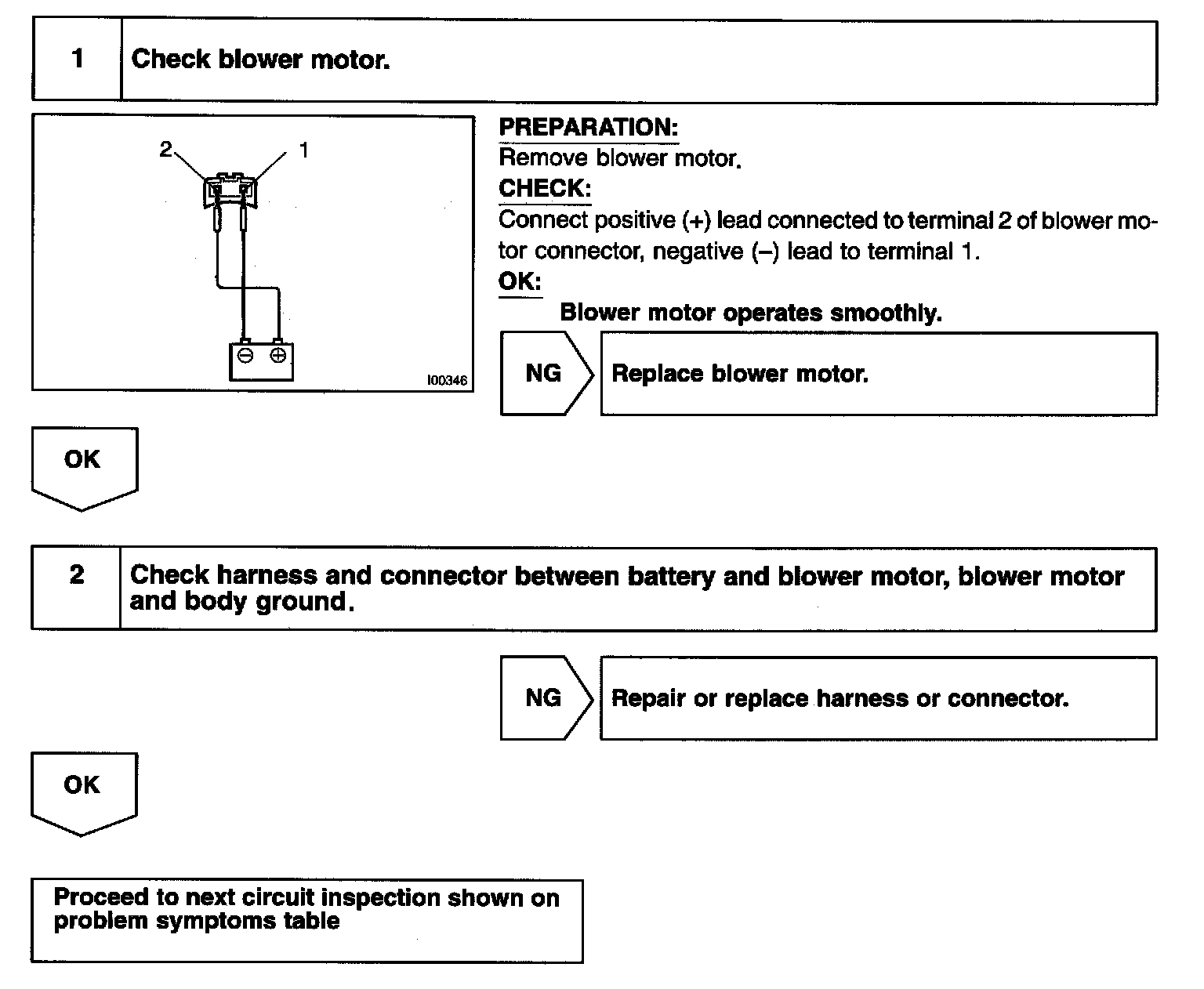

Step 1 - 2:
INSPECTION PROCEDURE
