Toyota
>>
2003
>>
Camry Solara L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering
>>
System Diagram
System Diagram

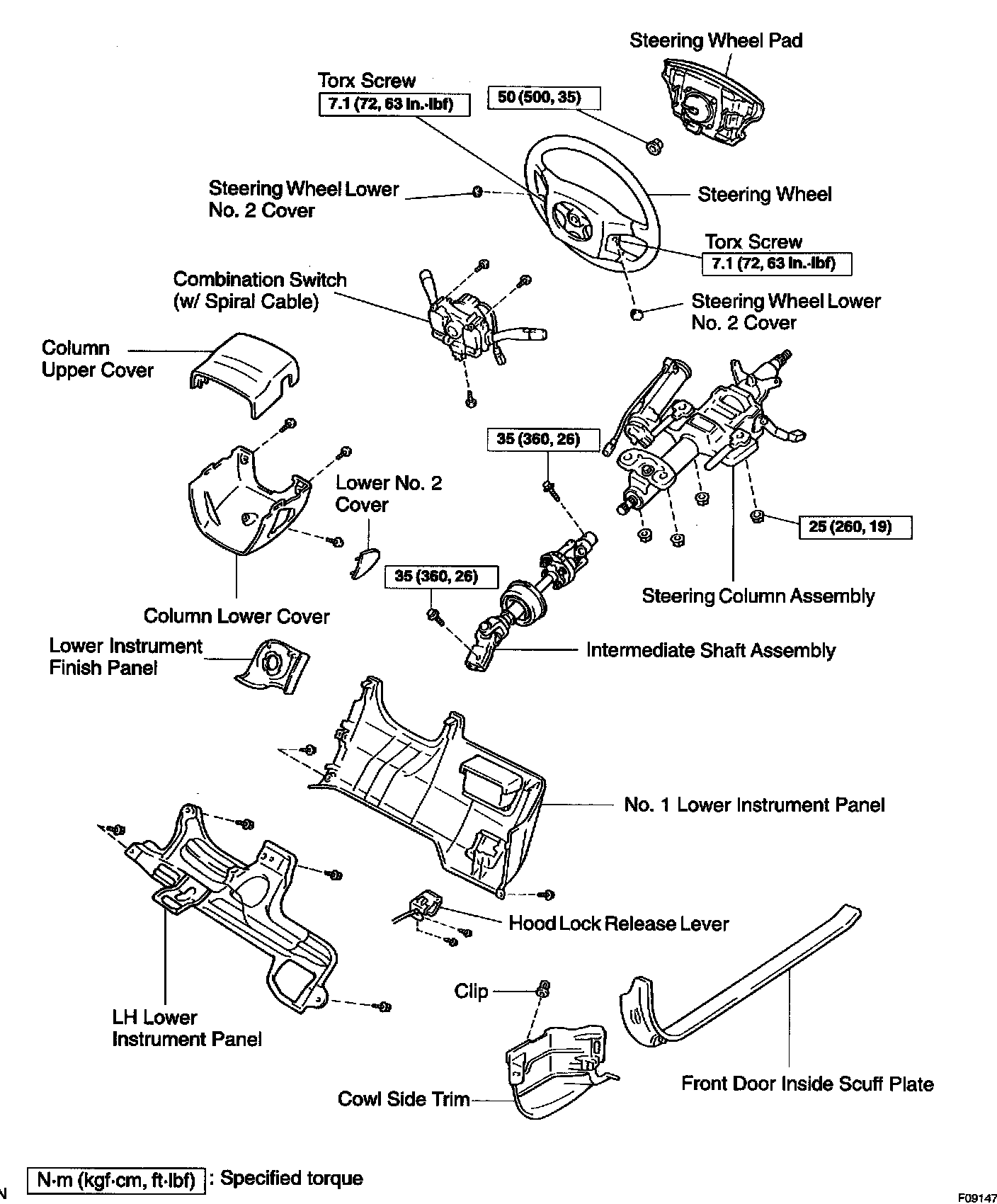

TILT
STEERING COLUMN

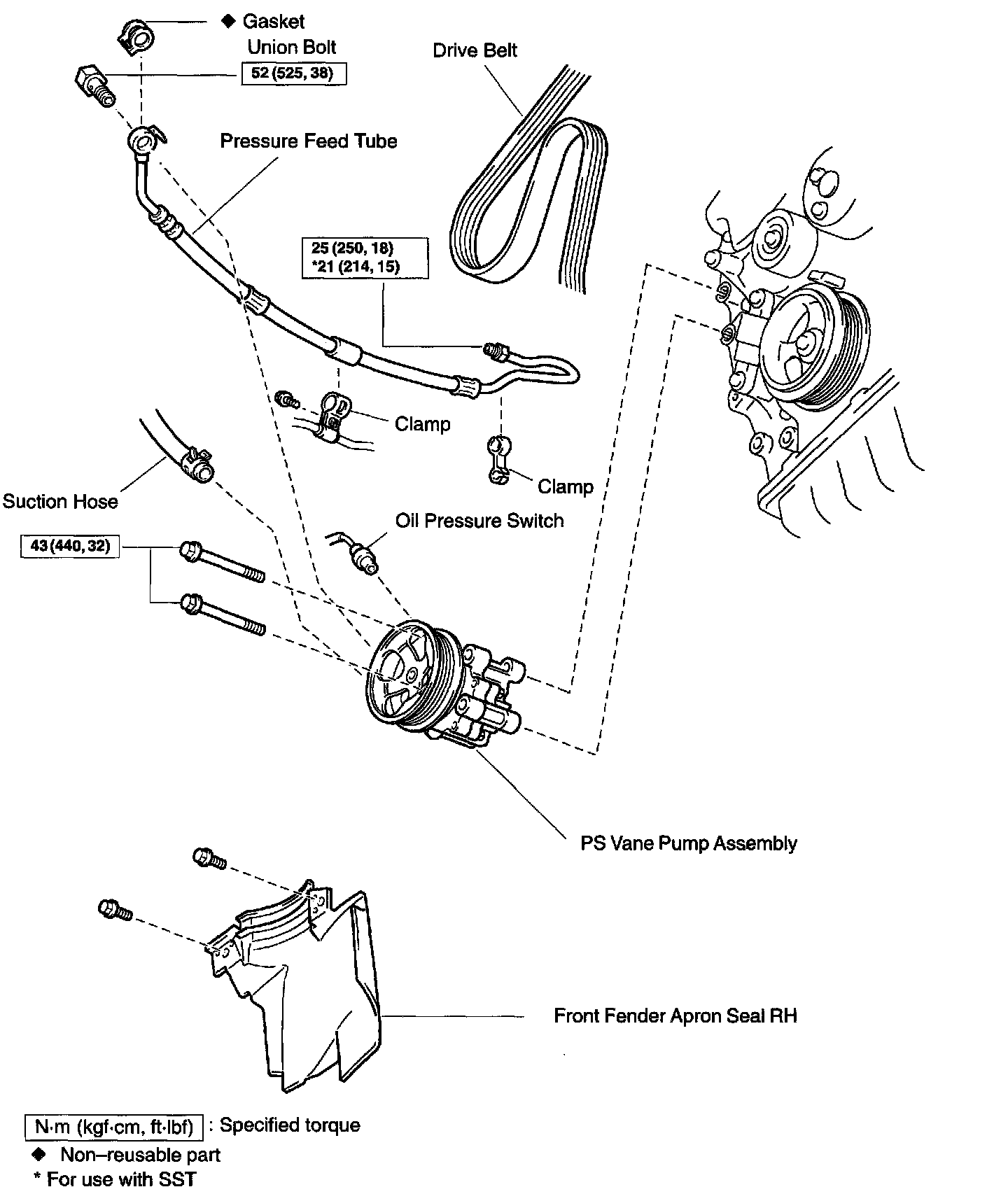

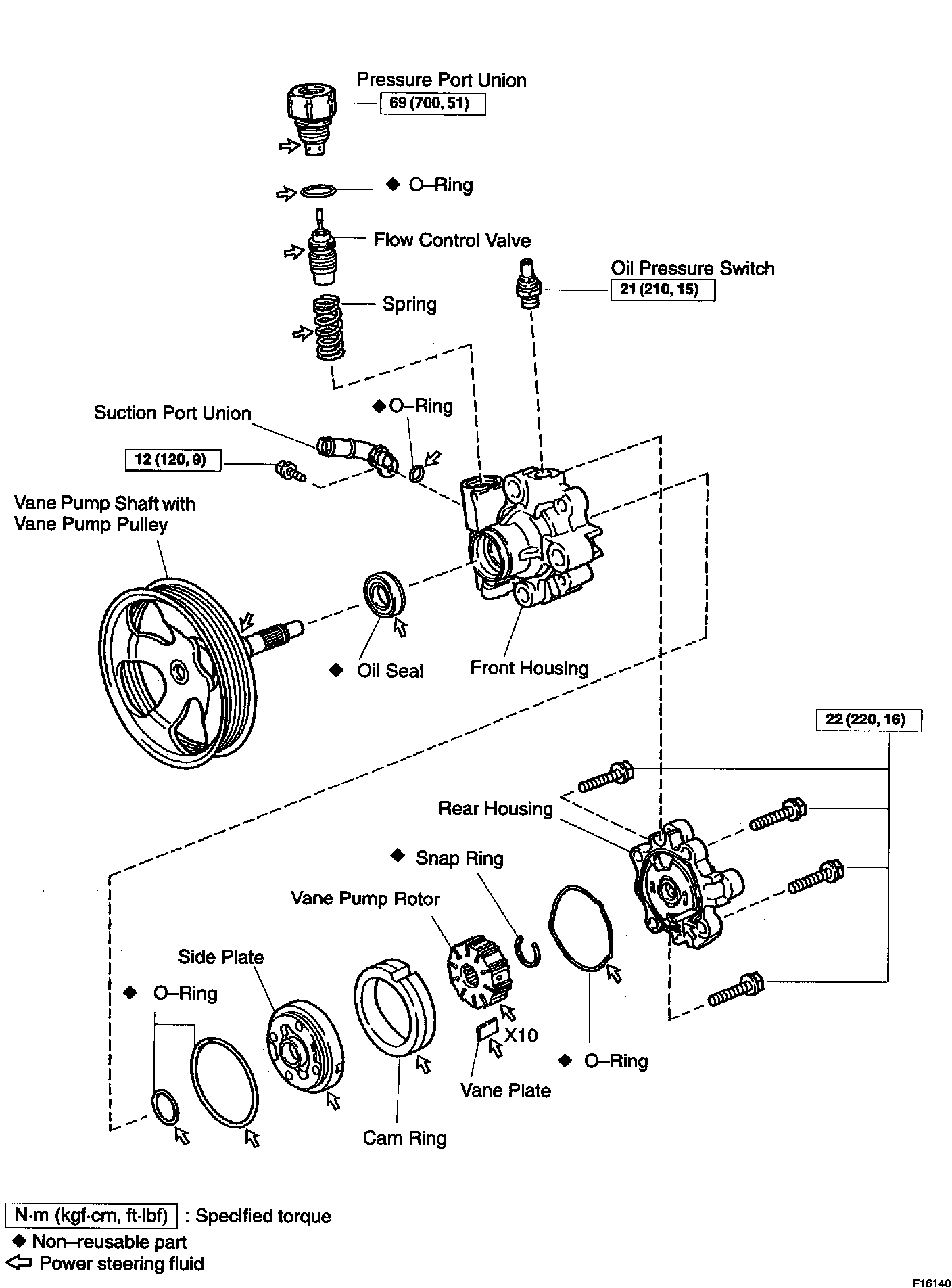

POWER STEERING VANE PUMP

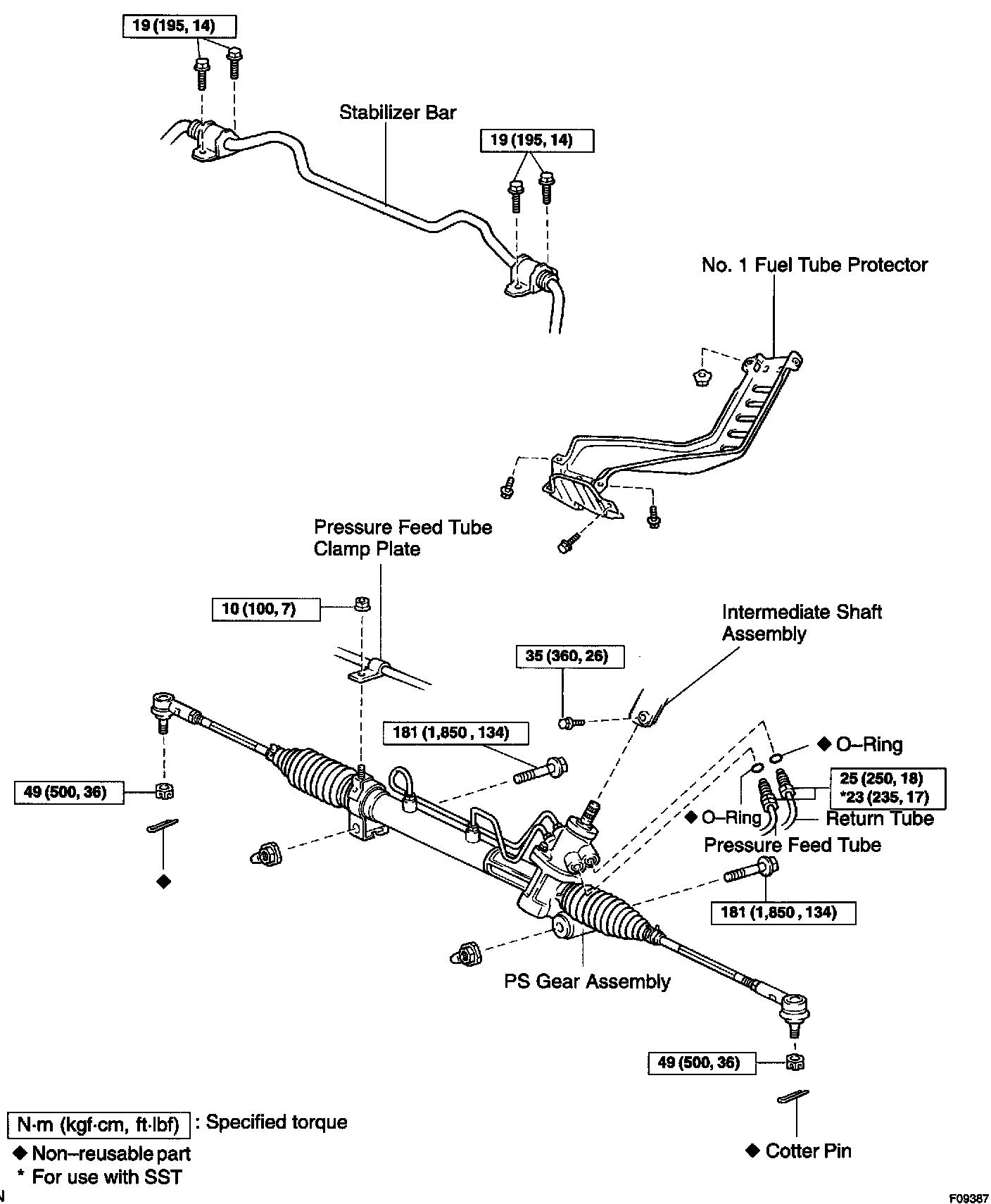

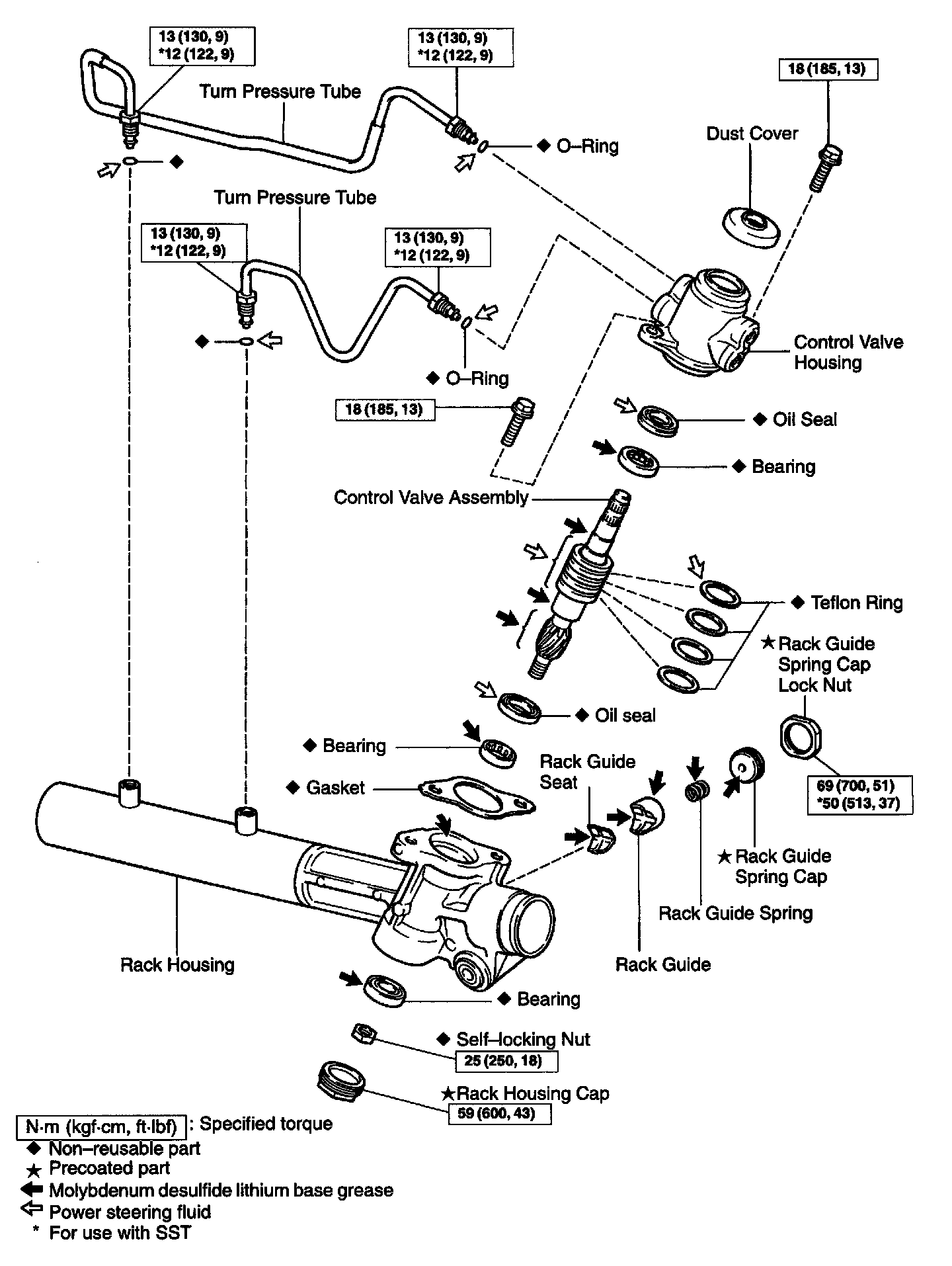

POWER STEERING GEAR
