Camry Solara L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Overhaul (Unit Repair)
>>

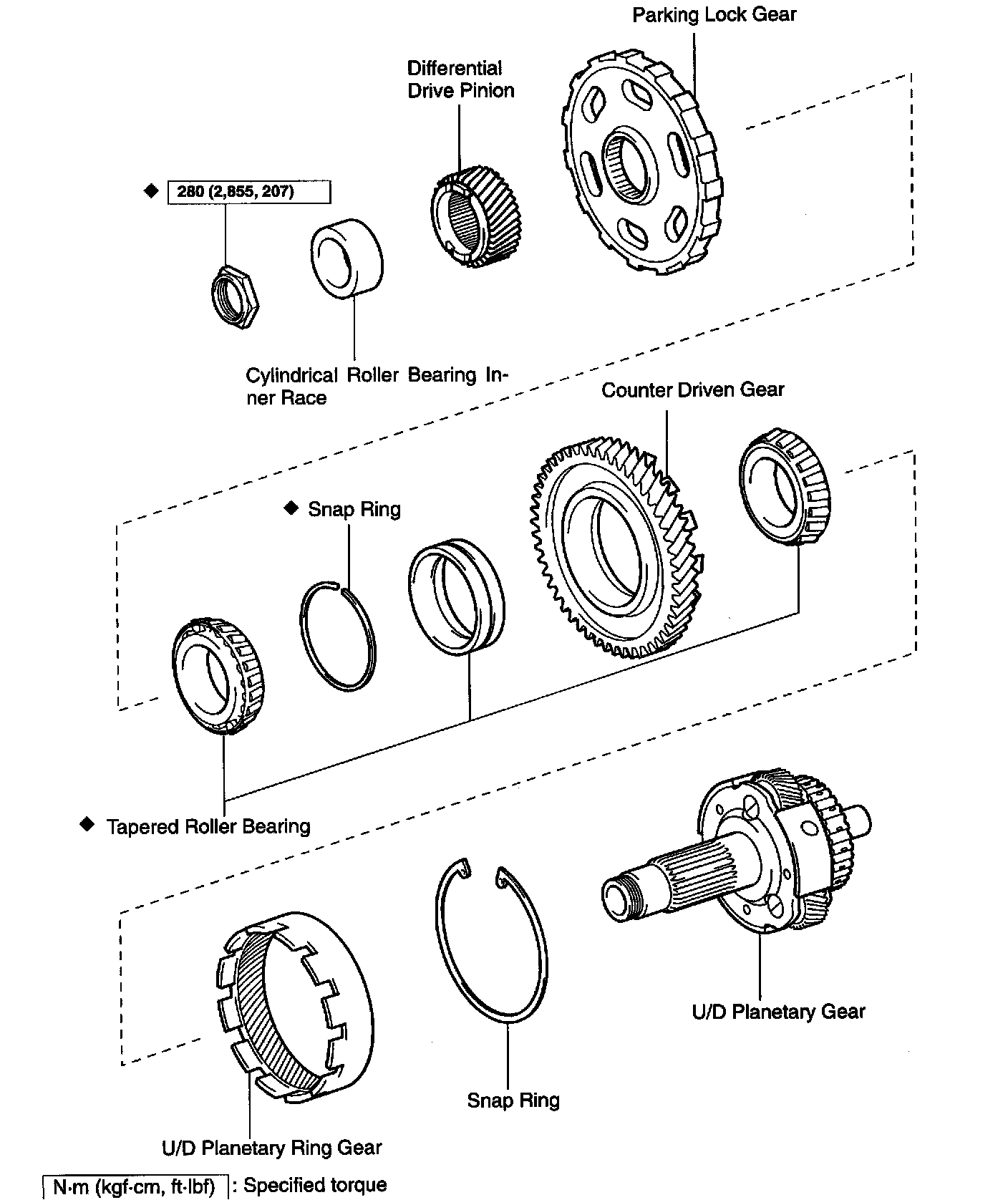

Underdrive Planetary Gear
Underdrive Planetary Gear
