Camry Solara L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>

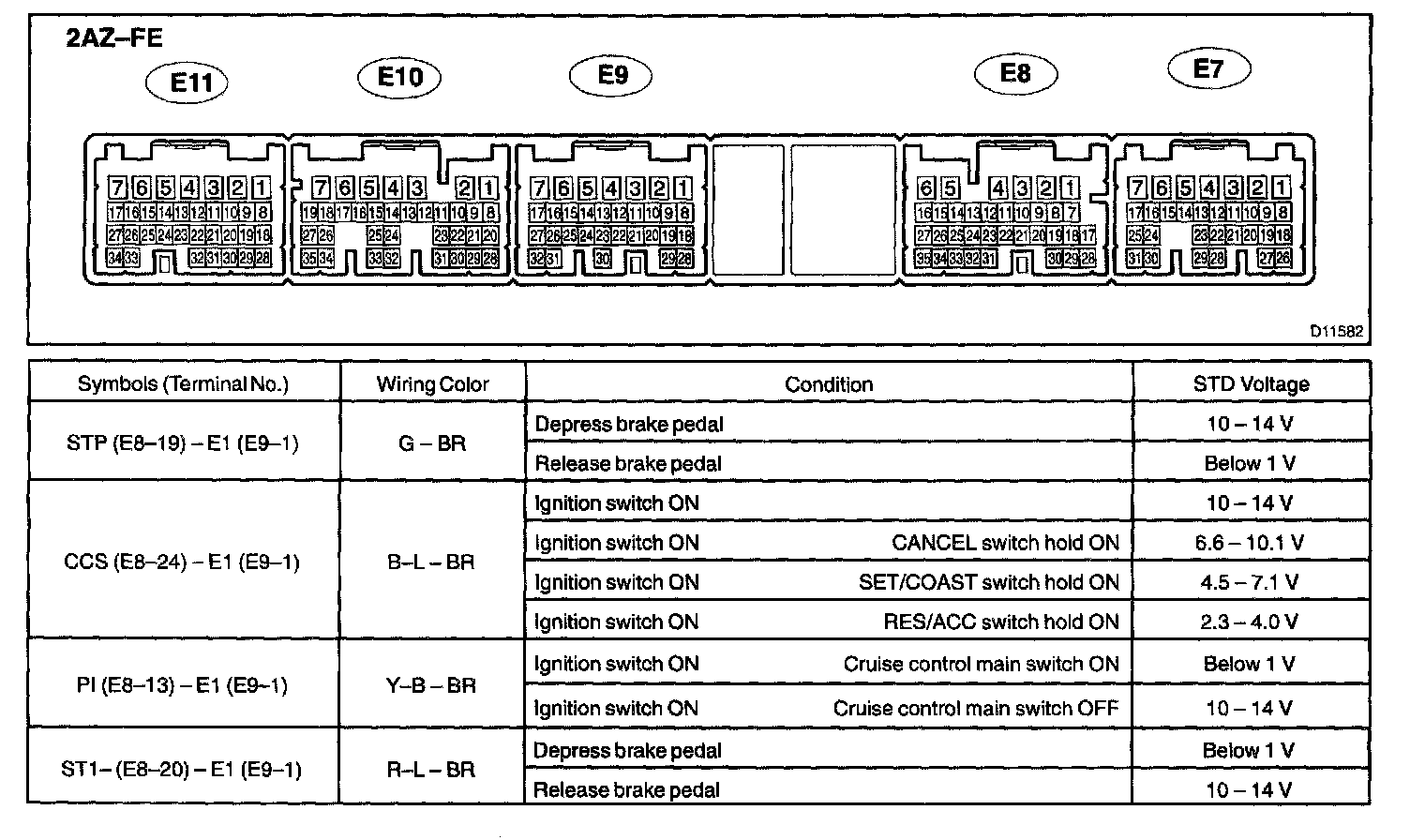

Standard Values of ECU Terminals
Standard Values of ECU Terminals
Terminals Of ECM/Pinouts:
