Tc Terminal Circuit
CIRCUIT DESCRIPTIONConnecting terminals Tc and E1 of the DLC1 or DLC2 causes the ECU to display the DTC by blinking the ABS warning light and the TRAC OFF indicator light.

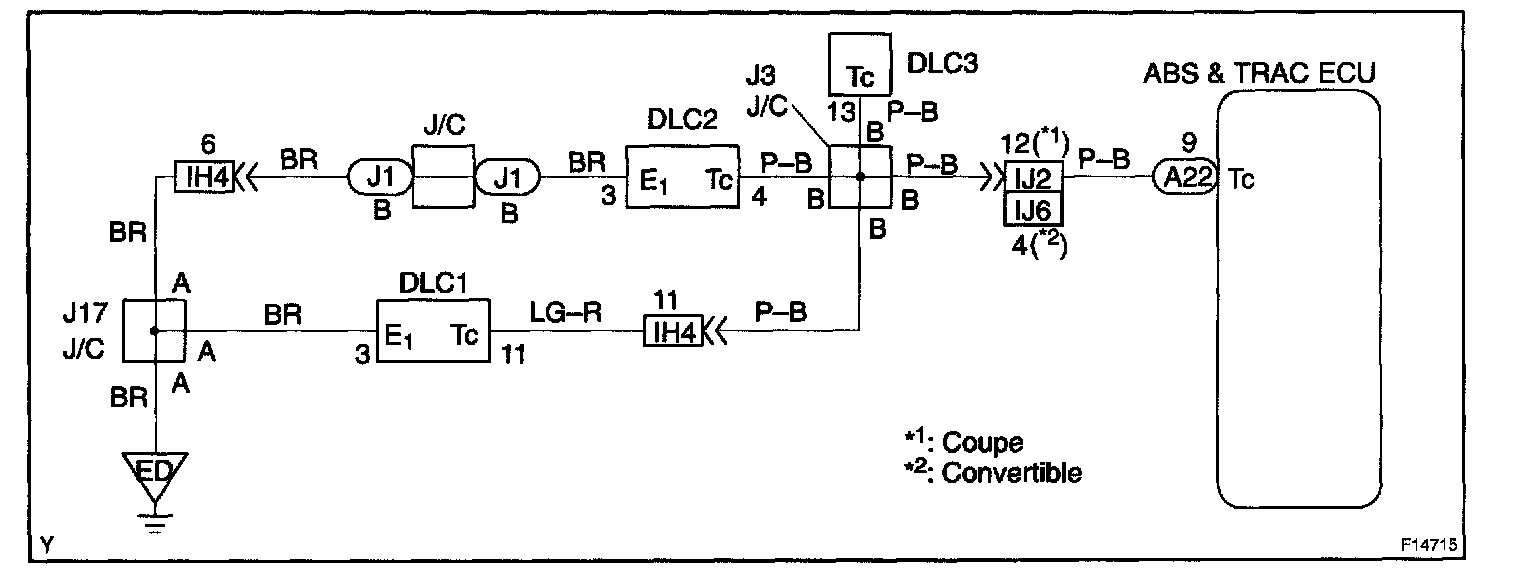

Wiring Diagram:

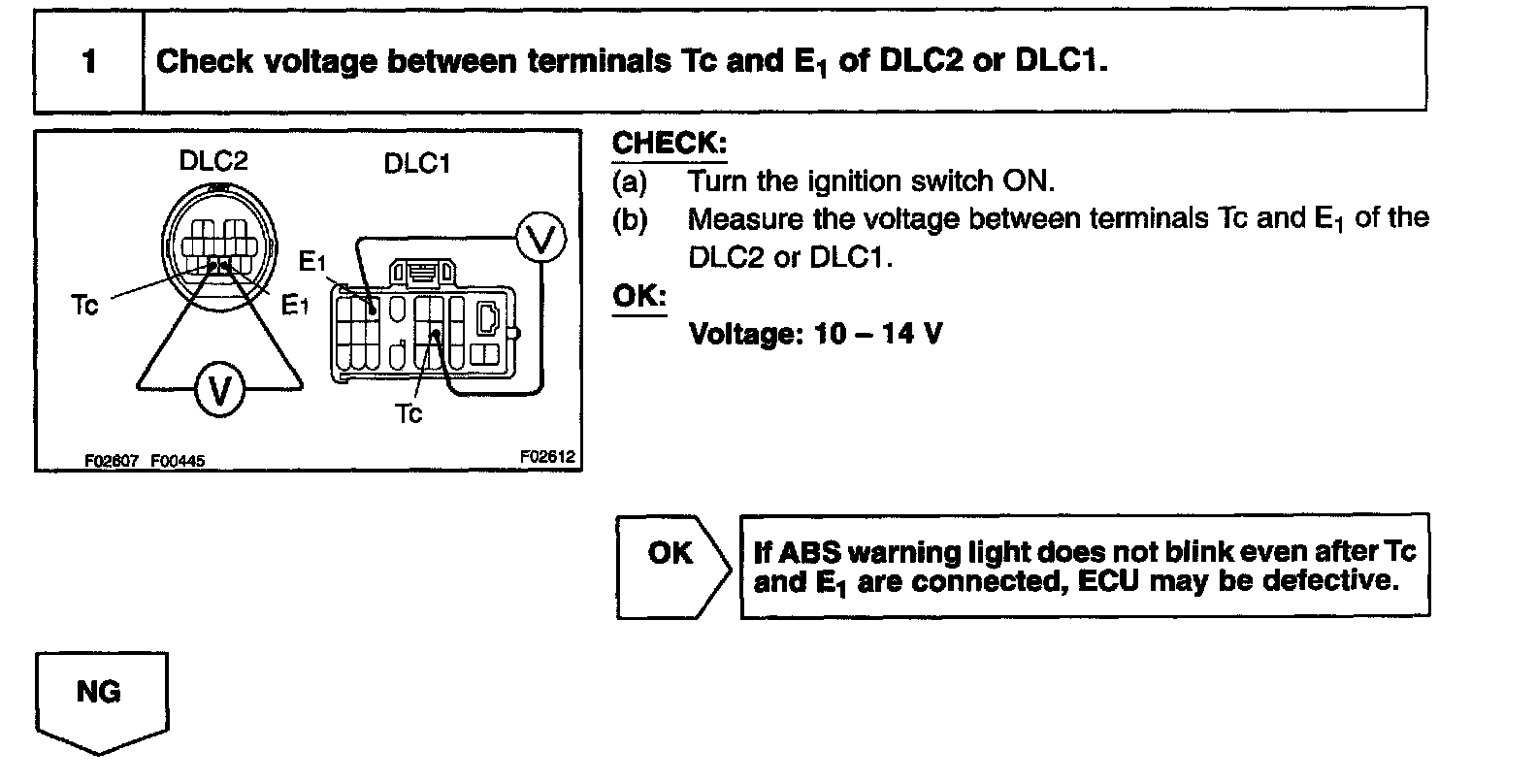

Step 1:

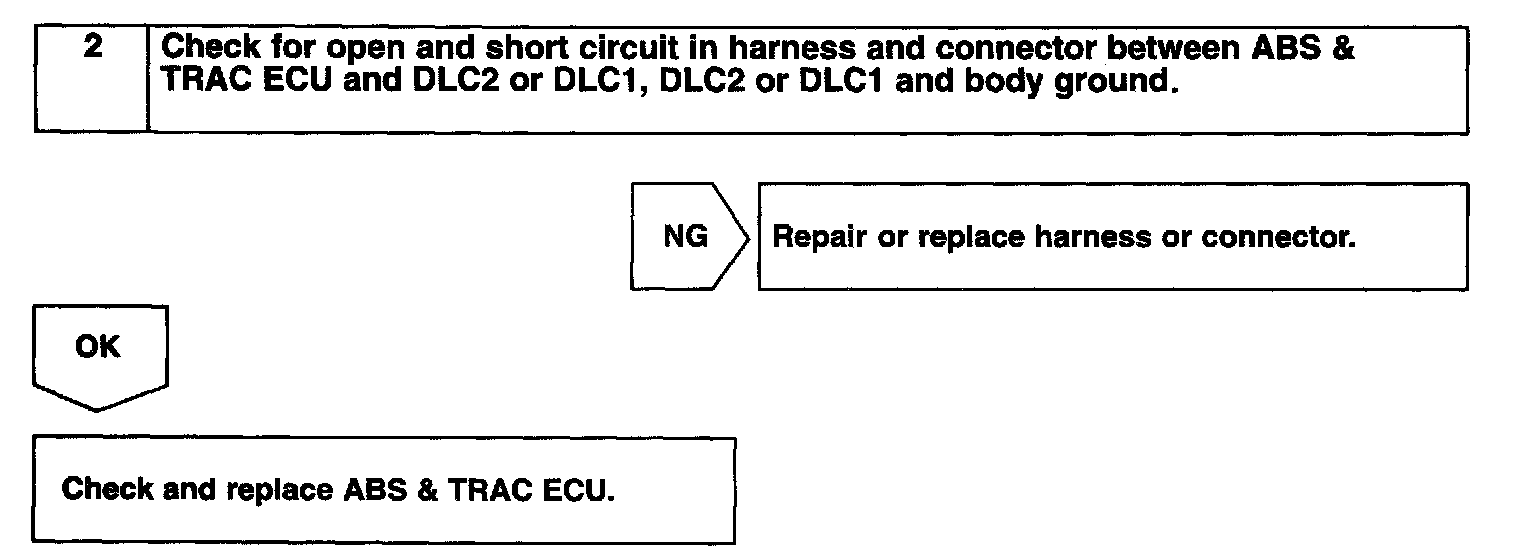

Step 2:
INSPECTION PROCEDURE
Connecting terminals Tc and E1 of the DLC1 or DLC2 causes the ECU to display the DTC by blinking the ABS warning light and the TRAC OFF indicator light.
INSPECTION PROCEDURE
