SLIP Indicator Light Circuit
CIRCUIT DESCRIPTION
The SLIP indicator blinks during the TRAC operation.

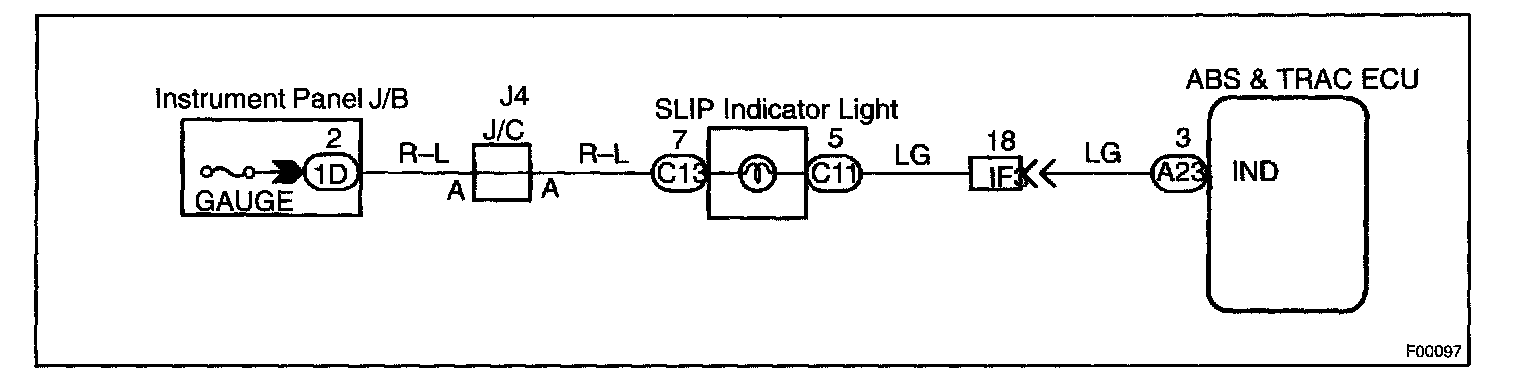

Wiring Diagram:

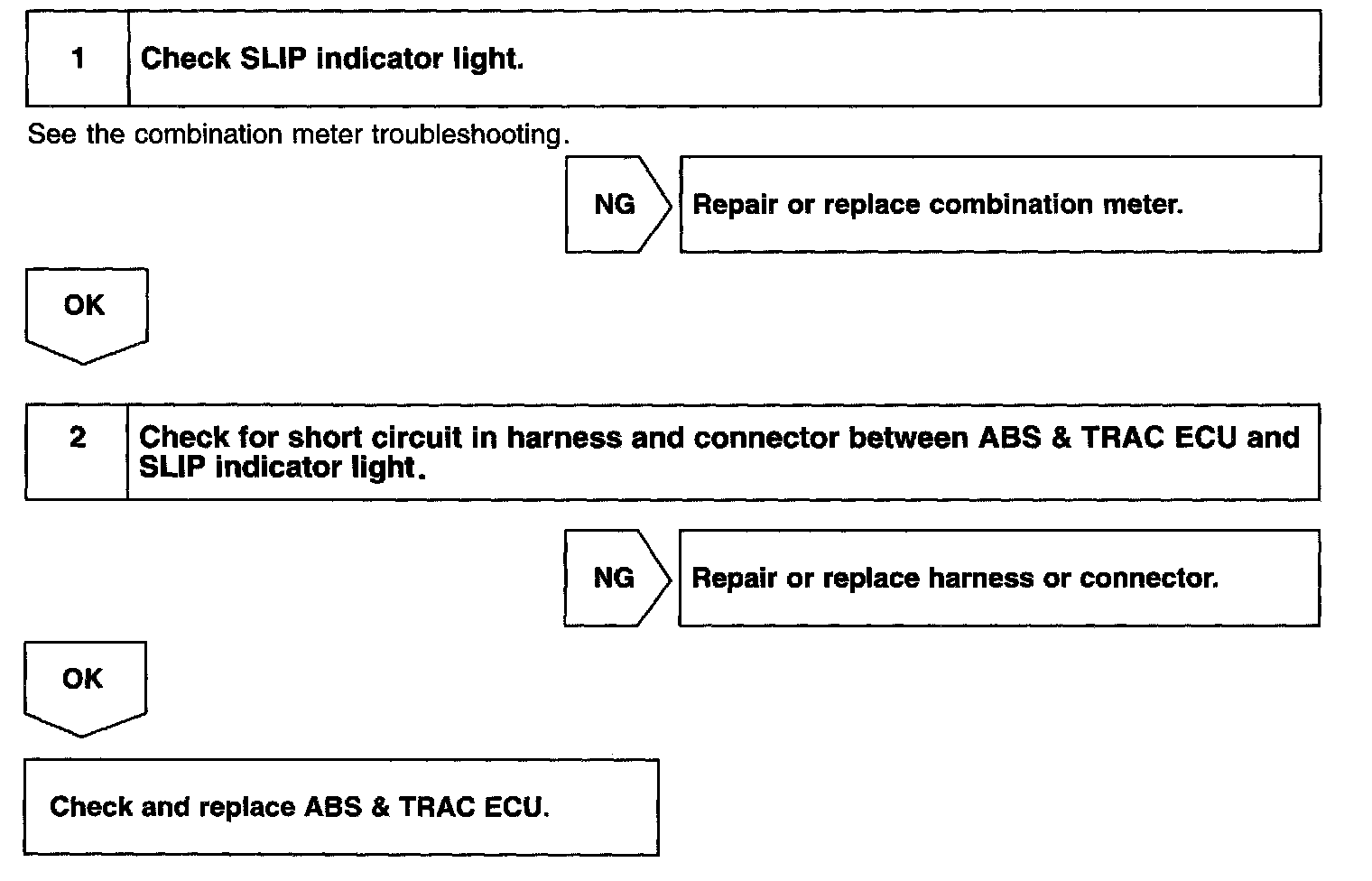

Step 1 - 2:
INSPECTION PROCEDURE
