TS Terminal Circuit

CIRCUIT DESCRIPTION

Sensor check circuit detects abnormalities in the speed sensor signal which cannot be detected in the DTC check.

Connecting terminals Ts and E1 of the DLC1 in the engine compartment starts the check.

Wiring Diagram:

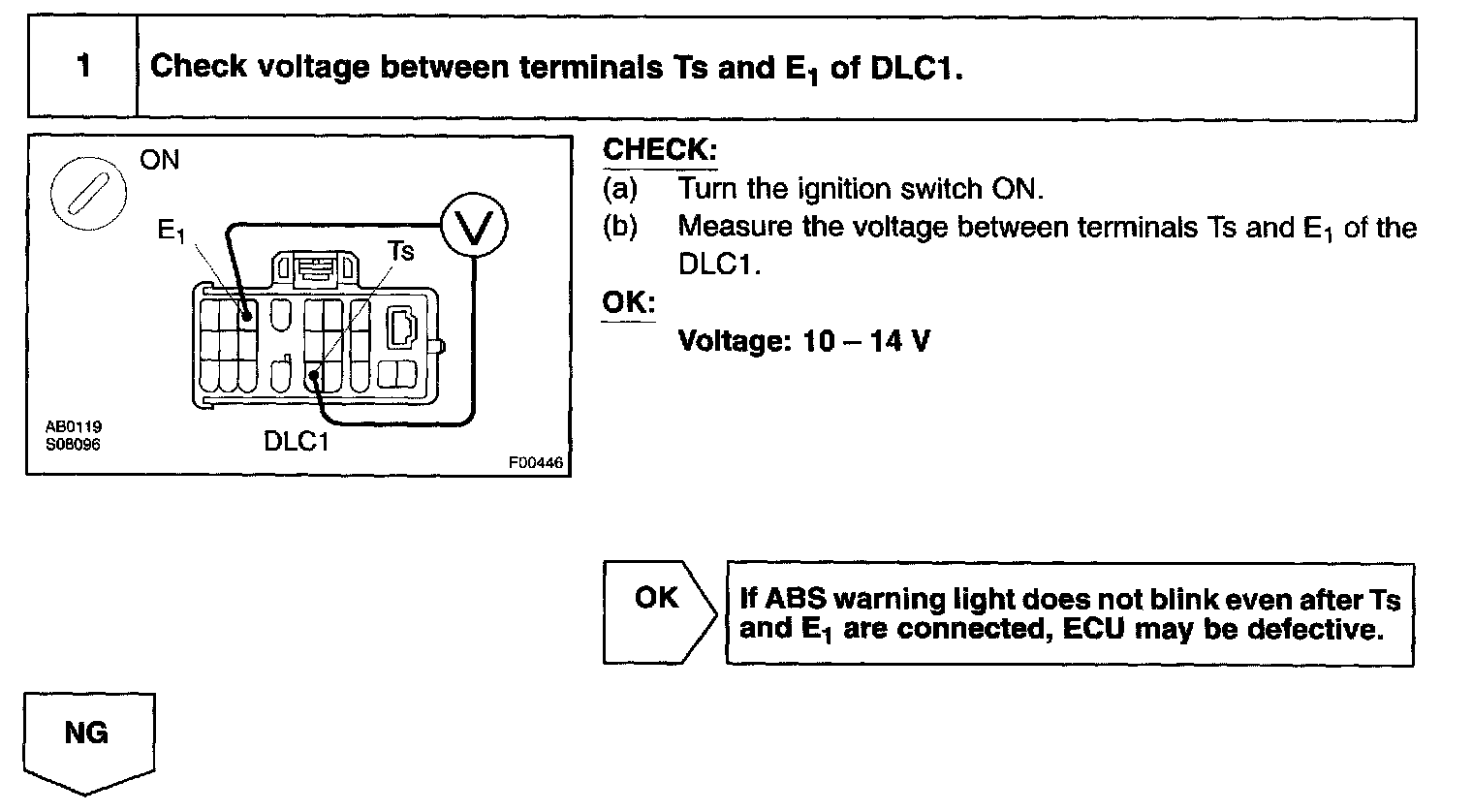

Step 1:

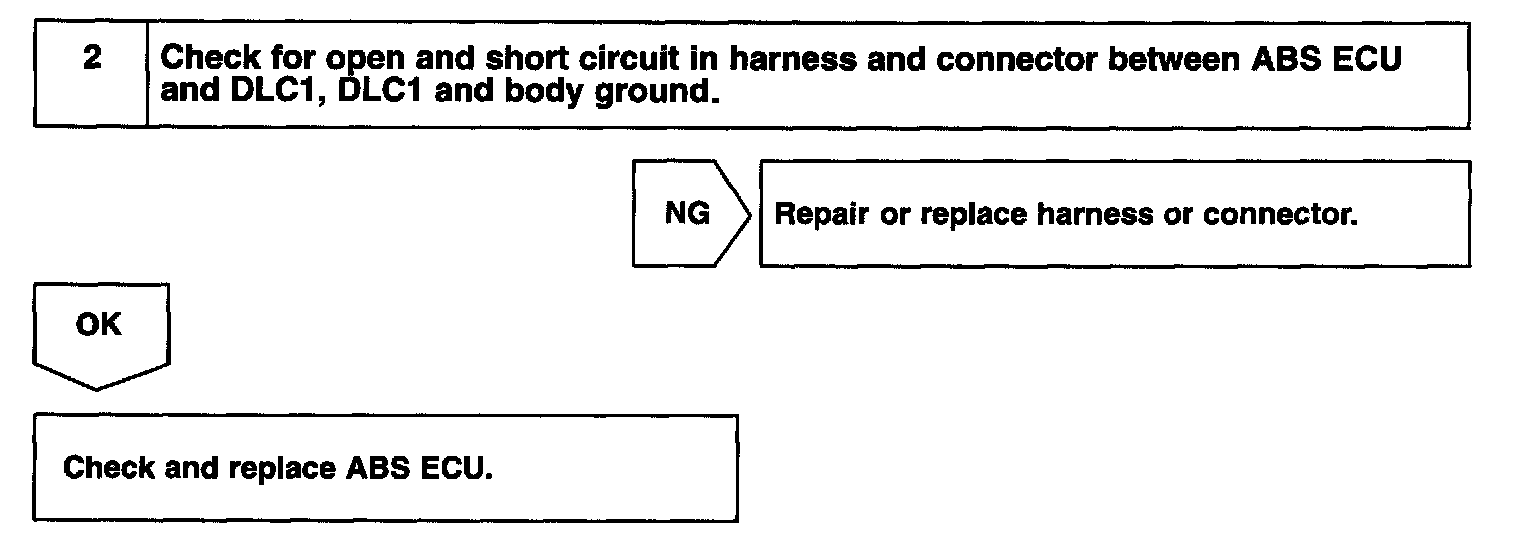

Step 2:

INSPECTION PROCEDURE
