Door Courtesy Switch Circuit
CIRCUIT DESCRIPTIONThe door courtesy switch goes ON when the door is opened and goes OFF when the door is closed.

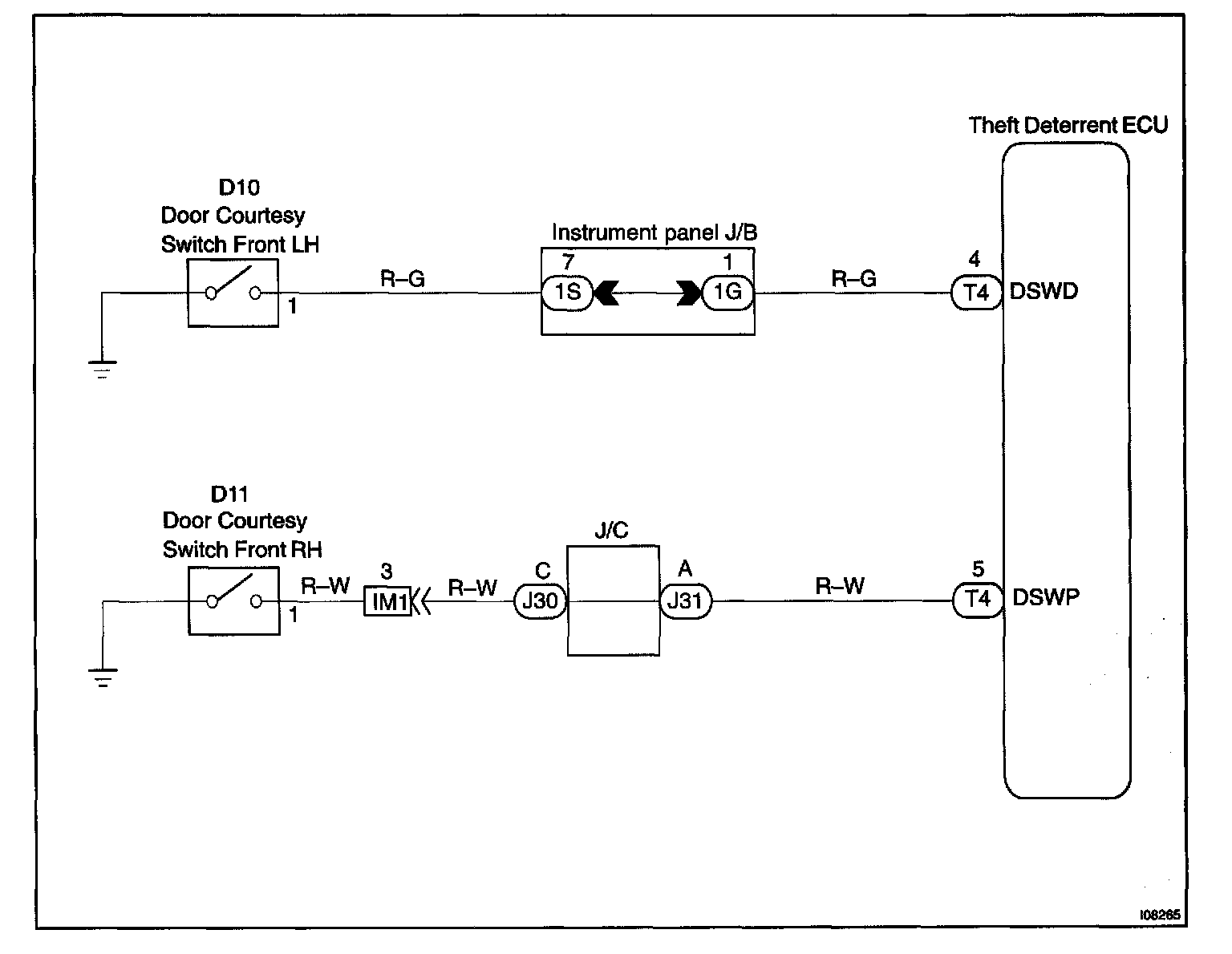

Wiring Diagram:

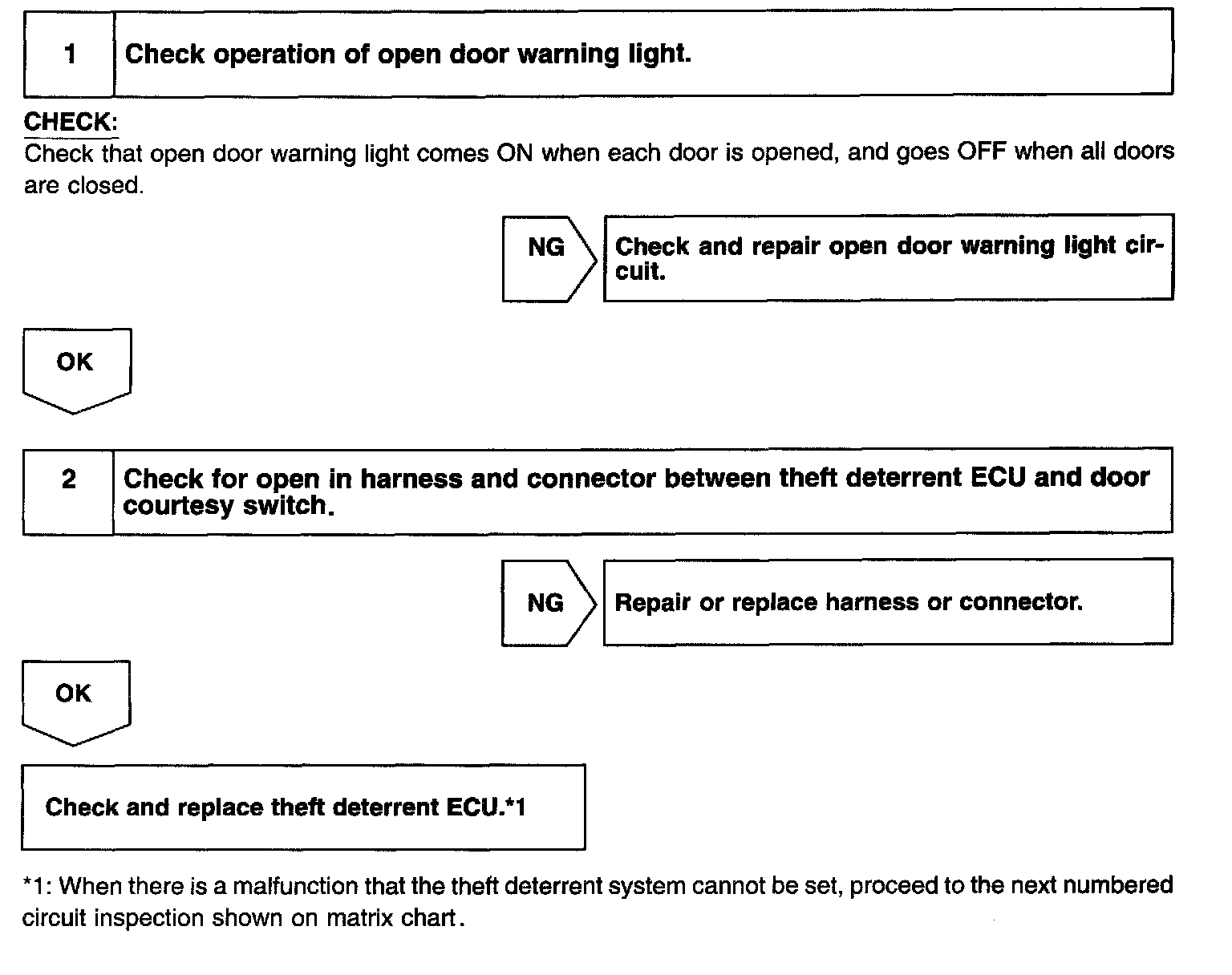

Step 1 - 2:
INSPECTION PROCEDURE
The door courtesy switch goes ON when the door is opened and goes OFF when the door is closed.
INSPECTION PROCEDURE
