Engine Control Systems

DTC P0504 Brake Switch "A"/"B"Correlation

CIRCUIT DESCRIPTION

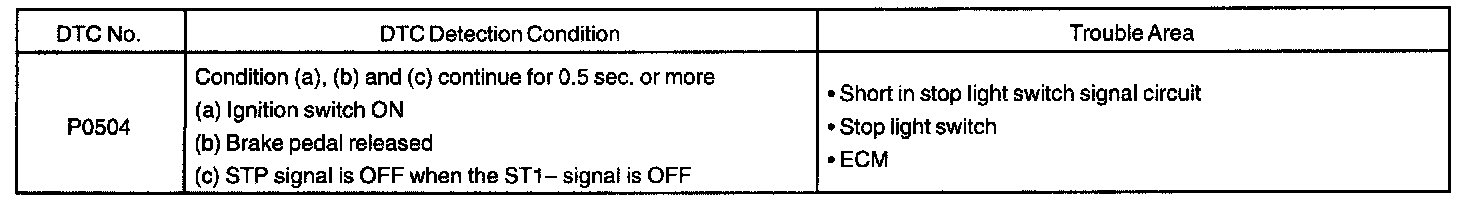

DTC Detection Condition:

In this system, the signal of the stop light switch is used to judge whether the acceleration system is abnormal or not.

The stop light switch has a duplex system (signals STP and ST1-) to memorize the abnormality when the signals of depressing and releasing the brake pedal are detected simultaneously.

HINT: Normal condition is as shown in the table.

Wiring Diagram:

Step 1:

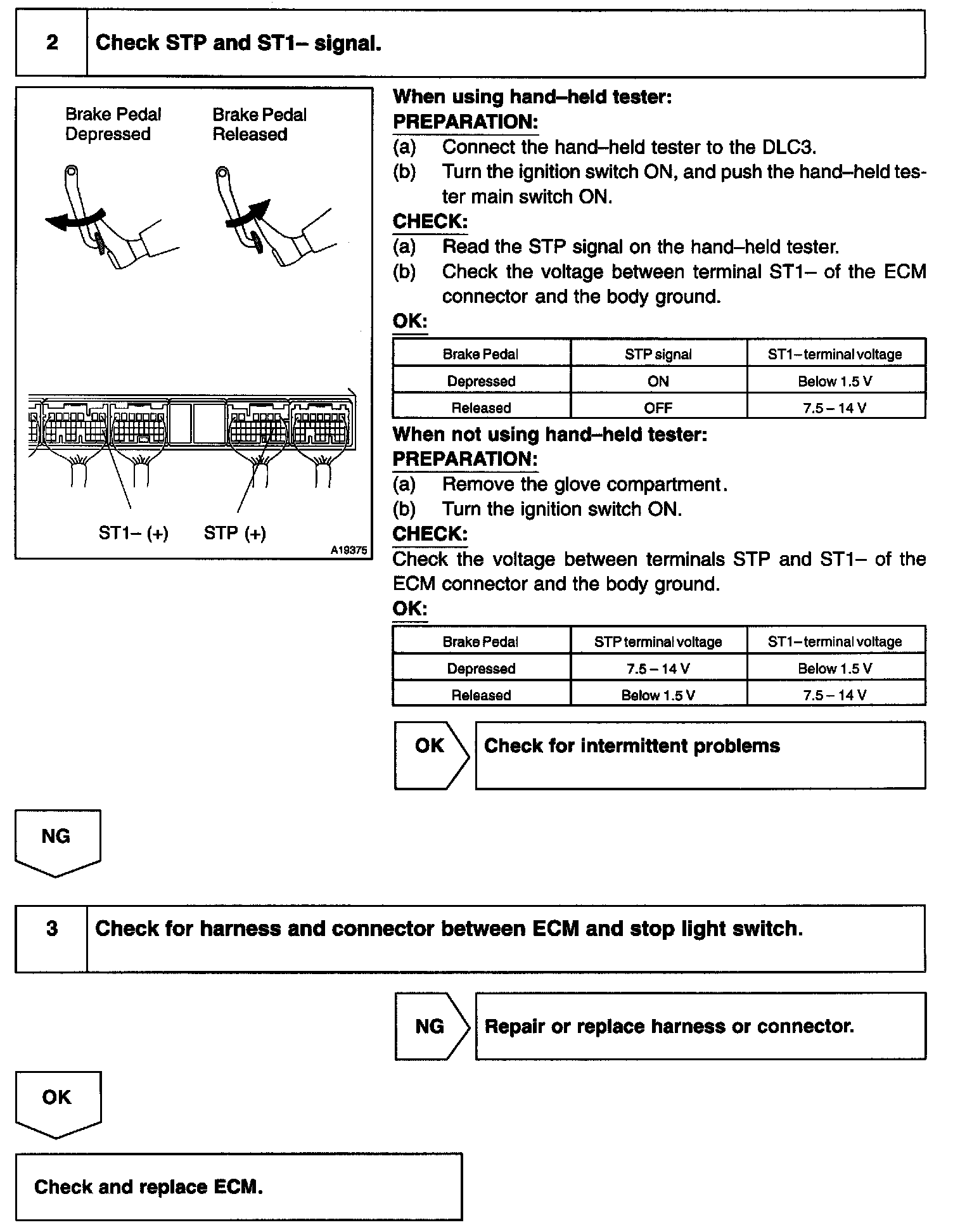

Step 2 - 3:

INSPECTION PROCEDURE

HINT: Read freeze frame data using hand-held tester or OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
