Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

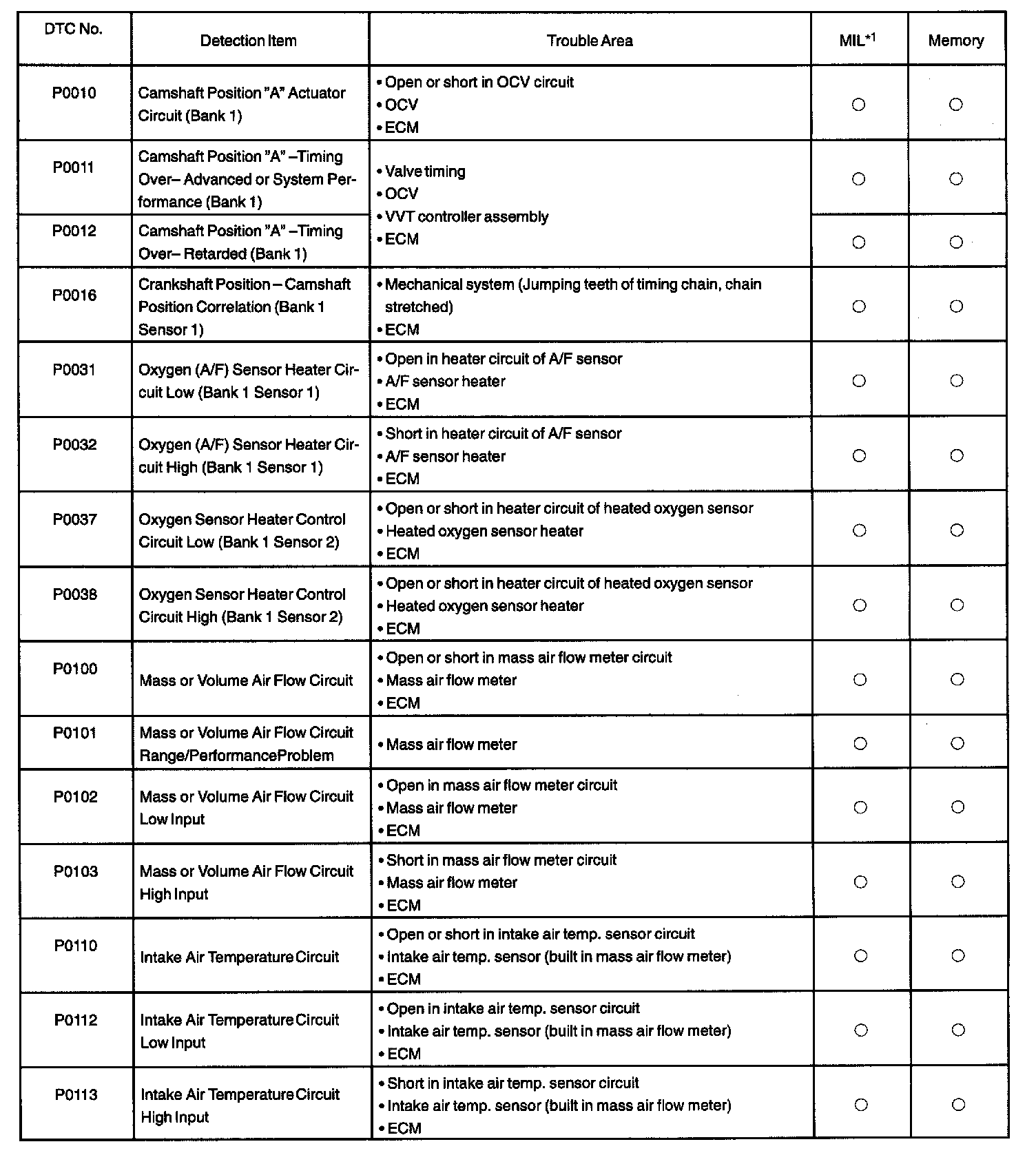

DTC P0010 - P0113:

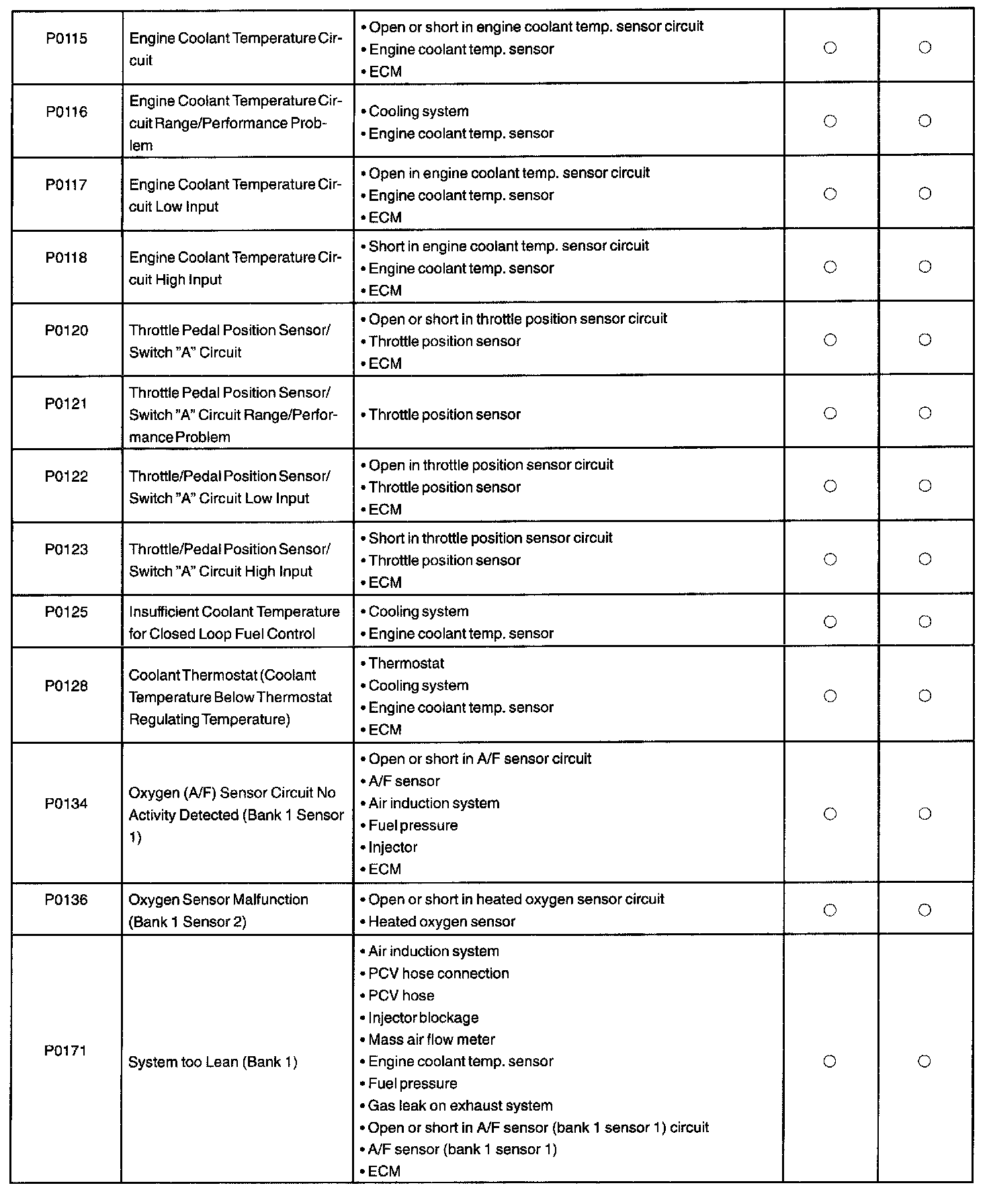

DTC P0115 - P0171:

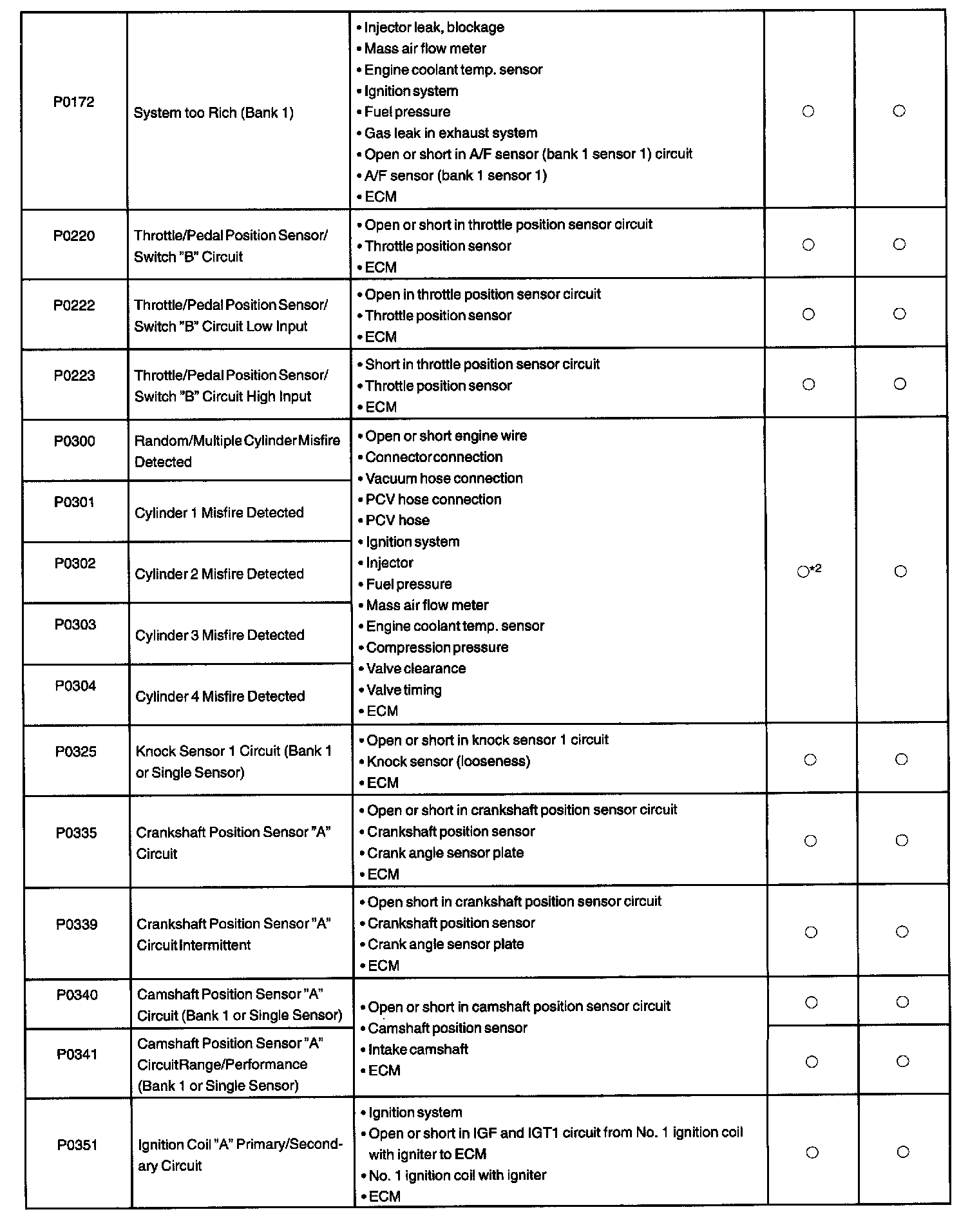

DTC P0172 - P0351:

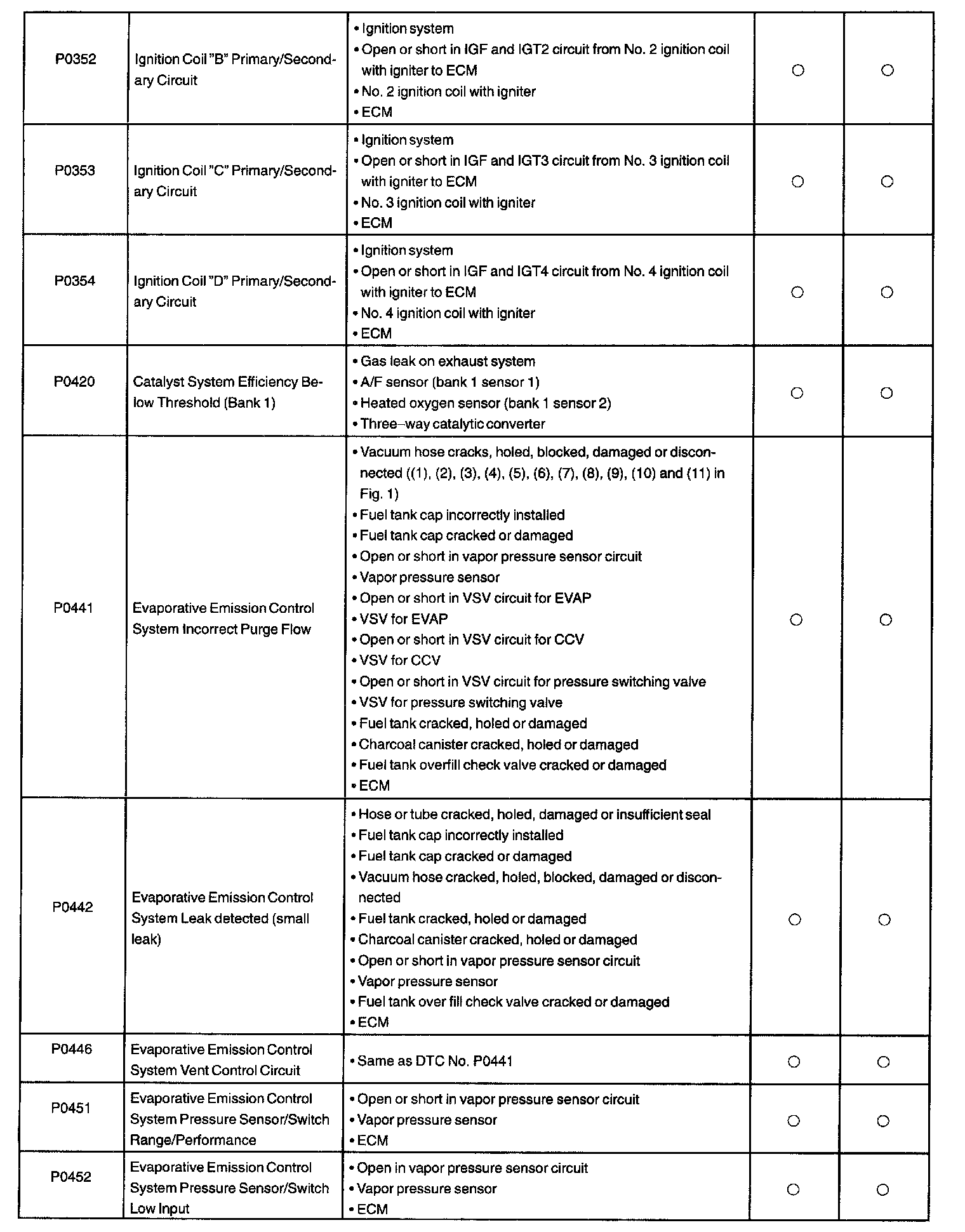

DTC P0352 - P0452:

DTC P0453 - P2112:

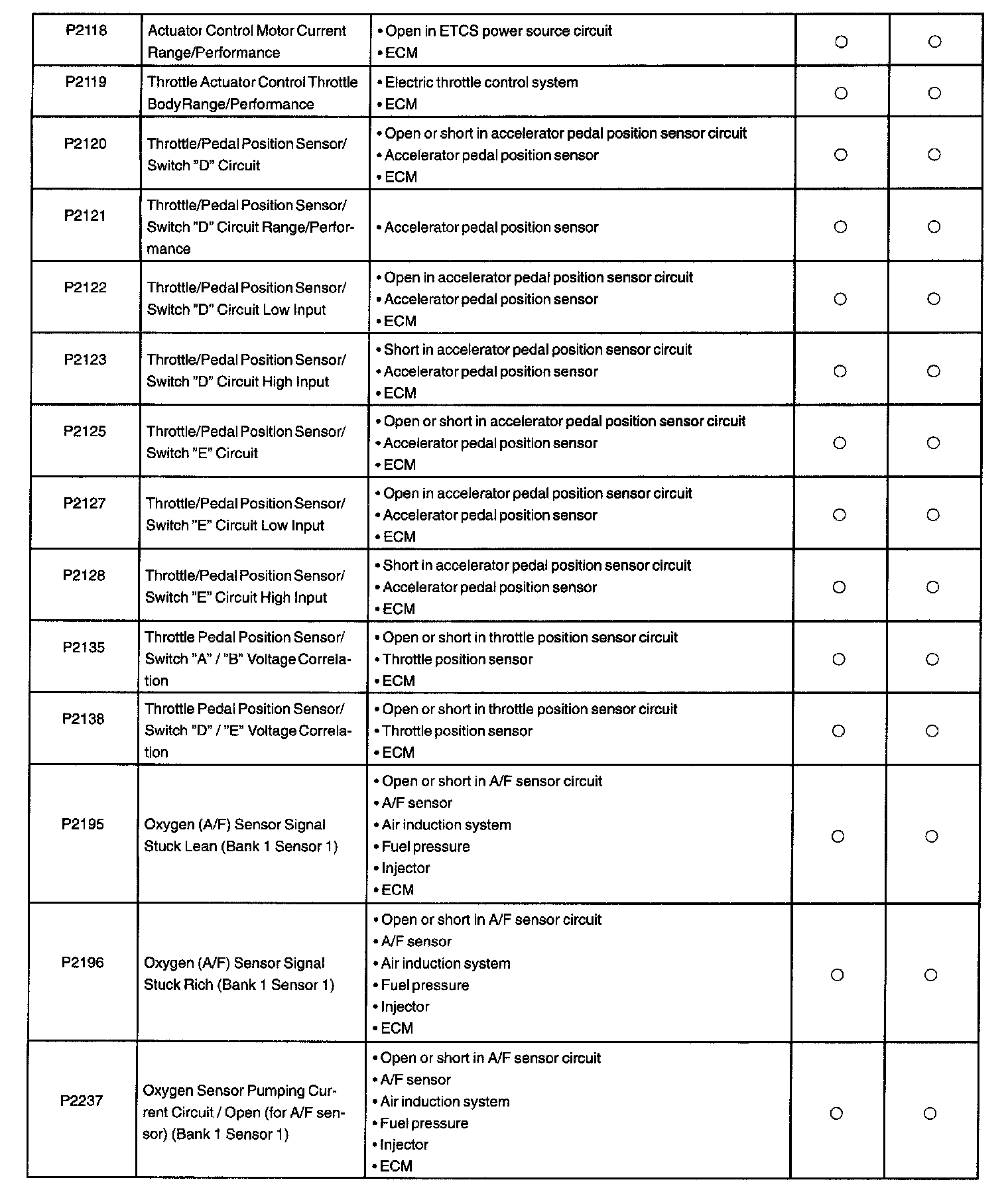

DTC P2118 - P2237:

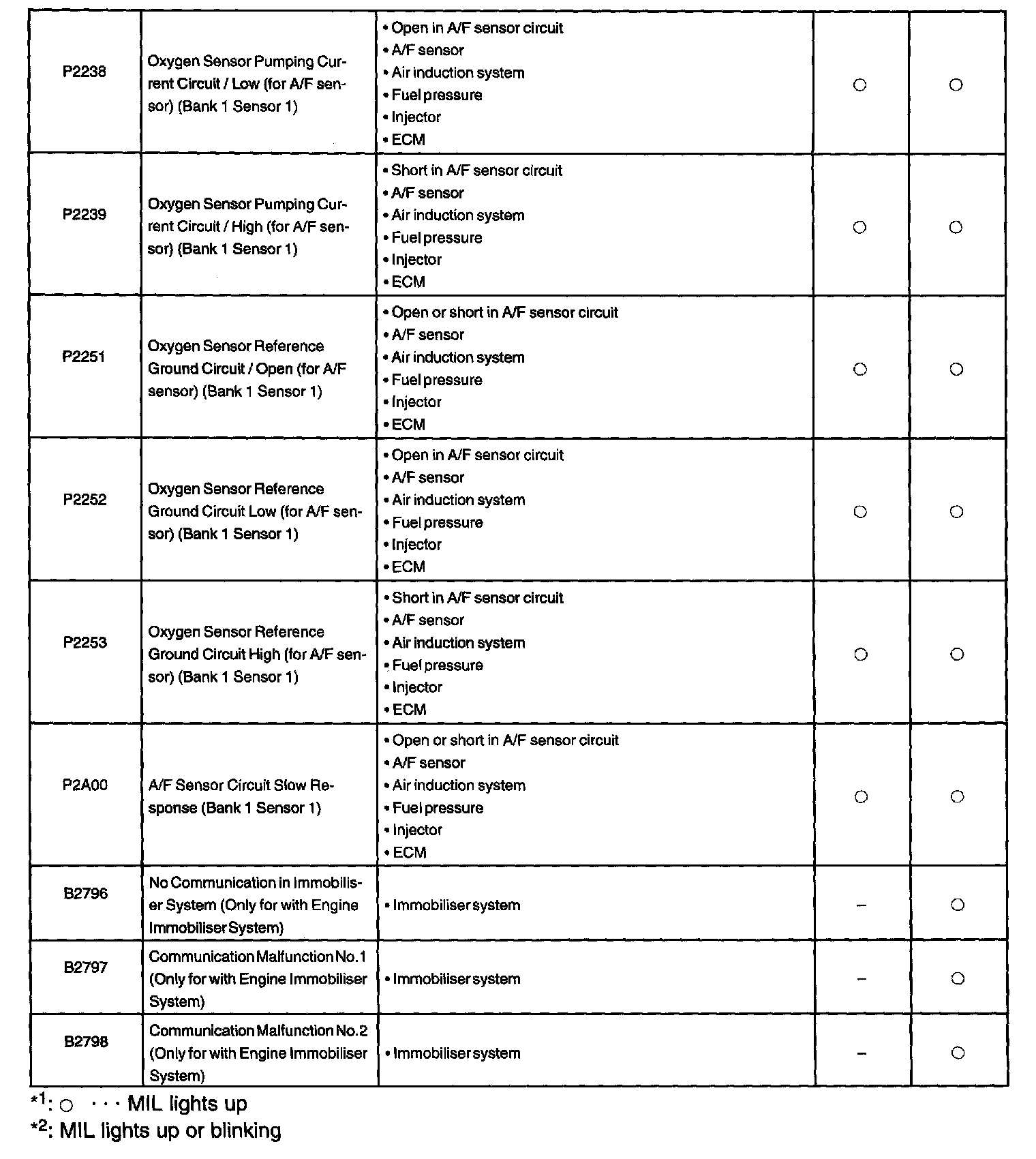

DTC P2238 - B2798:

HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in the check mode, check the circuit for the codes listed in the table. For details of each code, refer to the respective "DTC No." under "Trouble Code Diagnostic Charts".
